Instrument Cluster
Electric Power Steering (EPS)
warning light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The electric powering steering
warning light illuminates for about 3
seconds and then goes off.

[Whenever there is a malfunction with
the electric power steering.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Master warning light
This warning light illuminates:
When there is a malfunction in operation
in any of the following systems:
- Forward Collision-Avoidance Assist
malfunction (if equipped)
- Forward Collision-Avoidance Assist
radar blocked (if equipped)
- Blind-Spot Collision Warning
malfunction (if equipped)
- Blind-Spot Collision Warning radar
blocked (if equipped)
- LED headlamp malfunction
(if equipped)
- High Beam Assist malfunction
(if equipped)
- Smart Cruise Control malfunction (if
equipped)
- Smart Cruise Control radar blocked (if
equipped)
- Tire Pressure Monitoring System
(TPMS) malfunction
To identify the details of the warning,
look at the LCD display.
Electronic Parking Brake
(EPB) warning light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The EPB warning light illuminates
for about 3 seconds and then goes
off.

[Whenever there is a malfunction with
EPB.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Information
The Electronic Parking Brake (EPB)
warning light may illuminate when
the Electronic Stability Control (ESC)
indicator light comes on to indicate that
ESC is not working properly. This does
not indicate malfunction of EPB.

4-19
04

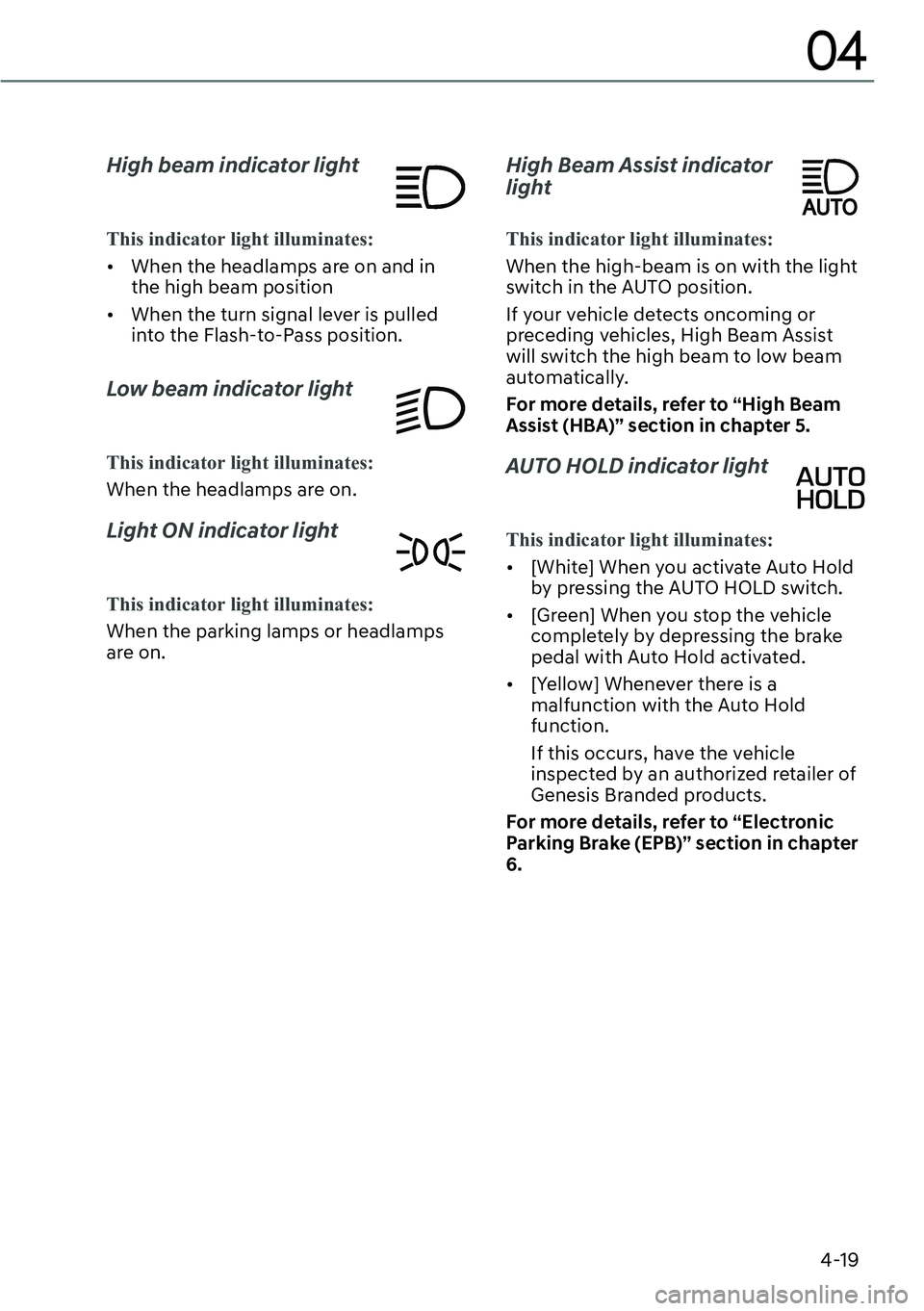

High beam indicator light
This indicator light illuminates:

[When the headlamps are on and in
the high beam position

[When the turn signal lever is pulled
into the Flash-to-Pass position.
Low beam indicator light
This indicator light illuminates:
When the headlamps are on.
Light ON indicator light
This indicator light illuminates:
When the parking lamps or headlamps
are on.
High Beam Assist indicator
light
This indicator light illuminates:
When the high-beam is on with the light
switch in the AUTO position.
If your vehicle detects oncoming or
preceding vehicles, High Beam Assist
will switch the high beam to low beam
automatically.
For more details, refer to “High Beam
Assist (HBA)” section in chapter 5.
AUTO HOLD indicator light
This indicator light illuminates:

[[White] When you activate Auto Hold
by pressing the AUTO HOLD switch.

[[Green] When you stop the vehicle
completely by depressing the brake
pedal with Auto Hold activated.

[[Yellow] Whenever there is a
malfunction with the Auto Hold
function.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
For more details, refer to “Electronic
Parking Brake (EPB)” section in chapter
6.

5-8
Convenience Features
Remotely opening and closing the
charging door
To open charging door remotely:
Press the Charging Door Open/Close
button (6) for more than one second,
or press the charging door open/close
button on the vehicle while carrying the
smart key.
To close the charging door:
Press the Charging Door Open/Close
button (6) for more than a second while
the door is open, or press the charging
door open/close button on the vehicle
while carrying the smart key when the
charging door is opened.
Remotely initiating electricity
charging
To remotely start charging the vehicle:
Press the charging door open/close
button in the smart key while the
charging connector is connected to the
vehicle.
For more details, refer to “Charging
Electric Vehicle” section in chapter 1.
Remotely starting vehicle (if
equipped)
You can start the vehicle using the
Remote Start button (5) on the smart key.
To start the vehicle remotely:
1. Press the door lock button on the
smart key within 10 m (32 feet) from
the vehicle.
2. Press the Remote Start button (5) for
more than 2 seconds within 4 seconds
after pressing the door lock button.
3. The vehicle will start.
4. To turn off the remote start function,
press the Remote Start button (5)
once.
Information

[The vehicle must be in P (Park) for the
remote start function to start.

[The vehicle turns off if you get in the
vehicle without a registered smart key.

[The vehicle turns off if you do not get
in the vehicle within 10 minutes after
remotely starting the vehicle.

[The Remote Start button (5) may not
operate if the smart key is not within 32
feet (10 m).

[The vehicle will not remotely start if the
vehicle hood or liftgate is opened.
Remotely moving vehicle forward or
backward (if equipped)
With the smart key, the driver can move
the vehicle forward or backward using
the Forward/Backward button (7) on the
smart key.
For more details, refer to “Remote
Smart Parking Assist (RSPA)” section in
chapter 7.

5-16
Convenience Features

[Controlling the vehicle with Digital
Key App
ORG3050010L
Press the icons to remotely control the
vehicle.
1. Lock Doors
2. Unlock Doors
3. Panic On
4. Panic Off
5. Remote Start On
6. Remote Start Off
7. Open/Close Liftgate
8. Remote Parking
For details on how to use Remote
Parking, see "Remote Smart Parking
Assist (RSPA)" section in chapter 7.
The icon will be highlighted or an alarm
and vibration will also be provided when
the selected icon function is being
performed.
After the Digital Key App and vehicle are
connected, if Digital Key App remote
control is not used over 5 minutes, the
connection between the app and vehicle
will disconnect automatically.
Note that you cannot lock your vehicle
using Genesis Digital Key APP if any of
the following occurs:
- The Start/Stop button is in the ACC or
ON position
- Door(s) is open
[Remotely starting vehicle with the
Digital Key App
1. Press the Door Lock button in Genesis
Digital Key App.
2. Press the Remote Start On icon within
4 seconds.
3. The hazard warning lights will blink
and the vehicle will start.
- Unless the driver puts the registered
digital key (smart phone) on the in-
vehicle authentication pad (wireless
charging pad) when the Remote
Start function is on, the vehicle will
turn off.
- If the driver does not get in the
vehicle within 10 minutes after the
vehicle is remotely started, the
vehicle will turn off.
CAUTION

[If the vehicle windows are tinted
with a film containing metallic
substances, it may cause poor
Bluetooth connection and poor
performance of the Digital Key App.

[If multiple users use the digital key
at the same time, the functions of
the Digital Key App may not work
properly. Only the necessary user
should operate the Digital Key App
remote control.

[When using the Digital Key App
remote control, the driver (the
remote control user) should leave
the vehicle after checking that the
doors are locked. When the doors are
locked, the chime will sound and the
hazard warning lights will blink once.

[The remote functions of the Digital
Key App enable the vehicle to be
controlled when the user is within
operating range. If the digital key
is out of the operating range, the
remote control function may not
operate properly.

6
6. Driving Your Vehicle
Before Driving ................................................................................................... 6-3Before Entering the Vehicle .........................................................................................6-3
Before Starting .............................................................................................................6-3
Start/Stop Button .............................................................................................. 6-4Start/Stop Button Positions .........................................................................................6-5
Starting the Vehicle ..................................................................................................... 6-6
Turning Off the Vehicle ................................................................................................ 6-7
Remote Start ................................................................................................................ 6-8
Reduction Gear ................................................................................................. 6-9Reduction Gear Operation .......................................................................................... 6-9
Rotate the Shift Dial Manually in Case of Emergency ............................................. 6-10
LCD Display Messages (cluster) ................................................................................ 6-15
Good Driving Practices ...............................................................................................6-17
Regenerative Braking System .........................................................................6-19One Pedal Driving...................................................................................................... 6-20
Limitations of One Pedal Driving .............................................................................. 6-21
i-Pedal ......................................................................................................................... 6-22
Limitations of i-Pedal ................................................................................................. 6-22
Smart Recuperation System .......................................................................... 6-23Smart Recuperation System Setting ......................................................................... 6-23
To Activate Smart Recuperation System .................................................................. 6-23
Ready to Operate .......................................................................................................6-24
How to Operate .......................................................................................................... 6-25
Smart Recuperation System will be Temporarily Cancelled when: ........................ 6-25
To resume Smart Recuperation System ................................................................... 6-25
Vehicle-to-vehicle Distance Recognition Sensor (Front radar) ..............................6-26
System Malfunction ................................................................................................... 6-27
Limitations of the System .......................................................................................... 6-27
Braking System ............................................................................................... 6-30Power-assist Brakes .................................................................................................. 6-30
Disc Brakes Wear Indicator........................................................................................ 6-31
High Performance Brake............................................................................................ 6-31
Electronic Parking Brake (EPB) .................................................................................. 6-32
Auto Hold ................................................................................................................... 6-36
Anti-lock Brake System (ABS) ....................................................................................6-39
Electronic Stability Control (ESC) ............................................................................. 6-41
Vehicle Stability Management (VSM) ...................................................................... 6-44
Hill-Start Assist Control (HAC) .................................................................................. 6-45
Good Braking Practices ............................................................................................ 6-46
All Wheel Drive (AWD) ................................................................................... 6-47Emergency Precautions ............................................................................................ 6-49

6-4
Driving Your Vehicle
OJWEV061049
Whenever the front door is opened, the
Start/Stop button will illuminate and
will go off 30 seconds after the door is
closed.
WARNING
To turn the vehicle off in an emergency:
Press and hold the Start/Stop button
for more than two seconds OR Rapidly
press and release the Start/Stop button
three times (within three seconds).
If the vehicle is still moving, you can
restart the vehicle without depressing
the brake pedal by pressing the Start/
Stop button with the gear in the N
(Neutral) position.
WARNING

[NEVER press the Start/Stop button
while the vehicle is in motion except
in an emergency. This will result in
the vehicle turning off and loss of
power assist for the steering and
brake systems. This may lead to loss
of directional control and braking
function, which could cause an
accident.

[Before leaving the driver’s seat,
always make sure the gear is in the
P (Park) position, set the parking
brake, press the Start/Stop button
to the OFF position, and take the
Smart Key with you. Unexpected
vehicle movement may occur if these
precautions are not followed.

[NEVER reach through the steering
wheel for the Start/Stop button or
any other control while the vehicle
is in motion. The presence of your
hand or arm in this area may cause a
loss of vehicle control resulting in an
accident.
START/STOP BUTTON

6-35
06
Information

[A clicking sound may be heard while
operating or releasing the EPB. These
conditions are normal and indicate that
EPB is functioning properly.

[When leaving your keys with a parking
attendant or assistant, make sure to
inform him/her how to operate EPB.
OJWEV061007L
AUTO HOLD turning Off! Press brake
pedal
When the conversion from Auto Hold to
EPB is not working properly a warning
will sound and a message will appear.
OJWEV061044L
Parking brake automatically engaged
When EPB is applied while Auto Hold
is activated, a warning will sound and a
message will appear.
EPB malfunction
Electronic Parking Brake (EPB) warning
light illuminates if the Start/Stop button
is pressed to the ON position and goes
off in approximately 3 seconds if the
system is operating normally.
If the EPB warning light remains on,
comes on while driving, or does not
come on when the Start/Stop button is
pressed to the ON position, this indicates
that the EPB may have malfunctioned.
If this occurs, have the system checked
by an authorized retailer of Genesis
Branded products.
The EPB warning light may illuminate
when the ESC indicator comes on to
indicate that ESC is not working properly,
but it does not indicate a malfunction of
EPB.
NOTICE

[If the EPB warning light is still
on, have the system checked by
an authorized retailer of Genesis
Branded products.

[If the Parking Brake warning light
does not illuminate or blinks even
though the EPB switch was pulled
up, EPB may not be applied.

[If the Parking Brake warning light
blinks when the EPB warning light is
on, press the switch, and then pull it
up. Repeat this one more time. If the
EPB warning does not go off, have
the system checked by an authorized
retailer of Genesis Branded products.
