2023 GENESIS GV60 Owners Manual

1-20
Foreword / Starting your Electric vehicle
LCD display messages
ONE1Q011077L
V2L has ended. Battery level has reached
the set value
When the high voltage battery level
reaches the discharging limit set level,
the V2L will stop and the warning will
be displayed. If you want to use the V2L
continuously, make the discharging limit
set level lower than the present battery
level.
ONE1Q011078L
V2L stopped due to excessive power use
If you use an electrical appliance that
exceeds the maximum power output the
vehicle can supply, it will stop working
and display a warning message. Make
sure that the total power consumption of
your electrical appliance exceeds the V2L
maximum power output.
ONE1Q011079L
V2L conditions not met
If V2L is interrupted for any of the
following reasons, a warning message is
displayed.

[V2L connector switch off

[V2L connector overheating

[Opening the charging door while
using the V2L indoor outlet
Make sure there are no problems with
the V2L connector and the vehicle indoor
outlet.

1-21
01

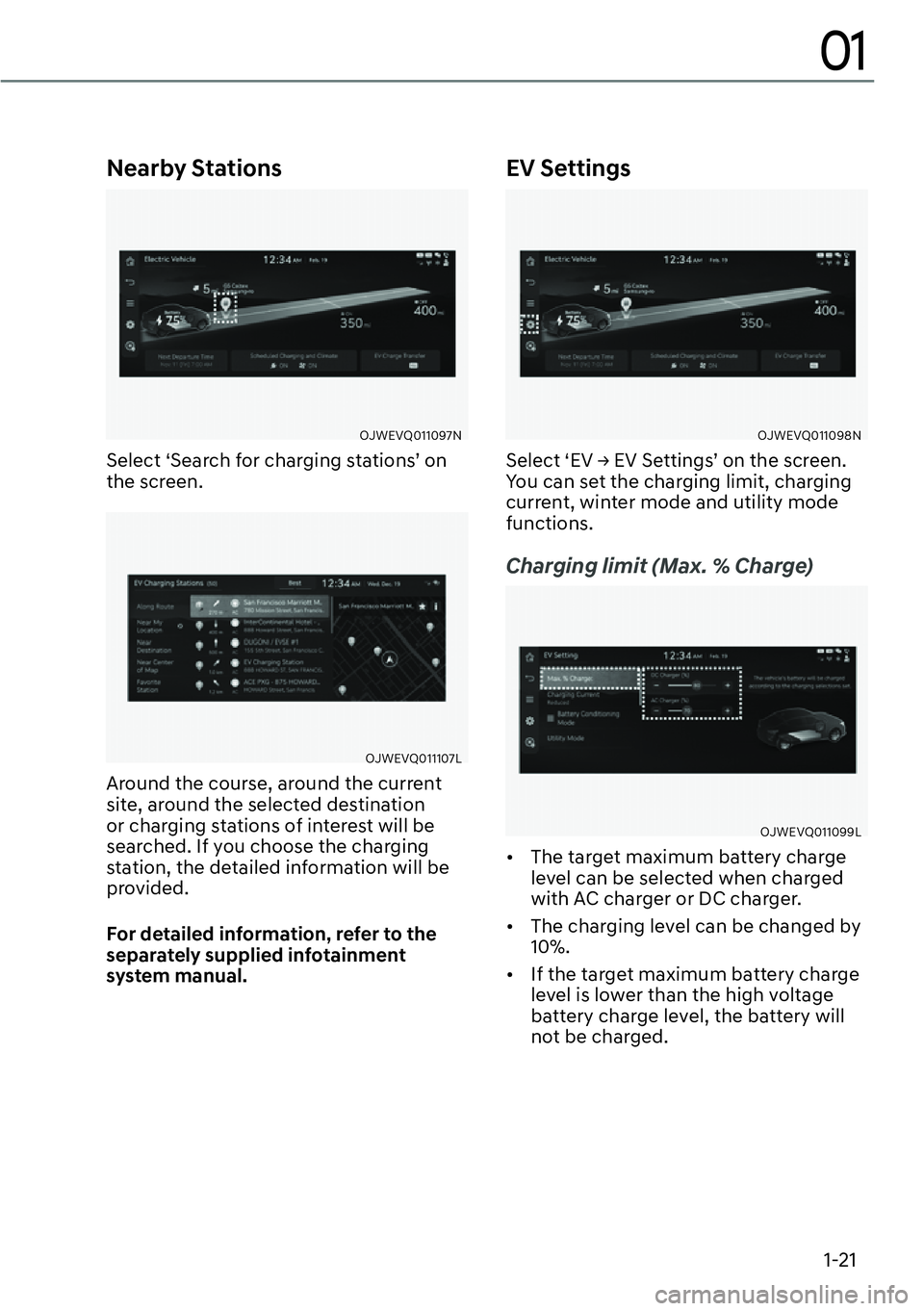

Nearby Stations
OJWEVQ011097N
Select ‘Search for charging stations’ on
the screen.
OJWEVQ011107L
Around the course, around the current
site, around the selected destination
or charging stations of interest will be
searched. If you choose the charging
station, the detailed information will be
provided.
For detailed information, refer to the
separately supplied infotainment
system manual.
EV Settings
OJWEVQ011098N
6HOHFW
S(9

1-22
Foreword / Starting your Electric vehicle
Charging current
OJWEVQ011100L

[You can adjust the charging
current for an AC charger. Select an
appropriate charging current.

[If the charging process does not
start or abruptly stops in the middle,
reselect another proper current and
re-try charging the vehicle.

[Charging time varies depending on
which charging current is selected.
Battery conditioning mode
OJWEVQ011101L
You can select or deselect the Battery
conditioning mode.
The Battery conditioning mode is
efficient during the winter time when the
high voltage battery temperature is low.
This mode is recommended to improve
driving and DC charging performances
during winter by raising the battery
temperature to an adequate level.
However, the driving distance may be
reduced as the energy is required to
increase battery temperature.
Also, if the battery temperature is low
during driving or when scheduled air
conditioner/heater is activated, this
mode is operated to improve driving
performance and charging performance.
However, the mode is not operated to
ensure driving distance when the battery
level is low.
Information
This mode is available for the vehicles
equipped with the battery heater.

1-23
01
Utility Mode
The high voltage battery is used instead
of the 12V auxiliary battery for operating
the convenient features of the vehicle.
When driving is not necessary such as
while camping or when stopping the
vehicle for a long time, it is possible to
use the electrical devices (audio, lights,
air conditioner, heater, etc.) for long
hours.
OJWEVQ011102L
System Setting and Activation
System setting
The driver can activate the Utility mode
function when the following conditions
are satisfied.

[The vehicle is in the ready
(
) mode and the gear is shifted
to P (Park).

[The EPB (Electronic Parking Brake)
does not have a malfunction.

[
S(96HWWLQJV

1-24
Foreword / Starting your Electric vehicle
Charging Information

[AC Charge: The electric vehicle is charged by plugging into a AC charger installed at
your home or a public charging station. (For further details, refer to the ‘AC Charge’.)

[DC Charge: You can charge at high speeds at public charging stations. Refer to the
respective charger’s display or manual instructions that is provided for each DC
charger type.
Battery performance and durability can deteriorate if the DC charger is used
constantly.
Use of DC charge should be minimized in order to help prolong high voltage battery
life. It is best to have a mix of AC and DC charging of your battery over time.

[Portable Charge: The Electric vehicle can be charged by using household electricity.
The electrical outlet at your home must comply with regulations and can safely
accommodate the Voltage / Current (Amps) / Power (Watts) ratings specified on the
portable charge.
Charging Time Information
Charging type Standard battery type
AC chargeTakes approx. 7 hours 10 minutes at room temperature when charged
From 10% to 100%
DC charge350 kW
chargerTakes about 18 minutes at room temperature when
charged from 10% to 80%. Can be charged to 100%.
50 kW
chargerTakes about 73 minutes at room temperature when
charged from 10% to 80%. Can be charged to 100%.
Portable chargeTakes approx. 68 hours at room temperature when charged From 10%
to 100%.
NOTICE
DC Charging speed will slow down after 80% SOC and take much longer time to
reach 100%.
Information
<002700480053004800510047004c0051004a00030052005100030057004b004800030046005200510047004c0057004c005200510003004400510047000300470058005500440045004c004f004c0057005c00030052004900030057004b00480003004b00
4c004a004b000300590052004f00570044004a004800030045[attery, charger
specifications, and ambient temperature, the time required for charging the high voltage
battery may vary.
CHARGE TYPES FOR ELECTRIC VEHICLE

1-25
01

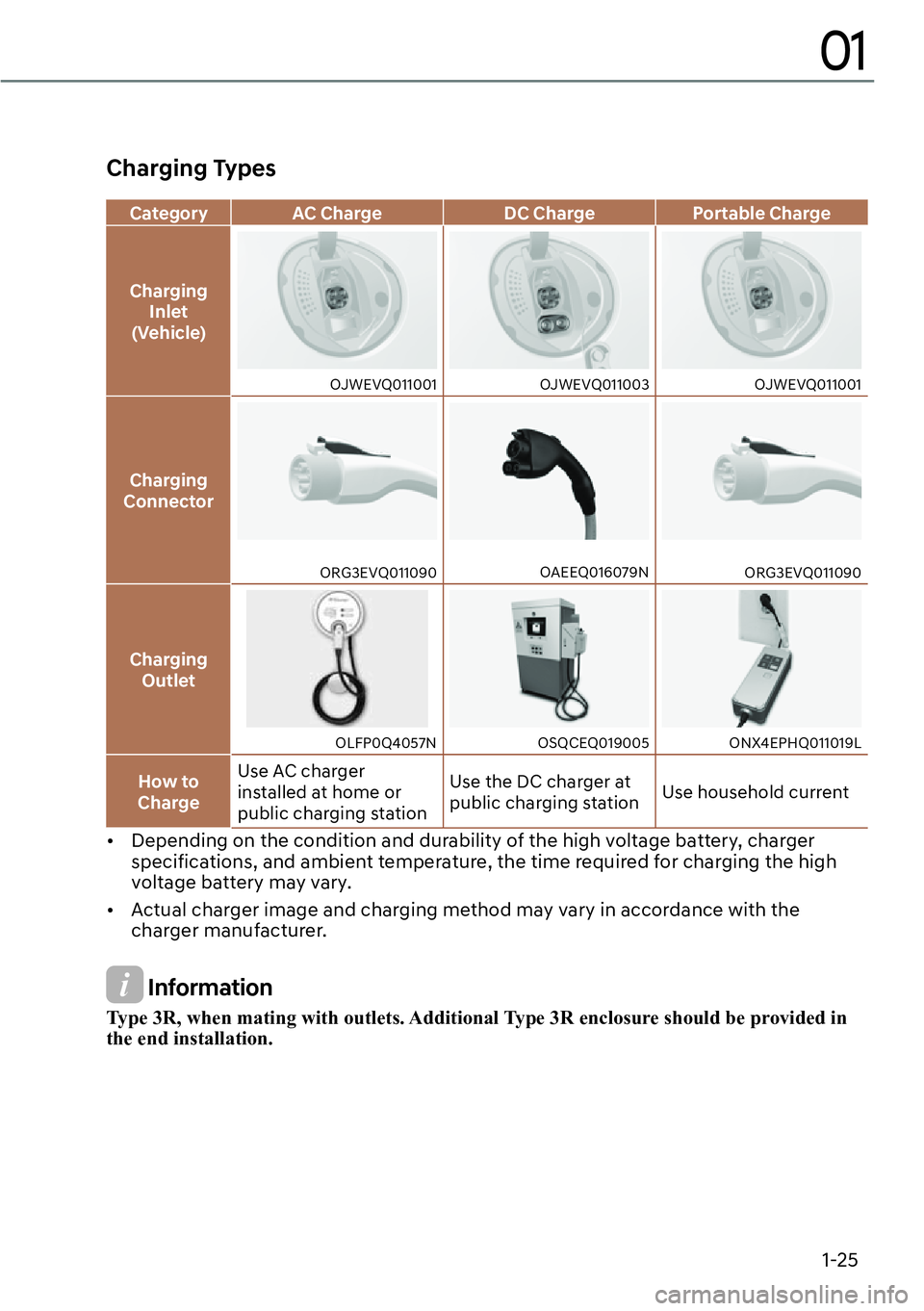

Charging Types
Category AC Charge DC Charge Portable Charge
Charging
Inlet
(Vehicle)
OJWEVQ011001OJWEVQ011003OJWEVQ011001
Charging
Connector
ORG3EVQ011090OAEEQ016079NORG3EVQ011090
Charging
Outlet
OLFP0Q4057NOSQCEQ019005ONX4EPHQ011019L
How to
ChargeUse AC charger
installed at home or
public charging stationUse the DC charger at
public charging stationUse household current

[Depending on the condition and durability of the high voltage battery, charger
specifications, and ambient temperature, the time required for charging the high
voltage battery may vary.

[Actual charger image and charging method may vary in accordance with the
charger manufacturer.
Information
Type 3R, when mating with outlets. Additional Type 3R enclosure should be provided in
the end installation.

1-26
Foreword / Starting your Electric vehicle

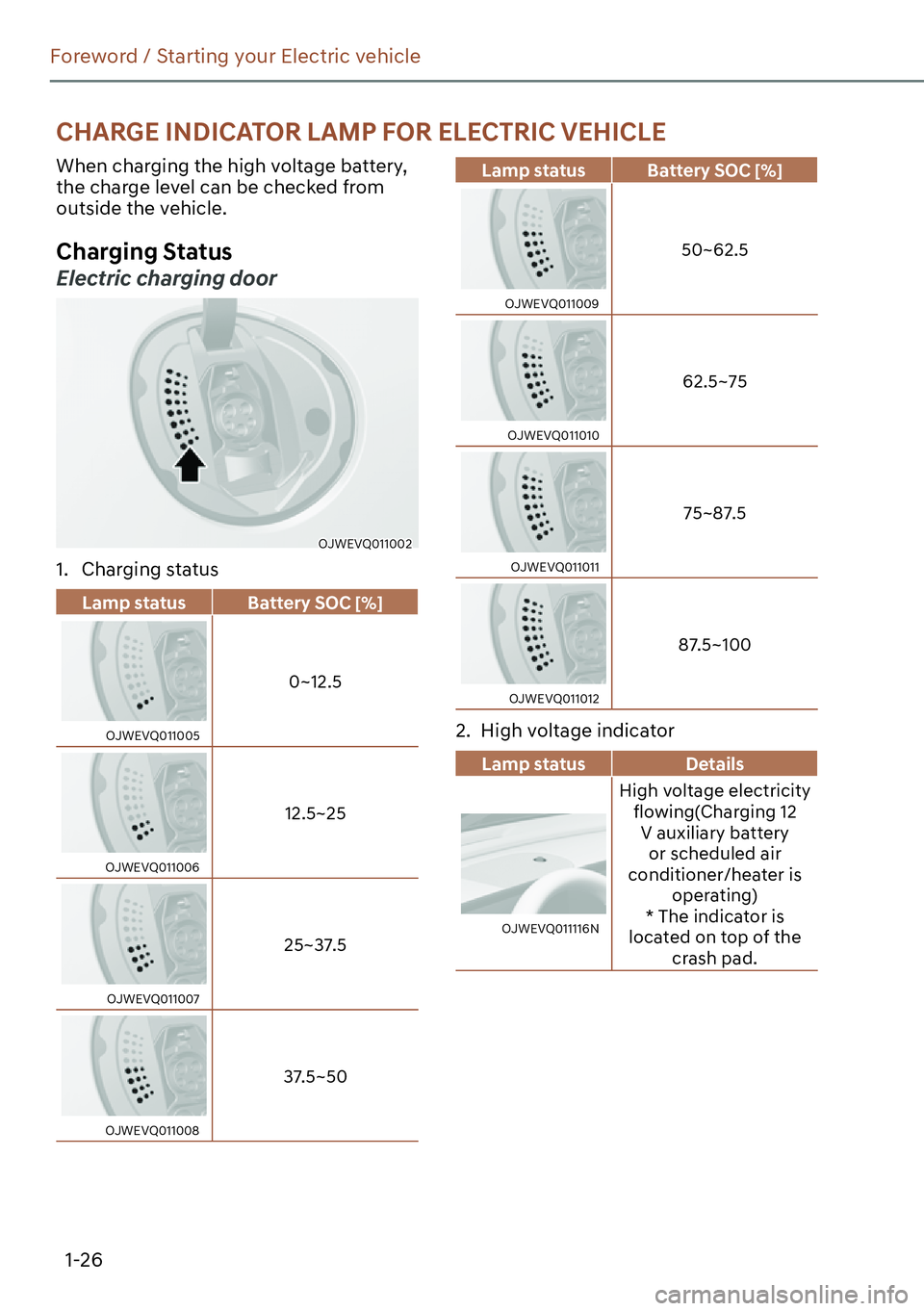

CHARGE INDICATOR LAMP FOR ELECTRIC VEHICLE
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
Charging Status
Electric charging door
OJWEVQ011002
1. Charging status
Lamp status Battery SOC [%]
OJWEVQ011005
0~12.5
OJWEVQ011006
12.5~25
OJWEVQ011007
25~37.5
OJWEVQ011008
37.5~50
Lamp status Battery SOC [%]
OJWEVQ011009
50~62.5
OJWEVQ011010
62.5~75
OJWEVQ011011
75~87.5
OJWEVQ011012
87.5~100
2. High voltage indicator
Lamp status Details
OJWEVQ011116N
High voltage electricity
flowing(Charging 12
V auxiliary battery
or scheduled air
conditioner/heater is
operating)
* The indicator is
located on top of the
crash pad.

1-27
01
Locking Charging Cable
OJWEVQ011103L
You may select when the charging
connector can be locked and unlocked in
the charging inlet.
6HOHFW
S(9
