2023 GENESIS GV60 Owners Manual

2-10
Vehicle Information
Items Tire size Wheel sizeInflation pressure
psi (kPa)Wheel bolt torque
[lbf·ft, N·m (kgf·m)]
Front Rear
Full size tire
235/55 R19 8.0J x 192WD36 (250) 38(260)
101~116, 137~157
(14~16)
AWD36 (250) 36 (250)
255/45 R20
8.5J x 2036 (250) 36 (250)
255/40 R21 8.5J x 2136 (250) 39(270)
NOTICE

[Ambient temperature affects the tire pressure (about 1 psi (7 kPa) for every
12 °F (7 °C) change). If colder temperatures are anticipated, it is permissible to
increase cold tire inflation pressure by up to 3 psi (20 kPa) over the specification.
If extreme temperature changes are expected, be sure to check and adjust tire
pressure accordingly.

[Tire inflation pressure decreases with higher elevation, and increases with lower
elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change).
Be sure to check and adjust tire pressure accordingly when driving through
changing elevations.

[Do not exceed the maximum inflation pressure, as found on the sidewall of the
tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
TIRES AND WHEELS

2-11
02

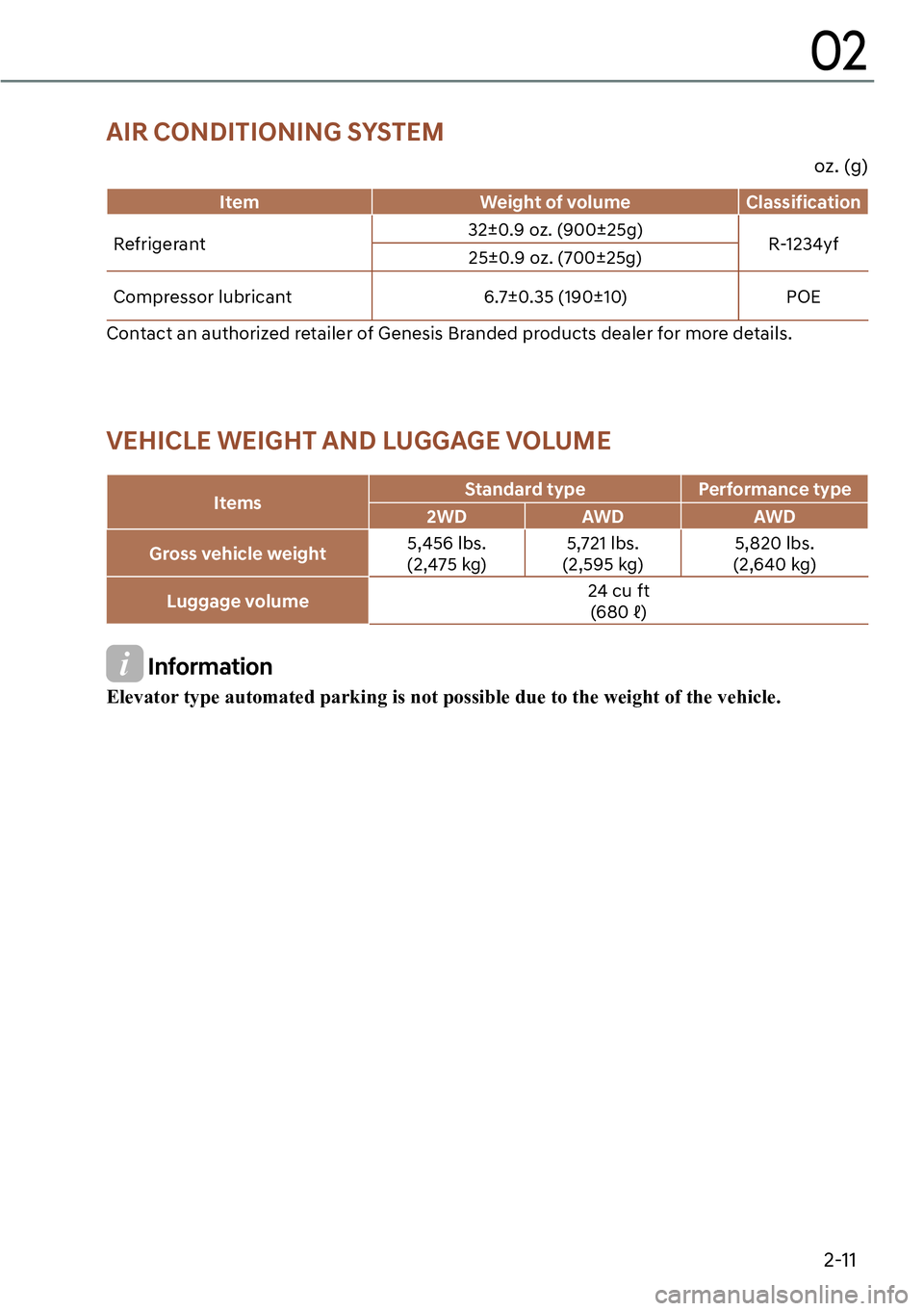

oz. (g)
Item Weight of volume Classification
Refrigerant32±0.9 oz. (900±25g)
R-1234yf
25±0.9 oz. (700±25g)
Compressor lubricant 6.7±0.35 (190±10) POE
Contact an authorized retailer of Genesis Branded products dealer for more details.
VEHICLE WEIGHT AND LUGGAGE VOLUME
ItemsStandard type Performance type
2WD AWD AWD
Gross vehicle weight
5,456 lbs.
(2,475 kg)5,721 lbs.
(2,595 kg)5,820 lbs.
(2,640 kg)
Luggage volume24 cu ft

b
Information
Elevator type automated parking is not possible due to the weight of the vehicle.
AIR CONDITIONING SYSTEM

2-12
Vehicle Information
To help achieve proper vehicle performance and durability, use only lubricants of the
proper quality.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Reduction gear fluid2WD Rear3.6~3.7 US qt.
a
b
HK ATF 65 SP4M-1
AWDFront3.4~3.5 US qt.
a
b
Rear3.6~3.7 US qt.
a
b
Coolant2WDStandard21.56 US qt.

b
Designated coolant
water for electric
vehicles
Performance19.82 US qt.

b
AWDStandard37.74 US qt.

b
Performance41.23 US qt.

b
Brake fluid As requiredSAE J1704 DOT-4 LV,
FMVSS 116 DOT-4, ISO
4925 CLASS-6
RECOMMENDED LUBRICANTS AND CAPACITIES

2-13
02
VEHICLE CERTIFICATION
„Frame number
OJWEV011023
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the floor
under glove box. To check the number,
open the cover.
„VIN label (if equipped)
OJWEV011024L
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
VEHICLE IDENTIFICATION
180%(5
í9,1
î
LABEL
OJWEV011022
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).

2-14
Vehicle Information

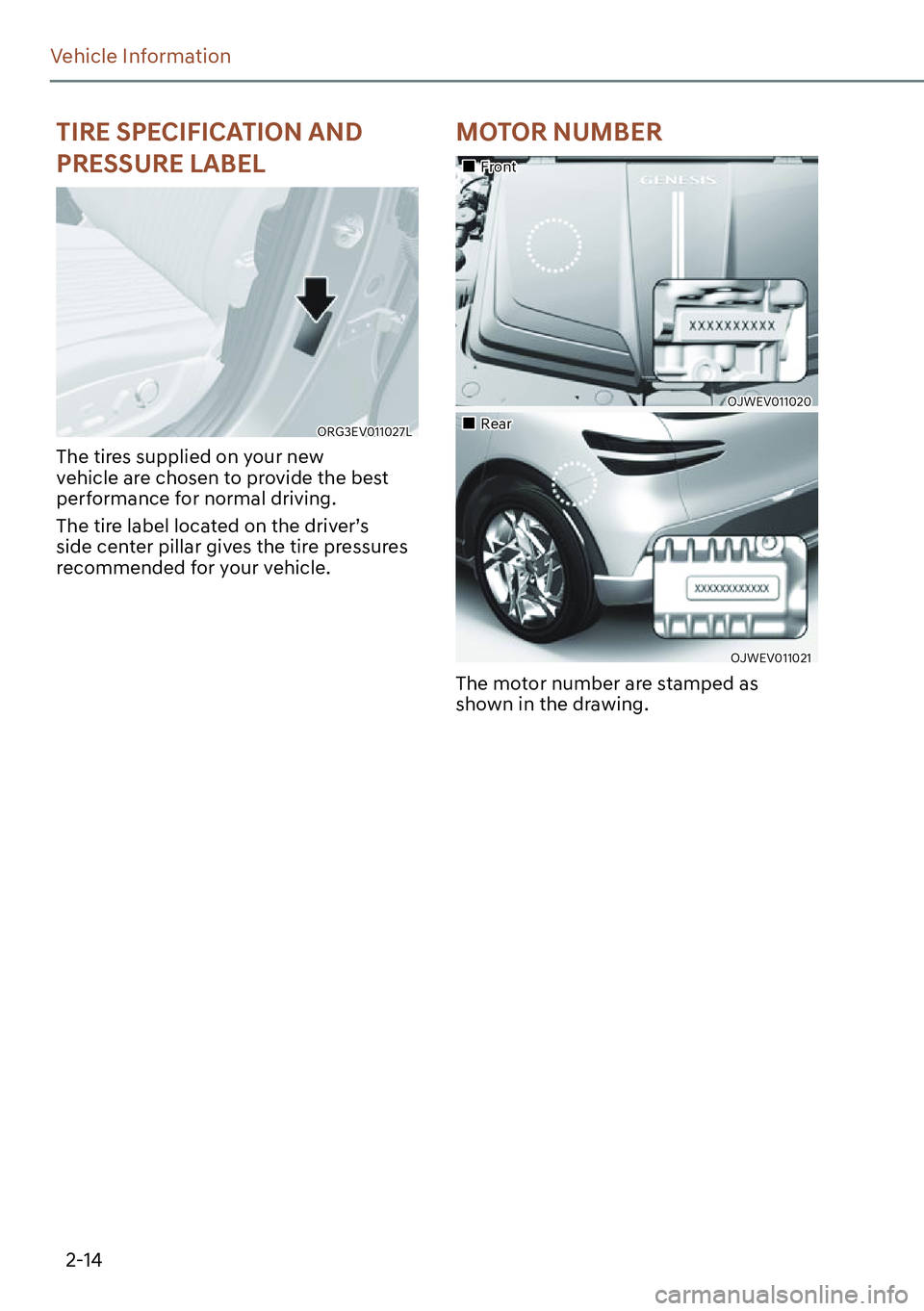

MOTOR NUMBER
ORG3EV011027L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
TIRE SPECIFICATION AND
PRESSURE LABEL
„Front
OJWEV011020
„Rear
OJWEV011021
The motor number are stamped as
shown in the drawing.

2-15
02
5()5,*(5$17/$%(/
í,)
ORG3EVQ011137L
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model (1), serial number (2),
supplier part number (3), lot number (4),
refrigerant (4) and refrigerant oil (5).
AIR CONDITIONER
COMPRESSOR LABEL
(48,33('

2-16
Vehicle Information
OPEN SOURCE SOFTWARE NOTICE
This vehicle contains software with open source licenses.
Open source software information including the source code, copyright notices and
referred license terms may be obtained on the website
https://www.genesis.com/worldwide/en/opensource.html
Hyundai Motor Company will provide the open source code to you in storage medium
such as CD-ROM for minimum charge covering the cost of performing source
distribution upon email request to [email protected] within a period of 3 years
from the date of product purchase.
CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the U.S. Department
of Transportation. Your retailer of Genesis Branded products will help answer any
questions you may have as you read this information.
Genesis Branded Vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in this
Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.

2-17
02

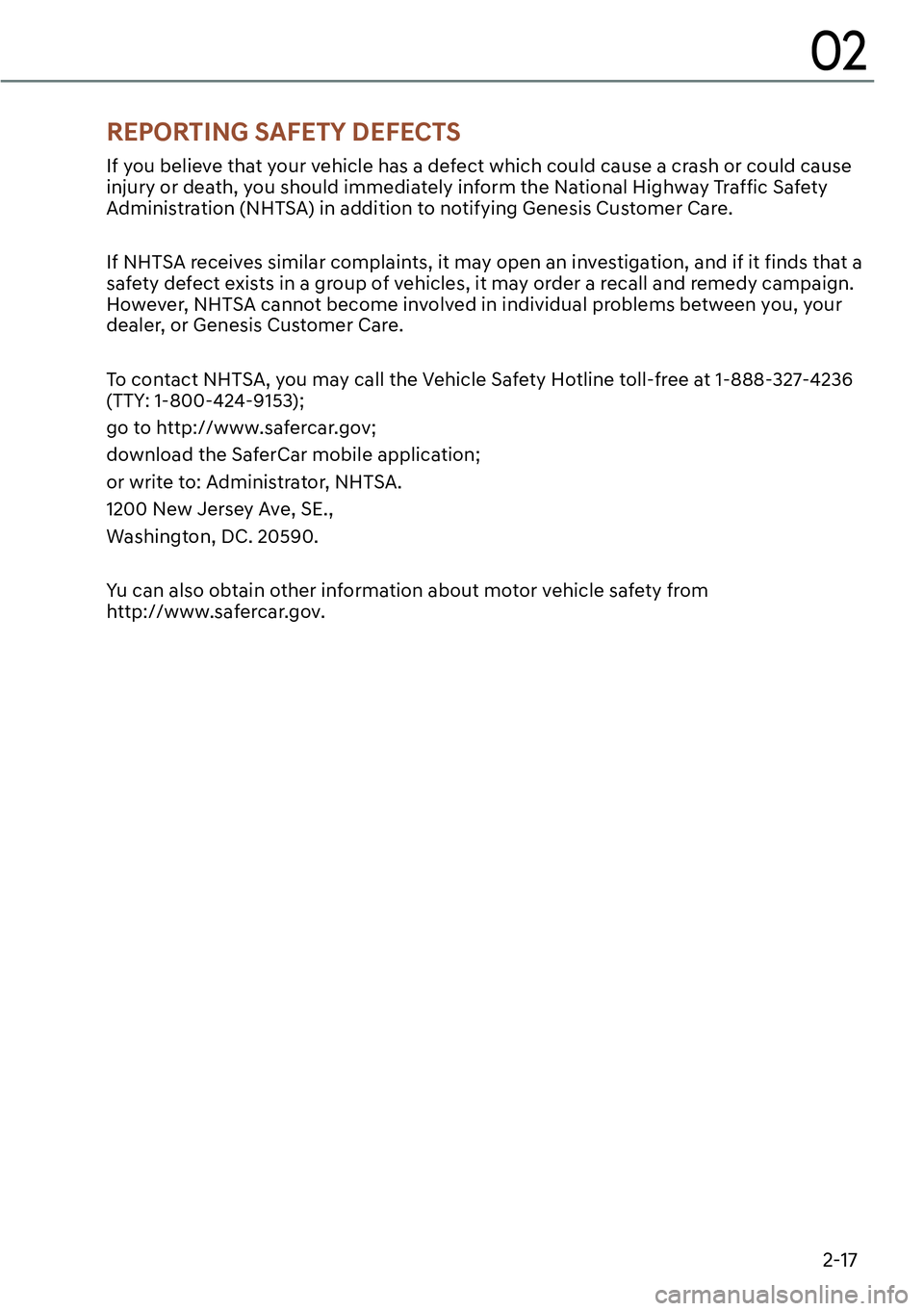

If you believe that your vehicle has a defect which could cause a crash or could cause
injury or death, you should immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying Genesis Customer Care.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your
dealer, or Genesis Customer Care.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA.
1200 New Jersey Ave, SE.,
Washington, DC. 20590.
Yu can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
REPORTING SAFETY DEFECTS
