2023 GENESIS GV60 Owners Manual

6-51
06

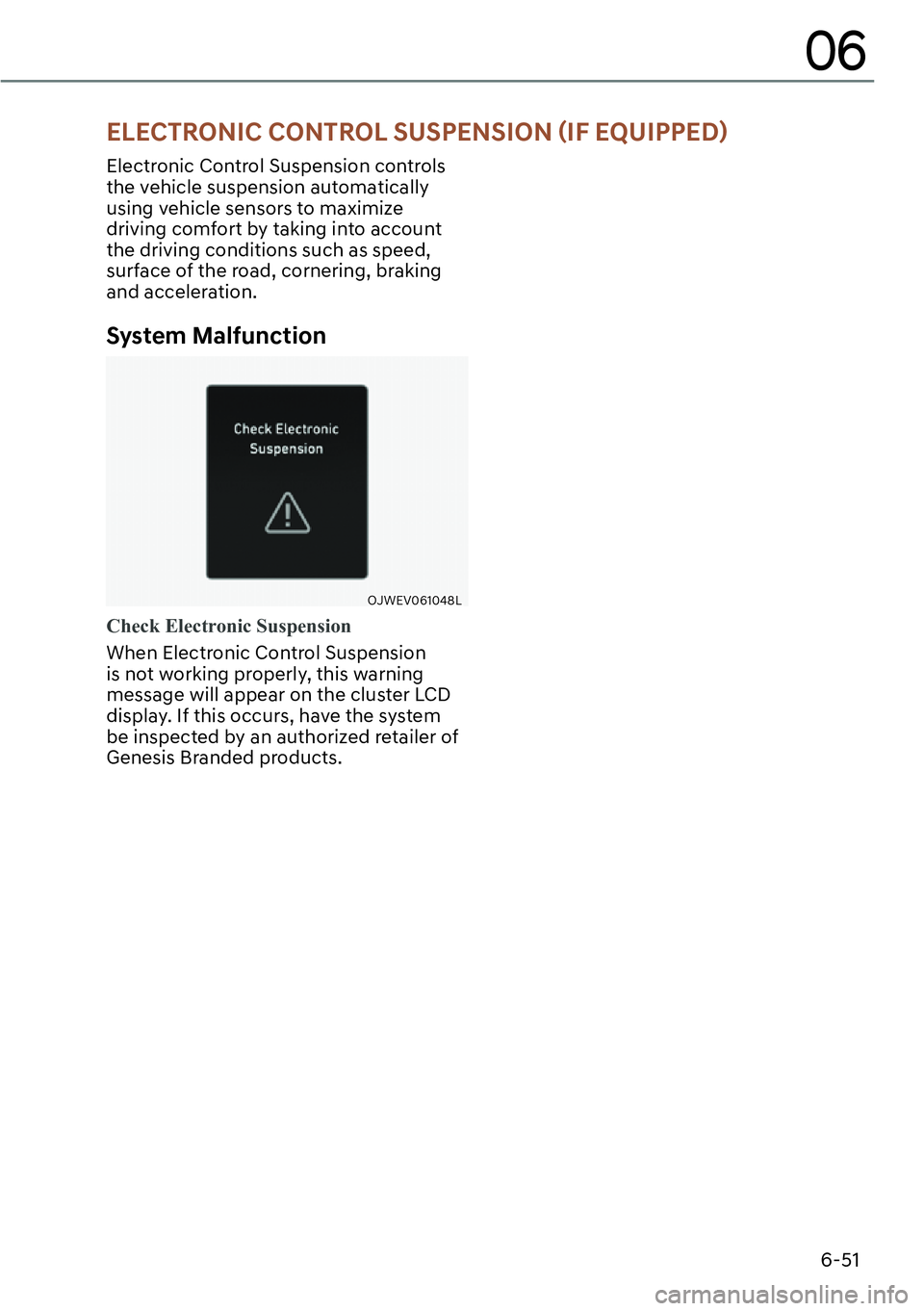

(/(&7521,&&21752/6863(16,21

6-52
Driving Your Vehicle

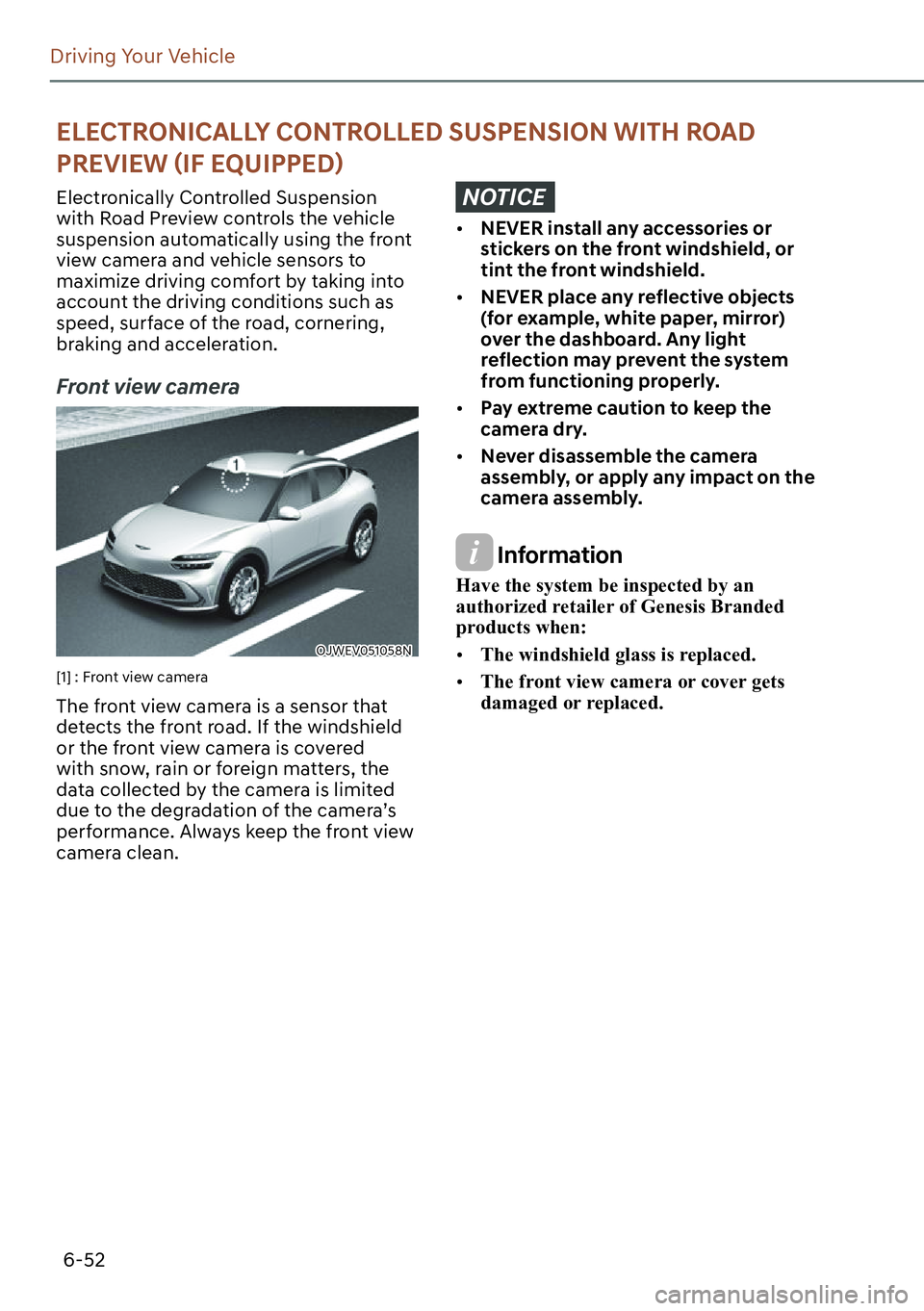

ELECTRONICALLY CONTROLLED SUSPENSION WITH ROAD
35(9,(:

6-53
06
System Malfunction
OIK060073L
Check Electronic Suspension
When Electronically Controlled
Suspension with Road Preview is not
working properly, this warning message
will appear on the cluster LCD display.
If this occurs, have the system be
inspected by an authorized retailer of
Genesis Branded products.
NOTICE
If the battery level is high or low,
Electronically Controlled Suspension
with Road Preview may not work
temporarily to protect the system. If this
occurs, ‘Check Electronic Suspension’
warning message will appear.
Limitations of the System
Electronically Controlled Suspension
with Road Preview always operates
while driving according to the vehicle’s
movement, and the preview function
starts to work when the front view
camera detects road conditions such as
speed bumps. Therefore, the preview
function is limited when there is an
extreme condition that the front view
camera may not work normally. In this
case, the electronic control suspension
function operates without the preview
function in accordance with vehicle
movement.

6-54
Driving Your Vehicle
Electronic Limited Slip Differential
controls the differential functions of the
wheels to help:
- Improve steering performance when
circling at high speed.
- Improve launching performance.
- Prevent slipping on rainy or snowy
roads due to dissimilar friction of the
left and right wheels.
WARNING
Never run the wheels with one of
wheels lifted on a jack. It is extremely
dangerous for a vehicle equipped with
Electronic Limited Slip Differential.
Drive Mode Selection
The characteristic of Electronic Limited
Slip Differential varies according to
which drive mode is selected by using
the DRIVE MODE or DRIVE/TERRAIN
switch.
Selected modeCharacteristic of
e-LSD
ECO NORMAL
COMFORT NORMAL
SPORT SPORT
SNOW SNOW
MY DRIVE NORMAL/SPORT
For more details, refer to "Drive Mode
Integrated Control System“ section in
this chapter.
Warning Messages
Electronic Limited Slip Differential
temporarily disabled due to
overheating
Overheating of related parts will
temporarily disable Electronic Limited
Slip Differential. Wait until the vehicle
cools down.
Limited-slip differential disabled.
Tire diameter mismatch / Tyre size
mismatch. Limited-slip differential
disabled. Check tyre sizes
If your vehicle is equipped with different
tires (size, type, etc.), the message will
appear. To use Electronic Limited Slip
Differential, equip the vehicle with the
same tires.
Check Limited Slip Differential
When Electronic Limited Slip Differential
is not working properly, this warning
message will appear on the cluster LCD
display. If this occurs, have the system
be inspected by an authorized retailer of
Genesis Branded products.
(/(&7521,&/,0,7('6/,3',))(5(17,$/

6-55
06
Drive Mode
OJWEV061036
Drive mode may be selected according
to the driver's preference or road
condition.
The mode changes whenever the driver
pushes the DRIVE mode button.
COMFORT mode
COMFORT mode is a driving with auto
changing the driving mode (2WD/AWD)
on road condition.
ECO mode
ECO mode is a driving mode that helps
improve energy efficiency by limiting
maximum vehicle power (torque),
providing smooth vehicle response and
driving the vehicle with the rear wheels
(2WD).
Energy efficiency varies according to the
driver's driving habit and road condition.

[When ECO mode is selected, the
ECO indicator will illuminate on the
instrument cluster and theme of the
instrument cluster will change.
When ECO mode is activated:

[All wheel drive and sharp acceleration
and deceleration is limited

[The vehicle will automatically convert
between 2WD to AWD when:
- i-Pedal or One Pedal Driving is
operating
- The temperature is low
- Driving on a slope or a slippery road
DRIVE MODE INTEGRATED CONTROL SYSTEM

6-56
Driving Your Vehicle
SPORT mode
SPORT mode is a driving mode that
provides sporty but firm riding by making
the motor response more quickly,
making the steering wheel heavier and
driving the vehicle with all four wheels
(AWD).
In SPORT mode, the energy efficiency
may decrease.

[When SPORT mode is selected, the
SPORT indicator will illuminate on the
instrument cluster and theme of the
instrument cluster will change.

[Whenever the vehicle is restarted,
the drive mode will revert back to
COMFORT mode. If SPORT mode is
required, re-select SPORT mode.
SNOW mode
SNOW mode is a driving mode improving
driving performance by changing
the engagement status of the motor
according to the situation required. Auto
changing the driving mode(2WD/AWD)
helps improve driving stability.

[Press and hold the drive mode button
to select SNOW mode.

[When SNOW mode is selected, the
SNOW indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.

[When SNOW mode is activated, the
driving power is distributed to four
wheels automatically, increasing the
stability of the vehicle.
NOTICE

[Depress the accelerator pedal softly
on the snow and the ice.

[Keep the distance from the vehicle in
the front.

[Prevent rapid acceleration,
deceleration and steering control.
Abrupt driving on the snow may
cause the accident.

6-57
06
Drive Modes Characteristic
The characteristic of each components varies according to which drive mode is
selected.
Drive mode SNOW COMFORT ECO SPORTMY DRIVE
MODE
CharacteristicsSnow
drivingCOMFORT
driving modeHigh electric
energy
efficiency
modeSporty
driving modeSelected
Button
activationPress more
than1 sec.Press Press PressPress more
than 1 sec.
Indicator on
the clusterSNOW - ECO SPORT MY
Climate
system controlCOMFORT COMFORTECO
(ECO/
COMFORT)
*1COMFORT COMFORT
Speed Limit - - - - -
Regenerative
braking level0~1 0~3
BRAKE MODE COMFORTCOMFORT/
SPORT
*1COMFORTCOMFORT/
SPORT *1COMFORT/
SPORT *1
*1 :
It is possible to set the driving condition for each drive mode, at the drive mode setting in
Infotainment system, For more information, refer to the separately supplied manual.
ÃYou can reset CUSTOM mode from the Settings menu in the infotainment system
screen.
-6HWXS

6-58
Driving Your Vehicle

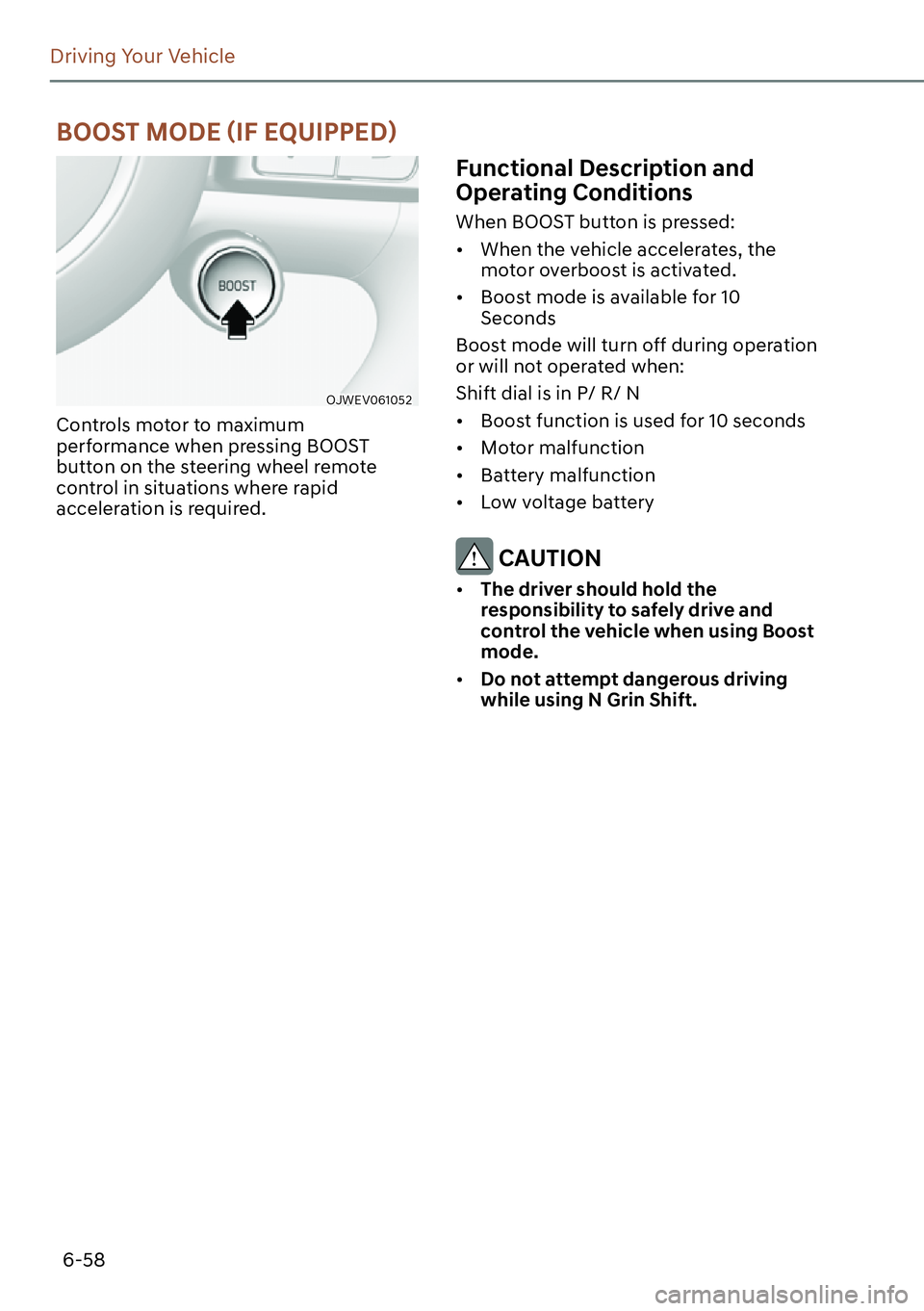

%226702'(
