2023 GENESIS GV60 Owners Manual

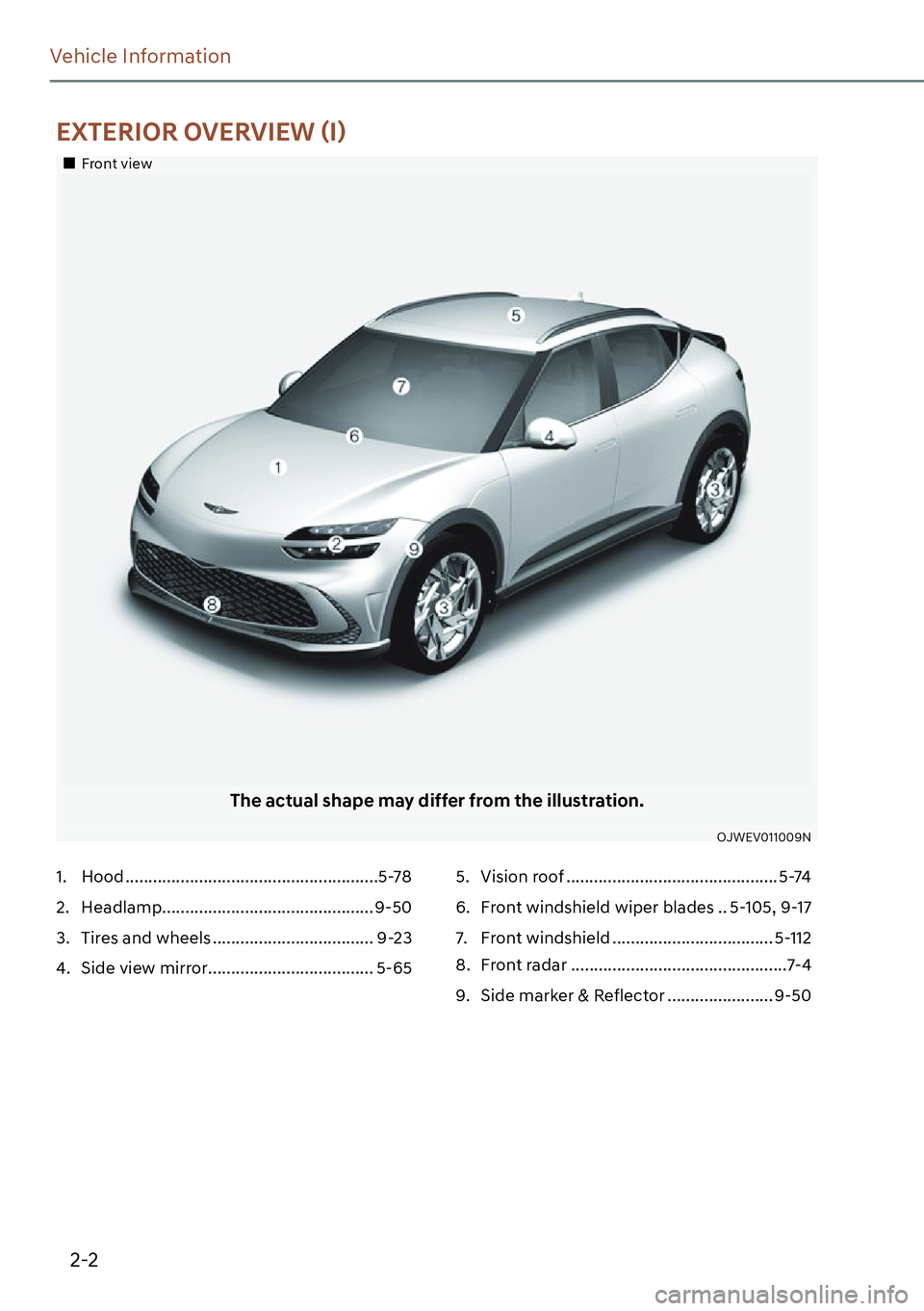

2-2
Vehicle Information
(;7(5,2529(59,(:

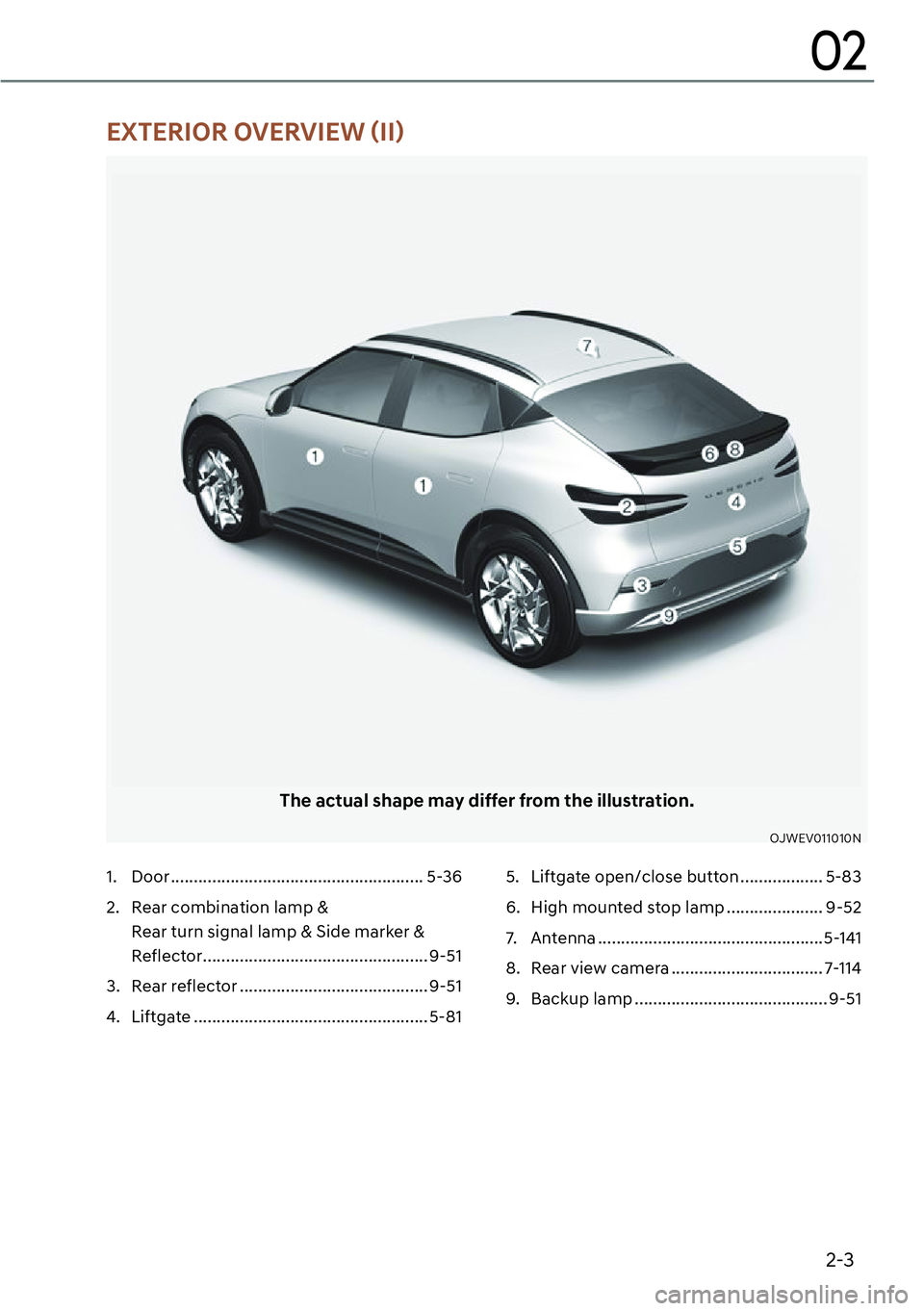

2-3
02
The actual shape may differ from the illustration.
OJWEV011010N
(;7(5,2529(59,(:

2-4
Vehicle Information
The actual shape may differ from the illustration.
OJWEV011003
1. Inside door handle .................................5-37
2. Integrated memory system ................. 5-48
3. Side view mirror control switch ........... 5-66
4. Side view mirror folding button........... 5-66
5. Central door lock switch ...................... 5-38
6. Power window switches ...................... 5-70
7. Power window lock button / ................ 5-72
Electronic child safety lock button ....... 5-72
8. Instrument panel illumination control
switch ...................................................... 4-49. ESC (Electronic Stability Control) OFF
button .....................................................6-41
10. Liftgate open/close button .................. 5-83
11. EPB (Electronic Parking Brake)
switch .................................................... 6-32
12. Hood release lever .................................5-78
13. Steering wheel tilt/telescopic switch.. 5-53
14. Steering wheel ...................................... 5-52
15. Seat .......................................................... 3-3
INTERIOR OVERVIEW

2-5
02
1. Instrument cluster .................................. 4-3
2. Horn ....................................................... 5-54
3. Driver’s front air bag ............................. 3-49
4. Start/Stop button ................................... 6-4
5. Infotainment system ............................5-141
6. Hazard warning flasher button .............. 8-2
7. Automatic climate control system .....5-108
8. Passenger’s front air bag ..................... 3-49
9. Glove box ............................................. 5-129
10. Wireless charging system indicator ... 5-134
11. Wireless charging system pad ............ 5-134
12. USB port ................................................5-14113. USB charger ......................................... 5-133
14. Power outlet ......................................... 5-132
15. Cup holder ........................................... 5-130
16. Rotary shifter (Rotary gear shift dial) .... 6-9
17. Fingerprint authentication system ...... 5-30
18. Heated steering wheel button ............. 5-55
19. Auto Hold button .................................. 6-37
20. Parking/View button ............................ 7-116
21. Parking Safety button .......................... 7-140
22. Seat Warmer/Air ventilation seat ... 3-24, 3-26
23. Rear seat USB charger ........................ 5-133
The actual shape may differ from the illustration.
OJWEV011004L

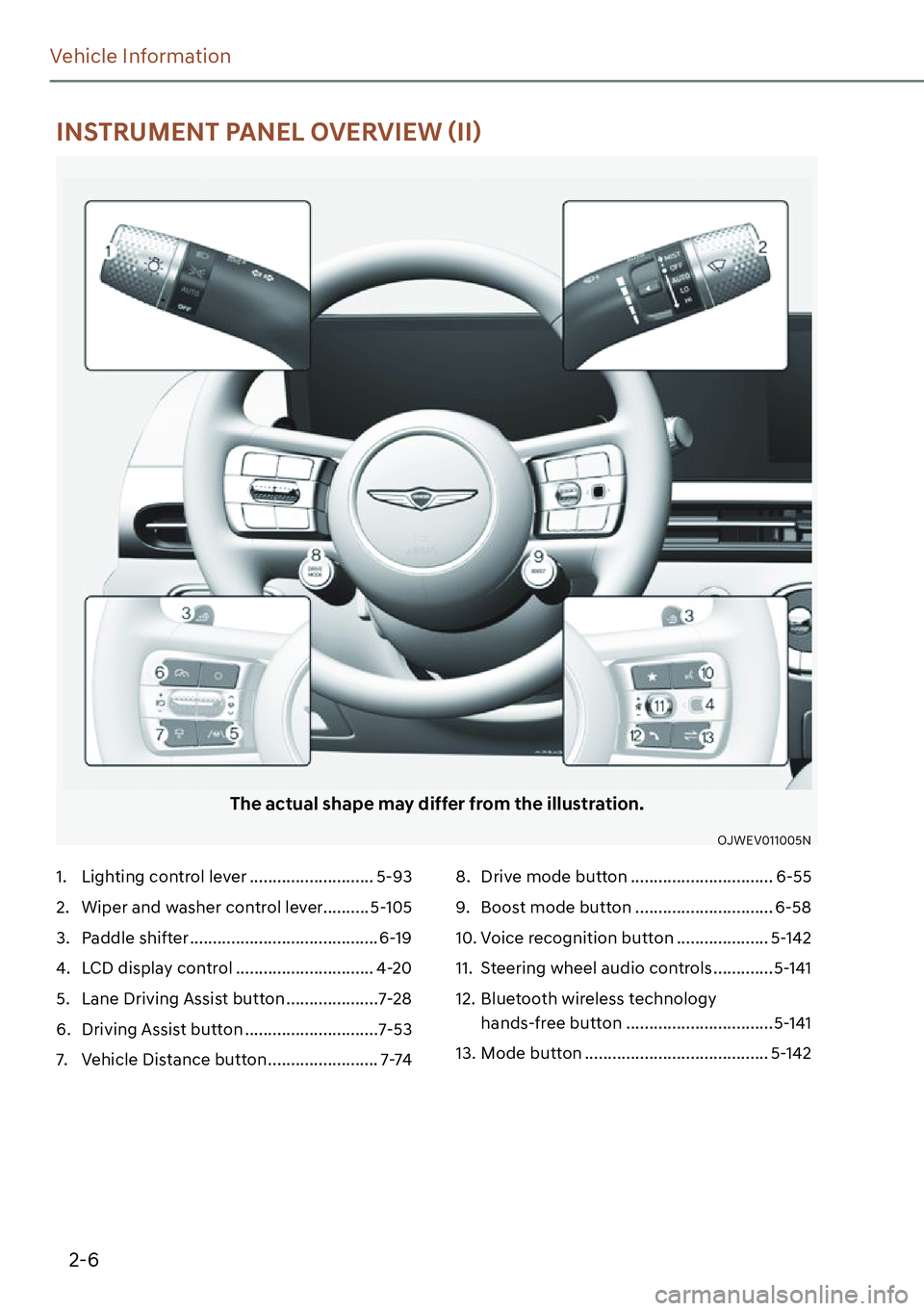

,167580(173$1(/29(59,(:

2-6
Vehicle Information
,167580(173$1(/29(59,(:

2-7
02
The actual motor compartment in the vehicle may differ from the illustration.
OJWEV091001
1. Coolant reservoir ................................... 9-12
2. Brake fluid reservoir .............................. 9-14
3. Windshield washer fluid reservoir ........ 9-15
4. Fuse box ................................................ 9-365. Cabin air filter ........................................ 9-16
6. Front trunk .............................................5-79
7. Battery .................................................... 9-19
MOTOR COMPARTMENT

2-8
Vehicle Information
Items in (mm)
Overall length 177.8 (4,515)
Overall width 74.4 (1,890)
Overall height 62.4(1,585)*
1/62.6(1,590)*2
TreadTire size Front Rear
235/55 R19 64.3 (1,633) 64.6 (1,642)
255/45 R20
64.1 (1,628) 64.4 (1,637)
255/40 R21
Wheelbase 114.2 (2,900)
*1 : with roof rack
*2 : with shark fin antenna
ELECTRIC VEHICLE SPECIFICATIONS
ItemsStandard typePerformance
type
2WD AWD AWD
Motor (Front/Rear)Max. output (kW) 168 234 320/360*3
Max. torqu (Nm) 350 605 700
Battery
(Lithium-ion)Capacity (kWh) 77.4 77.4 77.4
Power output (kW) 350 350 394
Voltage (V) 697 697 697
Charger (OBC) Max. output (kW) 10.9 10.9 10.9
OBC : On-Board Battery Chargers
*3 : if equipped with boost mode
DIMENSIONS

2-9
02
Light bulb Bulb type Wattage
FrontHeadlampLow LED LED
High LED LED
Turn signal lamp LED LED
Position lamp LED LED
Daytime Running Lamp (DRL) LED LED
Side marker LED LED
Puddle lamp LED LED
Side repeater lamp LED LED
RearStop lamp LED LED
Tail lamp LED LED
Turn signal lamp (Combined with rear
combination lamp)LED LED
Backup lamp LED LED
Side marker (Combined with rear
combination lamp)LED LED
License plate lamp LED LED
High mounted stop lamp LED LED
InteriorMap lamp LED LED
Personal lamp LED LED
Vanity mirror lamp LED LED
Glove box lamp LED LED
Mood lamp LED LED
Luggage compartment lamp LED LED
Front trunk lamp LED LED
BULB WATTAGE
