2023 GENESIS GV60 Owners Manual

7-123
07
6XUURXQG9LHZ0RQLWRU
operation
OJWEV071100
OJWEV071353N
Press the Parking/View button (1) to turn
on Surround View Monitor.
Press the button again to turn off the
function.
Front view
OJWEV071354NThe front image is displayed on the
screen when the gear is in N (Neutral) or
D (Drive) to assist in parking. Using the
view button (2) you may select top view,
front view, side view and 3D view.
The front view function will turn on under
the following conditions:

[The gear is in N (Neutral) or D (Drive),
and vehicle speed is 9 mph (15 km/h)
or less.

[The Parking/View button (1) is
pressed, while the gear is in N
(Neutral) or D (Drive), and vehicle
speed is 9 mph (15 km/h) or less.

[Parking Distance Warning warns the
driver while driving in D (Drive).

7-124
Driver Assistance System
Information
When the front view is turned on, the
previous view mode will be displayed.
The front view function will turn off
under the following conditions:

[The Parking/View button (1) or the
infotainment system button (3) is
pressed.

[Vehicle speed is above 9 mph (15
km/h).

[The Home button (4) is pressed.

[The gear is shifted to P (Park).
Information
Surround View Monitor will turn off when
vehicle speed is above 9 mph (15 km/h).
However, Surround View Monitor will
not turn on again although vehicle speed
drops below 9 mph (15 km/h).
Rear view
The rear image is displayed on the screen
when the gear is in P (Park) to assist in
parking. Using the view button (2) you
may select top view, front view, side view
and 3D view.
The rear view function will turn on under
the following conditions:

[The gear is shifted to R (Reverse).

[The Parking/View button (1) button is
pressed when gear is in P (Park).
The rear view function will turn off under
the following conditions:

[The gear is shifted from R (Reverse) to
P (Park).

[The Parking/View button (1) button is
pressed when gear is in P (Park).
Information
When the gear is in R (Reverse), the
rear view does not turn off even if the
infotainment system button (3) is pressed.

7-125
07
Rear View while driving
The driver can check the rear view on
the screen while driving. The rear view
while driving consist of a rear view
while driving and a rear wide view while
driving. Also, you can change the view
mode you want to select by pressing
the view button (2) on the infotainment
system screen.
Rear View while driving function will turn
on under the following conditions:

[The Parking/View button (1) is
pressed, while driving above 9 mph
(15 km/h).

[
is selected among the view buttons
(2) when vehicle speed is 9 mph (15
km/h) or less.
Rear View while driving function will turn
off under the following conditions:

[The Parking/View button (1) or the
infotainment system button (1) is
pressed.

[The gear is shifted to P (Park).

[The Parking/View button (1) is
pressed.

[The Home button (4) is pressed.

[Other view modes are selected when
vehicle speed is 9 mph (15 km/h) or
less.
3D view
The 3D view shows the image around the
vehicle from various angles.
You can change angles by tapping the
screen. Press the 3D View button again
to return to the initial angle.
3D view will turn on when the 3D view
is selected among the view buttons (2)
under the following conditions:

[The gear is in P (Park), N (Neutral) or D
(Drive) when vehicle speed is below 9
mph (15 km/h).

[The Surround View Monitor is turned
on when the gear is in R (Reverse).
When the gear is in P (Park), N (Neutral)
or D (Drive), 3D view will turn off under
the following conditions:

[The gear is shifted to P (Park).

[The Parking/View button (1) is
pressed.

[The infotainment system button (3) is
pressed.

[The Home button (4) is pressed.

[Vehicle speed is above 9 mph (15
km/h).
Information
3D view does not display guidelines.

7-126
Driver Assistance System
6XUURXQG9LHZ0RQLWRU
malfunction and limitations
Surround View Monitor malfunction
When Surround View Monitor is not
working properly, or the screen flickers,
or the camera image does not display
properly, have the vehicle be inspected
by an authorized retailer of Genesis
Branded products.
Limitations of Surround View
Monitor

[When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur
the image.

[The screen may be displayed
abnormally, and an icon will appear at
the top left side of the screen under
the following circumstances:
- The liftgate is opened
- The driver or front passenger door
is opened
- The side view mirror is folded
:$51,1*

[$/:$<6ORRNDURXQG\RXUYHKLFOH
WRPDNHVXUHWKHUHDUHQRREMHFWV
RUREVWDFOHVEHIRUHPRYLQJWKH
YHKLFOH:KDW\RXVHHRQWKHVFUHHQ
PD\GLIIHUIURPWKHDFWXDOYHKLFOH
TV
ORFDWLRQ

[7KHLPDJHVKRZQRQWKHVFUHHQPD\
differ from the actual distance of the
REMHFW0DNHVXUHWRGLUHFWO\FKHFN
WKHYHKLFOH
VVXUURXQGLQJVIRUVDIHW\

[6XUURXQG9LHZ0RQLWRULVGHVLJQHG
WREHXVHGRQDIODWVXUIDFH
7KHUHIRUHLIXVHGRQURDGVZLWK
GLIIHUHQWKHLJKWVVXFKDVFXUEV
DQGVSHHGEXPSVWKHLPDJHLQWKH
VFUHHQP\QRWORRNFRUUHFW

[$OZD\VNHHSWKHFDPHUDOHQVFOHDQ
,IWKHOHQVLVFRYHUHGZLWKIRUHLJQ
PDWHULDOLWPD\DGYHUVHO\DIIHFW
camera performance and Surround
9LHZ0RQLWRUPD\QRWRSHUDWH
SURSHUO\+RZHYHUGRQRWXVH
FKHPLFDOVROYHQWVVXFKDVVWURQJ
detergents containing high alkaline
RUYRODWLOHRUJDQLFVROYHQWVJDVROLQH
DFHWRQHHWF7KLVPD\GDPDJHWKH
FDPHUDOHQV
Information

[When Rear View while driving is on,
it stays on while driving regardless of
vehicle speed.

[When Rear View while driving is on
while backing up, the screen changes to
the rear view.

7-127
07

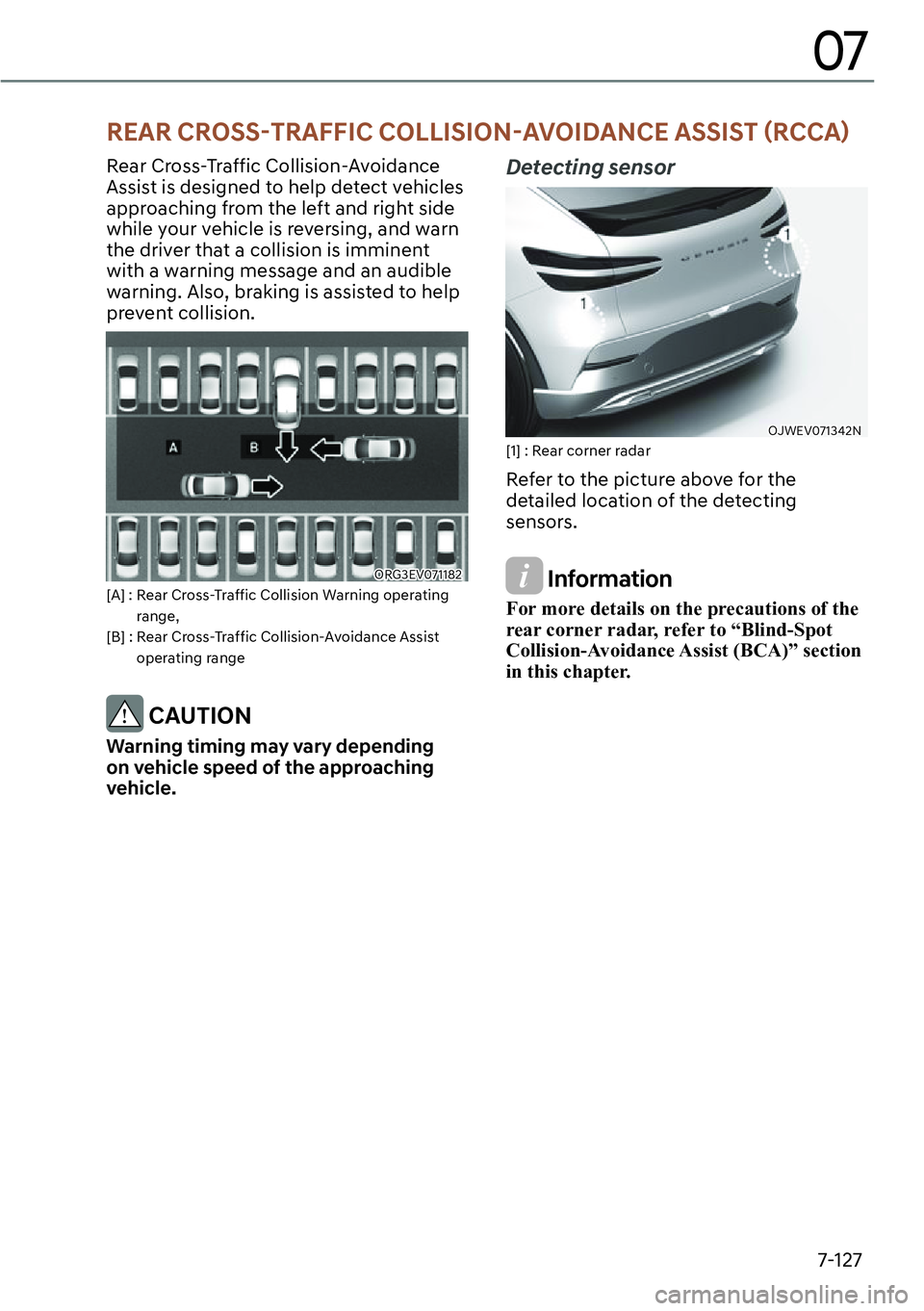

5($5&5266

7-128
Driver Assistance System

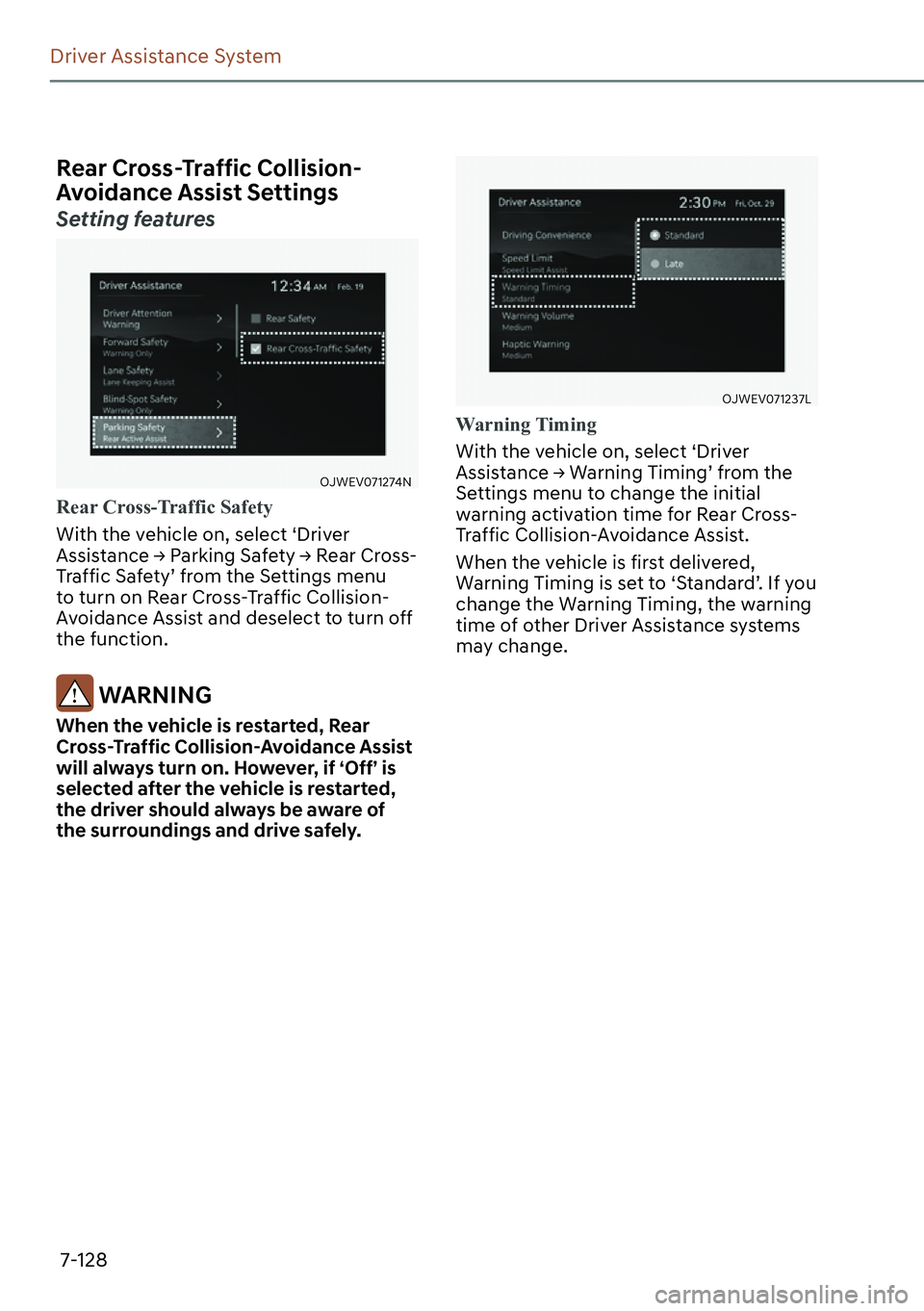

Rear Cross-Traffic Collision-
$YRLGDQFH$VVLVW6HWWLQJV
Setting features
OJWEV071274N
Rear Cross-Traffic Safety
With the vehicle on, select ‘Driver
$VVLVWDQFH

7-129
07
OJWEV071238N
Warning Volume
With the vehicle on, select ‘Driver
$VVLVWDQFH

7-130
Driver Assistance System
Rear Cross-Traffic Collision-
$YRLGDQFH$VVLVW2SHUDWLRQ
Warning and control
Rear Cross-Traffic Collision-Avoidance
Assist will warn and control the vehicle
depending on collision risk level:
‘Collision Warning’, ‘Emergency Braking’
and ‘Stopping vehicle and ending brake
control’.
OPDEN060039OJWEV071040N
OJWEV071225L
Collision Warning

[To warn the driver of an approaching
a detected vehicle from the rear left/
right side of your vehicle, the warning
light on the outside rearview mirror
will blink and a warning will appear
on the cluster. At the same time, an
audible warning will sound and the
steering wheel will vibrate. If the Rear
View Monitor is operating, a warning
will also appear on the infotainment
system screen.
[Rear Cross-Traffic Collision-Avoidance
Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8
km/h)
- The approaching a detected vehicle
is within approximately 82 ft. (25 m)
from the left and right side of your
vehicle
- The speed of the a detected vehicle
approaching from the left and right
is above 3 mph (5 km/h)
Information

[If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or
right side even though your vehicle
speed is 0 mph (0 km/h).

[The images and colors in the cluster
may differ depending on the cluster
type or theme selected from the cluster.
