2023 GENESIS GV60 Owners Manual

3-9
03
Seatback angle adjustment
OJWEV031004
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seatback
reaches the desired position.
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts and
air bags) is greatly reduced by reclining
your seatback.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Driver and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
belt.
Seat cushion extension adjustment
(for driver's seat) (if equipped)
OJWEV031002
To move the front part of the cushion
forward or rearward:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat
cushion reaches the desired length.

3-10
Safety System
Seat cushion support adjustment
(for driver's seat) (if equipped)
OJWEV031003
To adjust cushion support:
1. Push the control switch up to increase
cushion support or down to decrease
cushion support.
2. Release the switch once the seat
cushion support reaches the desired
position.
Lumbar support (if equipped)
OJWEV031006
To adjust the lumbar support:
1. Press the front portion of the switch
(1) to increase support or the rear
portion of the switch (2) to decrease
support.
2. Press switch (3) or (4) to move the
support position up or down.
3. Release the switch once the lumbar
support reaches the desired position.
Seat bolster adjustment
(for driver's seat) (if equipped)
OJWEV031007
To adjust seat bolster:
1. Push the adjustment lever clockwise,
the seatback bolster will be
adjusted inward. Push the switch
counterclockwise, the seatback
bolster will be adjusted outward.
2. Release the lever once the bolster
reaches the desired position.
Ergo-motion seat (for driver's seat)
(if equipped)
OJWEV071313L
6HOHFW
6HDW

3-11
03

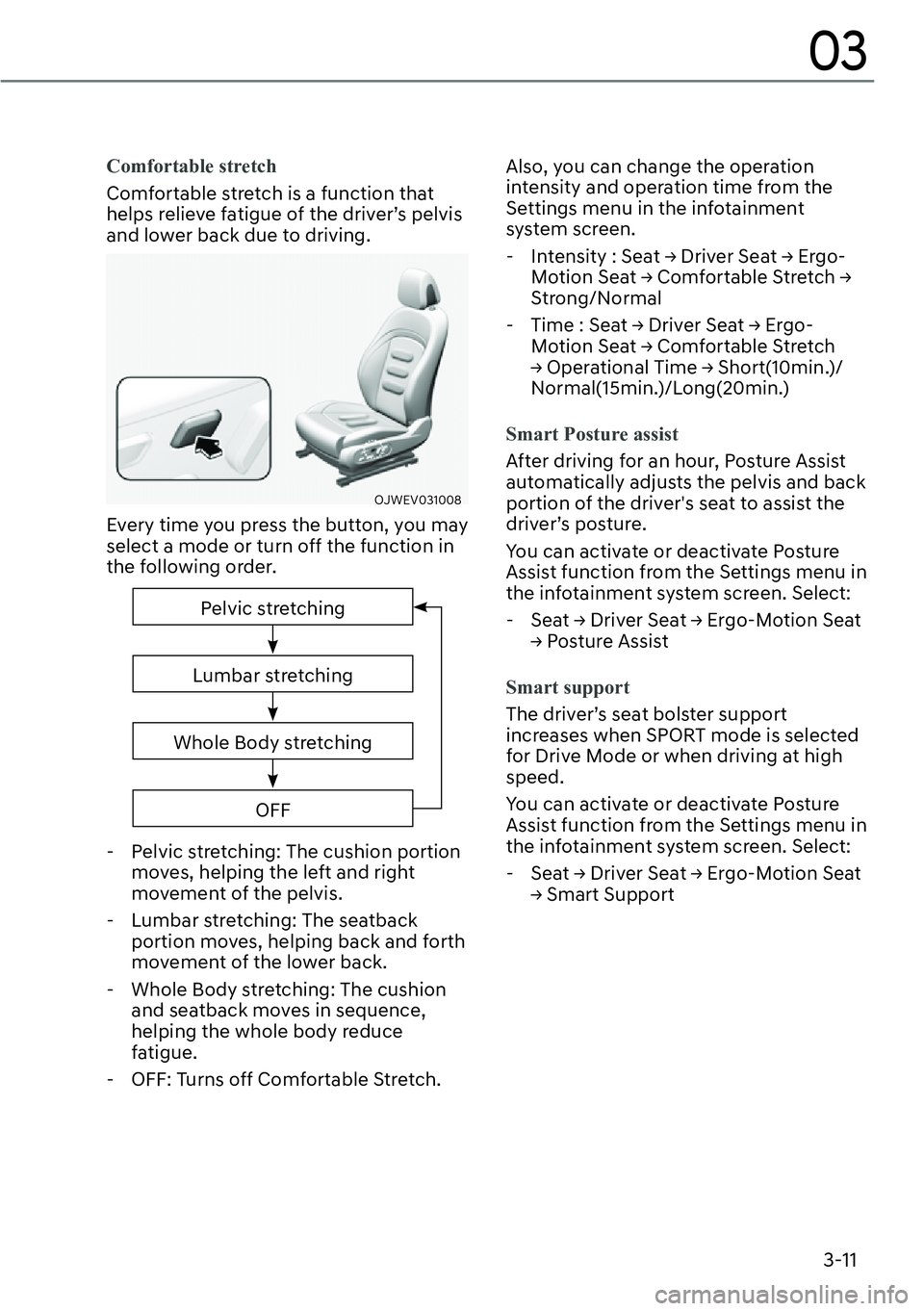

Comfortable stretch
Comfortable stretch is a function that
helps relieve fatigue of the driver’s pelvis
and lower back due to driving.
OJWEV031008
Every time you press the button, you may
select a mode or turn off the function in
the following order.
Pelvic stretching
Lumbar stretching
Whole Body stretching
OFF
- Pelvic stretching: The cushion portion
moves, helping the left and right
movement of the pelvis.
- Lumbar stretching: The seatback
portion moves, helping back and forth
movement of the lower back.
- Whole Body stretching: The cushion
and seatback moves in sequence,
helping the whole body reduce
fatigue.
- OFF: Turns off Comfortable Stretch.Also, you can change the operation
intensity and operation time from the
Settings menu in the infotainment
system screen.
-,QWHQVLW\6HDW

3-12
Safety System
Relaxation comfort seat (for Driver’s seat,
if equipped)
OJWEV031067
Relaxation comfort seats help distribute
body pressure and concentrated weight
on specific body parts that occur while
sitting in the same position for a long
period of time. The seat helps relieve
fatigue and discomfort by providing the
optimal sit position.
CAUTION
Take the following precautions when
using the relaxation comfort seat:

[Do not use the relaxation comfort
seat while the vehicle is moving.
Using the comfort seat could
increase the risk of injuries in the
event of a collision or sudden stop.

[Do not use the relaxation comfort
seat when the luggage or other
objects are placed at the rear seat.

[Do not use the relaxation comfort
seat while the vehicle is moving. Seat
belts may not operate normally due
to the lack of adherence between the
shoulder belts and the body.

[Do not use the relaxation comfort
seat when the rear seats are not in
the upright position.

[Do not driving when passenger’s
seat is located relaxation comfort
position.
„Driver relaxation comfort seat switch
OJWEV031069
„Front passenger’s side seat switch
OJWEV031068To activate relaxation comfort seat
Press the switch (1) more than 0.5
seconds, an alarm appears on the
infotainment screen. Then, press the
switch (1) again for more than 0.5
seconds.
If the switch is not pressed within
5 seconds after the alarm appears,
relaxation comfort seat will not be
activated.
When relaxation comfort seat is
activated:
1. The seat cushion will be moved
forward or rearward automatically.
2. The seat cushion, seatback angle will
be adjusted.

3-13
03
In the following cases, an alarm appears
on when the infotainment screen is on
and the relaxation comfort seat will be
deactivated.

[When the gear is not in P (Parking).

[When the vehicle is moving more than
1.8 mph (3 km/h).

[When the rear seat belt is fastened
Information
When relaxation comfort seat cannot be
operated, try to reset Integrated Memory
System. If relaxation comfort seat does
not operate even after Integrated Memory
System is reset, contact an authorized
distributor of Genesis Branded products.OJWEV031070
OJWEV031071[A] : Moves simultaneously
You can adjust moves simultaneously
the seat directly by using the seat
adjustment switches (3).
Push down the forward part of the switch
(3) to move back the chair to the original
position.
Pull up the forward part of the switch
(3) to adjust the seat to the relaxation
comfort position.
Even when the relaxation comfort seat
is operated by others, the additional
adjustment is possible by pressing
relaxation comfort seat switches.

3-14
Safety System

[To deactivate relaxation comfort seat
If you press the front portion of the
switch (2) while the seat is in the
relaxation comfort seat position,
the seat return backs to the original
position.
When relaxation comfort seat is
deactivated:

[The driver seat will return to the
position which the gear was in P
(Park).

[Passenger seat will return to the
original position.
In the following cases, the relaxation
comfort seat will not return to the
original position.

[When the gear is not in P (Parking).

[When the vehicle is moving more than
1.8 mph (3 km/h).
Information
When relaxation comfort seat cannot be
operated, try to reset Integrated Memory
System. If relaxation comfort seat does
not operate even after Integrated Memory
System is reset, contact an authorized
distributor of Genesis Branded products.
NOTICE
Do not use the seat switches
simultaneously. It may damage the seat
system.
Walk-in switch
OJWEV031014
The front and rear seat passenger may
use the switches to control the front
passenger seat.

[Sliding forward or rearward:
Press the switch (1) or (2) to move
the front passenger seat forward or
rearward.

[Seatback angle:
Press the switch (3) or (4) to recline
the front passenger seatback forward
or rearward.
WARNING
Do not adjust the passenger seat when
a passenger is seated.

3-15
03
Seatback pocket
OJWEV031013
The seatback pocket is provided on the
back of the front seatbacks.
CAUTION
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.
Pre-active Safety Seat (PSS) (if
equipped)
Pre-active Safety Seat enhances
crashworthiness and driving stability by
pulling up the backrest before collision
and hazardous situations when the
passenger seat is reclined.
WARNING
Pre-active Safety Seat is a
supplementary device. The drivers
should keep their eyes on the road and
verify that there are no obstructions
ahead. If there is not a passenger or
the seatbelt is not fastened, the system
does not work. In addition, the seat belt
interval is increased while a passenger’s
seat is reclined so that its performance
might be degraded.
System Operation

[Crashworthiness
Pre-active Safety Seat limits
passenger’s movement and decreases
the chance of injury from the early
stage of collision by reducing the seat
belt interval with putting the seat in
the upright position. The operation
conditions are as follows.
- It is considered as a risky situation
due to emergency braking.
- It is considered as a dangerous
situation due to the difficulties of
vehicle operation.
- It is considered as a hazardous
situation due to vehicle distance
detection sensor.

[Driving stability
Pre-active Safety Seat pulls up the
backset while sudden braking or
rapid turning to boost the tightness of
seat belt in order to prevent leaning
forward or laterally and increase
driving stability. The operation
conditions are as follows.
- There is a leaning forward of the
upper body due to sudden braking.
- There is a lateral leaning of the
upper body because of rapid
turning.
- Driving on the slippery frozen road
- Driving on the unpaved road
- High risk of rollover

3-16
Safety System
WARNING
While the system operates
automatically, please do not be
surprised or misunderstand it as a
system failure.

[Inoperative status
If the passenger adjusts the
seat manually, the system stops
immediately. However, it restarts to
operate after 5 seconds when the
hazardous signal continues.

[Malfunction
If the Pre-active Safety Seat system
does not operate properly, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.
Rear Seats
WARNING
Take the following precautions:

[Adjusting the seats
-NEVER attempt to adjust the seat
while the vehicle is moving. The
seat may suddenly move and may
injure the passenger.
-Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.

[Folding the seats
-Do not fold the seatback when
the seat is occupied (for example,
passenger, pets or luggage). It
may injure the passenger or pet, or
damage the luggage.
-Never allow passengers to sit on
top of the folded down seatback
while the vehicle is moving. This is
not a proper seating position and
no seat belts are available for use.
This could result in serious injury
or death in case of an accident or
sudden stop.
-Objects carried on the folded
down seatback should not extend
higher than the top of the front
seatbacks. This could allow cargo
to slide forward and cause injury or
damage during sudden stops.
