2023 GENESIS GV60 Owners Manual

9-46
Maintenance
Vehicle compartment fuse panel
Type Fuse NameFuse Rating Circuit Protected
MULTI
FUSE-1LDC200A P/R Junction Block (Fuse : F2, S1, S2, S3, S4, S5)
MDPS1 *1100A MDPS Unit
MULTI
FUSE-2C/FAN80A Cooling Fan Motor
RR HTD150A P/R Junction Block (RLY.3)
B+150A ICU Junction Block (IPS1, IPS2, IPS3, IPS4, IPS5)
TRAILER150A CTM (CAN Type Trailer Module)
B+240A ICU Junction Block (IPS6, IPS7, IPS8)
MULTI
FUSE-3B+560A PCB Block (IG3 Main Relay, Fuse : F2, F3, F4, F6)
B+360AICU Junction Block (Fuse : F1, F11, F12, F21, F22,
F31,F32, F41, F42, F51)
BLOWER50A P/R Junction Block (RLY.9)
IEB160A IEB Unit
IEB260A IEB Unit
IG140A P/R Junction Block (RLY.5, RLY.7)
IG240A P/R Junction Block (RLY.10)
*1 : MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering)

9-47
09
Motor compartment fuse panel
Type Fuse NameFuse Rating Circuit Protected
FUSEEOP 140A Rear Electronic Oil Pump
EOP 240A Front Electronic Oil Pump
LIFTGATE OPEN30A Power Liftgate Unit
FRT WIPER130A Wiper Motor
POWER OUTLET140A P/R Junction Block (RLY.11)
B+440AP/R Junction Block (Long Term Load Latch
Relay, Fuse : F4, F5, F14, F15, F20, F24, F25,
F30, F34, F35, F40, F44, F49)
HEAD LAMP RH30A Head Lamp RH
E-SHIFTER 140A P/R Junction Block (RLY.2 Fuse : F13)
VCU 140A VCU
HEAD LAMP LH30A Head Lamp LH
REAR HEATED 215A P/R Junction Block (RLY.8)
CHARGER 110A ICCU, VCMS, P/R Junction Block (RLY.1/12)
CHARGER 210A Charging Door Module
AMS10A 12V Battery Sensor
VESS10A VESS Unit

9-48
Maintenance
Motor compartment fuse panel
Type Fuse NameFuse Rating Circuit Protected
FUSEEWP 120A Electronic Water Pump #1 (HV Battery)
EWP 220A Electronic Water Pump #2 (HV Battery)
PRESAFETY
SEAT BELT 230A Preactive Seat Belt
TRAILER 220A CTM (CAN Type Trailer Module)
PRESAFETY
SEAT BELT 30A Preactive Seat Belt
MIRR HTR10A Driver/Passenger Outside Mirror Unit
E-SHIFTER 210ASCU, Electronic ATM Shift Lever, P/R Junction
Block (RLY.2)
POWER
OUTLET 320A Luggage Power Outlet
POWER
OUTLET 220A Front Power Outlet

9-49
09
Consult an authorized retailer of
Genesis Branded products to replace
most vehicle light bulbs. It is difficult
to replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the bulb.
This is especially true for removing the
headlamp assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
NOTICE
To prevent damage, do not clean the
headlamp lens with chemical solvents
or strong detergents.
Information - Headlamp
desiccant
This vehicle is equipped with desiccant to
reduce fogging inside the headlamp due
to moisture. The desiccant is consumable
and its performance may change based on
the used period or environment. If fogging
inside the headlamp due to moisture
continues for a long time, consult an
authorized retailer of Genesis Branded
products.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
LIGHT BULBS

9-50
Maintenance
Information

[A normally functioning lamp may
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or continues
to flicker, have the system be checked
by an authorized retailer of Genesis
Branded products.

[The parking lamp may not turn on
when the parking lamp switch is turned
on, but the parking lamp and headlamp
switch may turn on when the headlamp
switch is turned on. This may be caused
by network failure or vehicle electrical
control system malfunction. If this
occurs, have the system be checked
by an authorized retailer of Genesis
Branded products.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled.
Headlamp, Parking Lamp, Turn
Signal Lamp, Daytime Running
Light (DRL) Replacement
OJWEV091051N
(1) Headlamp (Low)
(2) Headlamp (High / Sub low)
(3) Parking lamp/Daytime running light/
Turn signal lamp
(4) Front side marker
If the LED lamp does not operate,
have the system be inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

9-51
09

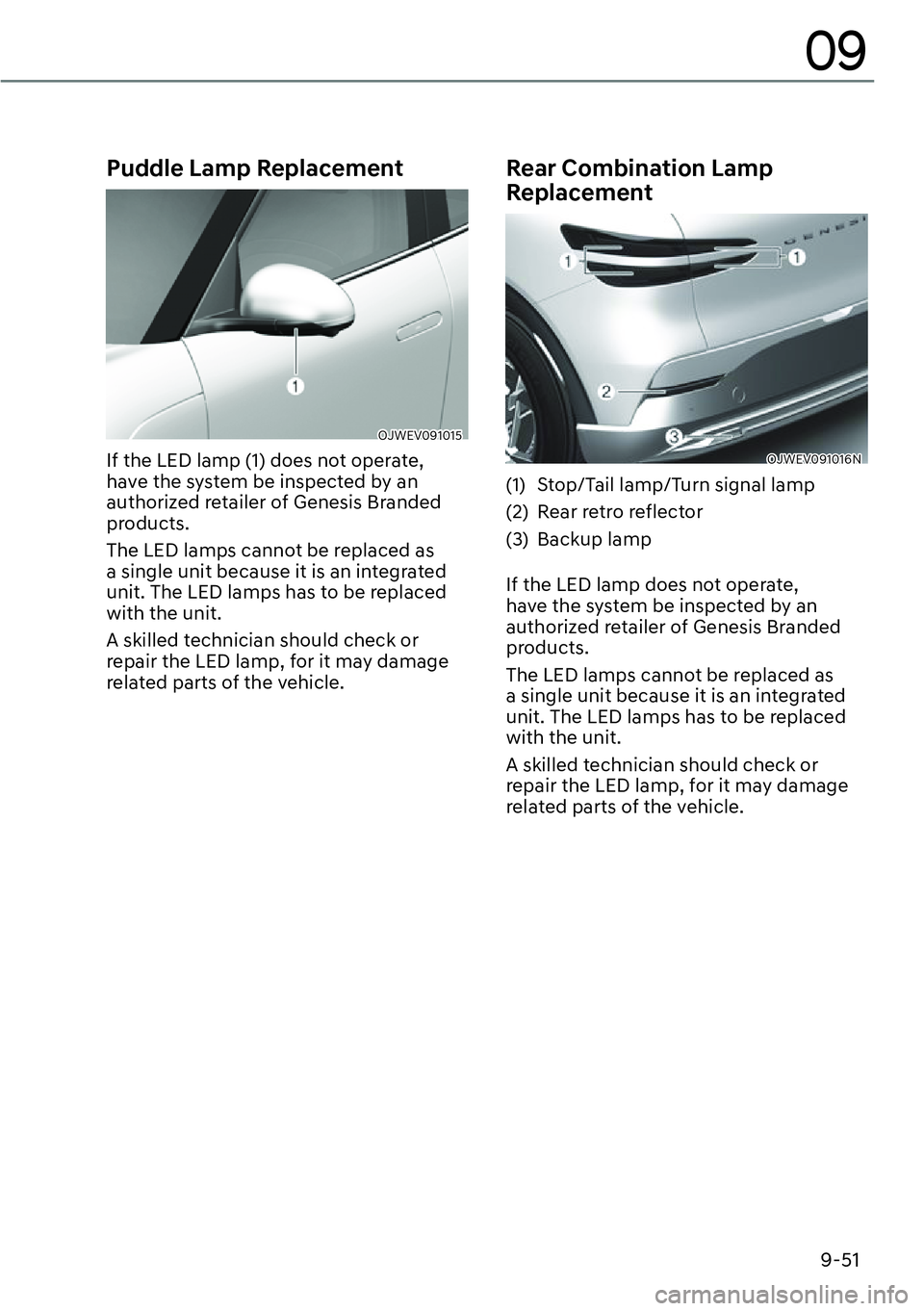

Puddle Lamp Replacement
OJWEV091015
If the LED lamp (1) does not operate,
have the system be inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Rear Combination Lamp
Replacement
OJWEV091016N
(1) Stop/Tail lamp/Turn signal lamp
(2) Rear retro reflector
(3) Backup lamp
If the LED lamp does not operate,
have the system be inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

9-52
Maintenance

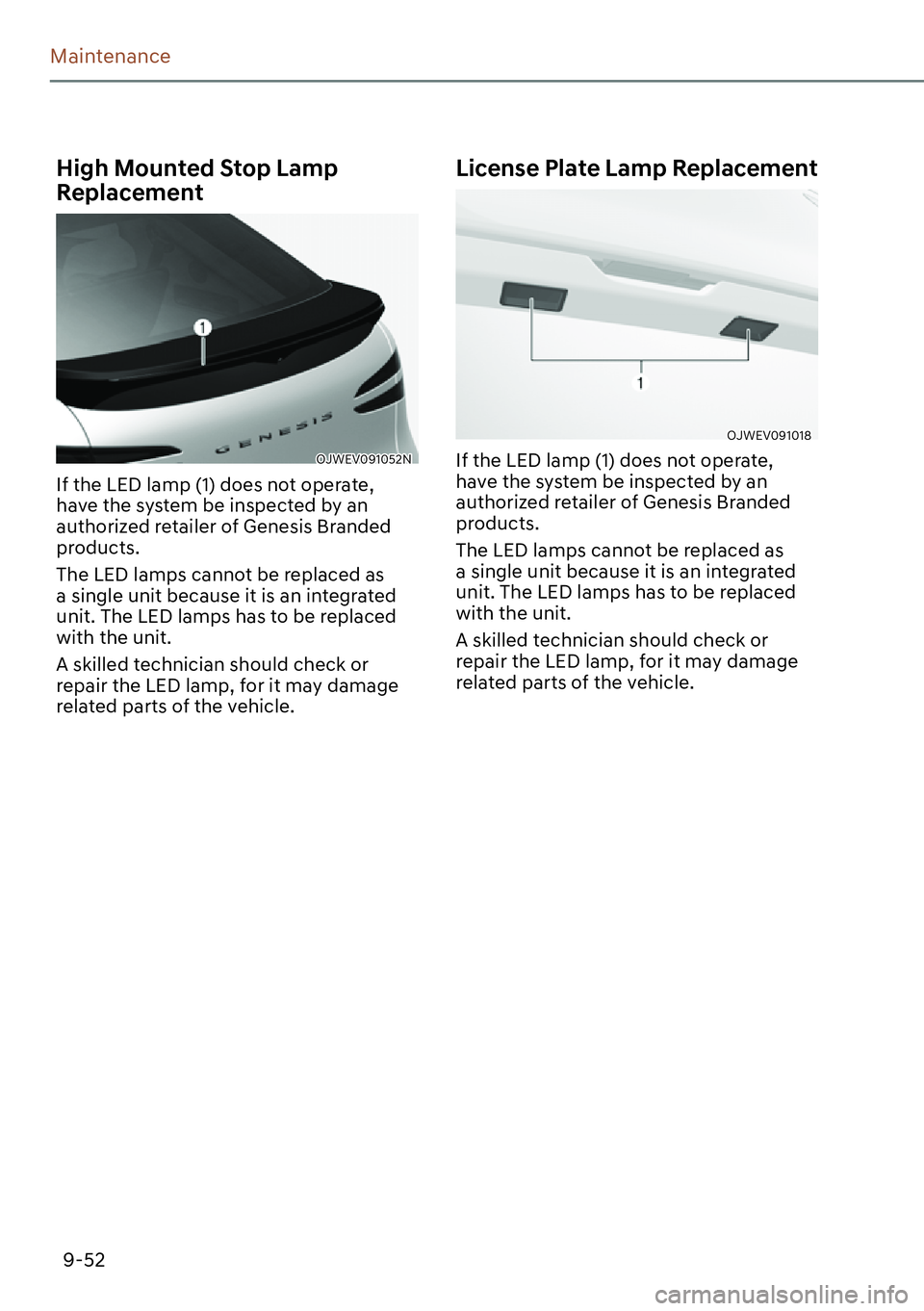

High Mounted Stop Lamp
Replacement
OJWEV091052N
If the LED lamp (1) does not operate,
have the system be inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
License Plate Lamp Replacement
OJWEV091018
If the LED lamp (1) does not operate,
have the system be inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

9-53
09

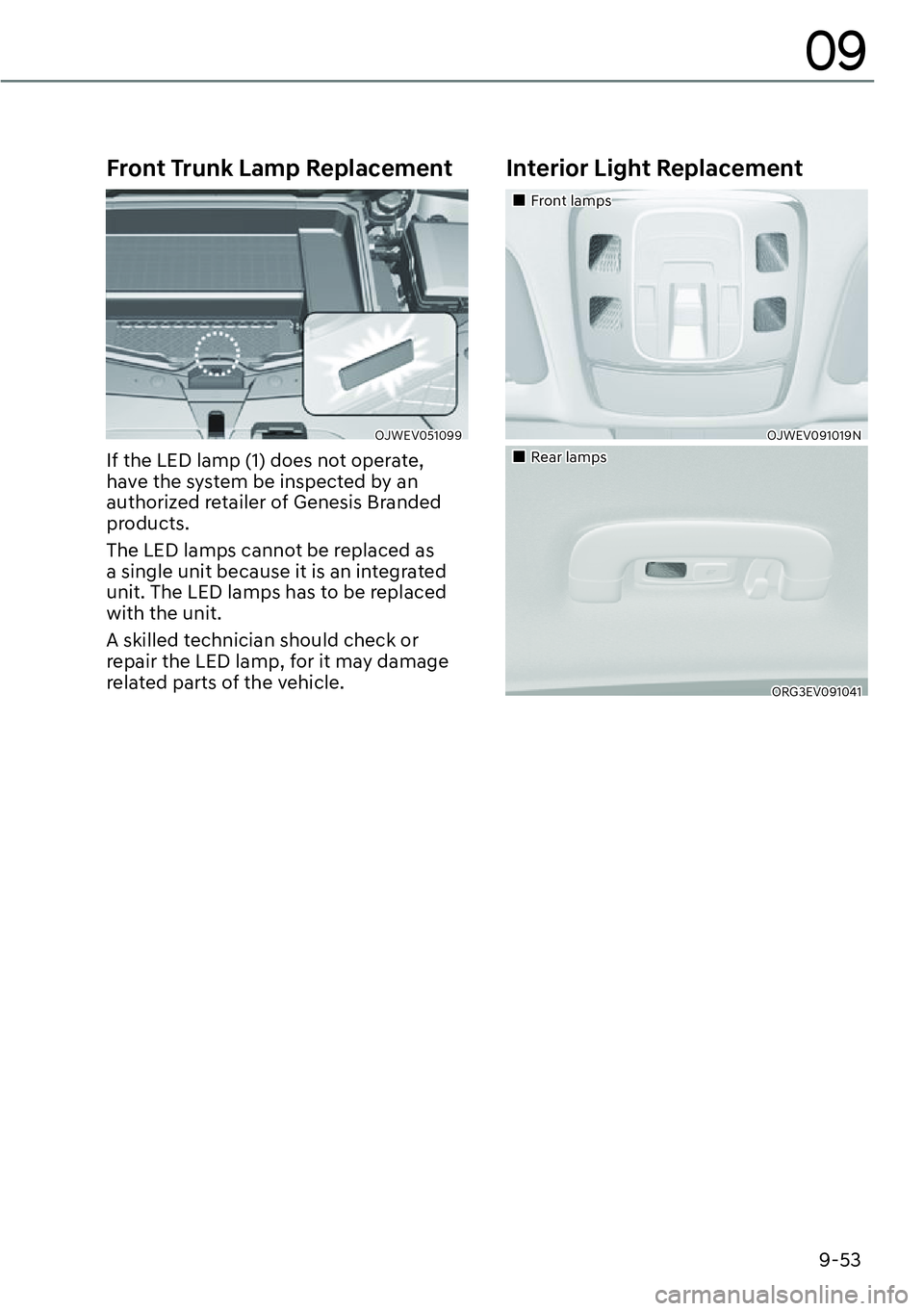

Front Trunk Lamp Replacement
OJWEV051099
If the LED lamp (1) does not operate,
have the system be inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Interior Light Replacement
„Front lamps
OJWEV091019N
„Rear lamps
ORG3EV091041
