2023 GENESIS GV60 Owners Manual

5-98
Convenience Features
High Beam Assist Operation
Display and control

[After selecting ‘High Beam Assist
(or HBA (High Beam Assist))’ in the
Settings menu, High Beam Assist will
operate by following the procedure
below.
- Place the headlamp switch in
the AUTO position and push
the headlamp lever towards the
instrument cluster. The High Beam
Assist (
) indicator light will
illuminate on the cluster and High
Beam Assist will be enabled.
- When High Beam Assist is enabled,
high beam will turn on when vehicle
speed is above 25 mph (40 km/h).
When vehicle speed is below 15
mph (25 km/h), high beam will turn
off.
- The High Beam (
) indicator light
will illuminate on the cluster when
high beam is on.

[When High Beam Assist is operating, if
the headlamp lever or switch is used,
High Beam Assist operates as follow:
- If the headlamp lever is pulled
towards you when the high beam
is off, the high beam will turn
on without High Beam Assist
cancelled. When you let go of the
headlamp lever, the lever will move
to the middle and the high beam
will turn off.
- If the headlamp lever is pulled
towards you when the high beam is
on by High Beam Assist, low beam
will turn on and the High Beam
Assist will turn off.
- If the headlamp switch is placed
from AUTO to another position
(headlamp/position/off), High
Beam Assist will turn off and the
corresponding lamp will turn on.
[When High Beam Assist is operating,
high beam switches to low beam if
any of the following conditions occur:
- When the headlamp of an
oncoming vehicle is detected.
- When the tail lamp of a vehicle in
front is detected.
- When the headlamp or tail lamp of a
motorcycle or a bicycle is detected.
- When the surrounding ambient light
is bright enough that high beams
are not required.
- When streetlights or other lights are
detected.
Information
The images and colors in the cluster may
differ depending on the cluster type or
theme selected from the cluster.

5-99
05
High Beam Assist Malfunction
and Limitations
High Beam Assist malfunction
OJWEV051094L
When High Beam Assist is not working
properly, the ‘Check High Beam Assist
(HBA) system’ or ‘Check HBA (High
Beam Assist system’ warning message
will appear and
warning light will
illuminate on the cluster. Have the
vehicle be inspected by an authorized
retailer of Genesis Branded products.
Limitations of High Beam Assist

[Light from an oncoming or front
vehicle is not detected because of
lamp damage, or because it is hidden
from sight, etc.

[Headlamp of an oncoming or front
vehicle is covered with dust, snow or
water.

[There is a lamp that has a similar
shape as a vehicle’s lamp.

[Headlamps have been damaged or
not repaired properly.

[Headlamps are not aimed properly.

[Driving on a narrow-curved road,
curved road, rough road, uphill or
downhill.
[Vehicle in front is partially visible on a
crossroad or curved road.

[There is a traffic light, reflecting sign,
flashing sign or mirror ahead.

[There is a temporary reflector or flash
ahead (construction area).

[The road conditions are bad such as
being wet, iced or covered with snow.

[A vehicle suddenly appears from a
curve.

[The vehicle is tilted from a flat tire or
is being towed.

[Light from an oncoming or front
vehicle is not detected due to
obstacles in the air such as exhaust
fume, smoke, fog, snow, or water spay
or blizzard on the road, or fogging in
the lamp, etc.
Information
For more details on the limitations of the
)URQW9LHZ&DPHUDUHIHUWR

5-100
Convenience Features
INTERIOR LIGHTS
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior Lamp AUTO Cut
The interior lamps will automatically go
off approximately 20 minutes after the
vehicle is turned off and the doors are
closed. If a door is opened, the lamp
will go off 25 minutes after the vehicle
is turned off. If the doors are locked by
the smart key and the vehicle enters the
armed stage of the theft alarm system,
the lamps will go off five seconds later.
Front Lamps
OJWEV051280N
Front map lamp ():
Touch either icons to turn the map lamp
on or off. This light produces a spot
beam for convenient use as a map lamp
at night or as a personal lamp for the
driver and the front passenger.
Door lamp ():
The front or rear room lamps come on
when the front or rear doors are opened.
When doors are unlocked by the smart
key, the front and rear lamps come on
for approximately 30 seconds as long as
any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds when the
door is closed. However, if the Start/Stop
button is in the ON position or all doors
are locked, the front and rear lamps will
turn off. If a door is opened with the
Start/Stop button in the ACC position
or the OFF position, the front and rear
lamps will stay on for about 5 minutes.
Room lamp (()

[Press the button to turn ON the room
lamp for the front/rear seats.

5-101
05
Rear Lamps
„Personal lamp
ORG3EV051077

[ : Press the button to turn the
lamp on or off.
Vanity Mirror Lamp
ORG3EV051078
Opening the lid of the vanity mirror will
automatically turn on the mirror lamp.
Glove Box Lamp
OJWEV051060
The glove box lamp turns on for about 20
minutes when the glove box is opened.

5-102
Convenience Features

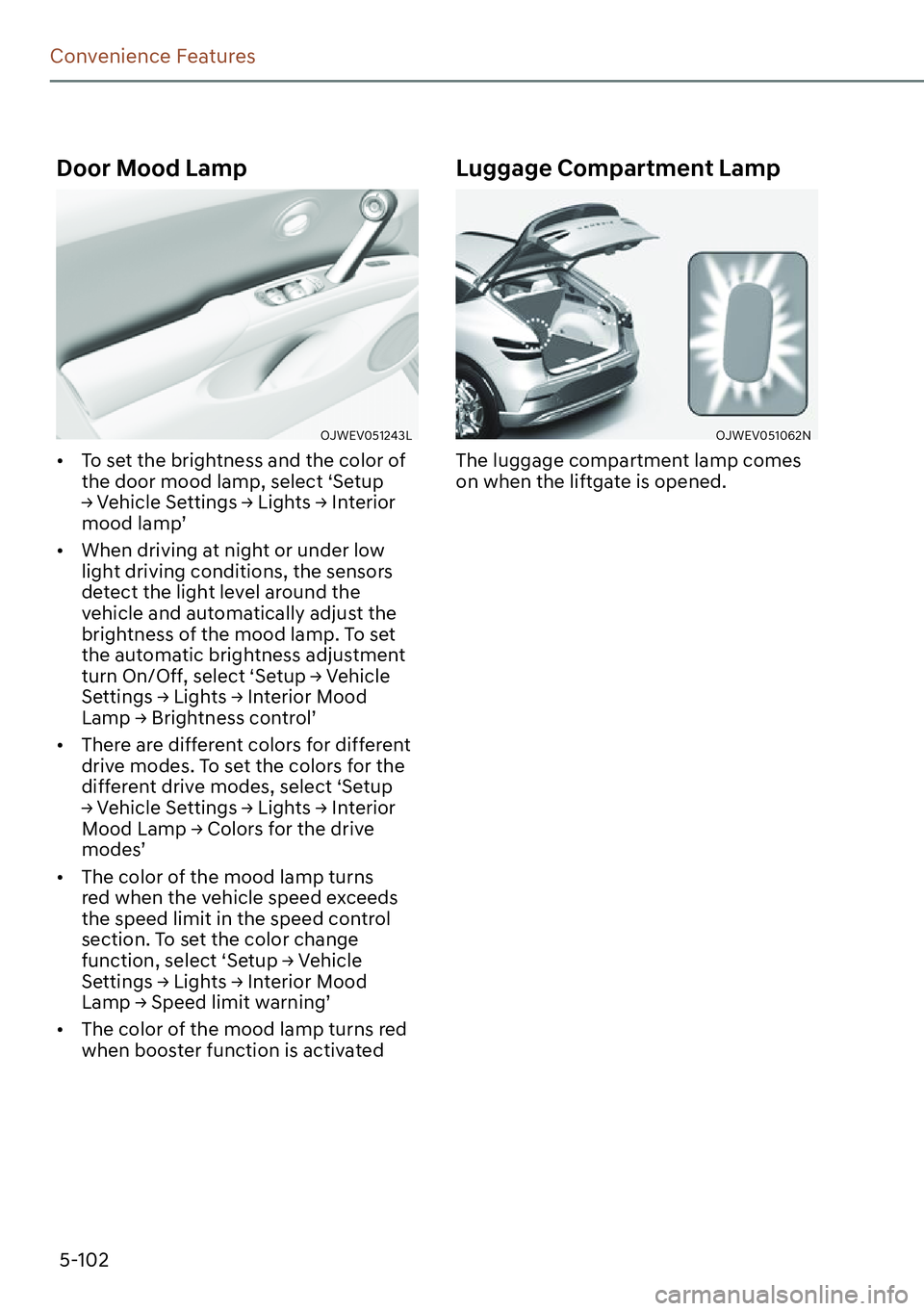

Door Mood Lamp
OJWEV051243L

[To set the brightness and the color of
the door mood lamp, select ‘Setup

5-103
05
Front Trunk Lamp
OJWEV051099
The front trunk lamp comes on when the
hood is opened.
Puddle Lamp
OJWEV051063
:HOFRPHOLJKW
When all doors (and liftgate) are closed
and locked, the puddle lamp will turn on
for 15 seconds if the door is unlocked by
the smart key or when you put your hand
in the outside door handle with the smart
key in possession.
For more details, refer to “Welcome
System” in this chapter.
Escort light
When the Start/Stop button is in the
OFF position and the driver’s door is
opened, the puddle lamp will turn on for
30 seconds. If the driver’s door is closed
within the 30 second period, the puddle
lamp will turn off after 15 seconds. If the
driver’s door is closed and locked, the
puddle lamp will turn off immediately.
The Puddle Lamp Escort Light will turn
on only the first time the driver’s door is
opened after the vehicle is turned off.

5-104
Convenience Features
Puddle lamp and door handle lamp
When all the doors (and liftgate) are
closed and locked, the puddle lamp
and door handle lamp will turn on for
approximately 15 seconds if any of the
below is performed.
- When the door unlock button is
pressed on the smart key.
- When you put your hand in the
outside door handle with the smart
key in possession.
-,I
S6HWXS

5-105
05
WIPERS AND WASHERS
ORG3EV051067
Front Windshield Wipers
Operates as follows when the Start/Stop
button is in the ON position.
MIST : For a single wiping cycle, push
the lever upward (or downward)
and release. The wipers will
operate continuously if the lever
is held in this position.
OFF : Wiper is not in operation.
AUTO : The rain sensor located on the
upper end of the windshield
glass senses the amount of
rainfall and controls the wiping
cycle for the proper interval.
The more it rains, the faster the
wiper operates. When the rain
stops, the wiper stops. To vary
the speed setting, turn the speed
control knob.
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
WKHVQRZDQGRULFHLVUHPRYHGEHIRUH
using the windshield wipers to ensure
proper operation.
,I\RXGRQRWUHPRYHWKHVQRZDQGRULFH
before using the wiper and washer, it may
damage the wiper and washer system.
AUTO (Automatic) control
OJWEV051064
The rain sensor located on the upper
end of the windshield glass senses
the amount of rainfall and controls the
wiping cycle for the proper interval.
The wiper operation time will be
automatically controlled depends on
rainfall.
When the rain stops, the wiper stops.
To vary the sensitivity setting, turn the
sensitivity control knob.
If the wiper switch is set in AUTO mode
when the Start/Stop button is in the ON
position, the wiper will operate once to
perform a self-check of the system. Set
the wiper to the OFF (O) position when
the wiper is not in use.
