2023 GENESIS GV60 length

2-8
Vehicle Information
Items in (mm)
Overall length 177.8 (4,515)
Overall width 74.4 (1,890)
Overall height 62.4(1,585)*
1/62.6(1,590)*2
TreadTire size Front Rear
235/55 R19 64.3 (1,633) 64.6 (1,642)
255/45 R20
64.1 (1,628) 64.4 (1,637)
255/40 R21
Wheelbase 114.2 (2,900)
*1 : with roof rack
*2 : with shark fin antenna
ELECTRIC VEHICLE SPECIFICATIONS
ItemsStandard typePerformance
type
2WD AWD AWD
Motor (Front/Rear)Max. output (kW) 168 234 320/360*3
Max. torqu (Nm) 350 605 700
Battery
(Lithium-ion)Capacity (kWh) 77.4 77.4 77.4
Power output (kW) 350 350 394
Voltage (V) 697 697 697
Charger (OBC) Max. output (kW) 10.9 10.9 10.9
OBC : On-Board Battery Chargers
*3 : if equipped with boost mode
DIMENSIONS

3-9
03
Seatback angle adjustment
OJWEV031004
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seatback
reaches the desired position.
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts and
air bags) is greatly reduced by reclining
your seatback.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Driver and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
belt.
Seat cushion extension adjustment
(for driver's seat) (if equipped)
OJWEV031002
To move the front part of the cushion
forward or rearward:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat
cushion reaches the desired length.

3-30
Safety System
Seat Belt Restraint System
Lap/shoulder belt
ORG3EV031033
To fasten your seat belt:
Pull it out of the retractor and insert the
metal tab (1) into the buckle (2). There
will be an audible “click” when the tab
locks into the buckle.
ORG3EV031090L
You should place the lap belt (1) portion
across your hips and the shoulder belt (2)
portion across your chest.
The seat belt automatically adjusts to the
proper length after the lap belt portion
is adjusted manually so that it fits snugly
around your hips. If you lean forward in
a slow, easy motion, the belt will extend
and move with you.
If there is a sudden stop or impact, the
belt will lock into position. It will also lock
if you try to lean forward too quickly.
NOTICE
If you are not able to smoothly pull
enough of the seat belt out from the
retractor, firmly pull the seat belt out
and release it. After release, you will be
able to pull the belt out smoothly.
WARNING
ORG3EV031034
Improperly positioned seat belts may
increase the risk of serious injury
in an accident. Take the following
precautions when adjusting the seat
belt:

[Position the lap portion of the seat
belt as low as possible across your
hips, not on your waist, so that it
fits snugly. This allows your strong
pelvic bones to absorb the force of
the crash, reducing the chance of
internal injuries.

[Position one arm under the shoulder
belt and the other over the belt, as
shown in the illustration.

[Always position the shoulder belt
anchor into the locked position at the
appropriate height.

[Never position the shoulder belt
across your neck or face.

5-77
05
Roof Rack
OJWEV051236
If the vehicle has a roof rack, you can
load cargo on top of your vehicle.
NOTICE

[If the vehicle is equipped with a
sunroof, be sure not to position cargo
onto the roof rack in such a way
that it could interfere with sunroof
operation.

[When carrying cargo on the roof
rack, take the necessary precautions
to make sure the cargo does not
damage the roof of the vehicle.

[When carrying large objects on the
roof rack, make sure they do not
exceed the overall roof length or
width.
WARNING

[The following specification is the
maximum weight that can be loaded
onto the roof rack.
Distribute the load as evenly as
possible onto the roof rack and
secure the load firmly.
ROOF
RACK220 lbs. (100 kg)
EVENLY DISTRIBUTED
Loading cargo or luggage in excess
of the specified weight limit on the
roof rack may damage your vehicle.

[The vehicle center of gravity will be
higher when items are loaded onto
the roof rack.
Avoid sudden starts, braking, sharp
turns, abrupt maneuvers or high
speeds that may result in loss of
vehicle control or rollover resulting
in an accident.

[Always drive slowly and turn corners
carefully when carrying items on the
roof rack.
Severe wind updrafts, caused by
passing vehicles or natural causes,
can cause sudden upward pressure
on items loaded on the roof rack.
This is especially true when carrying
large, flat items such as wood panels
or mattresses.
This could cause the items to fall off
the roof rack and cause damage to
your vehicle or others around you.

[To prevent damage or loss of cargo
while driving, check frequently
before or while driving to make
sure the items on the roof rack are
securely fastened.
EXTERIOR FEATURES

6-72
Driving Your Vehicle
Driving with a Trailer
Towing a trailer requires a certain
amount of experience. Before setting
out for the open road, you must get to
know your trailer. Acquaint yourself with
the feel of handling and braking with the
added weight of the trailer. And always
keep in mind that the vehicle you are
driving is now longer and not nearly as
responsive as your vehicle is by itself.
Before you start, check the trailer hitch
and platform, safety chains, electrical
connector(s), lights, tires and brakes.
During your trip, occasionally check
to be sure that the load is secure, and
that the lights and trailer brakes are still
working.
Distance
Stay at least twice as far behind the
vehicle ahead as you would when driving
your vehicle without a trailer. This can
help you avoid situations that require
heavy braking and sudden turns.
Passing
You will need more passing distance up
ahead when you’re towing a trailer. And,
because of the increased vehicle length,
you’ll need to go much farther beyond
the passed vehicle before you can return
to your lane.
Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, move your hand to the left. To
move the trailer to the right, move your
hand to the right. Always back up slowly
and, if possible, have someone guide
you.
Making turns
When you’re turning with a trailer, make
wider turns than normal. Do this so your
trailer won’t strike soft shoulders, curbs,
road signs, trees, or other objects. Avoid
jerky or sudden maneuvers. Signal well in
advance.
Turn signals
When you tow a trailer, your vehicle has
to have a different turn signal flasher and
extra wiring. The green arrows on your
instrument panel will flash whenever you
signal a turn or lane change. Properly
connected, the trailer lights will also flash
to alert other drivers you’re about to turn,
change lanes, or stop.
When towing a trailer, the green arrows
on your instrument panel will flash for
turns even if the bulbs on the trailer
are burned out. Thus, you may think
drivers behind you are seeing your
signals when, in fact, they are not. It’s
important to check frequently to be sure
the trailer bulbs are still working. You
must also check the lights every time
you disconnect and then reconnect the
wires.

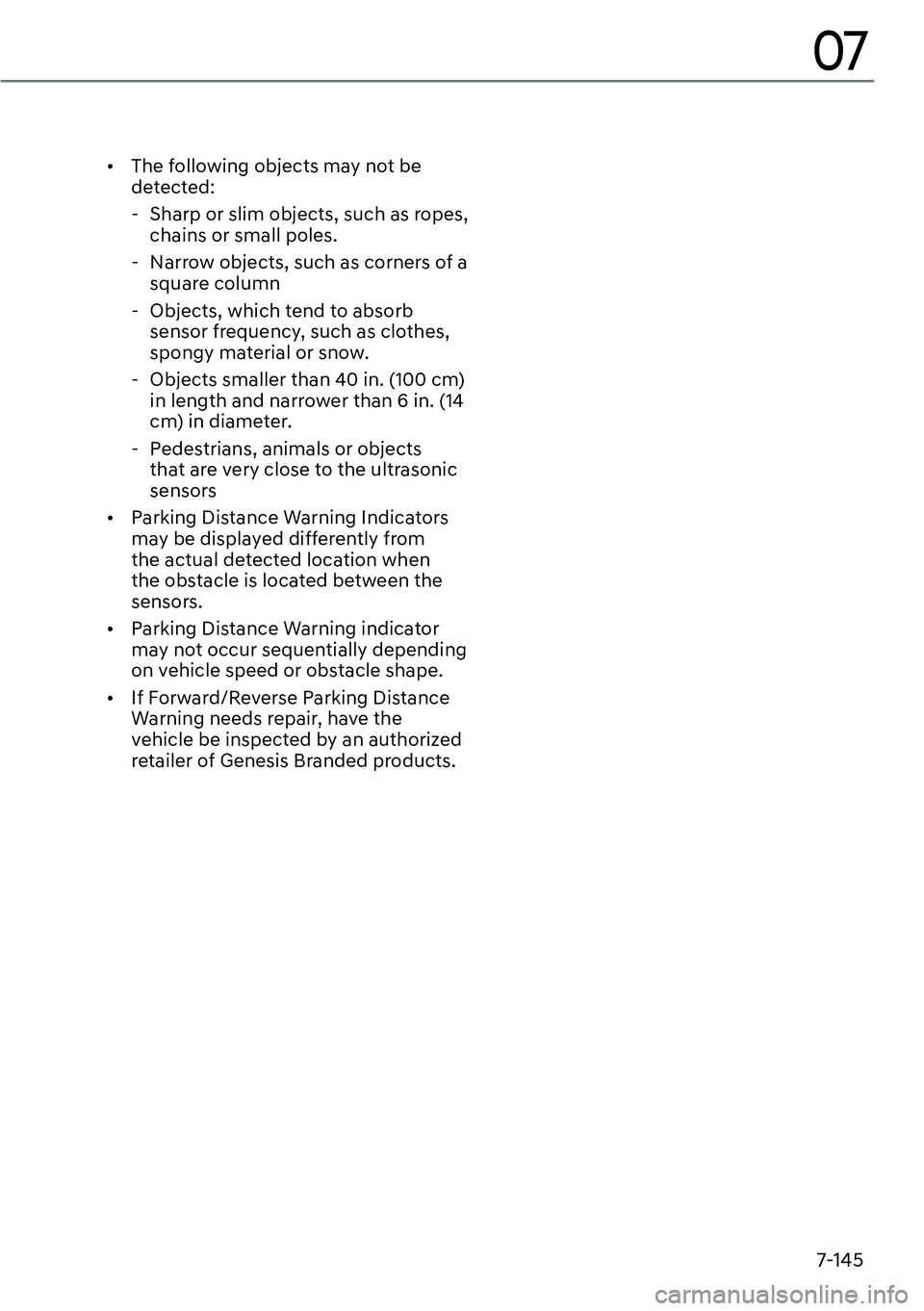

7-145
07

[The following objects may not be
detected:
- Sharp or slim objects, such as ropes,
chains or small poles.
- Narrow objects, such as corners of a
square column
- Objects, which tend to absorb
sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter.
- Pedestrians, animals or objects
that are very close to the ultrasonic
sensors

[Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.

[Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.

[If Forward/Reverse Parking Distance
Warning needs repair, have the
vehicle be inspected by an authorized
retailer of Genesis Branded products.

7-152
Driver Assistance System

[The following objects may not be
detected:
- Sharp or slim objects, such as ropes,
chains or small poles.
- Narrow objects, such as corners of a
square column
- Objects, which tend to absorb
sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter.
- Pedestrians, animals or objects
that are very close to the ultrasonic
sensors
- An object in the side space between
the front corner ultrasonic sensor
and the rear corner ultrasonic
sensor or an object approaching the
side space:$51,1*

[Parking Distance Warning is
DVXSSOHPHQWDOIXQFWLRQ7KH
operation of Parking Distance
:DUQLQJFDQEHDIIHFWHGE\VHYHUDO
IDFWRUVLQFOXGLQJHQYLURQPHQWDO
FRQGLWLRQV,WLVWKHUHVSRQVLELOLW\RI
WKHGULYHUWRDOZD\VFKHFNWKHIURQW
DQGUHDUYLHZVEHIRUHDQGZKLOH
SDUNLQJ

[<RXUQHZYHKLFOHZDUUDQW\GRHVQRW
FRYHUDQ\DFFLGHQWVRUGDPDJHWR
WKHYHKLFOHGXHWRWKHPDOIXQFWLRQRI
3DUNLQJ'LVWDQFH:DUQLQJ

[3D\FORVHDWWHQWLRQZKHQGULYLQJ
QHDUREMHFWVSHGHVWULDQVDQG
HVSHFLDOO\FKLOGUHQ6RPHREMHFWV
PD\QRWEHGHWHFWHGE\WKH
XOWUDVRQLFVHQVRUVGXHWRWKHREMHFWV
GLVWDQFHVL]HRUPDWHULDODOORI
ZKLFKFDQOLPLWWKHHIIHFWLYHQHVVRI
WKHVHQVRU

[Parking Distance Warning does not
ZDUQ\RXLQWKHRUGHURIGHWHFWLRQ
,WYDULHVGHSHQGLQJRQWKHVSHHGRI
WKHYHKLFOHRUWKHVKDSHRIDSHUVRQ
DQLPDORUREMHFW

[If the Parking Distance Warning does
QRWRSHUDWHSURSHUO\ZHUHFRPPHQG
WKDWWKHYHKLFOHEHLQVSHFWHGE\
DQDXWKRUL]HGUHWDLOHURI*HQHVLV
%UDQGHGSURGXFWV

7-186
Driver Assistance System

[The road surface is bumpy (curbstone,
speed bump, etc.)

[The road is slippery

[The parking space is near a vehicle
with higher ground clearance or big,
such as a truck, etc.

[The parking space is Inclined

[The road surface of parking space
with lines is wet due to snow, puddles,
or there is a road marker inside the
parking space

[The road surface of the parking space
with lines is bumpy due to road cracks

[The parking line is too thin or thick

[The parking line is partially erased or
blurred

[The parking line is obscured by
people, animals, or objects such as
snow, boxes, etc.

[There is heavy wind

[Operating Remote Smart Parking
Assist on uneven roads, gravel roads,
bushes, etc.

[The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather

[The ultrasonic sensor is covered with
snow or water

[An object that generates ultrasonic
waves is nearby

[A wireless device with a transmission
function operates near the ultrasonic
sensors

[Your vehicle is affected by another
vehicle’s Parking Distance Warning

[The sensor is mounted or positioned
incorrectly by an impact to the
bumper

[The cameras is improperly mounted
or out of position due to outside
rearview mirror damage
[The ultrasonic sensor cannot detect
the following objects when:
- Sharp or slim objects, such as ropes,
chains or small poles
- Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter
- Objects which tend to absorb
sensor frequency, such as clothes,
spongy material or snow
- A narrow object such as a corner of
a square pillar
- Person, animal or object near the
ultrasonic sensor

[The cameras may not properly
recognize or may not recognize the
parking line and objects when:
- There are small objects (curb, etc.),
sharp objects, or thin objects (rope,
etc.) around
- People, animals or objects are too
close or too far from the vehicle
- Objects are on a higher position,
such as pickup trucks
- The camera is obscured by dirt or
moisture
- The camera is exposed to strong
light
- The surrounding is too dark
- The light is reflected from the
surface
