Foreword / Starting your Electric vehicle
- If the warning message for V2L
appears on the cluster, refer to the
message entirely.
- If V2L does not operate previously
when you try connecting other low
power electronics or appliance,
have your vehicle inspected by
an authorized retailer of Genesis
Branded products.
5. Press the switch (1) to turn off the light
(2) the the V2L will be off. You can
disconnect the V2L connector when
the light (2) turns off or the charging
connecter lock is deactivated pressing
the door unlock button on the smart
key.
Information

[Please connect the V2L connector to the
charging inlet within 60 seconds after
the charging cover opens. To prevent
theft after connecting, it is changed
to auto lock automatically so that it is
impossible to separate.

[When using V2L, cancel the scheduled
air conditioning setting. V2L operation
may be blocked by scheduled air
conditioning operation conditions.
Indoor (if equipped)
OJWEVQ011052
1. Connect to the power outlet located
in bottom of the rear seat with the
Vehicle Stop/Start button in the ON
position.
OJWEVQ011064
2. Use the smart key to unlock the power
outlet cover.

1-17
01
OJWEVQ011065
3. Check the operation status through
the front indicator of the power outlet.

[Blue: Standby

[Red: No power supply even the
power outlet is connected

[Green: Normal power supply
through the normal connection of
the power outlet.
Information

[V2L discharging mode will shut off if
the vehicle is off using indoor V2L on
the vehicle state of ON.

[Opening the charging door or
connecting the V2L connector to the
charging inlet, the V2L discharging
mode will shut off. If you want to
use the indoor and outdoor V2L
simultaneously, firstly connect the V2L
connector to the charging inlet and use
the indoor V2L.
CAUTION

[Be well-informed of the manual to
prevent accidents.

[The V2L discharging mode is
blocked automatically in case of
overheating. (When the discharging
mode is blocked, check whether
the V2L connector or power plug
is contaminated, worn, corroded
or broken or the home appliance
capacity is over 16 A. If the
temperature falls to proper level
after it is left unattended, you can
use it again. Use proper home
appliances.)

[Do not remodel or disassemble
the provided V2L connector. The
failure caused by remodeling or
disassembling is not covered by the
warrant.

[Do not drop the V2L connector or
give a strong impact to it.

[Do not place objects on the V2L
connector.

[Be sure to disconnect the V2L
connector from the vehicle when you
are finished using V2L.

[When the high voltage battery
charge reaches the set discharging
limit(%), the operation stops, and
a warning message is displayed on
the instrument panel. If you want
V2L operation, set the discharging
limit(%) lower than the current
battery charge.

[When using various electric
products, use them below the
maximum power capacity that can
be supplied by the vehicle.

1-27
01
Locking Charging Cable
OJWEVQ011103L
You may select when the charging
connector can be locked and unlocked in
the charging inlet.
6HOHFW
S(9

1-32
Foreword / Starting your Electric vehicle
How to Check the Symbol on the
Charging Label
OJWEVQ011013
You can find the charging label when
opening the charging door.
Charging label
ONE1Q011086
1. Warning for high voltage
2. Caution
3. Charging voltage and current
WARNING
Risk of failure, fire, injury, etc., are
expected when using the charging
connector with unmatched symbol.
Unlock Charging Connector in
Emergency
OJWEVQ011032
If the charging cable does not open due
to battery discharge and failure of the
electric wires, open liftgate, emergency
unlock charging door is located on
right side of cargo area. Slightly pull the
emergency cable as shown above. The
charging connector will then unlock.
AC Charge
„AC Charger
OLFP0Q4057N
Actual charger image and charging
method may vary in accordance with the
charger manufacturer.

1-33
01
How to Connect AC Charger
1. Depress the brake pedal and apply the
parking brake.
2. Turn OFF all switches, shift to P (Park),
and turn OFF the vehicle.
If charging is initiated without the
gear in P (Park), the charging will start
after the gear is automatically shifted
to P (Park).
OJWEVQ011111L
OJWEVQ011114
3. Push the charging door where the
triangle symbol (1) is located or press
the button on smart key FOB as well
to open charging door. The charging
door opens only when the vehicle is
unlocked.
Information
If you cannot open the charging door due
to freezing weather, tap lightly or remove
any ice near the charging door. Do not try
to forcibly open the charging door. 4. Check if there is dust on the charging
connector and charging inlet.
5. Hold the charging connector handle
and connect it to the vehicle charging
inlet. Push the connector all the way
in. If the charging connector and
charging terminal are not connected
properly, this may cause a fire.
Information
Locking Charging Cable
6HOHFW

1-35
01
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary.

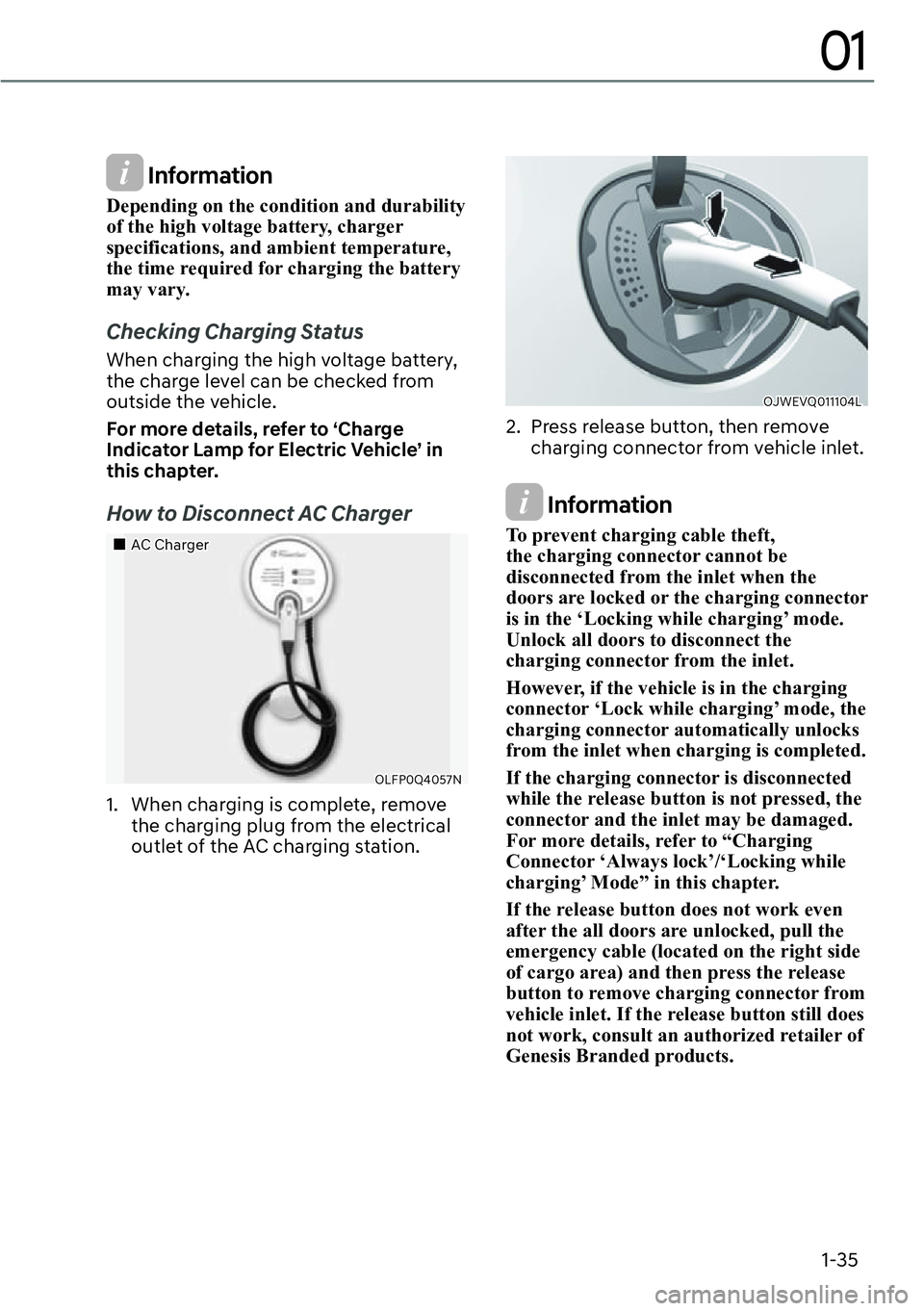

Checking Charging Status
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
For more details, refer to ‘Charge
Indicator Lamp for Electric Vehicle’ in
this chapter.
How to Disconnect AC Charger
„AC Charger
OLFP0Q4057N
1. When charging is complete, remove
the charging plug from the electrical
outlet of the AC charging station.
OJWEVQ011104L
2. Press release button, then remove
charging connector from vehicle inlet.
Information
To prevent charging cable theft,
the charging connector cannot be
disconnected from the inlet when the
doors are locked or the charging connector
is in the ‘Locking while charging’ mode.
Unlock all doors to disconnect the
charging connector from the inlet.
However, if the vehicle is in the charging
connector ‘Lock while charging’ mode, the
charging connector automatically unlocks
from the inlet when charging is completed.
If the charging connector is disconnected
while the release button is not pressed, the
connector and the inlet may be damaged.
For more details, refer to “Charging
Connector ‘Always lock’/‘Locking while
charging’ Mode” in this chapter.
If the release button does not work even
after the all doors are unlocked, pull the
emergency cable (located on the right side
of cargo area) and then press the release
button to remove charging connector from
vehicle inlet. If the release button still does
not work, consult an authorized retailer of
Genesis Branded products.

1-36
Foreword / Starting your Electric vehicle
Information
Some connectors installed in public
charging stations stop charging by
pressing the charge release button while
charging is locked, and the connector can
be disconnected and some DC chargers
have to be stopped through the charger
display.
3. Make sure to completely close the
charging door.
4. Close the protection caps of the
charging connector and the charging
plug to protect them from foreign
substances.
5. If the personal charging connector is
used, store the connector in the cable
compartment.
DC Charge
„DC Charger
OSQCEQ019005
You can charge at high speeds at public
charging stations. Refer to the respective
company’s manual that is provided for
each DC charger type.
Battery performance and durability can
deteriorate if the DC charger is used
constantly.
Use of DC charge should be minimized
in order to help prolong high voltage
battery life.
It is best to use a mix of DC and AC
charging over time.
Actual charger image and charging
method may vary in accordance with
the charger manufacturer.
Information
If you use a DC charger when the vehicle
is already fully charged, some DC
chargers will send out an error message.
When the vehicle is fully charged, do not
charge the vehicle.
