4
Press START button while turning wheel ...............................................................4-20
Low washer fluid ......................................................................................................4-20
Check steering wheel lock system .........................................................................4-20
Press brake pedal to start vehicle ..........................................................................4-20
Key not in vehicle ....................................................................................................4-20
Key not detected ......................................................................................................4-20
Press START button again ......................................................................................4-20
Place the smart key in the emergency start slot and press the start button ........4-21
Check BRAKE SWITCH fuse ....................................................................................4-21
Shift to P to start vehicle ..........................................................................................4-21
Battery discharging due to external/additional electrical devices .......................4-21
Door, Hood, Liftgate open indicator ........................................................................4-21
Low tire pressure ..................................................................................................... 4-22
Lights ........................................................................................................................4-22
Wiper ........................................................................................................................ 4-22
Check haptic steering wheel system ...................................................................... 4-23
Check headlight ....................................................................................................... 4-23
Check turn signal ..................................................................................................... 4-23
Check headlamp LED .............................................................................................. 4-23
Shift to P to charge .................................................................................................. 4-23
Remaining time ........................................................................................................ 4-23
Unplug vehicle to start ............................................................................................ 4-24
Charging door open ................................................................................................. 4-24
Charging stopped. Check the charger ................................................................... 4-24
Charging stopped. Check the cable connection ................................................... 4-25
Check regenerative brakes...................................................................................... 4-25
Low EV battery ........................................................................................................ 4-25
Charge immediately. Power limited .......................................................................4-26
Power limited due to low EV battery temperature. Charge battery .....................4-26
EV Battery Overheated! Stop vehicle .................................................................... 4-27
Power limited ........................................................................................................... 4-27
Stop vehicle and check power supply ....................................................................4-28
Check virtual engine sound system........................................................................4-28
Check electric vehicle system ................................................................................4-28
LCD Display ..................................................................................................... 4-29LCD Display Control ...................................................................................................4-29
View Modes ................................................................................................................4-29
Driving Assist view .................................................................................................. 4-30
Widget ...................................................................................................................... 4-31
Option Menu ...............................................................................................................4-33
Vehicle Settings (infotainment system) ........................................................ 4-34Setting Your Vehicle ..................................................................................................4-34

4-13
04

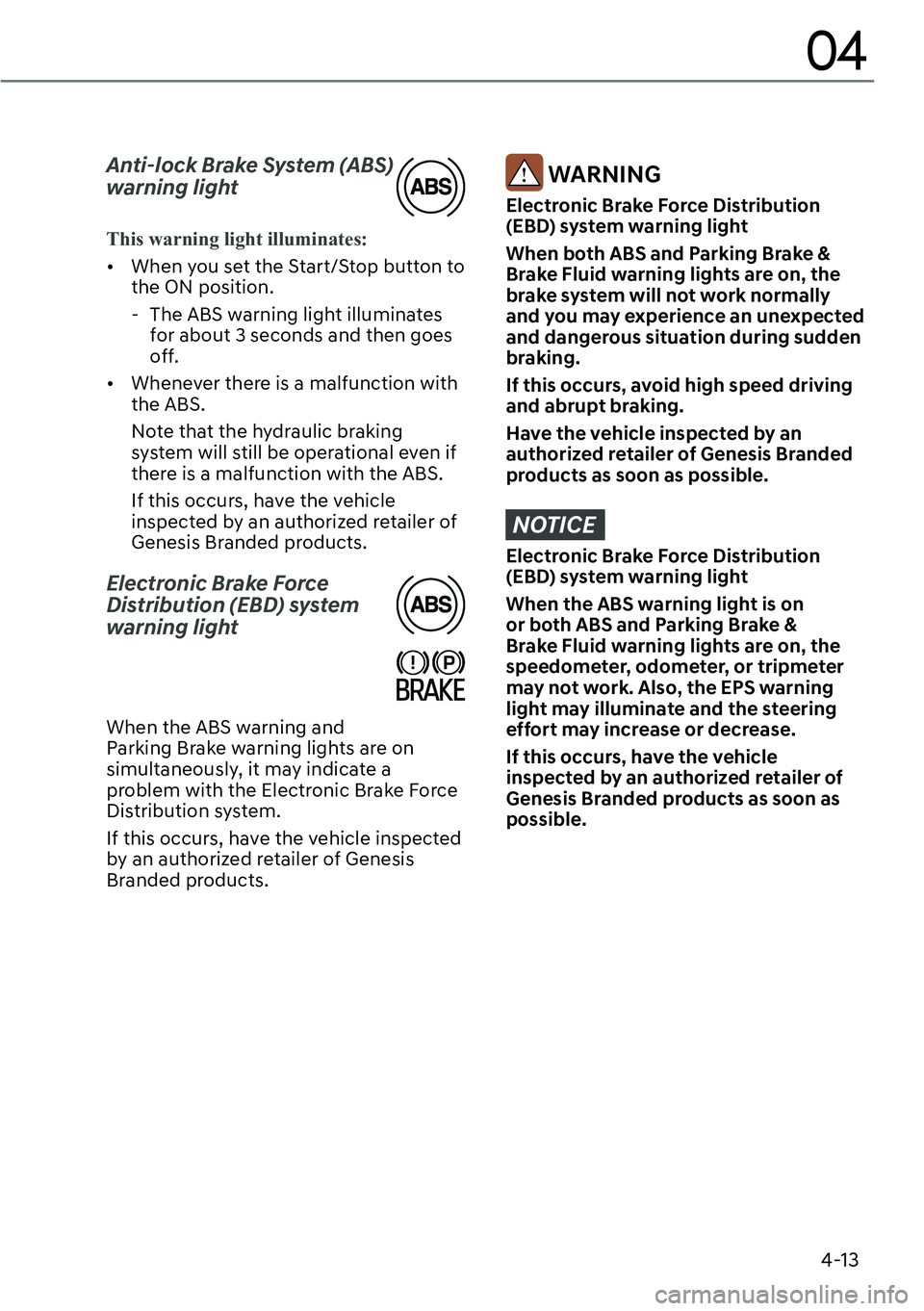

Anti-lock Brake System (ABS)
warning light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The ABS warning light illuminates
for about 3 seconds and then goes
off.

[Whenever there is a malfunction with
the ABS.
Note that the hydraulic braking
system will still be operational even if
there is a malfunction with the ABS.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Electronic Brake Force
Distribution (EBD) system
warning light
When the ABS warning and
Parking Brake warning lights are on
simultaneously, it may indicate a
problem with the Electronic Brake Force
Distribution system.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
WARNING
Electronic Brake Force Distribution
(EBD) system warning light
When both ABS and Parking Brake &
Brake Fluid warning lights are on, the
brake system will not work normally
and you may experience an unexpected
and dangerous situation during sudden
braking.
If this occurs, avoid high speed driving
and abrupt braking.
Have the vehicle inspected by an
authorized retailer of Genesis Branded
products as soon as possible.
NOTICE
Electronic Brake Force Distribution
(EBD) system warning light
When the ABS warning light is on
or both ABS and Parking Brake &
Brake Fluid warning lights are on, the
speedometer, odometer, or tripmeter
may not work. Also, the EPS warning
light may illuminate and the steering
effort may increase or decrease.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products as soon as
possible.

4-14
Instrument Cluster
Electric Power Steering (EPS)
warning light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The electric powering steering
warning light illuminates for about 3
seconds and then goes off.

[Whenever there is a malfunction with
the electric power steering.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Master warning light
This warning light illuminates:
When there is a malfunction in operation
in any of the following systems:
- Forward Collision-Avoidance Assist
malfunction (if equipped)
- Forward Collision-Avoidance Assist
radar blocked (if equipped)
- Blind-Spot Collision Warning
malfunction (if equipped)
- Blind-Spot Collision Warning radar
blocked (if equipped)
- LED headlamp malfunction
(if equipped)
- High Beam Assist malfunction
(if equipped)
- Smart Cruise Control malfunction (if
equipped)
- Smart Cruise Control radar blocked (if
equipped)
- Tire Pressure Monitoring System
(TPMS) malfunction
To identify the details of the warning,
look at the LCD display.
Electronic Parking Brake
(EPB) warning light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The EPB warning light illuminates
for about 3 seconds and then goes
off.

[Whenever there is a malfunction with
EPB.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Information
The Electronic Parking Brake (EPB)
warning light may illuminate when
the Electronic Stability Control (ESC)
indicator light comes on to indicate that
ESC is not working properly. This does
not indicate malfunction of EPB.

4-20
Instrument Cluster
LCD Display Messages
Shift to P
This message is displayed if you try to
turn off the vehicle without the gear in
the P (Park) position.
If this occurs, the Start/Stop button turns
to the ACC position.
Vehicle is in N. Press START button
and shift to P (and turn vehicle off)
This message is displayed if you try to
turn off the vehicle with the gear in N
(Neutral).
To turn off the vehicle:
1. Press the Start/Stop button. The
button will change to the ON position.
2. Press the P button to shift to P (Park).
3. Press the Start/Stop button again,
then the vehicle will turn off.
Low key battery
This message is displayed if the battery
of the smart key is discharged while
changing the Start/Stop button to the
OFF position.
Press START button while turning
wheel (if equipped)
This message is displayed if the steering
wheel does not unlock normally when
the Start/Stop button is pressed.
You should press the Start/Stop button
while turning the steering wheel right
and left.
Low washer fluid (if equipped)
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Check steering wheel lock system
(if equipped)
This message is displayed if the steering
wheel does not lock normally while the
Start/Stop button is pressed to the OFF
position.
Press brake pedal to start vehicle
This message is displayed if the Start/
Stop button changes to the ACC position
twice by pressing the button repeatedly
without depressing the brake pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Start/Stop button.
Key not in vehicle
This message is displayed if the smart
key is not in the vehicle when you leave
the vehicle with the Start/Stop button in
the ON or Start position.
Always turn off the vehicle before leaving
your vehicle.
Key not detected
This message is displayed if the smart
key is not detected when you press the
Start/Stop button.
Press START button again
This message is displayed if you were
unable to start the vehicle when the
Start/Stop button was pressed.
If this occurs, attempt to start the vehicle
by pressing the Start/Stop button again.
If the warning message appears each
time you press the Start/Stop button,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.

5
Accessing Your Vehicle ..................................................................................... 5-5Smart Key ...................................................................................................................... 5-5
Immobilizer System .................................................................................................... 5-11
Genesis Digital Key .......................................................................................... 5-12Digital Key (Smart Phone) ...........................................................................................5-12
Digital Key (Card Key) ................................................................................................. 5-18
Personalized Profile and Vehicle Settings ................................................................ 5-22
Used Vehicle/Digital Key Maintenance .................................................................... 5-25
Limitations of the System .......................................................................................... 5-25
Face Connect .................................................................................................. 5-26Face Connect Settings ............................................................................................... 5-26
Face Connect Operation ............................................................................................ 5-28
Limitations of Face Connect...................................................................................... 5-28
When Purchasing a Used Vehicle .............................................................................. 5-29
Legal Compliance ...................................................................................................... 5-29
Fingerprint Authentication System ................................................................ 5-30Fingerprint Authentication System Settings ............................................................5-30
Fingerprint Authentication System Operation ..........................................................5-31
Limitations of the System .......................................................................................... 5-32
Used vehicle ............................................................................................................... 5-32
Over-The-Air Software Update ....................................................................... 5-33Downloading Software .............................................................................................. 5-33
Approving Software Update ...................................................................................... 5-33
Preparing Software Update ....................................................................................... 5-33
Updating Software ..................................................................................................... 5-34
Door Locks ....................................................................................................... 5-36Operating Door Locks from Outside the Vehicle .....................................................5-36
Operating Door Locks from Inside the Vehicle ........................................................ 5-37
Automatic Door Lock and Unlock Features ............................................................. 5-40
Child-protector Rear Door Locks .............................................................................. 5-41
Electronic Child Safety Lock ...................................................................................... 5-41
Vehicle Auto-Shut Off Function ................................................................................5-43
5. Convenience Features

5
Storage Compartment ................................................................................... 5-128Center Console Storage ........................................................................................... 5-128
Glove Box .................................................................................................................. 5-129
Sunglass Holder ....................................................................................................... 5-129
Interior Features .............................................................................................5-130Cup Holder ................................................................................................................ 5-130
Diffuser ......................................................................................................................5-131
Sunvisor ..................................................................................................................... 5-131
Power Outlet ..............................................................................................................5-132
USB Charger ............................................................................................................. 5-133
Wireless Smart Phone Charging System ................................................................ 5-134
Vehicle to Load (V2L) .............................................................................................. 5-136
Clock .........................................................................................................................5-136
Coat Hook ................................................................................................................. 5-136
Floor mat anchor(s) ...................................................................................................5-137
Rear Side Window Sunshades ................................................................................. 5-138
Luggage Net Holder ................................................................................................. 5-138
Cargo Security Screen ............................................................................................. 5-139
Infotainment System ......................................................................................5-141
USB-C Port ................................................................................................................. 5-141
Antenna ...................................................................................................................... 5-141
Steering Wheel Remote Controls ............................................................................. 5-141
Infotainment System ................................................................................................ 5-142
Voice Recognition .................................................................................................... 5-142
Bluetooth® Wireless Technology ............................................................................. 5-143
Bang&Olufsen Sound System.................................................................................. 5-143

5-5
05
Smart Key
OJWEV051001
OJWEV051002
Your Genesis Branded Vehicle uses a Smart
Key, which you can use to lock or unlock the
driver and passenger doors, the charging
door or the rear liftgate.
1. Door lock
2. Door unlock
3. Liftgate open/close
4. Panic
5. Remote Start
6. Charging door open/close
7. Forward/Backward (if equipped)
Locking your vehicle
OJWEV051003
To lock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure all doors, the hood and the
liftgate are closed.
2. Make sure you have the smart key in
your possession.
3. Touch the touch sensor on the door
handle (the engraved part) or press
the Door Lock button (1) on the smart
key. The hazard warning lights will
blink.
4. Make sure the doors are locked. when
doors lock, the handles become flush
to the body. when doors are unlocked,
the handles present themselves (stick
out).
Information

[The side view mirror will fold if
‘Enable on Door Unlock’ is selected
from the Settings menu in the
infotainment system screen. Select:
-6HWXS
:9HKLFOH6HWWLQJV
:
&RQYHQLHQFH
::HOFRPH0LUURU
/LJKW
:(QDEOHRQ'RRU8QORFN

[The door handle touch sensor will only
operate when the smart key is within
0.7~1 m (28~40 in.) from the outside
door handle.

[Touching the door handle touch sensor
does not unlock the doors. To unlock
the doors, refer to the following page.
ACCESSING YOUR VEHICLE

5-6
Convenience Features
Note that you cannot lock your vehicle
using the door handle touch sensor if any
of the following occur:

[The Smart Key is in the vehicle.

[The Start/Stop button is from ACC or
ON position.

[Any of the doors are open except for
the liftgate.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Start/ Stop button and may operate
power windows, lock the doors or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking your vehicle (When the
Two Press Unlock feature is off)
OJWEV051003
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Touch the touch sensor on the door
handle or press the Door Unlock
button (2) on the smart key. All doors
will unlock and the hazard warning
lights will blink two times.
3. After unlocking the doors, the doors
will automatically relock after 30
seconds unless a door is opened.
Unlocking your vehicle (When the
Two Press Unlock feature is on)
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Touch the touch sensor on the door
handle or press the Door Unlock
button (2) on the smart key.
3. The driver’s door will be unlocked.
4. Touch the touch sensor on the door
handle or press the Door Unlock
button (2) on the smart key within
4 seconds again. All door will be
unlocked and the hazard warning
lights will blink twice and the chime
will sound.
5. After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.
Two Press Unlock Feature
The priority for unlocking the driver door
only, or unlocking all the doors with one
press may be adjusted in the Settings
menu in the infotainment system screen.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all the
doors.
6HWXS
