2019 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

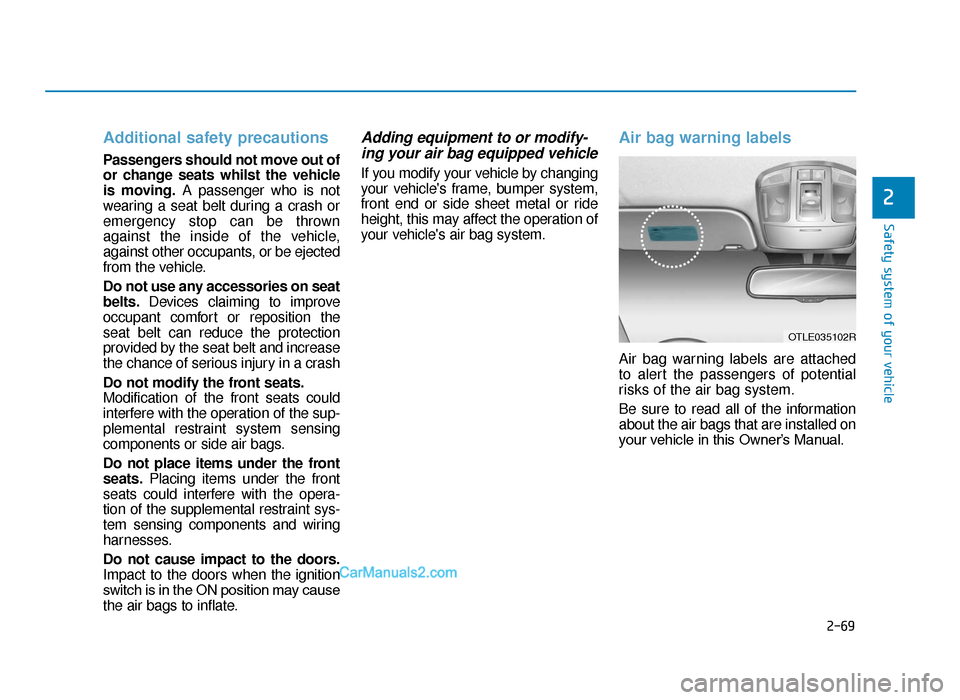

2-69
Safety system of your vehicle
2
Additional safety precautions
Passengers should not move out of
or change seats whilst the vehicle
is moving.A passenger who is not
wearing a seat belt during a crash or
emergency stop can be thrown
against the inside of the vehicle,
against other occupants, or be ejected
from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the
seat belt can reduce the protection
provided by the seat belt and increase
the chance of serious injury in a crash
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the sup-
plemental restraint system sensing
components or side air bags.
Do not place items under the front
seats. Placing items under the front
seats could interfere with the opera-
tion of the supplemental restraint sys-
tem sensing components and wiring
harnesses.
Do not cause impact to the doors.
Impact to the doors when the ignition
switch is in the ON position may cause
the air bags to inflate.
Adding equipment to or modify- ing your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle's frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle's air bag system.
Air bag warning labels
Air bag warning labels are attached
to alert the passengers of potential
risks of the air bag system.
Be sure to read all of the information
about the air bags that are installed on
your vehicle in this Owner’s Manual.
OTLE035102R
TLe UK 2.qxp 6/12/2018 2:09 PM Page 69

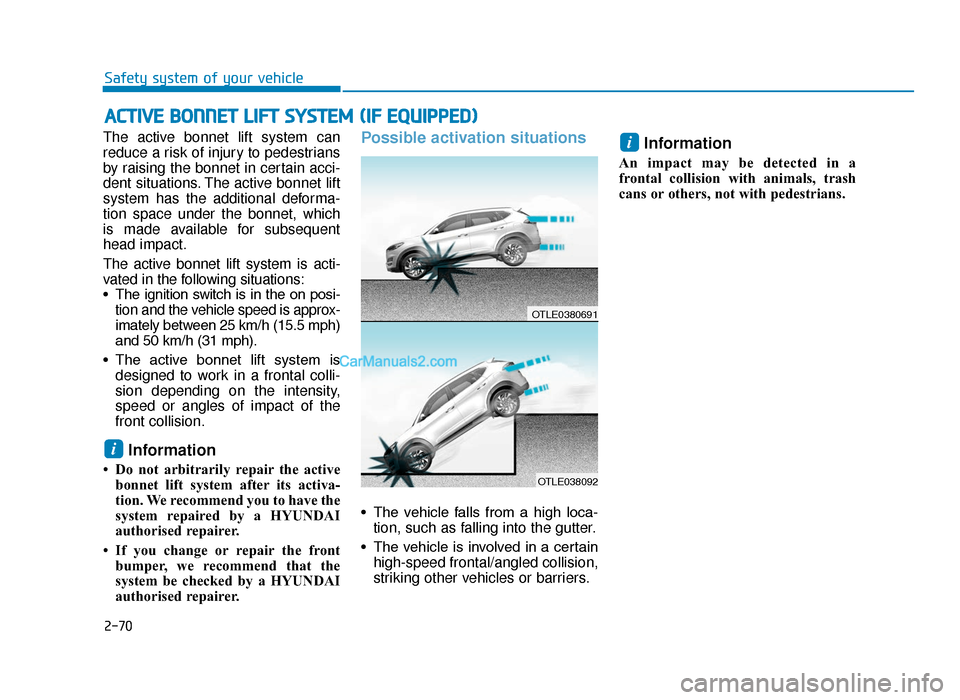

2-70
Safety system of your vehicle
The active bonnet lift system can
reduce a risk of injury to pedestrians
by raising the bonnet in certain acci-
dent situations. The active bonnet lift
system has the additional deforma-
tion space under the bonnet, which
is made available for subsequent
head impact.
The active bonnet lift system is acti-
vated in the following situations:
• The ignition switch is in the on posi- tion and the vehicle speed is approx-
imately between 25 km/h (15.5 mph)
and 50 km/h (31 mph).
• The active bonnet lift system is designed to work in a frontal colli-
sion depending on the intensity,
speed or angles of impact of the
front collision.
Information
• Do not arbitrarily repair the activebonnet lift system after its activa-
tion. We recommend you to have the
system repaired by a HYUNDAI
authorised repairer.
• If you change or repair the front bumper, we recommend that the
system be checked by a HYUNDAI
authorised repairer.
Possible activation situations
• The vehicle falls from a high loca-tion, such as falling into the gutter.
• The vehicle is involved in a certain high-speed frontal/angled collision,
striking other vehicles or barriers.
Information
An impact may be detected in a
frontal collision with animals, trash
cans or others, not with pedestrians.
i
i
ACTIVE BONNET LIFT SYSTEM (IF EQUIPPED)
OTLE0380691
OTLE038092
TLe UK 2.qxp 6/12/2018 2:09 PM Page 70

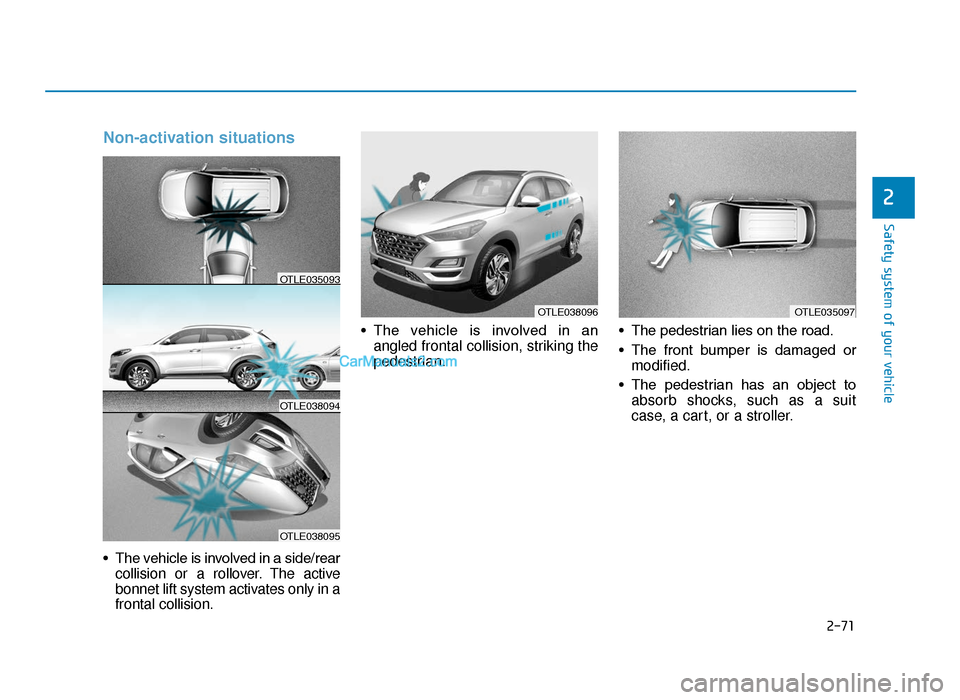

2-71
Safety system of your vehicle
2
Non-activation situations
• The vehicle is involved in a side/rearcollision or a rollover. The active
bonnet lift system activates only in a
frontal collision. • The vehicle is involved in an
angled frontal collision, striking the
pedestrian. • The pedestrian lies on the road.
• The front bumper is damaged or
modified.
• The pedestrian has an object to absorb shocks, such as a suit
case, a cart, or a stroller.
OTLE035093
OTLE038094
OTLE038095
OTLE038096OTLE035097
TLe UK 2.qxp 6/12/2018 2:10 PM Page 71

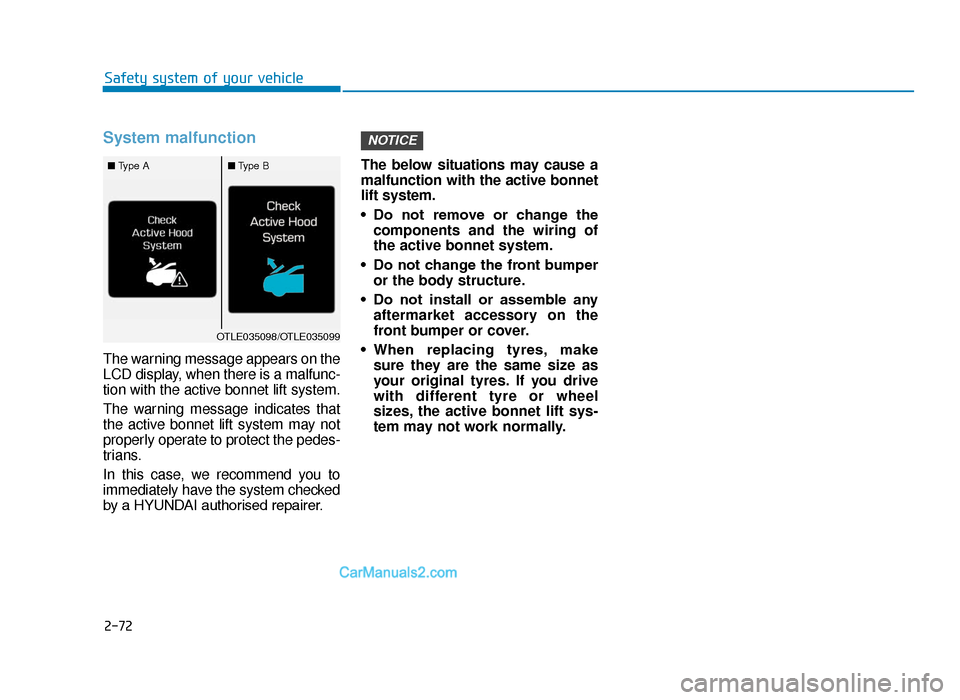

2-72
Safety system of your vehicle
System malfunction
The warning message appears on the
LCD display, when there is a malfunc-
tion with the active bonnet lift system.
The warning message indicates that
the active bonnet lift system may not
properly operate to protect the pedes-
trians.
In this case, we recommend you to
immediately have the system checked
by a HYUNDAI authorised repairer.The below situations may cause a
malfunction with the active bonnet
lift system.
• Do not remove or change the
components and the wiring of
the active bonnet system.
• Do not change the front bumper or the body structure.
• Do not install or assemble any aftermarket accessory on the
front bumper or cover.
• When replacing tyres, make sure they are the same size as
your original tyres. If you drive
with different tyre or wheel
sizes, the active bonnet lift sys-
tem may not work normally.
NOTICE
OTLE035098/OTLE035099
■
Type A ■Type B
TLe UK 2.qxp 6/12/2018 2:10 PM Page 72

Convenient features of your vehicle
Accessing your vehicle .........................................3-4
Remote key ........................................................................\
.3-4
Smart key ........................................................................\
....3-8
Immobiliser system .........................................................3-13
Door locks .............................................................3-14
Operating door locks from outside the vehicle ......3-14
Operating door locks from inside the vehicle .........3-16
Deadlocks (if equipped) .................................................3-18
Auto door lock/unlock features ................................3-18
Child-protector rear door locks ..................................3-19
Theft-alarm system.............................................3-20
Steering wheel......................................................3-22
Electric power steering (EPS) ......................................3-22
Tilt steering / Telescope steering...............................3-23
Heated steering wheel ...................................................3-24
Horn ........................................................................\
............3-24
Mirrors ...................................................................3-25
Inside rearview mirror....................................................3-25
Outside rearview mirror ................................................3-29
Windows ................................................................3-32
Power windows................................................................3-32
Panorama sunroof ...............................................3-37
Sunshade ........................................................................\
...3-38
Sliding the sunroof .........................................................3-38
Tilting the sunroof ..........................................................3-39
Closing the sunroof ........................................................3-39
Resetting the sunroof ....................................................3-41
Sunroof open warning ...................................................3-41
Exterior features .................................................3-42
Bonnet........................................................................\
........3-42
Fuel filler door .................................................................3-44
Tailgate ..................................................................3-47
Non-power tailgate ........................................................3-47
Power tailgate ..................................................................3-49
Smart tailgate ...................................................................3-56
Instrument cluster................................................3-60
Instrument cluster control ............................................3-62
Gauges ........................................................................\
.......3-62
Icy road warning light ....................................................3-65
Transaxle shift indicator ...............................................3-65
Odometer........................................................................\
...3-67
Distance to empty ...........................................................3-68
LCD display control.........................................................3-68
3
TLe UK 3a(~109).qxp 6/12/2018 2:20 PM Page 1

LCD display ...........................................................3-68
LCD modes ........................................................................\
3-69
Warning messages .........................................................3-79
Trip computer .......................................................3-87
Trip modes ........................................................................\
3-87
Warning and indicator lights ..............................3-93
Warning lights ..................................................................3-93
Indicator lights ...............................................................3-104
Light .....................................................................3-1\
10
Exterior lights ................................................................3-110
Low Beam Assist-Static light .....................................3-120
Welcome system ...........................................................3-120
Interior lights..................................................................3-121
Wipers and washers ..........................................3-125
Windscreen wipers .......................................................3-125
Windscreen washers ....................................................3-127
Rear window wiper and washer switch ..................3-128
Driver Assist System .........................................3-129
Parking distance warning (reverse) system ...........3-129
Parking distance warning (reverse/forward)
system........................................................................\
......3-132
Rear View Monitor .......................................................3-136
Surround View Monitor ...............................................3-137
Defroster .............................................................3-139
Rear window defroster ...............................................3-139
Manual climate control system........................3-140
Heating and air conditioning......................................3-141
System operation ..........................................................3-145
System maintenance ....................................................3-148
Automatic climate control system ...................3-150
Automatic heating and air conditioning ..................3-151
Manual heating and air conditioning .......................3-152
System operation ..........................................................3-158
System maintenance ....................................................3-160
Windscreen defrosting and defogging ...........3-163
Manual climate control system .................................3-163
Automatic climate control system ............................3-164
Defogging logic..............................................................3-165
Climate control additional features.................3-167
Automatic ventilation ...................................................3-167
To cancel or set the Automatic Ventilation............3-167
Sunroof inside air recirculation.................................3-167
3
TLe UK 3a(~109).qxp 6/12/2018 2:20 PM Page 2

Convenient features of your vehicle
3
Storage compartment ........................................3-168
Centre console storage ...............................................3-168
Sliding armrest ...............................................................3-168
Glove box ........................................................................\
3-169
Cool box........................................................................\
...3-169
Sunglass holder .............................................................3-169
Interior features.................................................3-171
Ashtray ........................................................................\
....3-171
Cup holder.......................................................................3\
-171
Sunvisor ........................................................................\
...3-172
Power outlet ...................................................................3-173\
USB charger ...................................................................3-174\
Wireless mobile phone charging system ................3-175
Cigarette lighter ............................................................3-177
Clock ........................................................................\
.........3-177
Clothes hanger ..............................................................3-178
Floor mat anchor(s)......................................................3-178
Luggage net (holder) ...................................................3-179
Cargo security screen..................................................3-180
Luggage tray ..................................................................3-182
Exterior features ...............................................3-183
Roof rack ........................................................................\
3-183
3
TLe UK 3a(~109).qxp 6/12/2018 2:20 PM Page 3

3-4
Convenient features of your vehicle
Remote key (if equipped)
Your HYUNDAI uses a remote key,
which you can use to lock or unlock
a door (and tailgate) and even start
the engine.
1. Door Lock
2. Door Unlock
3. Tailgate Unlock
Locking
To lock :
1. Close all doors, engine bonnetand tailgate.
2. Press the Door Lock button (1) on the remote key.
3. The doors will lock. The hazard warning lights will blink. Also, the
outside rearview mirror will fold, if
the outside rearview mirror folding
switch is in the AUTO position (if
equipped).
4. Make sure the doors are locked by checking the position of the door
lock button inside the vehicle.
Unlocking
To unlock:
1. Press the Door Unlock button (2)on the remote key.
2. The doors will unlock. The hazard warning lights will blink two times.
Also, the outside rearview mirror
will unfold, if the outside rearview
mirror folding switch is in the
AUTO position (if equipped).
Information
After unlocking the doors, the doors
will lock automatically after 30 sec-
onds unless a door is opened.
i
ACCESSING YOUR VEHICLE
Do not leave the keys in your
vehicle with unsupervised chil-
dren. Unattended children could
place the key in the ignition
switch and may operate power
windows or other controls, or
even make the vehicle move,
which could result in serious
injury or death.
WARNING
OTLE045001
TLe UK 3a(~109).qxp 6/12/2018 2:20 PM Page 4
