2019 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

3-45
Convenient features of your vehicle
Closing the fuel filler door
1. To install the fuel tank cap, turn itclockwise until it “clicks” one time.
2. To close the fuel filler door, press the edge of the fuel filler door.
Make sure it is securely closed.
3
Petrol is highly flammable and
explosive. Failure to follow
these guidelines may result in
SERIOUS INJURY or DEATH:
•Read and follow all warnings
posted at the gas station.
• Before refuelling, note the
location of the Emergency
Petrol Shut-Off, if available, at
the gas station.
• Before touching the fuel noz-
zle, you should eliminate the
potential build-up of static
electricity by touching a metal
part of the vehicle, a safe dis-
tance away from the fuel filler
neck, nozzle, or other gas
source, with your bare hand.
(Continued)
WARNING
(Continued)
•Do not use mobile phones
whilst refuelling. Electric cur-
rent and/or electronic interfer-
ence from mobile phones can
potentially ignite fuel vapours
and cause a fire.
• Do not get back into a vehicle
once you have begun refu-
elling. You can generate a
build-up of static electricity by
touching, rubbing or sliding
against any item or fabric
capable of producing static
electricity. Static electricity
discharge can ignite fuel
vapours causing a fire. If you
must re-enter the vehicle, you
should once again eliminate
potentially dangerous static
electricity discharge by touch-
ing a metal part of the vehicle,
away from the fuel filler neck,
nozzle or other petrol source,
with your bare hand.
(Continued)(Continued)
•
When refuelling, always move
the shift lever to the P (Park)
position (for automatic
transaxle/
dual clutch trans-
mission) or first gear or R
(Reverse, for manual
transaxle), set the parking
brake, and place the ignition
switch to the LOCK/OFF posi-
tion. Sparks produced by elec-
trical components related to
the engine can ignite fuel
vapours causing a fire.
• When using an approved
portable fuel container, be
sure to place the container on
the ground prior to refuelling.
Static electricity discharge
from the container can ignite
fuel vapours causing a fire.
Once refuelling has begun,
contact between your bare
hand and the vehicle should
be maintained until the filling
is complete.
(Continued)
TLe UK 3a(~109).qxp 6/12/2018 2:24 PM Page 45

3-46
Information
Make sure to refuel your vehicle
according to the "Fuel Requirements"
suggested in the Introduction chapter.
• Do not spill fuel on the exteriorsurfaces of the vehicle. Any type
of fuel spilled on painted sur-
faces may damage the paint.
• If the fuel filler cap requires replacement, use only a genuine
HYUNDAI cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can
result in a serious malfunction
of the fuel system or emission
control system.
NOTICE
i
Convenient features of your vehicle
(Continued)
•If pressurized fuel sprays out,
it can cover your clothes or
skin and thus subject you to
the risk of fire and burns.
Always remove the fuel cap
carefully and slowly. If the cap
is venting fuel or if you hear a
hissing sound, wait until the
condition stops before com-
pletely removing the cap.
• Always check that the fuel cap
is installed securely to pre-
vent fuel spillage in the event
of an accident.
(Continued)
•Use only approved portable
plastic fuel containers
designed to carry and store
petrol.
• Do not use matches or a
lighter and do not smoke or
leave a lit cigarette in your
vehicle whilst at a gas station,
especially during refuelling.
• Do not over-fill or top-off your
vehicle tank, which can cause
petrol spillage.
• If a fire breaks out during refu-
elling, leave the vicinity of the
vehicle, and immediately con-
tact the manager of the gas
station and then contact the
local fire department. Follow
any safety instructions they
provide.
(Continued)
TLe UK 3a(~109).qxp 6/12/2018 2:24 PM Page 46

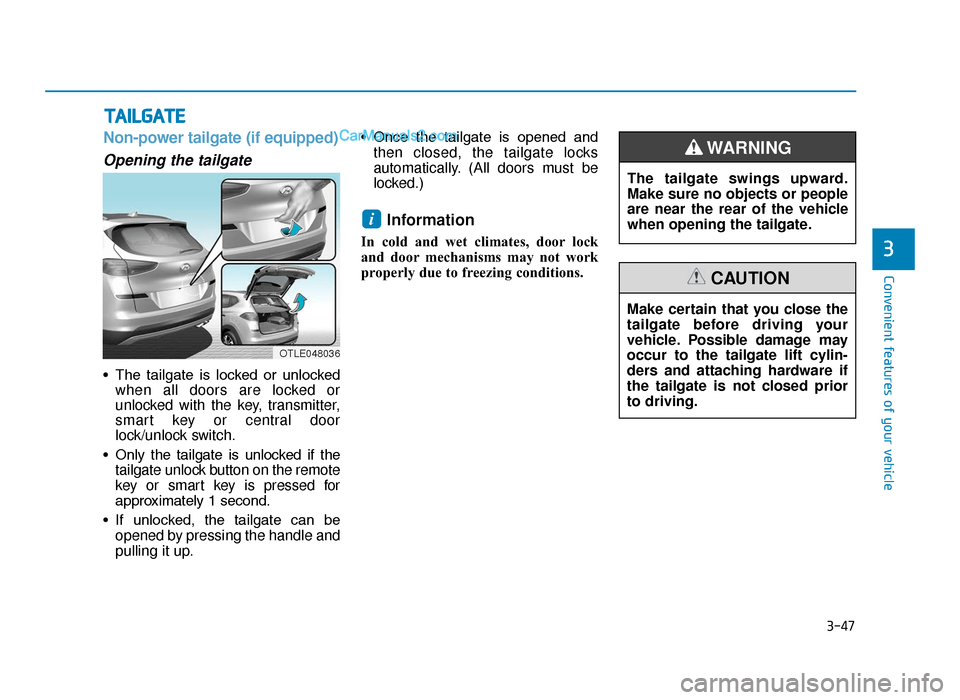

3-47
Convenient features of your vehicle
Non-power tailgate (if equipped)
Opening the tailgate
• The tailgate is locked or unlockedwhen all doors are locked or
unlocked with the key, transmitter,
smart key or central door
lock/unlock switch.
• Only the tailgate is unlocked if the tailgate unlock button on the remote
key or smart key is pressed for
approximately 1 second.
• If unlocked, the tailgate can be opened by pressing the handle and
pulling it up. • Once the tailgate is opened and
then closed, the tailgate locks
automatically. (All doors must be
locked.)
Information
In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
i
TAILGATE
3
OTLE048036
The tailgate swings upward.
Make sure no objects or people
are near the rear of the vehicle
when opening the tailgate.
WARNING
Make certain that you close the
tailgate before driving your
vehicle. Possible damage may
occur to the tailgate lift cylin-
ders and attaching hardware if
the tailgate is not closed prior
to driving.
CAUTION
TLe UK 3a(~109).qxp 6/12/2018 2:24 PM Page 47

3-48
Closing the tailgate
Lower and push down the tailgate
firmly. Make sure that the tailgate is
securely latched.
Convenient features of your vehicle
OTLE048037
Make sure your hands, feet and
other parts of your body are
safely out of the way before clos-
ing the tailgate.
In case of any malfunction we
recommend to visit a HYUNDAI
authorised repairer for inspec-
tion.
WARNING
Make sure nothing is near the
tailgate latch and striker whilst
closing the tailgate. It may dam-
age the tailgate's latch.
CAUTION
Always keep the tailgate com-
pletely closed whilst the vehicle
is in motion. If it is left open or
ajar, poisonous exhaust gases
containing carbon monoxide
(CO) may enter the vehicle and
serious illness or death may
result.
Do not lean on tailgate lift cylin-
ders, nor tie any rope or twine to
them to avoid bending and con-
sequent malfunction, vehicle
damage or injury in case bent lift
cylinder breaks the rear glass.
WARNING
Occupants should never ride in
the rear cargo area where no
restraints are available. To avoid
injury in the event of an accident
or sudden stops, occupants
should always be properly
restrained.
WARNING
Do not hold the part (gas lifter)
that supports the tailgate. Be
aware that the deformation of
the part may cause vehicle dam-
age and a risk of safety accident.
WARNING
OHYK047009
TLe UK 3a(~109).qxp 6/12/2018 2:24 PM Page 48

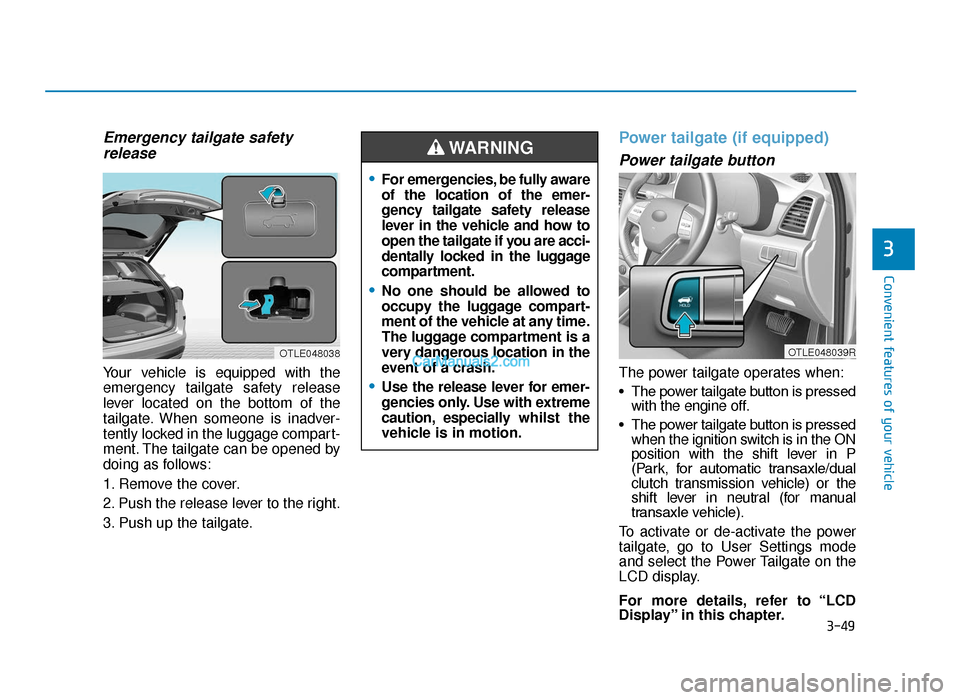

3-49
Convenient features of your vehicle
Emergency tailgate safetyrelease
Your vehicle is equipped with the
emergency tailgate safety release
lever located on the bottom of the
tailgate. When someone is inadver-
tently locked in the luggage compart-
ment. The tailgate can be opened by
doing as follows:
1. Remove the cover.
2. Push the release lever to the right.
3. Push up the tailgate.
Power tailgate (if equipped)
Power tailgate button
The power tailgate operates when:
• The power tailgate button is pressed with the engine off.
• The power tailgate button is pressed when the ignition switch is in the ON
position with the shift lever in P
(Park, for automatic transaxle/dual
clutch transmission vehicle) or the
shift lever in neutral (for manual
transaxle vehicle).
To activate or de-activate the power
tailgate, go to User Settings mode
and select the Power Tailgate on the
LCD display.
For more details, refer to “LCD
Display” in this chapter.
3
OTLE048038
•For emergencies, be fully aware
of the location of the emer-
gency tailgate safety release
lever in the vehicle and how to
open the tailgate if you are acci-
dentally locked in the luggage
compartment.
•No one should be allowed to
occupy the luggage compart-
ment of the vehicle at any time.
The luggage compartment is a
very dangerous location in the
event of a crash.
•Use the release lever for emer-
gencies only. Use with extreme
caution, especially whilst the
vehicle is in motion.
WARNING
OTLE048039R
TLe UK 3a(~109).qxp 6/12/2018 2:24 PM Page 49

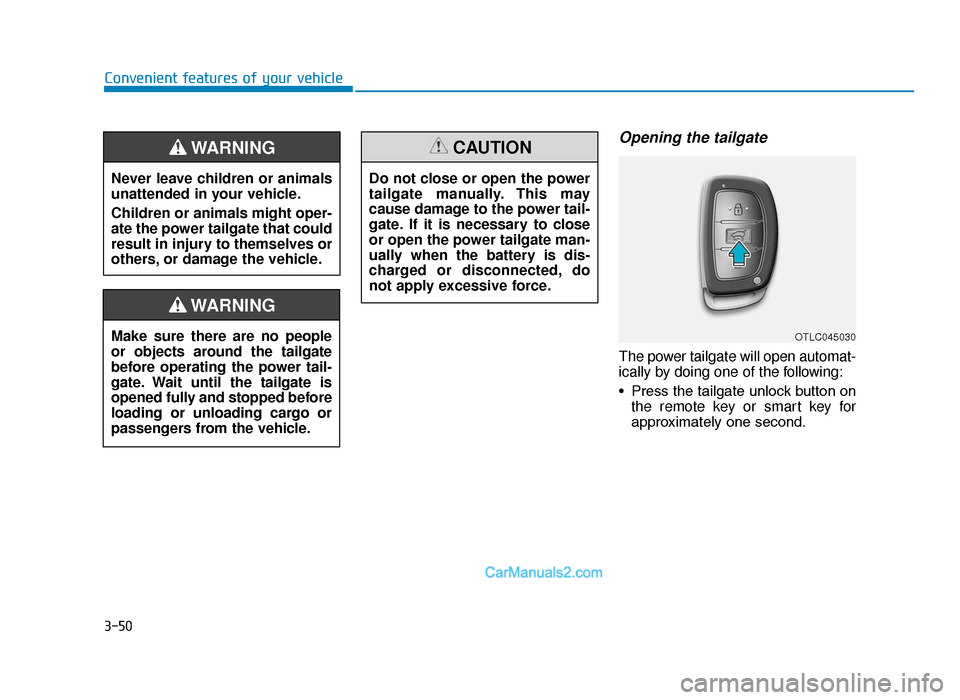

3-50
Opening the tailgate
The power tailgate will open automat-
ically by doing one of the following:
• Press the tailgate unlock button onthe remote key or smart key for
approximately one second.
Convenient features of your vehicle
Never leave children or animals
unattended in your vehicle.
Children or animals might oper-
ate the power tailgate that could
result in injury to themselves or
others, or damage the vehicle.
WARNING
Make sure there are no people
or objects around the tailgate
before operating the power tail-
gate. Wait until the tailgate is
opened fully and stopped before
loading or unloading cargo or
passengers from the vehicle.
WARNING
Do not close or open the power
tailgate manually. This may
cause damage to the power tail-
gate. If it is necessary to close
or open the power tailgate man-
ually when the battery is dis-
charged or disconnected, do
not apply excessive force.
CAUTION
OTLC045030
TLe UK 3a(~109).qxp 6/12/2018 2:24 PM Page 50

3-51
Convenient features of your vehicle
• Press the power tailgate button forapproximately one second.
For emergency stop whilst operating,
press the power tailgate button shortly. • Press the tailgate handle switch
carrying the smart key with you.
Closing the tailgate
• Press the power tailgate button forapproximately one second when
the tailgate is opened.
The tailgate will close and lock
automatically.
For emergency stop whilst operating,
press the power tailgate button shortly.
3
OTLE048039ROTLE048040
OTLE048039R
TLe UK 3a(~109).qxp 6/12/2018 2:24 PM Page 51

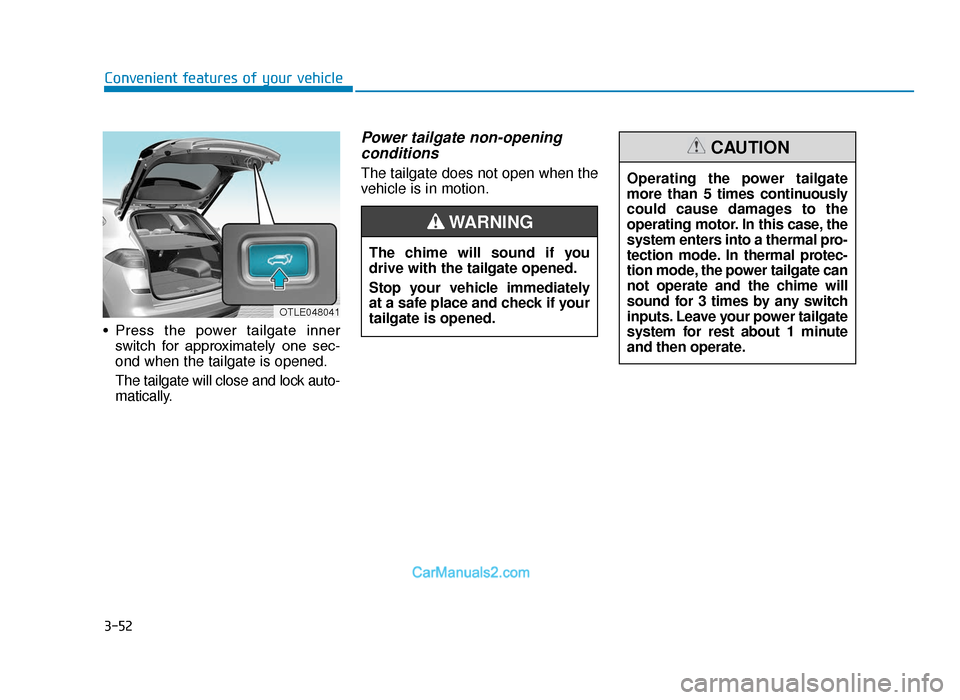

3-52
• Press the power tailgate innerswitch for approximately one sec-
ond when the tailgate is opened.
The tailgate will close and lock auto-
matically.
Power tailgate non-openingconditions
The tailgate does not open when the
vehicle is in motion.
Convenient features of your vehicle
OTLE048041
The chime will sound if you
drive with the tailgate opened.
Stop your vehicle immediately
at a safe place and check if your
tailgate is opened.
WARNING
Operating the power tailgate
more than 5 times continuously
could cause damages to the
operating motor. In this case, the
system enters into a thermal pro-
tection mode. In thermal protec-
tion mode, the power tailgate can
not operate and the chime will
sound for 3 times by any switch
inputs. Leave your power tailgate
system for rest about 1 minute
and then operate.
CAUTION
TLe UK 3a(~109).qxp 6/12/2018 2:24 PM Page 52
