2019 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

4-46
Multimedia System
USB
Supported audio formats
• Audio file specification- WAVeform audio format
- MPEG1/2/2.5 Audio Layer3
- Windows Media Audio Ver7.X/8.X
• Bit rates - MPEG1 (Layer3):32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
- MPEG2 (Layer3): 8/16/24/32/40/48/56/64/80/96/
112/128/144/160 kbps
- MPEG2.5 (Layer3): 8/16/24/32/40/48/56/64/80/96/
112/128/144/160 kbps
- WMA (High Range): 48/64/80/96/128/160/192 kbps • Bits Per Sample
- WAV (PCM(Stereo)): 24 bit
- WAV (IMA ADPCM): 4 bit
- WAV (MS ADPCM): 4 bit
• Sampling frequency - MPEG1: 44100/48000/32000 Hz
- MPEG2: 22050/24000/16000 Hz
- MPEG2.5: 11025/12000/8000 Hz
- WMA: 32000/44100/48000 Hz
- WAV: 44100/48000 Hz
• Maximum number of directory lay- ers: No limitation
• Maximum length of folder names (Based on Unicode): 31 English or
Korean characters
• Maximum length of file names (Based on Unicode): 63 English or
Korean characters
• Supported characters for folder/file names (Unicode support): 2,604
Korean characters, 94 alphanu-
meric characters, 4,888 Chinese
characters in common use, 986
special characters
• Maximum number of folders: 2,000
• Maximum number of files: 6,000 • Files that are not in a supported
format may not be recognised or
played, or information about
them, such as the file name, may
not be displayed properly.
• Only files with .mp3/.wma/.wav extensions can be recognised
by the system. If the file is not in
supported format, change the
file format by using the latest
encoding software.
• The device will not support files locked by DRM (Digital Rights
Management).
• For MP3/WMA compression files and WAV file, differences in
sound quality will occur depend-
ing on the bitrate. (Music files
with a higher bitrate have a bet-
ter sound quality.)
• Japanese or Simplified Chinese characters in folder or file
names may not be displayed
properly.
NOTICE
AUDIO SYSTEM SPECIFICATIONS
TLe UK 4.qxp 5/10/2018 12:05 PM Page 46

4-47
Multimedia System
4
Supported USB storage devices
• Byte/Sector: 64 kbyte or less
• Format system: FAT12/16/32 (rec-ommended)
• Maximum device size: 32 GB
• Operation is guaranteed only for a metal cover type USB storage
device with a plug type connec-
tor.
- USB storage devices with aplastic plug may not be recog-
nised.
- USB storage devices in memo- ry card types, such as CF card
or SD cards, may not be recog-
nised.
• USB hard disk drives may not be recognised.
• When you use a large capacity USB storage device with multi-
ple logical drives, only files
stored on the first drive will be
recognised.
(Continued)(Continued)
• If an application program is
loaded on a USB storage device,
the corresponding media files
may not play.
• Use USB 2.0 devices for better compatibility.
Bluetooth
• Bluetooth Power Class 2:-6 to 4 dBm
• Aerial power: Max 3 mW
• Frequency range: 2400 to 2483.5 MHz
• Bluetooth patch RAM software ver- sion: 1
NOTICE
TLe UK 4.qxp 5/10/2018 12:05 PM Page 47

4-48
Multimedia System
TRADEMARKS
Other trademarks and trade names are those of their
respective owners.
• The Bluetooth
®word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by HYUNDAI
is under licence.
• Apple
®, iPad®, iPad mini™, iPhone®, iPod®, iPod
classic®, iPod nano®, iPod touch®, and iTunes®are a
registered trademark of Apple Inc.
TLe UK 4.qxp 5/10/2018 12:05 PM Page 48

4-49
Multimedia System
4

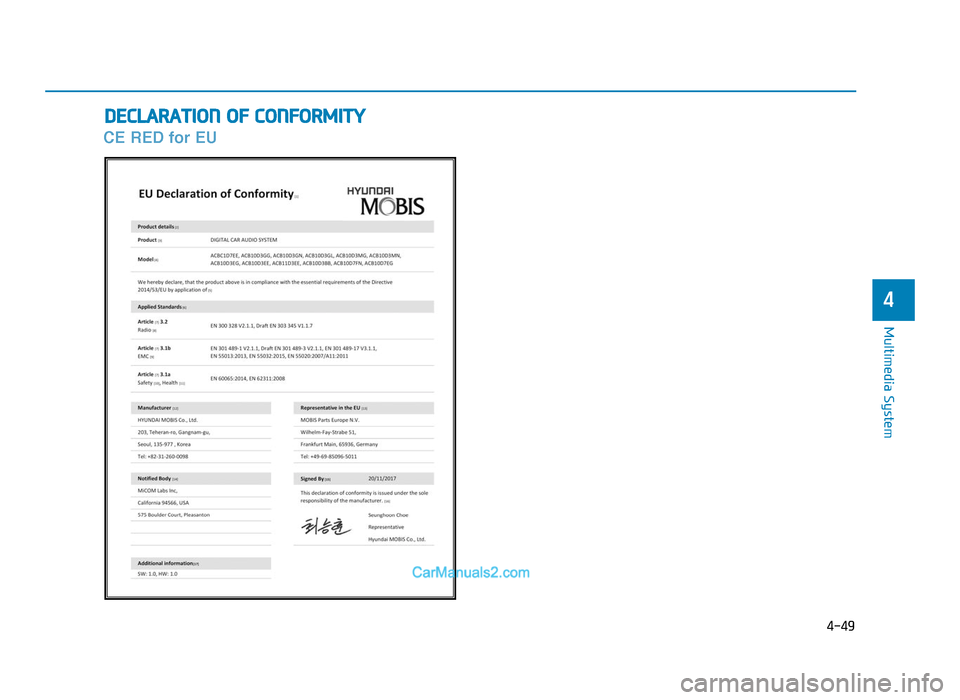

DECLARATION OF CONFORMITY
CE RED for EU
TLe UK 4.qxp 5/10/2018 12:05 PM Page 49

Driving your vehicle
Before driving.........................................................5-5
Before entering the vehicle ...........................................5-5
Before starting...................................................................5-5
Ignition switch ........................................................5-6
Key ignition switch ............................................................5-6
Engine start/Stop button ..............................................5-11
Manual transaxle .................................................5-20
Manual transaxle operation .........................................5-20
Good driving practices ...................................................5-22
Automatic transaxle ............................................5-24
Automatic transaxle operation ....................................5-24
Parking ........................................................................\
.......5-29
Good driving practices ...................................................5-29
Dual clutch transmission .....................................5-31
Dual clutch transmission operation ...........................5-31
LCD display for transmission temperature
and warning message ....................................................5-33
Parking ........................................................................\
.......5-41
Good driving practices ...................................................5-41
Braking system.....................................................5-43
Power brakes ...................................................................5-43
Disc brakes wear indicator ...........................................5-44
Parking brake (hand type) ............................................5-44
Electronic Parking Brake (EPB)...................................5-46
Auto hold ........................................................................\
...5-52
Anti-lock Brake System (ABS) ....................................5-56
Electronic Stability Control (ESC)................................5-58
Vehicle Stability Management (VSM).........................5-62
Hill-Start Assist Control (HAC) ....................................5-63
Downhill Brake Control (DBC) ......................................5-64
Emergency Stop Signal (ESS) ......................................5-66
Good braking practices..................................................5-67
Four wheel drive (4WD) ......................................5-68
4WD operation .................................................................5-69
Emergency precautions .................................................5-73
Reducing the risk of a rollover ...................................5-74
Idle Stop and Go (ISG) system ...........................5-76
To activate the ISG system ...........................................5-76
To deactivate the ISG system ......................................5-80
ISG system malfunction .................................................5-80
The battery sensor deactivation .................................5-81
5
TLe UK 5.qxp 5/10/2018 12:18 PM Page 1

5

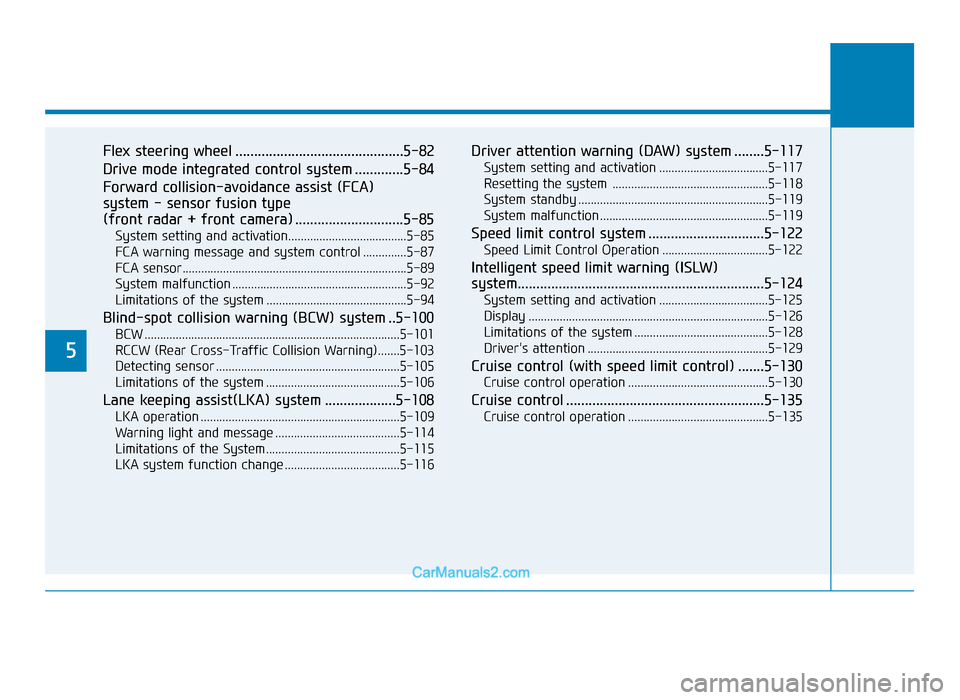

Flex steering wheel .............................................5-82
Drive mode integrated control system .............5-84
Forward collision-avoidance assist (FCA)
system - sensor fusion type
(front radar + front camera) .............................5-85
System setting and activation......................................5-85
FCA warning message and system control ..............5-87
FCA sensor........................................................................\
5-89
System malfunction ........................................................5-92
Limitations of the system .............................................5-94
Blind-spot collision warning (BCW) system ..5-100
BCW ........................................................................\
..........5-101
RCCW (Rear Cross-Traffic Collision Warning).......5-103
Detecting sensor ...........................................................5-105
Limitations of the system ...........................................5-106
Lane keeping assist(LKA) system ...................5-108
LKA operation ................................................................5-109
Warning light and message ........................................5-114
Limitations of the System...........................................5-115
LKA system function change .....................................5-116
Driver attention warning (DAW) system ........5-117
System setting and activation ...................................5-117
Resetting the system ..................................................5-118
System standby .............................................................5-119
System malfunction......................................................5-119
Speed limit control system ...............................5-122
Speed Limit Control Operation ..................................5-122
Intelligent speed limit warning (ISLW)
system..................................................................\
5-124
System setting and activation ...................................5-125
Display ........................................................................\
.....5-126
Limitations of the system ...........................................5-128
Driver's attention ..........................................................5-129
Cruise control (with speed limit control) .......5-130
Cruise control operation .............................................5-130
Cruise control .....................................................5-135
Cruise control operation .............................................5-135
TLe UK 5.qxp 5/10/2018 12:18 PM Page 2

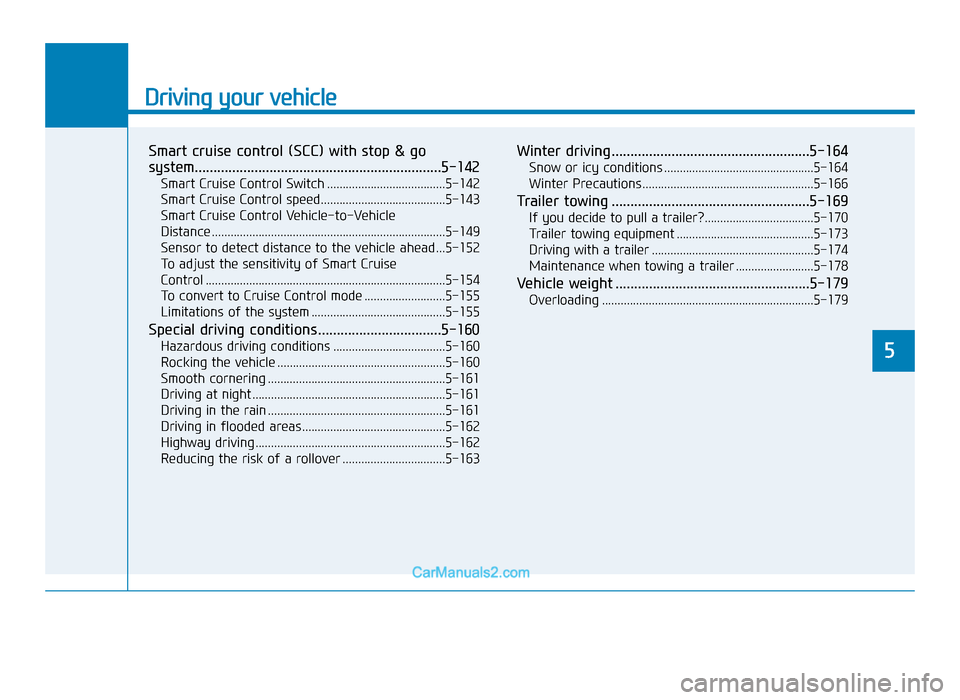

Driving your vehicle
Smart cruise control (SCC) with stop & go
system..................................................................\
5-142
Smart Cruise Control Switch ......................................5-142
Smart Cruise Control speed........................................5-143
Smart Cruise Control Vehicle-to-Vehicle
Distance ........................................................................\
...5-149
Sensor to detect distance to the vehicle ahead ...5-152
To adjust the sensitivity of Smart Cruise
Control ........................................................................\
.....5-154
To convert to Cruise Control mode ..........................5-155
Limitations of the system ...........................................5-155
Special driving conditions .................................5-160
Hazardous driving conditions ....................................5-160
Rocking the vehicle ......................................................5-160
Smooth cornering .........................................................5-161
Driving at night ..............................................................5-161
Driving in the rain .........................................................5-161
Driving in flooded areas..............................................5-162
Highway driving .............................................................5-162
Reducing the risk of a rollover .................................5-163
Winter driving .....................................................5-164
Snow or icy conditions ................................................5-164
Winter Precautions .......................................................5-166
Trailer towing .....................................................5-169
If you decide to pull a trailer?...................................5-170
Trailer towing equipment ............................................5-173
Driving with a trailer ....................................................5-174
Maintenance when towing a trailer .........................5-178
Vehicle weight ....................................................5-179
Overloading ....................................................................5-17\
9
5
TLe UK 5.qxp 5/10/2018 12:18 PM Page 3

5-4
Driving your vehicleCarbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows immediately. Exposure to CO can cause
unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If
you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath side of the
vehicle, we recommend that the exhaust system be checked as soon as possible by a HYUNDAI authorised repairer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Run the engine only
long enough to start the engine and to move the vehicle out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the vehicle , be sure to do so only in an
open area with the air intake set at "Fresh" and fan control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air intakes located in front of the windscreen
clear of snow, ice, leaves, or other obstructions.
If you must drive with the tailgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at "Fresh", the air flow control at "Floor" or "Face", and the fan control set to high.
WARNING
TLe UK 5.qxp 5/10/2018 12:18 PM Page 4
