2019 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

8-9
8
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolume Classification
Engine oil *
1*2
(drain and refill)
Recommends Petrol 1.6 GDI
3.6
l(3.16 lmp. qts.)
ACEA C2/C3
Petrol 1.6 T-GDI 4.5
l(3.95 lmp. qts)
Petrol 2.0 MPI 4.0
l(3.51 lmp. qts.)
API SM*
4& ILSAC GF-4 (or above) ACEA A5/B5 *3
Petrol 2.4 GDI 4.8
l (4.22 lmp. qts.)
ACEA A5/B5 *3
Smartstream D1.6 TCI 4.4
l (3.87 lmp. qts.)
ACEA C5 or C2 or C3
Diesel 2.0 TCI 7.6
l(6.68 lmp. qts.) with DPF
ACEA C2 or C3
without DPF ACEA A3/B4
Manual transaxle
fluid Petrol 1.6 GDI
1.6~1.7
l
(1.40~1.49 lmp. qts.)
HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W)
Petrol 1.6 T-GDI
2WD : 1.7~1.8
l
(1.49~1.58 lmp. qts.) 4WD : 1.6~1.7 l
(1.40~1.49 lmp. qts.)
Petrol 2.0 MPI
Smartstream D1.6 TCI
(Low power)1.7~1.8 l
(1.8~1.9 US qt.)
Smartstream D1.6 TCI
(High power)1.8~1.9 l
(1.58~1.67 lmp. qts.)
Diesel 2.0 TCI1.8~1.9 l
(1.58~1.67 lmp. qts.)
TLe UK 8.qxp 6/12/2018 3:17 PM Page 9

8-10
Specifications & Consumer information
LubricantVolume Classification
Automatic
transaxle fluid Petrol 1.6
7.3l(6.42 lmp. qts.)
MICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV
Petrol 2.0 MPI
Petrol 2.4
6.7
l(5.89 lmp. qts.)
Diesel 2.0 TCI 8.3
l(7.30 lmp. qts.)
Dual clutch transmission fluid 1.9
l~2.0 l
(1.67~1.75 lmp. qts.) HK DCTF 70W (SK)
SPIRAX S6 GHME 70W DCTF (H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W)
Engine coolant Petrol 1.6 GDI A/T
7.1
l(6.24 lmp. qts.)
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for aluminium
radiator)
Petrol 1.6 GDI M/T
7.3
l(6.41 lmp. qts.)
Petrol 1.6 T-GDI 7.2
l(6.33 lmp. qts.)
Petrol 2.0 MPI A/T 6.9
l(6.07 lmp. qts.)
Petrol 2.0 MPI M/T 7.0
l(6.15 lmp. qts.)
Petrol 2.4 GDI A/T 7.1
l(6.24 lmp. qts.)
Smartstream D1.6 TCI M/T 7.1
l(6.24 lmp. qts.)
Smartstream D1.6 TCI DCT 7.5
l(6.60 lmp. qts.)
Diesel 2.0 TCI 8.5~8.8
l
(7.47~7.74 lmp. qts.)
Brake/Clutch fluid 0.7~0.8
l
(0.61~0.70 lmp. qts.) FMVSS116 DOT-3 or DOT-4
TLe UK 8.qxp 6/12/2018 3:17 PM Page 10

8-11
8
Specifications & Consumer information
LubricantVolume Classification
Rear differential oil (4WD) 0.53~0.63
l
(0.46~0.55 lmp. qts.)
HYPOID GEAR OIL API GL-5, SAE 75W/85
(SK HCT-5 GEAR OIL 75W/85 or EQUIVALENT)
Transfer case oil
(4WD) Petrol 1.6 T-GDI /
Petrol 2.0 MPI (M/T *
5)
0.48~0.52
l
(0.42~0.45 lmp. qts.)
Petrol 2.0 MPI (A/T *
5)
Petrol 2.4 0.42~0.47l
(0.36~0.41 lmp. qts.)
Diesel 2.0 TCI
Fuel 55
l(12.09 lmp. gal.) *
6
Refer to “Fuel requirements” in Foreword chapter
62 l(13.63 lmp. gal.)
Urea (Diesel only, if equipped) 14
l(12.31 lmp. qts.) ISO22241
DIN70070
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labelled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reduc- ing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in ayear’s time, they can offer significant cost and energy savings.
*
3: If the ACEA A5/B5 engine oil is not available in your country, you are able to use ILSAC GF-3 (or above) or ACEA A3 (or above) .
*4: If the API service SM engine oil is not available in your country, you are able to use API service SL.
*5: M/T : Manual transaxle, A/T : Automatic transaxle
*6 : For MHEV (Mild Hybrid)
TLe UK 8.qxp 6/12/2018 3:17 PM Page 11

8-12
Specifications & Consumer information
Recommended engine oil
SupplierProduct
Petrol Engine Diesel Engine
Shell ACEA C2/C3 : Helix Ultra ECT C2/C3 0W30
ACEA C3 : HELIX ULTRA AP 5W30
ACEA A5/B5 : Helix Ultra AH 5W30, Helix Ultra A5/B5 0W30 ACEA C2 : HELIX ULTRA AP-L 5W30
Always be sure to clean the area around any filler plug, drain plug, or dipstick before checking or draining
any lubricant. This is especially important in dusty or sandy areas and when the vehicle is used on unpaved
roads. Cleaning the plug and dipstick areas will prevent dirt and grit from entering the engine and other
mechanisms that could be damaged.
CAUTION
Recommended SAE viscosity number
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operating (engine start and engine oil
flowability). Lower viscosity engine oils can provide better fuel economy and cold weather performance, however, high-
er viscosity engine oils are required for satisfactory lubrication in hot weather. Using oils of any viscosity other than
those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated in before the next oil change.
Proceed to select the recommended oil viscosity from the chart.
TLe UK 8.qxp 6/12/2018 3:17 PM Page 12

8-13
8
Specifications & Consumer information
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 -10 0 20 40 60 80 100
1.6 GDI, T-GDI
2.0 MPI
20W-50
10W-30
15W-40
5W-30, 5W-40
5W-30
10W-30
0W-20/30
5W-30/40
10W-30/40
0W-30/40
0W-40, 5W-20, 5W-30, 5W-40
Diesel Engine Oil Smartstream D1.6
2.0 TCI / 2.0 48V MHEV
2.4 GDI
Petrol Engine Oil
20W-50
10W-30
15W-40
0W-30, 5W-30, 5W-40
TLe UK 8.qxp 6/12/2018 3:17 PM Page 13

8-14
Specifications & Consumer information

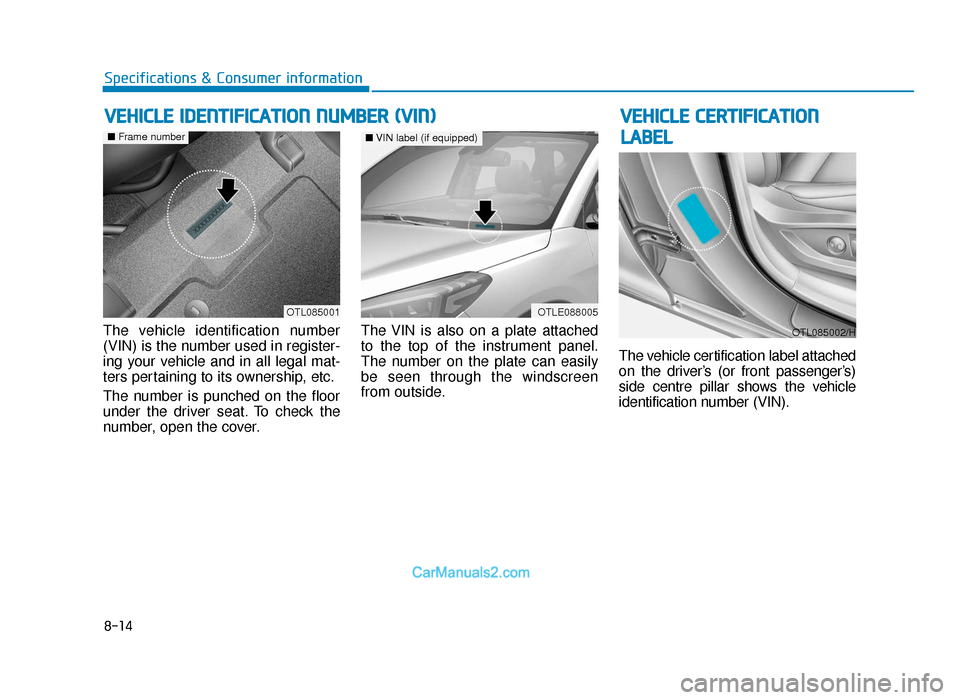

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the driver seat. To check the
number, open the cover. The VIN is also on a plate attached
to the top of the instrument panel.
The number on the plate can easily
be seen through the windscreen
from outside.
The vehicle certification label attached
on the driver’s (or front passenger’s)
side centre pillar shows the vehicle
identification number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)VEHICLE CERTIFICATION
LABEL
OTLE088005
■
VIN label (if equipped)
OTL085002/H
OTL085001
■ Frame number
TLe UK 8.qxp 6/12/2018 3:18 PM Page 14

8-15
8
Specifications & Consumer information
The tyres supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tyre label located on the driver's
side centre pillar shows the tyre
pressures recommended for your
vehicle.
TYRE SPECIFICATION AND
PRESSURE LABEL
ENGINE NUMBER
The engine number is stamped on
the engine block as shown.
OTLE085006R
OTLE088004
■ Petrol 1.6 GDI / 1.6 T-GDI
OTLE088003
■Petrol 2.0 MPI
OTLE085007
■ Petrol 2.4 GDI
OTLE085008
■Smartstream D1.6
OLF084004L
■Diesel 2.0 TCI / Diesel 48V MHEV
TLe UK 8.qxp 6/12/2018 3:18 PM Page 15

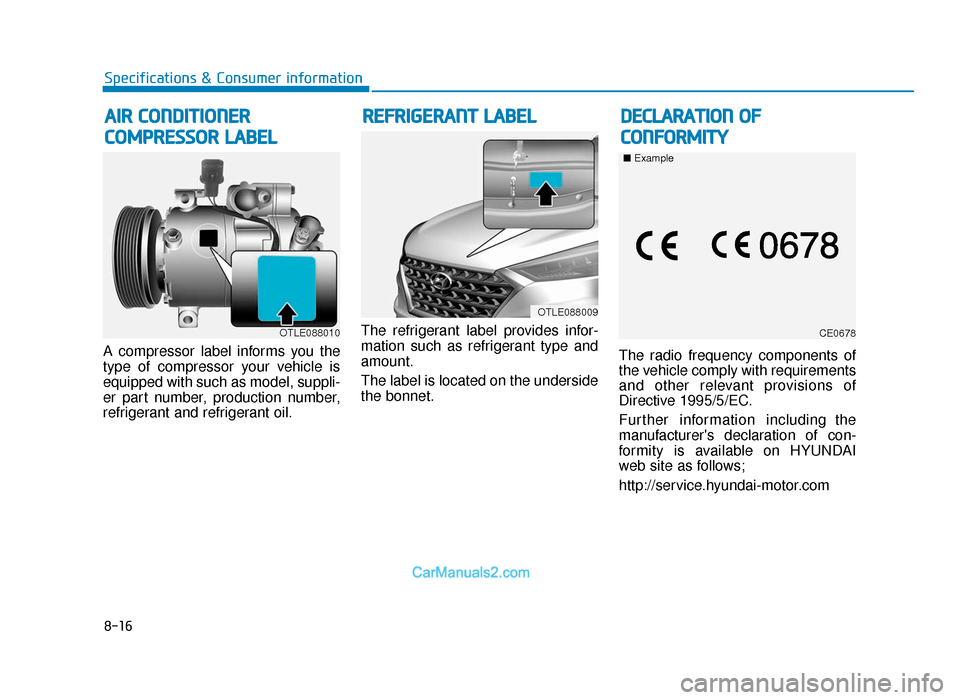

A compressor label informs you the
type of compressor your vehicle is
equipped with such as model, suppli-
er part number, production number,
refrigerant and refrigerant oil.The refrigerant label provides infor-
mation such as refrigerant type and
amount.
The label is located on the underside
the bonnet.
The radio frequency components of
the vehicle comply with requirements
and other relevant provisions of
Directive 1995/5/EC.
Further information including the
manufacturer's declaration of con-
formity is available on HYUNDAI
web site as follows;
http://service.hyundai-motor.com
REFRIGERANT LABELAIR CONDITIONER
C
OMPRESSOR LABEL
OTLE088010
OTLE088009
CE0678
■
Example
DECLARATION OF
C
ONFORMITY
Specifications & Consumer information
