2019 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

7-52
Maintenance
Fuse switch
Always, place the fuse switch to the
ON position.
If you move the switch to the OFF
position, some items such as the
audio system and digital clock must
be reset and the smart key may not
work properly.
Information
If the fuse switch is OFF, the above
message will appear.
• Always place the fuse switch inthe ON position whilst driving
the vehicle.
• Place the fuse switch in the OFF position when the vehicle is
parked more than a month to
prevent battery discharge.
• Do not move the transportation fuse switch repeatedly. The fuse
switch may be damaged.
Engine compartment panel fusereplacement
1. Turn the engine off and all other switches off.
2. Turn all the switches off.
3. Remove the fuse box cover by pressing the tab and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips. If it fits loosely, we rec-
ommend that you consult a
HYUNDAI authorised repairer.
NOTICE
i
OTLE048609
OTLE078024
OTLE078025R
TLe UK 7.qxp 5/10/2018 1:35 PM Page 52

7-53
7
Maintenance
After checking the fuse box in the
engine compartment, securely
install the fuse box cover. If not,
electrical failures may occur from
water leaking in.
Main fuse
If an electrical system does not oper-
ate with no blown fuse in the engine
room and inner fuse box, the main
fuse inside the battery (+) cap may
be blown.
The main fuse is heavily connected
to many other parts. In this case, we
recommend you to contact a
HYUNDAI authorised repairer.
Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Disconnect the negative batterycable.
2. Remove the nuts shown in the pic- ture above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.
Information
If the multi fuse is blown, we recom-
mend that you consult a HYUNDAI
authorised repairer.
i
NOTICE
OTLE078027OTLE078028
TLe UK 7.qxp 5/10/2018 1:35 PM Page 53

7-54
Maintenance

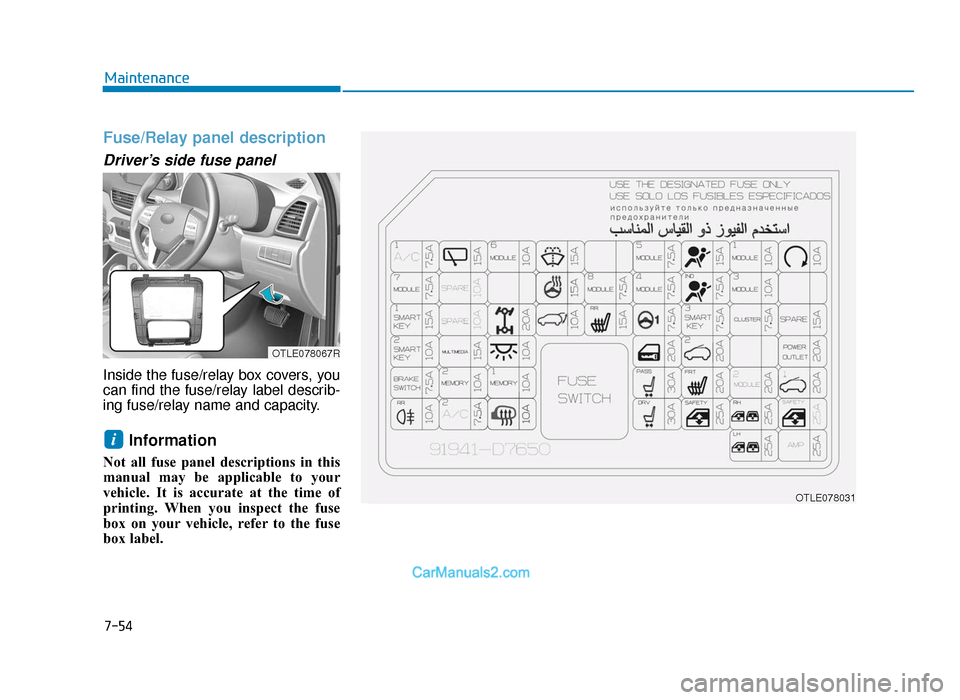

Fuse/Relay panel description
Driver’s side fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
box on your vehicle, refer to the fuse
box label.
i
OTLE078067R
OTLE078031
TLe UK 7.qxp 5/10/2018 1:35 PM Page 54

7-55
7
Maintenance
Driver’s side fuse panel
Fuse Name SymbolFuse RatingCircuit Protected
A/CON 1 7.5A A/C Control Module, Cluster Ionizer (Auto A/C),
E/R Junction Block (RLY.4, 5, 13)
WIPER RR15A ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor
MODULE 6 10A BCM, Smart Key Control Module
WASHER 15A Multifunction Switch (Washer Switch)
MODULE 5 7.5A Crash Pad Switch, Rear Parking Assist Buzzer, BCM, 4WD ECM, Forward Collision Avoidance
Assist Unit, Steering Angle Sensor, Blind Spot Detection Radar LH/RH, Console Switch,
Smart Parking Assist Control Module, Lane Keeping Assist Control Module
AIR BAG15A SRS Control Module
MODULE 1 10A BCM, A/V & Navigation Head Unit, MTS E-Call Module, AUDIO, Low DC-DC Converter,
Smart Key Control Module, AMP, Power Outside Mirror Switch, PCB Block (Power Outlet Relay),
Surround View Monitor, Wiresess Charger Unit, Rear USB Port
START 10A ICM Relay Box (Burglar Alarm Relay), Transaxle Range Switch
MODULE 7 7.5A Front Air Ventilation Seat Module, Front Seat Warmer Module,
Rear Seat Warmer, Surround View Monitor
HEATED
STEERING15A BCM
MODULE 8 7.5A Driver/Passenger Power Outside Mirror, Driver/Passenger Smart Key Outside Handle,
Forward Collision Avoidance Assist Unit, Data Link Connector
TLe UK 7.qxp 5/10/2018 1:36 PM Page 55

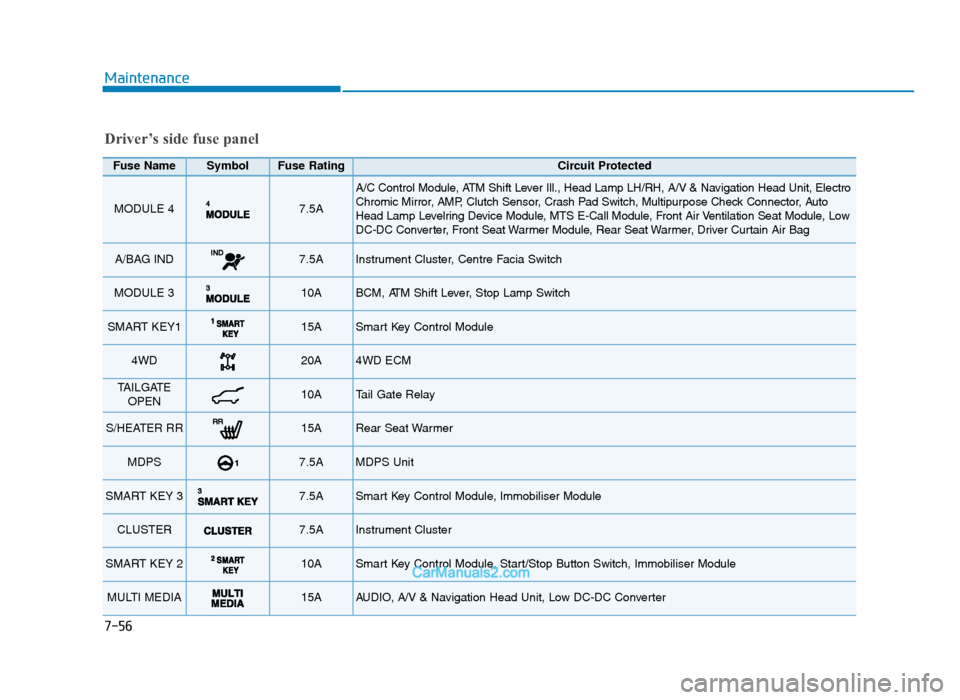

7-56
Maintenance
Fuse Name SymbolFuse RatingCircuit Protected
MODULE 4 7.5A
A/C Control Module, ATM Shift Lever Ill., Head Lamp LH/RH, A/V & Navigation Head Unit, Electro
Chromic Mirror, AMP, Clutch Sensor, Crash Pad Switch, Multipurpose Check Connector, Auto
Head Lamp Levelring Device Module, MTS E-Call Module, Front Air Ventilation Seat Module, Low
DC-DC Converter, Front Seat Warmer Module, Rear Seat Warmer, Driver Curtain Air Bag
A/BAG IND 7.5A Instrument Cluster, Centre Facia Switch
MODULE 3 10A BCM, ATM Shift Lever, Stop Lamp Switch
SMART KEY115A Smart Key Control Module
4WD 20A 4WD ECM
TAILGATEOPEN10A Tail Gate Relay
S/HEATER RR15A Rear Seat Warmer
MDPS 7.5A MDPS Unit
SMART KEY 3 7.5A Smart Key Control Module, Immobiliser Module
CLUSTER 7.5A Instrument Cluster
SMART KEY 2 10A Smart Key Control Module, Start/Stop Button Switch, Immobiliser Module
MULTI MEDIA 15A AUDIO, A/V & Navigation Head Unit, Low DC-DC Converter
Driver’s side fuse panel
TLe UK 7.qxp 5/10/2018 1:36 PM Page 56

7-57
7
Maintenance
Driver’s side fuse panel
Fuse Name SymbolFuse RatingCircuit Protected
INTERIORLAMP10A Ignition Key Ill. & Door Warning Switch, Luggage Lamp, Glove Box Lamp, Overhead Console Lamp,
Room Lamp, Front Vanity Lamp LH/RH, Rear Personal Lamp LH/RH, Wiresess Charger Unit
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay,
ICM Relay Box (Dead Lock Relay)
SUNROOF220A Panorama Sunroof
POWER
OUTLET 20A Front Power Outlet & Cigarette Lighter, Front Power Outlet #2
BRAKE
SWITCH 7.5A Smart Key Control Module, Stop Lamp Switch
MEMORY 2 10A BCM, Rain Sensor, Console Switch, Security IND.
A/C Control Module, Instrument Cluster, ICM Relay Box (Outside Mirror Folding/Unfolding Relay
MEMORY 1MEMORY110A MTS E-Call Module
P/SEAT (PASS)30A Passenger Seat Manual Switch
S/HEATER FRT 20A Front Air Ventilation Seat Module, Front Seat Warmer Module
MODULE 2 20A PCB Block (Fuse - F44, F45, F49, F50, F52, F53)
SUNROOF120A Panorama Sunroof
RR FOG10A ICM Relay Box (Rear Fog Lamp Relay)
TLe UK 7.qxp 5/10/2018 1:36 PM Page 57

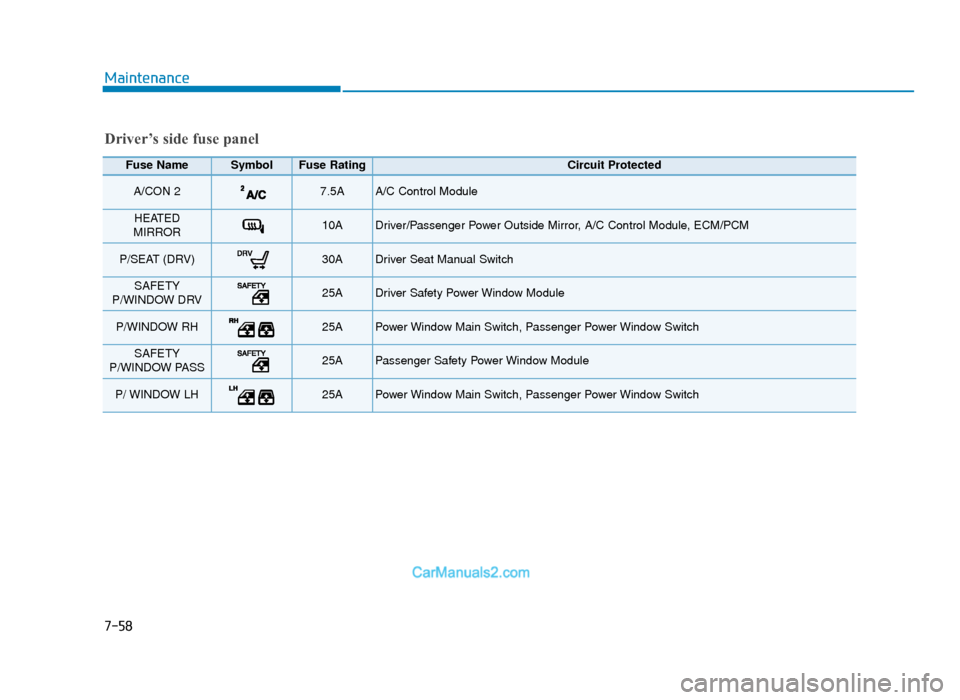

7-58
Maintenance
Driver’s side fuse panel
Fuse Name SymbolFuse RatingCircuit Protected
A/CON 2 7.5A A/C Control Module
HEATED
MIRROR 10A Driver/Passenger Power Outside Mirror, A/C Control Module, ECM/PCM
P/SEAT (DRV) 30A Driver Seat Manual Switch
SAFETY
P/WINDOW DRV25A Driver Safety Power Window Module
P/WINDOW RH 25A Power Window Main Switch, Passenger Power Window Switch
SAFETY
P/WINDOW PASS25APassenger Safety Power Window Module
P/ WINDOW LH 25A Power Window Main Switch, Passenger Power Window Switch
TLe UK 7.qxp 5/10/2018 1:36 PM Page 58

7-59
7
Maintenance
Engine compartment fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
box on your vehicle, refer to the fuse
box label.
i
OTLE078029
OTLE078030
