2019 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

7-68
Maintenance
LIGHT BULBS
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch is
in the LOCK/OFF position and
turn off the lights to avoid sud-
den movement of the vehicle and
burning your fingers or receiving
an electric shock.
WARNING
Consult a HYUNDAI authorised
repairer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehicle must be removed before you
can get to the bulb. This is especially
true for removing the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.Be sure to replace the burned-out
bulb with one of the same wattage
rating. Otherwise, it may cause
damage to the fuse or electric
wiring system.
Information
After heavy driving, rain or washing,
headlamp and tail lamp lenses could
appear frosty. This condition is caused
by the temperature difference between
the lamp inside and outside. This is
similar to the condensation on your
windows inside your vehicle during the
rain and doesn’t indicate a problem
with your vehicle. If the water leaks
into the lamp bulb circuitry, we rec-
ommend that the system be checked
by a HYUNDAI authorised repairer.
Information - Desiccant
(if equipped)
This vehicle is equipped with desic-
cant to reduce fogging inside the head-
lamp due to moisture.
The desiccant is consumable and its
performance may change based on the
used period or environment.
If fogging inside the headlamp due to
moisture continues for a long time, we
recommend that you consult a
HYUNDAI authorised repairer.
Information - Traffic Change
The low beam light distribution is
asymmetric. If you go abroad to a
country with opposite traffic direc-
tion, this asymmetric part will dazzle
oncoming car driver. To prevent daz-
zle, ECE regulation demand several
technical solutions (ex. automatic
change system, adhesive sheet, down
aiming). These headlamps are
designed not to dazzle opposite driv-
ers. So, you need not change your
headlamps in a country with opposite
traffic direction.i
i
i
NOTICE
TLe UK 7.qxp 5/10/2018 1:38 PM Page 68

7-69
7
Maintenance
Headlamp, Low Beam Assist –
Static, position lamp, turn sig-
nal lamp and fog lamp light
bulb replacement
Type A
(1) Headlamp (Low)
(2) Headlamp (High)(3) Turn signal lamp
(4) Position lamp
(5) Fog lamp
(6) Daytime running lamp
(7) Low Beam Assist – Static
(if equipped)
Headlamp and Low Beam Assist –
Static
• Always handle them carefully, andavoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
• Never touch the glass with bare hands. Residual oil may cause the
bulb to overheat and burst when lit.
• A bulb should be operated only when installed in a headlamp.
• If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
OLMB073042L
•Handle halogen bulbs with
care. Halogen bulbs contain
pressurized gas that will pro-
duce flying pieces of glass that
could cause injuries if broken.
•Wear eye protection when
changing a bulb. Allow the bulb
to cool down before handling it.
WARNING
■ Halogen bulb
OTLE078064
OTLE078106
TLe UK 7.qxp 5/10/2018 1:38 PM Page 69

7-70
Maintenance
1. Open the bonnet.
2. Disconnect the negative battery cable.
3. Remove the bulb cover by turning it counterclockwise.
4. Disconnect the bulb socket-con- nector. 5. Unsnap the bulb retaining wire by
pressing the end and pushing it
upward.
6. Remove the bulb from the head- lamp assembly.
7. Install a new bulb and snap the bulb retaining wire into position by
aligning the wire with the groove
on the bulb.
8. Connect the bulb socket-connec- tor.
9. Install the bulb cover by turning it clockwise.
Information
The headlamp aiming should be adjust-
ed after an accident or after the head-
lamp assembly is reinstalled at a
HYUNDAI authorised repairer.
Turn signal lamp
1. Open the bonnet.
2. Disconnect the negative batterycable.
3. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
i
OTLE078013
OTLE078015
■Low Beam Assist – Static
■High/Low beam
Low
High
OTLE078019
TLe UK 7.qxp 5/10/2018 1:38 PM Page 70

7-71
7
Maintenance
5. Insert a new bulb by inserting itinto the socket and rotating it until
it locks into place.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
Position lamp/Daytime running lamp
If the LED lamp does not operate, we
recommend you to have the vehicle
checked by a HYUNDAI authorised
repairer.
Type B
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp
(4) Position lamp
(5) Fog lamp
(6) Daytime running lamp
(7) Low Beam Assist – Static
Lamps
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by a HYUNDAI autho-
rised repairer.
Front fog lamp (if equipped)
1. Loosen the pin-type retainers ofthe under cover and then remove
the undercover.
2. Reach your hand into the back of the front bumper.
3. Disconnect the power connector from the socket.
OTLE078107
OTLE078032
OTLE078106
TLe UK 7.qxp 5/10/2018 1:38 PM Page 71

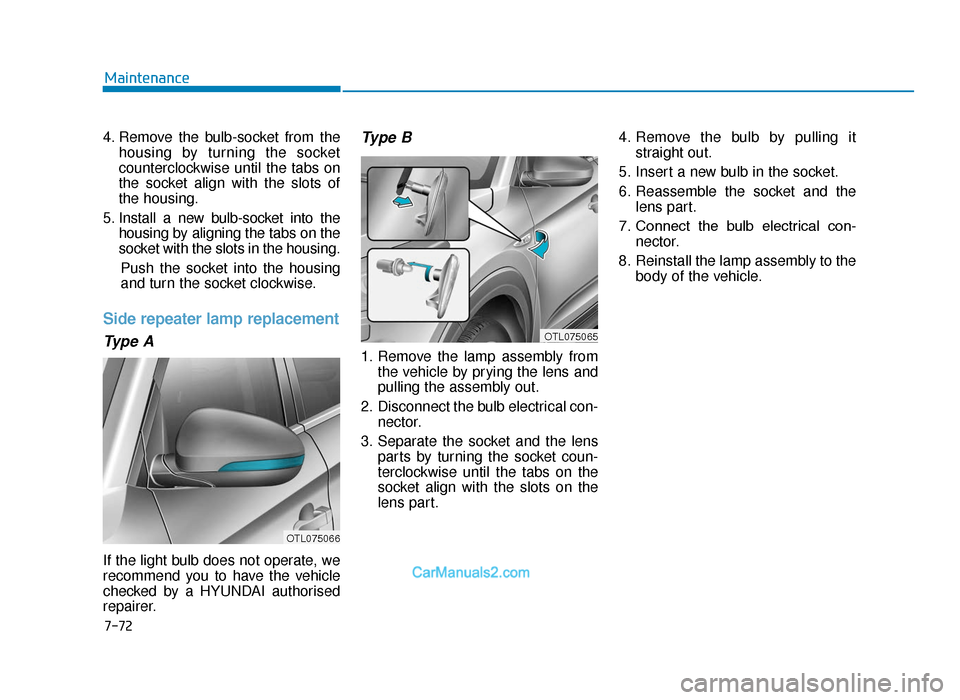

7-72
Maintenance
4. Remove the bulb-socket from the housing by turning the socket
counterclockwise until the tabs on
the socket align with the slots of
the housing.
5. Install a new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing
and turn the socket clockwise.
Side repeater lamp replacement
Type A
If the light bulb does not operate, we
recommend you to have the vehicle
checked by a HYUNDAI authorised
repairer.
Type B
1. Remove the lamp assembly from the vehicle by prying the lens and
pulling the assembly out.
2. Disconnect the bulb electrical con- nector.
3. Separate the socket and the lens parts by turning the socket coun-
terclockwise until the tabs on the
socket align with the slots on the
lens part. 4. Remove the bulb by pulling it
straight out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens part.
7. Connect the bulb electrical con- nector.
8. Reinstall the lamp assembly to the body of the vehicle.
OTL075065
OTL075066
TLe UK 7.qxp 5/10/2018 1:39 PM Page 72

7-73
7
Maintenance
Headlamp and front fog lamp
aiming
Headlamp aiming
1. Inflate the tyres to the specifiedpressure and remove any loads
from the vehicle except the driver,
spare tyre, and tools.
2. The vehicle should be placed on a flat floor.
3. Draw vertical lines (Vertical lines passing through respective head
lamp centres) and a horizontal line
(Horizontal line passing through
centre of head lamps) on the
screen. 4. With the headlamp and battery in
normal condition, aim the head-
lamps so the brightest portion falls
on the horizontal and vertical
lines.
5. To aim the low beam left or right, turn the driver clockwise or coun-
terclockwise. To aim the low beam
up or down, turn the driver clock-
wise or counterclockwise.
To aim the high beam up or down,turn the driver clockwise or coun-
terclockwise.
Front fog lamp aiming
The front fog lamp can be aimed as
the same manner of the headlamps
aiming.
With the front fog lamps and battery
in normal condition, aim the front fog
lamps.
To aim the front fog lamp up or down,
turn the driver clockwise or counter-
clockwise.
OTLE078020
OTLE078108
TLe UK 7.qxp 5/10/2018 1:39 PM Page 73

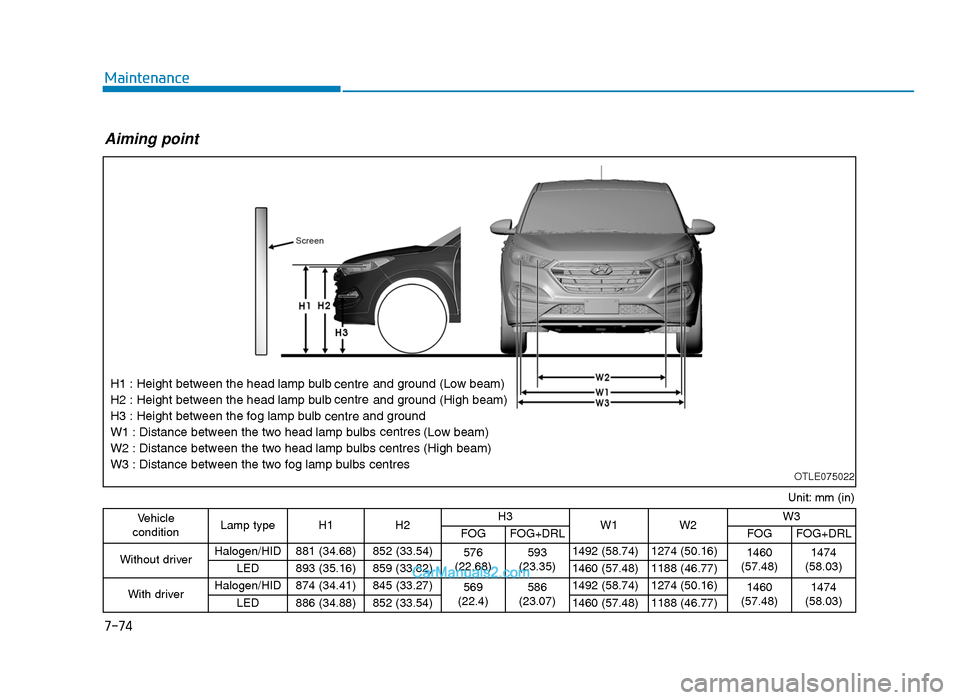

7-74
Maintenance
Unit: mm (in)
Aiming point
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
W3 : Distance between the two fog lamp bulbs centers
OTLE075022
Vehicle
condition Lamp type H1
H2H3
W1W2 W3
FOG FOG+DRL FOG FOG+DRL
Without driver Halogen/HID 881 (34.68) 852 (33.54)
576
(22.68) 593
(23.35) 1492 (58.74) 1274 (50.16)
1460
(57.48) 1474
(58.03)
LED 893 (35.16) 859 (33.82) 1460 (57.48) 1188 (46.77)
With driver Halogen/HID 874 (34.41) 845 (33.27)
569
(22.4) 586
(23.07) 1492 (58.74) 1274 (50.16)
1460
(57.48) 1474
(58.03)
LED 886 (34.88) 852 (33.54) 1460 (57.48) 1188 (46.77)
centre
centre
centre
centres
centres
centres
TLe UK 7.qxp 5/10/2018 1:39 PM Page 74

7-75
7
Maintenance
Headlamp low beam
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
OTLE075101
■Based on 10m screen
TLe UK 7.qxp 5/10/2018 1:39 PM Page 75
