2019 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

8
Specifications & Consumer information
8
Specifications & Consumer information
8
Dimensions ..............................................................8-2
Engine ......................................................................8-\
2
Bulb wattage ...........................................................8-3
Tyres and wheels ...................................................8-5
Load and speed capacity tyres ............................8-6
Gross vehicle weight .............................................8-7
Luggage volume .....................................................8-8
Recommended lubricants and capacities ...........8-9
Recommended engine oil ..............................................8-12
Recommended sae viscosity number .........................8-12
Vehicle identification number (VIN) ..................8-14
Vehicle certification label ...................................8-14
Tyre specification and pressure label ..............8-15
Engine number .....................................................8-15
Air conditioner compressor label ......................8-16
Refrigerant label ..................................................8-16
Declaration of conformity ..................................8-16
Fuel label ..............................................................8-17
Petrol engine ....................................................................8-17\
Diesel engine ....................................................................8-17\
TLe UK 8.qxp 6/12/2018 3:30 PM Page 1

8-2
Specifications & Consumer information
DIMENSIONS
ENGINE
itemmm (in)
Overall length 4,480 (176.38)
Overall width 1,850 (72.83)
Overall height For Western Europe
1,645 (64.76) / 1,650 (66.34) *
1
Except Western Europe1,655 (65.16) / 1,660 (65.35) *1
Front tread 215/70 R16
1620 (63.78)
225/60 R17 1608 (63.31)
225/55 R18 1608 (63.31)
245/45 R19 1604 (63.15)
Rear tread 215/70 R16
1631 (64.21)
225/60 R17 1620 (63.78)
225/55 R18 1620 (63.78)
245/45 R19 1615 (63.58)
Wheelbase 2,670 (105.12)
*1with roof rack
Item1.6 GDI /
1.6 T-GDI 2.0 MPI2.4 GDI Smartstream D1.6Diesel 2.0 TCI / 2.0 48V MHEV
Displacement cc (cu. in)
1,591 (97.09)1,999 (121.99)2,359 (143.96)1598
(97.52)1,995 (121.74)
Bore x Stroke mm (in.)
77X85.4
(3.03X3.36)81X97
(3.19X3.81)88X96
(3.46X3.78)77.0 x 85.8
(3.03x3.38)84X90
(3.30X3.54)
Firing order
1-3-4-21-3-4-21-3-4-21-3-4-21-3-4-2
No. of cylinders
4. In-line4. In-line4. In-lineIn-line 4 cylinder4. In-line
TLe UK 8.qxp 6/12/2018 3:17 PM Page 2

8
Specifications & Consumer information
BULB WATTAGE
Light BulbBulb typeWattage
Front Headlamp
Low
Type A
H7 55
Type B LED LED
High Type A
HB3 60
Type B LED LED
Turn signal lamp Type A
PY21W 21
Type B LED LED
Position lamp LEDLED
Fog lamp H835
Side Repeater lamp Type A
LED LED
Type B W5W 5
Low Beam Assist – Static Type A
H7 55
Type B LED LED
Daytime running lamp (DRL) LEDLED
Rear Rear combination lamp
Type AStop/Tail
21/5W 21/5
Tail W5W 5
Turn signal P21W 21
Back up W16W 16
Type B Stop/Tail
LED LED
Turn signal P21W 21
Back up W16W 16
High mounted stop lamp LEDLED
License plate lamp W5W5
Fog lampType AP21W21
Type BLEDLED
8-3
TLe UK 8.qxp 6/12/2018 3:17 PM Page 3

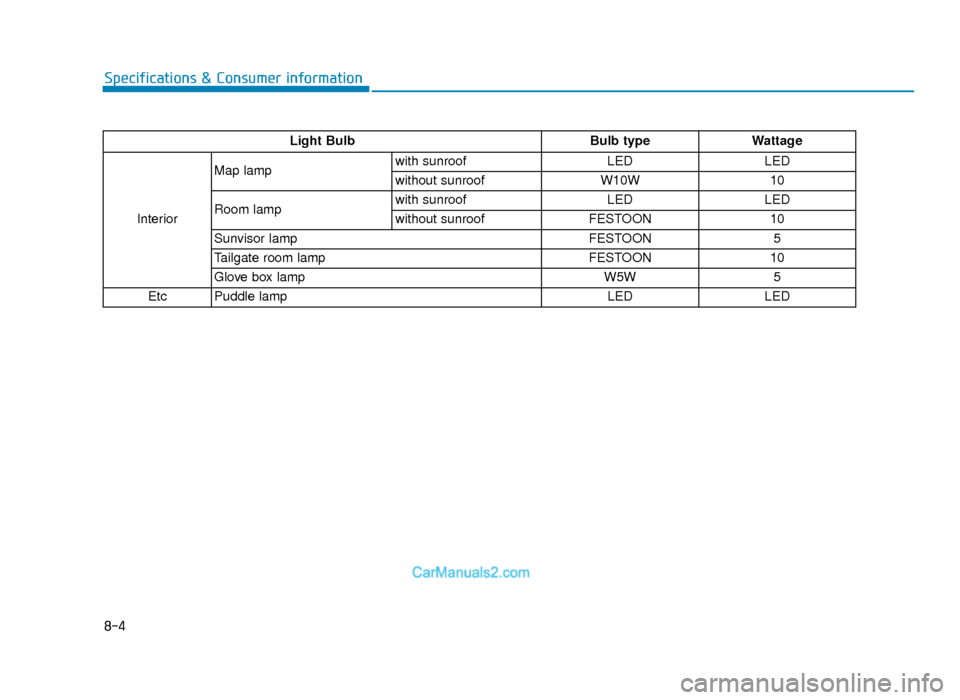

8-4
Specifications & Consumer information
Light BulbBulb typeWattage
Interior Map lamp
with sunroof
LEDLED
without sunroof W10W10
Room lamp with sunroof
LEDLED
without sunroof FESTOON10
Sunvisor lamp FESTOON5
Tailgate room lamp FESTOON10
Glove box lamp W5W5
Etc Puddle lamp LEDLED
TLe UK 8.qxp 6/12/2018 3:17 PM Page 4

8-5
8
Specifications & Consumer information
TYRES AND WHEELS
• It is permissible to add 20 kPa (3 psi) to the standard tyre pressure specification if colder temperatures areexpected soon. Tyres typically lose 7 kPa (1 psi) for every 7°C (12°F) temperature drop. If extreme tempera-
ture variations are expected, recheck your tyre pressure as necessary to keep them properly inflated.
• An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tyre pressures in advance. If necessary, inflate them to a proper level
(Air inflation per altitude: +10 kPa/1 km (+2.4 psi/1 mile).
NOTICE
* Applies to MSTA Tyre Pressure
Item Tyre size Wheel size Inflation pressure bar (kPa, psi)
Wheel lug
nut torque kgf·m
(lbf·ft, N·m)
Normal load
()Maximum load()
Front Rear Front Rear
Full size tyre 215/70 R16 6.5J X 16
2.4
(240, 35) 2.4
(240, 35) 2.4
(240, 35)
2.75 (275, 40) 11~13
(79~94,
107~127
225/60 R17 7.0J X 17
2.4
(240, 35) 2.4
(240, 35) 2.4
(240, 35)
225/55 R18 7.0J X 18 2.4
(240, 35) 2.4
(240, 35) 2.4
(240, 35)
245/45 R19 7.5J X 19 2.4
(240, 35) 2.4
(240, 35) 2.4
(240, 35)
Compact spare tyre T135/90 D17 4.0T x 17
4.2
(420, 60) 4.2
(420, 60) 4.2
(420, 60) 4.2
(420, 60)
T135/90 R17 4.0T x 17 4.2
(420, 60) 4.2
(420, 60) 4.2
(420, 60) 4.2
(420, 60)
TLe UK 8.qxp 6/12/2018 3:17 PM Page 5

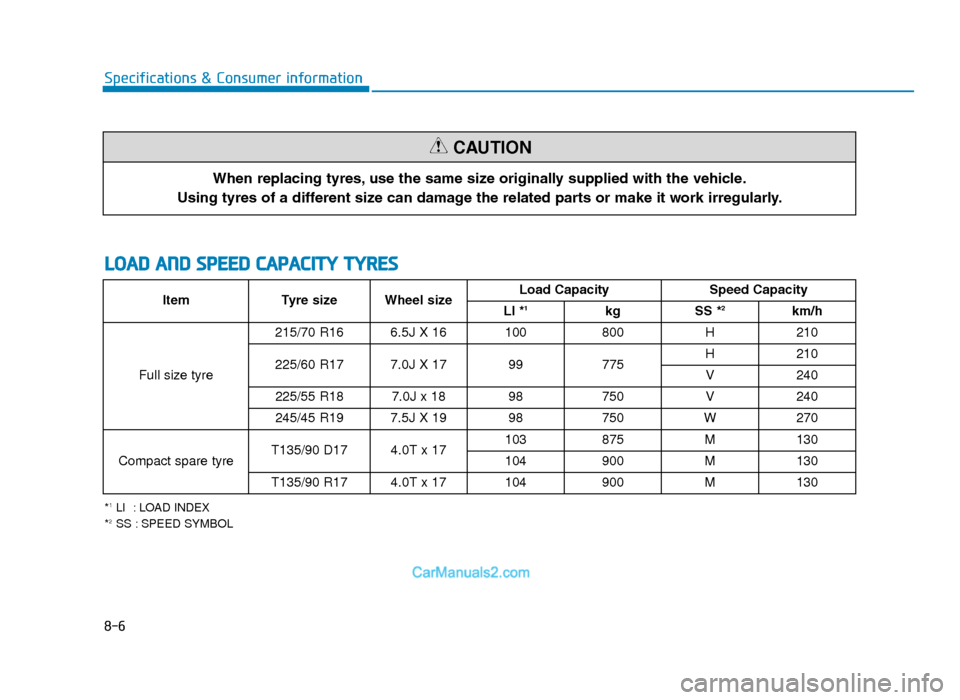

8-6
Specifications & Consumer information
LOAD AND SPEED CAPACITY TYRES
*1LI : LOAD INDEX
*2SS : SPEED SYMBOL
When replacing tyres, use the same size originally supplied with the vehicle.
Using tyres of a different size can damage the related parts or make it work irregularly.
CAUTION
Item Tyre size Wheel size Load Capacity
Speed Capacity
LI *1kg SS *2km/h
Full size tyre 215/70 R16 6.5J X 16 100
800H210
225/60 R17 7.0J X 17 99 775H
210
V 240
225/55 R187.0J x 1898750V240
245/45 R197.5J X 1998750W270
Compact spare tyreT135/90 D174.0T x 17103875M130
104900M130
T135/90 R174.0T x 17104900M130
TLe UK 8.qxp 6/12/2018 3:17 PM Page 6

8-7
8
Specifications & Consumer information
GROSS VEHICLE WEIGHT
kg (lbs) kg (lbs)
Item1.6 GDI2.0 MPI1.6 T-GDI
2WD M/T2WD A/T2WD M/T2WD A/T4WD M/T4WD A/T2WD M/T2WD DCT4WD M/T4WD DCT
5 seater2030
(4475)2050
(4519)2060
(4542)2080
(4586)2130
(4696)2150
(4740)2110
(4652)2140
(4718)2170
(4784)2200
(4850)
Petrol engine Diesel engine
Item1.6 TCI (Low)1.6 TCI (High)2.0 TCI (High)2.0 TCI (48V MHEV)
2WD M/T2WD M/T2WD DCT4WD M/T4WD DCT4WD M/T4WD A/T4WD M/T4WD A/T
5 seater2120
(4674)2120
(4674)2145
(4729)2195
(4839)2210
(4872)2230
(4916)2250
(4960)2230
(4916)2250
(4960)
TLe UK 8.qxp 6/12/2018 3:17 PM Page 7

8-8
Specifications & Consumer information
LUGGAGE VOLUME
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
Item Petrol engine/
Except Euro 6C Diesel Engine For Euro 6C Diesel Engine
Smartstream D1.6 2.0 TCI 2.0 48V
MHEV
Tyre Mobility Kit (TMK) Compact
spare tyre Full size tyre Tyre Mobility
Kit (TMK) Compact
spare tyre Tyre Mobility
Kit (TMK) Compact
spare tyre Tyre Mobility
Kit (TMK)
VDA MIN
513
(18.12) 513
(18.12) 488
(17.23) 502
(17.73) 484
(17.09) 502
(17.73) 484
(17.09) 459
(16.21)
MAX 1,503
(53.08) 1,503
(53.08) 1,478
(52.20) 1,492
(52.69) 1,474
(52.05) 1,492
(52.69) 1,474
(52.05) 1,449
(51.17)
l (cu. ft.)
