2019 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

3-85
Convenient features of your vehicle
3
If the message is displayed con-
tinuously after adding the engine
oil and travelling approximately 30
~ 60 miles (50~100 km) after the
engine warms up, we recommend
that the system be checked by a
HYUNDAI authorised repairer.
Even if this message is not dis-
played after the engine has start-
ed, the engine oil level should be
periodically checked and topped
up if required.
Information
If you travel approximately 50 km ~
100 km after the engine warms up,
after adding the engine oil, the warn-
ing message will be disappeared.
Check HBA (High Beam Assist)system (if equipped)
This warning message is displayed if
there is a problem with the High
Beam Assist (HBA) System. We rec-
ommend that you have the vehicle
inspected by a HYUNDAI authorised
repairer.
For more details, refer to “High
Beam Assist (HBA) System” in
chapter 3.
Check FCA (Forward CollisionAvoidance Asst.) (if equipped)
This warning message is displayed if
there is a malfunction with the
Forward Collision-Avoidance Assist
(FCA) system. We recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
For more details, refer to "Forward
Collision-Avoidance Assist (FCA)
system" in chapter 5.
Check DAW (Driver AttentionWarning) system (if equipped)
This warning message is displayed if
there is a problem with the Driver
Attention Warning (DAW) system. We
recommend that you have the vehicle
inspected by a HYUNDAI authorised
repairer.
For more details, refer to "Driver
Attention Warning (DAW) system"
in chapter 5.
Check FCW (Forward Collision
Warning) system (if equipped)
This warning message is displayed if
there is a problem with the Forward
Collision Warning (FCW) system. We
recommend that you have the vehicle
inspected by a HYUNDAI authorised
repairer.
For more details, refer to "Forward
Collision-Avoidance Assist (FCA)
system" in chapter 5.i
NOTICE
TLe UK 3a(~109).qxp 6/12/2018 2:27 PM Page 85

3-86
Convenient features of your vehicle
Check LKA (Lane KeepingAssist) system (if equipped)
This warning message is displayed if
there is a problem with the Lane
Keeping Assist (LKA) system. We
recommend that you have the vehicle
inspected by a HYUNDAI authorised
repairer.
For more details, refer to "Lane
Keeping Assist (LKA) system" in
chapter 5.
Check BCW (Blind-SpotCollision Warning) system
This warning message is displayed if
there is a problem with the Blind-
Spot Collision Warning system. We
recommend that you have the vehi-
cle inspected by a HYUNDAI autho-
rised repairer.
For more details, refer to "Blind-
Spot Collision Warning" in chapter
5.
Check exhaust system (if equipped)
This warning message illuminates if
the DPF or GPF system has a mal-
function. at this time, DPF or GPF
warning light also blinks.
In this case, we recommend that you
have the DPF or GPF system checked
by a HYUNDAI authorised repairer.
DPF : Diesel Particulate Filter
GPF : Petrol Particulate Filter
For more details, refer to "Warning
lights" in this chapter.
Low urea (for diesel engine)
This warning message illuminates if
the urea solution level in the urea
solution tank is nearly empty.
- When the SCR warning light is illu-
minates.
Refill urea solution as soon as possi-
ble.
For more details, refer to "Low
urea solution warning message"
in the chapter 7.
Check urea system (for diesel engine)
This warning message illuminates if
the urea system has a malfunction.
In this case, we recommend that you
have the urea system checked by a
HYUNDAI authorised repairer.
For more details, refer to "Low
urea solution warning message"
in the chapter 7.
TLe UK 3a(~109).qxp 6/12/2018 2:27 PM Page 86

3-87
Convenient features of your vehicle

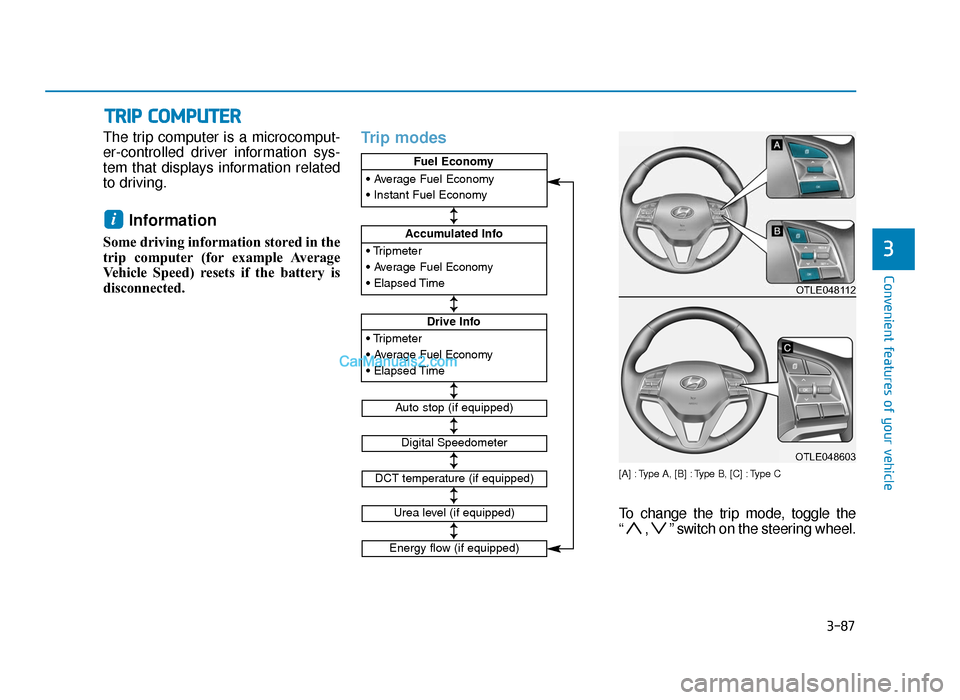

The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
[A] : Type A, [B] : Type B, [C] : Type C
To change the trip mode, toggle the
“ , ” switch on the steering wheel.
i
TRIP COMPUTER
3• Tripmeter
• Average Fuel Economy
• Elapsed Time
Accumulated Info
• Tripmeter
• Average Fuel Economy
• Elapsed Time
Drive Info
• Average Fuel Economy
• Instant Fuel Economy
Fuel Economy
Digital Speedometer
Auto stop (if equipped)
DCT temperature (if equipped)
↕
↕
↕
↕
↕
↕
↕
Urea level (if equipped)
Energy flow (if equipped)
OTLE048112
OTLE048603
TLe UK 3a(~109).qxp 6/12/2018 2:27 PM Page 87

3-88
Convenient features of your vehicle
Fuel economy
Average Fuel Economy (1)
• The average fuel economy is calcu-lated by the total driving distance
and fuel consumption since the last
average fuel economy reset.
• The average fuel economy can be reset both manually and automati-
cally.
Manual reset
To clear the average fuel economy
manually, press the [OK] button on
the steering wheel for more than 1
second when the average fuel econo-
my is displayed.
Automatic reset
To automatically reset the average
fuel economy after refuelling, select
the "Auto Reset" mode in the User
Settings menu on the LCD display.
- After Ignition: The average fueleconomy will reset automatically
whenever it has passed 4 hours
after turning OFF the engine.
- After Refuelling: The average fuel economy will reset automatically
when driving speed exceeds 1
km/h, after adding 6 litres (1.6 gal-
lons) of fuel or more.
Information
The average fuel economy may be
inaccurate, when the vehicle drives
shorter than 300 meters (0.19 miles)
after turning ON the Engine Start/Stop
button.
Instant Fuel Economy (2)
• This mode displays the instant fuel economy during the last few sec-
onds when the vehicle speed is
more than 6.2 mph (10 km/h).
Accumulated Info display
This display shows the accumulated
trip distance (1), the average fuel
economy (2), and the total driving
time (3).
The information is accumulated
starting from the last reset.
To manually reset the information,
press and hold the OK button when
viewing the Accumulated driving info.
The trip distance, the average fuel
economy, and total driving time will
reset simultaneously.
i
OIK047124NOTM048173R
TLe UK 3a(~109).qxp 6/12/2018 2:28 PM Page 88

3-89
Convenient features of your vehicle
The accumulated driving information
will continue to be counted whilst the
engine is still running (for example,
when the vehicle is in traffic or
stopped at a stop light).
Information
The vehicle must be driven for a min-
imum of 300 meters (0.19 miles) since
the last ignition key cycle before the
average fuel economy will be recalcu-
lated.
Drive Info display
This display shows the trip distance
(1), the average fuel economy (2),
and the total driving time (3).
The information is combined for each
ignition cycle. However, when the
engine has been OFF for 4 hours or
longer the Drive Info screen will reset.
To manually reset the information,
press and hold the OK button when
viewing the Drive Info. The trip dis-
tance, the average fuel economy, and
total driving time will reset simultane-
ously.The driving information will continue
to be counted whilst the engine is still
running (for example, when the vehi-
cle is in traffic or stopped at a stop
light.)
Information
The vehicle must be driven for a min-
imum of 300 meters (0.19 miles) since
the last ignition key cycle before the
average fuel economy will be recalcu-
lated.
ii
3
OTM048174R
TLe UK 3a(~109).qxp 6/12/2018 2:28 PM Page 89

3-90

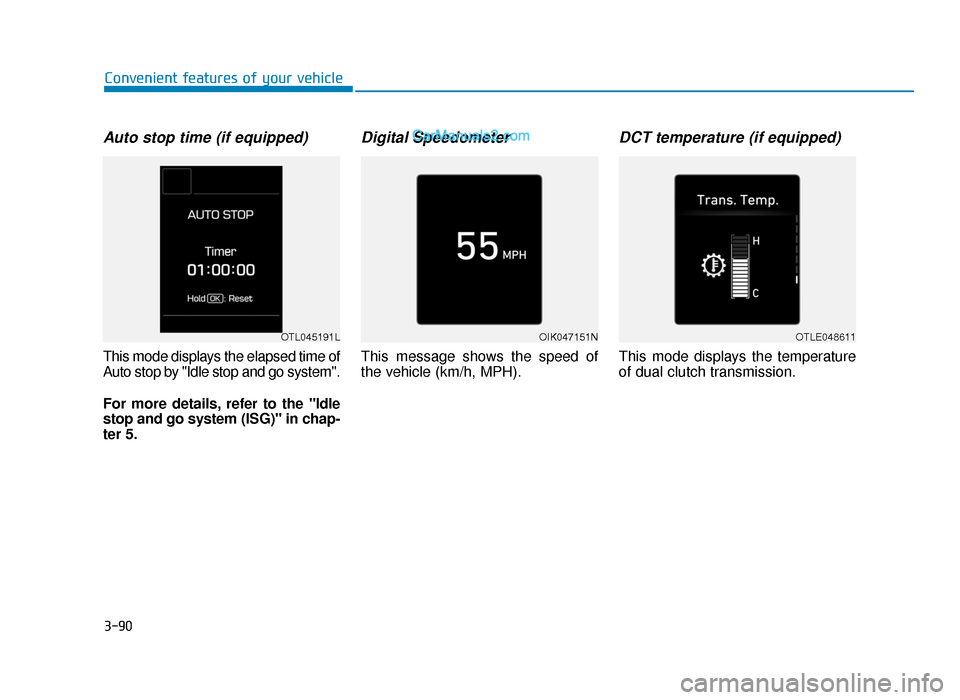

Auto stop time (if equipped)
This mode displays the elapsed time of
Auto stop by "Idle stop and go system".
For more details, refer to the "Idle
stop and go system (ISG)" in chap-
ter 5.
Digital Speedometer
This message shows the speed of
the vehicle (km/h, MPH).
DCT temperature (if equipped)
This mode displays the temperature
of dual clutch transmission.
Convenient features of your vehicle
OTL045191LOTLE048611OIK047151N
TLe UK 3a(~109).qxp 6/12/2018 2:28 PM Page 90

3-91
Convenient features of your vehicle
Urea level gauge (for diesel engine, if equipped)
This mode displays the amount of
the remaining urea solution in the
urea solution tank.
Energy flow (for diesel 48VMHEV (Mild hybrid), if equipped)
The mild hybrid system informs the
drivers its energy flow in various
operating modes. Whilst driving, the
current energy flow is specified in 3
modes.
Vehicle stop
The vehicle is stopped.
(No energy flow)
Engine Generation / Regeneration
The engine and regenerative brake
system charges up the high-voltage
battery.
(Engine & Wheel ➝Battery)
3
OTM048163L
OTLE048612OTLE048613
TLe UK 3a(~109).qxp 6/12/2018 2:28 PM Page 91

3-92
Power Assist
Both the motor and the engine power
are used to drive the vehicle.
(Battery & Engine ➝Wheel)
Convenient features of your vehicle
OTLE048614
