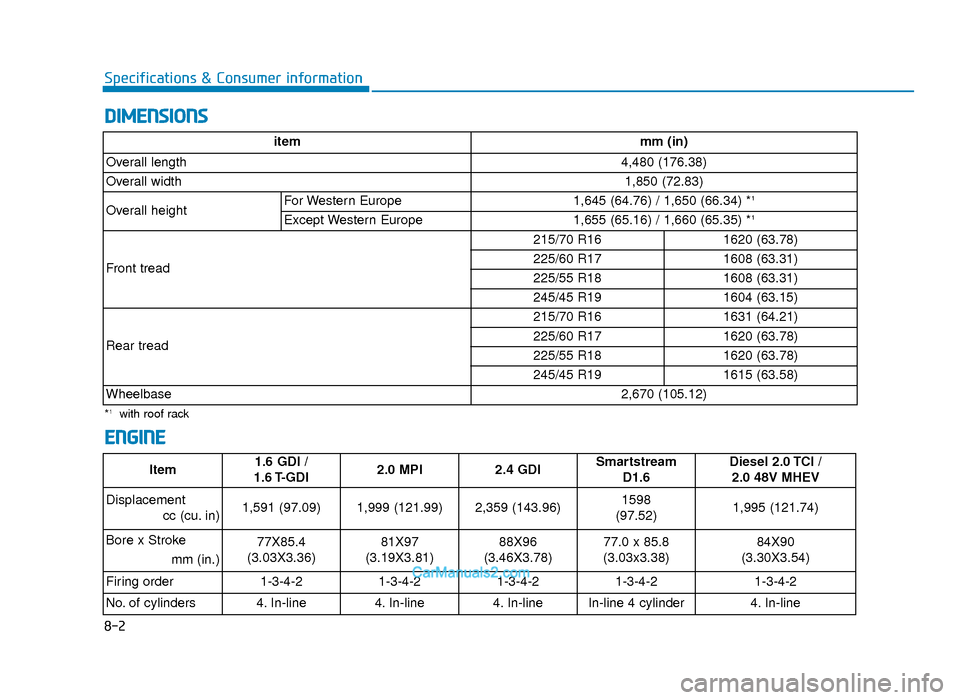

8-2
Specifications & Consumer information
DIMENSIONS
ENGINE
itemmm (in)
Overall length 4,480 (176.38)
Overall width 1,850 (72.83)
Overall height For Western Europe
1,645 (64.76) / 1,650 (66.34) *
1
Except Western Europe1,655 (65.16) / 1,660 (65.35) *1
Front tread 215/70 R16
1620 (63.78)
225/60 R17 1608 (63.31)
225/55 R18 1608 (63.31)
245/45 R19 1604 (63.15)
Rear tread 215/70 R16
1631 (64.21)
225/60 R17 1620 (63.78)
225/55 R18 1620 (63.78)
245/45 R19 1615 (63.58)
Wheelbase 2,670 (105.12)
*1with roof rack
Item1.6 GDI /
1.6 T-GDI 2.0 MPI2.4 GDI Smartstream D1.6Diesel 2.0 TCI / 2.0 48V MHEV
Displacement cc (cu. in)
1,591 (97.09)1,999 (121.99)2,359 (143.96)1598
(97.52)1,995 (121.74)
Bore x Stroke mm (in.)
77X85.4
(3.03X3.36)81X97
(3.19X3.81)88X96
(3.46X3.78)77.0 x 85.8
(3.03x3.38)84X90
(3.30X3.54)
Firing order
1-3-4-21-3-4-21-3-4-21-3-4-21-3-4-2
No. of cylinders
4. In-line4. In-line4. In-lineIn-line 4 cylinder4. In-line
