2019 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

3-37
Convenient features of your vehicle
3
PANORAMA SUNROOF (IF EQUIPPED)
If your vehicle is equipped with a
sunroof, you can slide or tilt your
sunroof with the sunroof control lever
located on the overhead console.
The ignition switch must be in the ON
position before you can open or
close the sunroof.
The sunroof can be operated for
approximately 30 seconds after the
ignition key is removed or turned to
the ACC or LOCK(or OFF) position.
However, if the front door is opened,
the sunroof cannot be operated even
within 30 seconds.
Information
• In cold and wet climates, the sun-roof may not work properly due to
freezing conditions.
• After the vehicle is washed or in a rainstorm, be sure to wipe off any
water that is on the sunroof before
operating it.
• Do not continue to move the sun-roof control lever after the sun-
roof is fully opened, closed, or
tilted. Damage to the motor or
system components could occur.
• Make sure the sunroof is closed fully when leaving your vehicle.
If the sunroof is open, rain or
snow may leak through the sun-
roof and wet the interior as well
as allow theft.
NOTICE
i
OTL045026
•Never adjust the sunroof or
sunshade whilst driving. This
could result in loss of control
and an accident that may
cause death, serious injury, or
property damage.
• Make sure heads, other body
parts or objects are out of the
way before using the sunroof.
• Do not extend your head,
arms or body outside the sun-
roof whilst driving, to avoid
serious injury.
• Do not leave the engine run-
ning and the key in your vehi-
cle with unsupervised chil-
dren.
(Continued)
(Continued)Unattended children could
operate the sunroof, which
could result in serious injury.
• The panorama sunroof is
made of glass, subject to
break in case of accident.
Passengers without the appro-
priate protection(e.g. seat belt,
CRS, etc.) on may project out
through the broken glasses
and get seriously injured or
even result in death.
• Do not sit on the top of the
vehicle. It may cause injuries
or vehicle damage.
WARNING
TLe UK 3a(~109).qxp 6/12/2018 2:23 PM Page 37

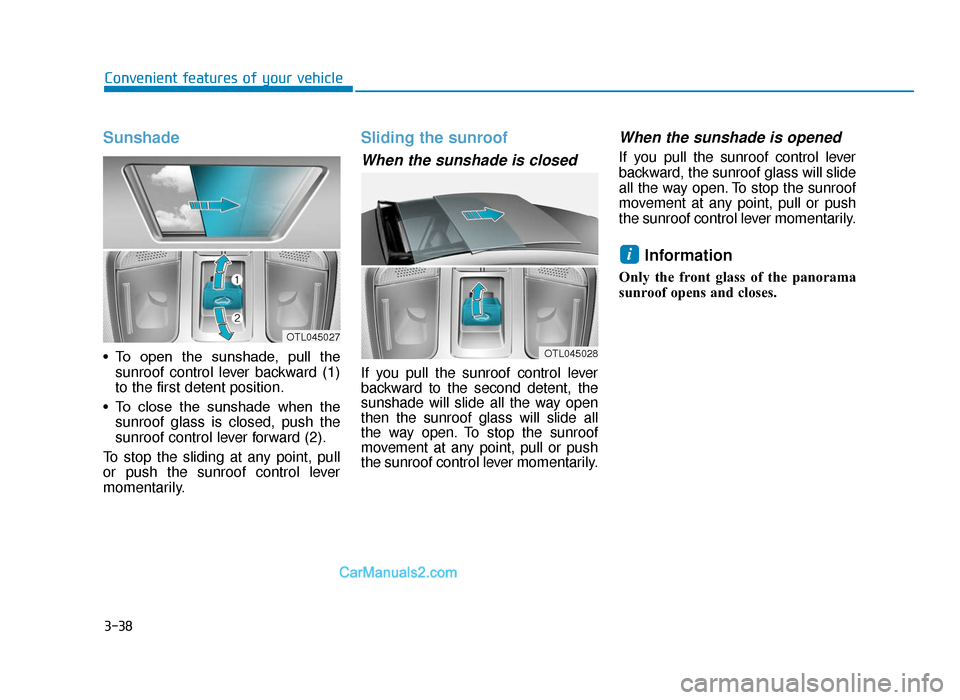

3-38
Convenient features of your vehicle
Sunshade
• To open the sunshade, pull thesunroof control lever backward (1)
to the first detent position.
• To close the sunshade when the sunroof glass is closed, push the
sunroof control lever forward (2).
To stop the sliding at any point, pull
or push the sunroof control lever
momentarily.
Sliding the sunroof
When the sunshade is closed
If you pull the sunroof control lever
backward to the second detent, the
sunshade will slide all the way open
then the sunroof glass will slide all
the way open. To stop the sunroof
movement at any point, pull or push
the sunroof control lever momentarily.
When the sunshade is opened
If you pull the sunroof control lever
backward, the sunroof glass will slide
all the way open. To stop the sunroof
movement at any point, pull or push
the sunroof control lever momentarily.
Information
Only the front glass of the panorama
sunroof opens and closes.
i
OTL045027
OTL045028
TLe UK 3a(~109).qxp 6/12/2018 2:23 PM Page 38

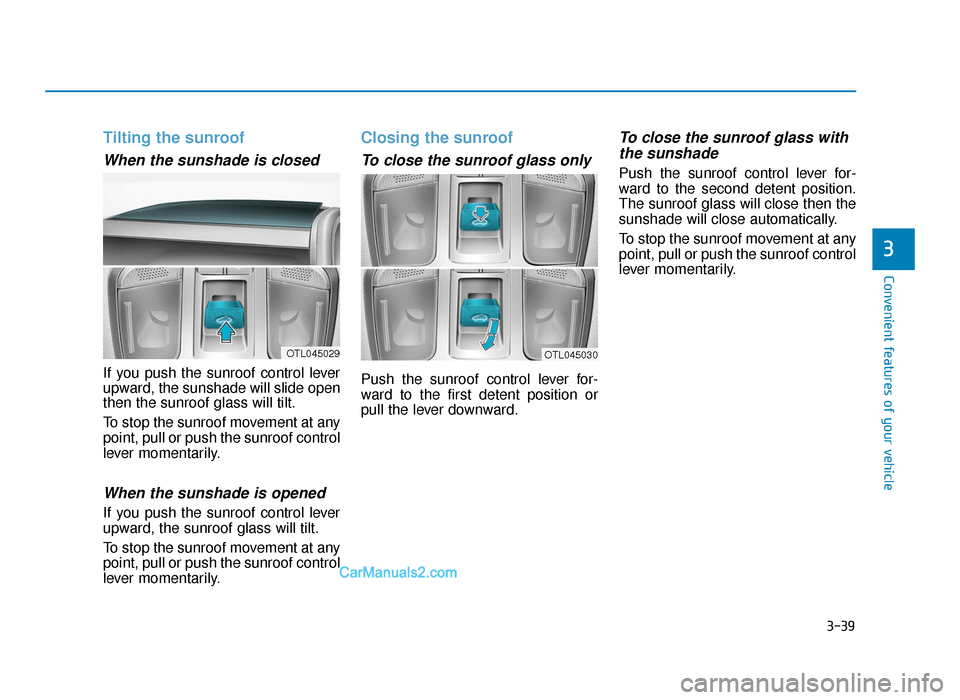

3-39
Convenient features of your vehicle
3
Tilting the sunroof
When the sunshade is closed
If you push the sunroof control lever
upward, the sunshade will slide open
then the sunroof glass will tilt.
To stop the sunroof movement at any
point, pull or push the sunroof control
lever momentarily.
When the sunshade is opened
If you push the sunroof control lever
upward, the sunroof glass will tilt.
To stop the sunroof movement at any
point, pull or push the sunroof control
lever momentarily.
Closing the sunroof
To close the sunroof glass only
Push the sunroof control lever for-
ward to the first detent position or
pull the lever downward.
To close the sunroof glass withthe sunshade
Push the sunroof control lever for-
ward to the second detent position.
The sunroof glass will close then the
sunshade will close automatically.
To stop the sunroof movement at any
point, pull or push the sunroof control
lever momentarily.
OTL045030OTL045029
TLe UK 3a(~109).qxp 6/12/2018 2:23 PM Page 39

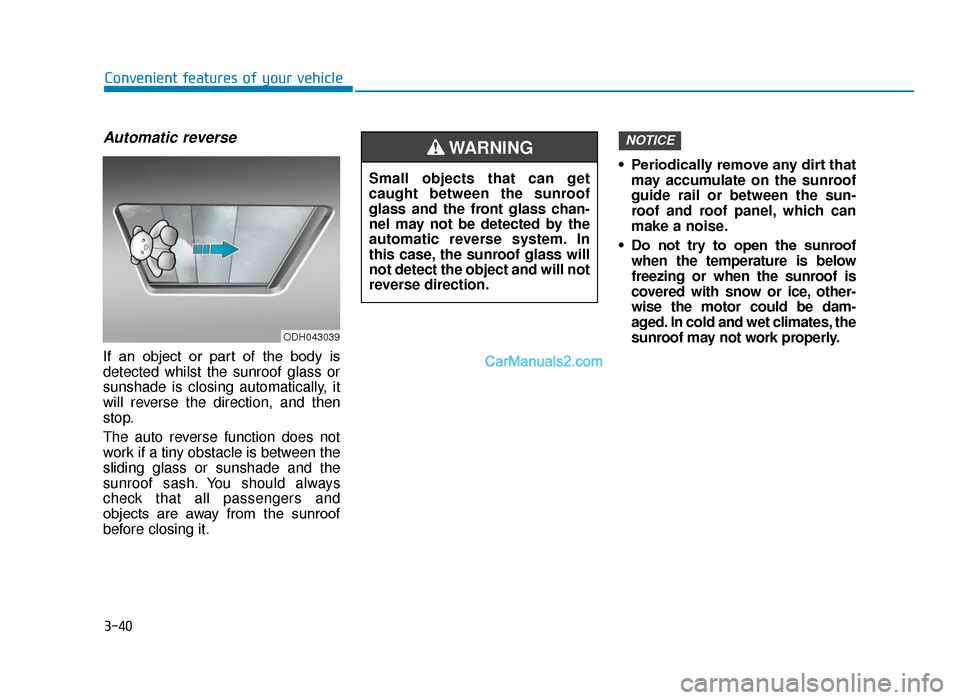

3-40
Convenient features of your vehicle
Automatic reverse
If an object or part of the body is
detected whilst the sunroof glass or
sunshade is closing automatically, it
will reverse the direction, and then
stop.
The auto reverse function does not
work if a tiny obstacle is between the
sliding glass or sunshade and the
sunroof sash. You should always
check that all passengers and
objects are away from the sunroof
before closing it.• Periodically remove any dirt that
may accumulate on the sunroof
guide rail or between the sun-
roof and roof panel, which can
make a noise.
• Do not try to open the sunroof when the temperature is below
freezing or when the sunroof is
covered with snow or ice, other-
wise the motor could be dam-
aged. In cold and wet climates, the
sunroof may not work properly.
NOTICE
Small objects that can get
caught between the sunroof
glass and the front glass chan-
nel may not be detected by the
automatic reverse system. In
this case, the sunroof glass will
not detect the object and will not
reverse direction.
WARNING
ODH043039
TLe UK 3a(~109).qxp 6/12/2018 2:23 PM Page 40

3-41
Convenient features of your vehicle
3
Resetting the sunroof
Sunroof needs to be reset if (in the
followings)
- Battery is discharged or disconnect-ed or the related fuse has been
replaced or disconnected
- The one-touch sliding function of the sunroof does not normally operate
1. Turn the engine on and close the sunroof glass and sunshade com-
pletely.
2. Release the control lever. 3. Push the sunroof control lever for-
ward in the direction of close
(about 10 seconds) until the sun-
roof slightly moves. Then, release
the lever.
4. Push the sunroof control lever for- ward in the direction of close until
the sunroof operates as follows:
Sunshade Open → Glass Tilt Open
→ Glass Slide Open → Glass Slide
Close →Sunshade Close
Then, release the control lever.
When this is complete, the sunroof
system is reset.
Information
• If the sunroof does not reset when the vehicle battery is disconnected
or discharged, or related fuse is
blown, the sunroof may not operate
normally.
• For more detailed information, we recommend that you contact a
HYUNDAI authorised repairer.
Sunroof open warning
(if equipped)
• If the driver turns off the engine whenthe sunroof is not fully closed, the
warning chime will sound for approx-
imately 3 seconds and sunroof open
warning will appear on the LCD dis-
play.
• If the driver turns off the engine and opens the door when the sunroof is
not fully closed, the open sunroof
warning will appear on the LCD dis-
play until the door is closed or the
sunroof is fully closed.
Close the sunroof securely when leav-
ing your vehicle.
i
OTL045031
OGB044103TU
TLe UK 3a(~109).qxp 6/12/2018 2:23 PM Page 41

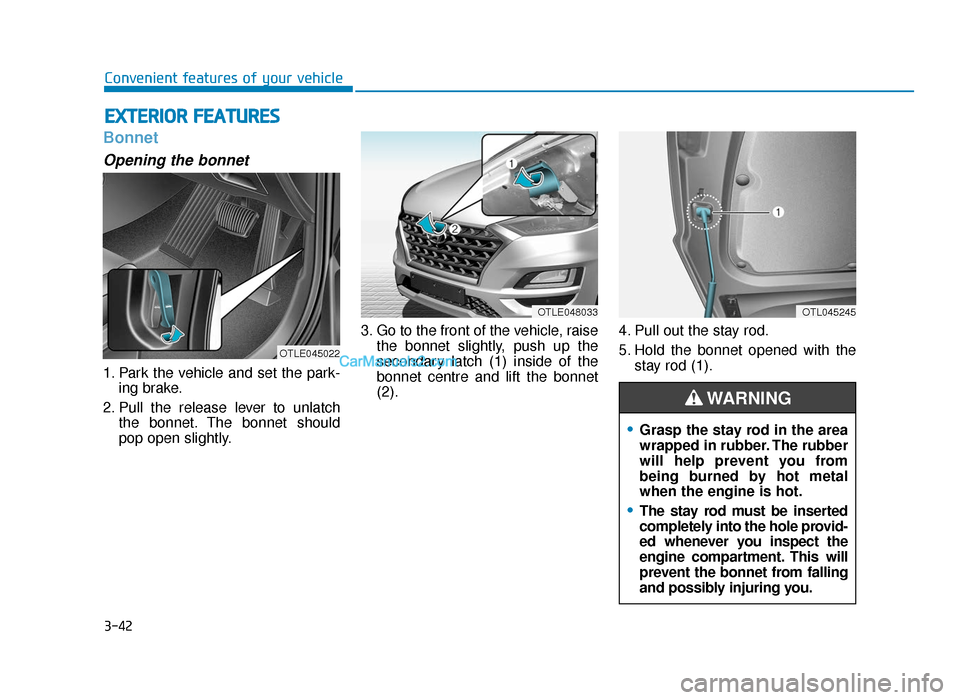

3-42
Convenient features of your vehicle
Bonnet
Opening the bonnet
1. Park the vehicle and set the park-ing brake.
2. Pull the release lever to unlatch the bonnet. The bonnet should
pop open slightly. 3. Go to the front of the vehicle, raise
the bonnet slightly, push up the
secondary latch (1) inside of the
bonnet centre and lift the bonnet
(2). 4. Pull out the stay rod.
5. Hold the bonnet opened with the
stay rod (1).
EXTERIOR FEATURES
OTLE048033OTL045245
OTLE045022
•Grasp the stay rod in the area
wrapped in rubber. The rubber
will help prevent you from
being burned by hot metal
when the engine is hot.
•The stay rod must be inserted
completely into the hole provid-
ed whenever you inspect the
engine compartment. This will
prevent the bonnet from falling
and possibly injuring you.
WARNING
TLe UK 3a(~109).qxp 6/12/2018 2:23 PM Page 42

3-43
Convenient features of your vehicle
3
Closing the bonnet
1. Before closing the bonnet, checkthe following:
• All filler caps in engine compart- ment must be correctly installed.
• Gloves, rags or any other com- bustible material must be removed
from the engine compartment.
2. Return the stay rod to its clip to prevent it from rattling.
3. Lower the bonnet halfway (lifted approximately 30cm from the closed
position) and push down to securely
lock in place. Then double check to
be sure the bonnet is secure.
•Before closing the bonnet,
ensure that all obstructions
are removed from the bonnet
opening. Closing the bonnet
with an obstruction present in
the bonnet opening may
result in property damage or
severe personal injury.
•Do not leave gloves, rags or
any other combustible materi-
al in the engine compartment.
Doing so may cause a heat-
induced fire.
•Do not move the vehicle with
the bonnet raised. The view will
be blocked and the bonnet
could fall or be damaged.
WARNING
Always double check to be sure
that the bonnet is firmly latched
before driving away. Check there
is no bonnet open warning light
or message displayed on the
instrument cluster. If the bonnet
is not latched whilst the vehicle
is moving, the chime will sound
to warn the driver the bonnet is
not fully latched. Driving with the
bonnet opened may cause a total
loss of visibility, which might
result in an accident.
WARNING
TLe UK 3a(~109).qxp 6/12/2018 2:23 PM Page 43

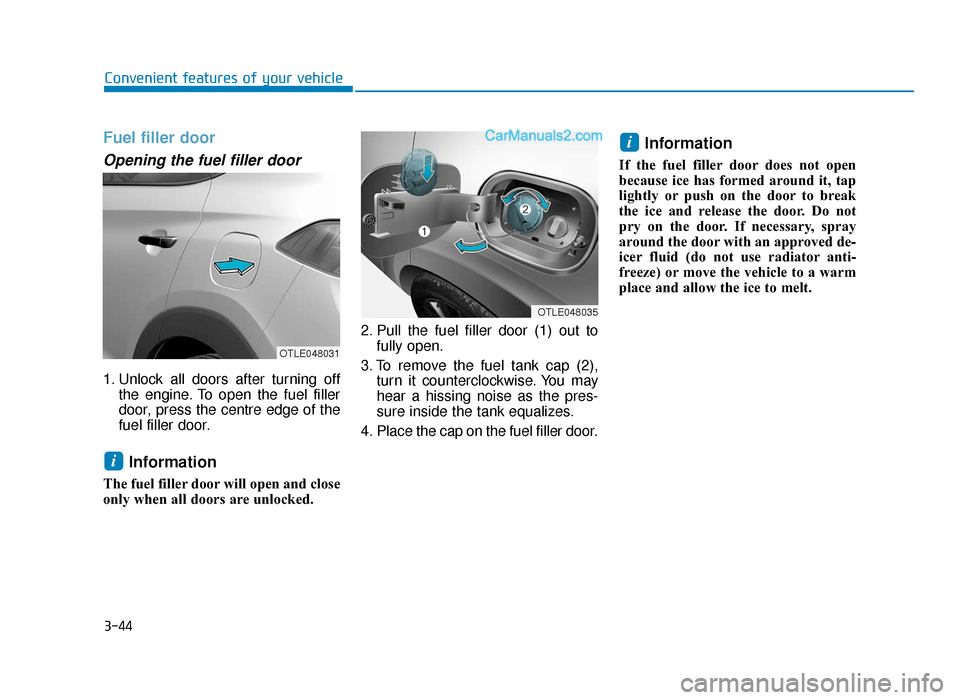

3-44
Fuel filler door
Opening the fuel filler door
1. Unlock all doors after turning offthe engine. To open the fuel filler
door, press the centre edge of the
fuel filler door.
Information
The fuel filler door will open and close
only when all doors are unlocked. 2. Pull the fuel filler door (1) out to
fully open.
3. To remove the fuel tank cap (2), turn it counterclockwise. You may
hear a hissing noise as the pres-
sure inside the tank equalizes.
4. Place the cap on the fuel filler door.
Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break
the ice and release the door. Do not
pry on the door. If necessary, spray
around the door with an approved de-
icer fluid (do not use radiator anti-
freeze) or move the vehicle to a warm
place and allow the ice to melt.
i
i
Convenient features of your vehicle
OTLE048031
OTLE048035
