2019 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

5-133
Driving your vehicle
5

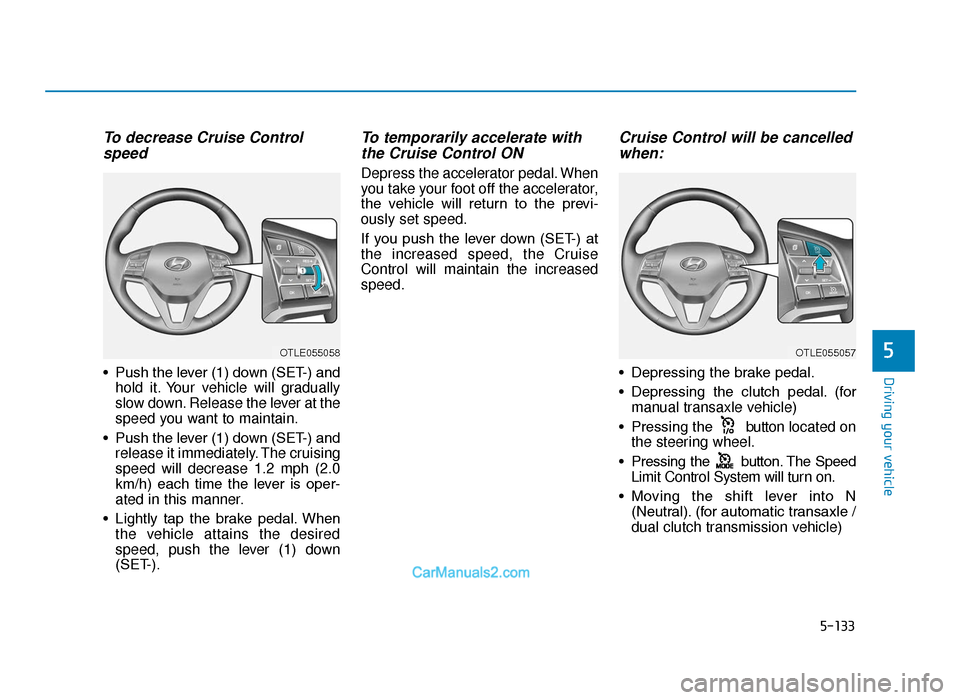

To decrease Cruise Controlspeed
• Push the lever (1) down (SET-) and
hold it. Your vehicle will gradually
slow down. Release the lever at the
speed you want to maintain.
• Push the lever (1) down (SET-) and release it immediately. The cruising
speed will decrease 1.2 mph (2.0
km/h) each time the lever is oper-
ated in this manner.
• Lightly tap the brake pedal. When the vehicle attains the desired
speed, push the lever (1) down
(SET-).
To temporarily accelerate withthe Cruise Control ON
Depress the accelerator pedal. When
you take your foot off the accelerator,
the vehicle will return to the previ-
ously set speed.
If you push the lever down (SET-) at
the increased speed, the Cruise
Control will maintain the increased
speed.
Cruise Control will be cancelledwhen:
• Depressing the brake pedal.
• Depressing the clutch pedal. (for
manual transaxle vehicle)
• Pressing the b uttonlocated on
the steering wheel.
• Pressing the button. The Speed Limit Control System will turn on.
• Moving the shift lever into N (Neutral). (for automatic transaxle /
dual clutch transmission vehicle)
OTLE055057OTLE055058
TLe UK 5.qxp 5/10/2018 12:29 PM Page 133

5-134
Driving your vehicle
• Decreasing the vehicle speed lower than the memory speed by
12 mph (20 km/h).
• Decreasing the vehicle speed to less than approximately 20 mph
(30 km/h).
• The ESC (Electronic Stability Control) is operating.
• Downshifting to the 2nd gear in Sports Mode.
Information
Each of the above actions will cancel
Cruise Control operation (The set
speed on the instrument cluster will go
off), but only pressing the button
will turn the system off. If you wish to
resume Cruise Control operation,
push the lever up (RES+) located on
your steering wheel. You will return to
your previously preset speed, unless
the system was turned off using the
button.
To resume preset Cruisingspeed
Push the lever (1) up (RES+). If the
vehicle speed is over 20 mph (30
km/h), the vehicle will resume the
preset speed.
To turn Cruise Control off
• Press the button (the indi-
cator will go off).
• Turn the engine OFF.
i
OTLE055059
OTLE055057
TLe UK 5.qxp 5/10/2018 12:29 PM Page 134

5-135
Driving your vehicle
5
Cruise Control operation
1. CRUISE indicator
2. Set speed
The Cruise Control system allows you
to drive at speeds above 20 mph
(30 km/h) without depressing the
accelerator pedal.During cruise-speed driving of a
manual transaxle vehicle, do not
shift into neutral without depress-
ing the clutch pedal, since the
engine will be overrevved. If this
happens, depress the clutch pedal
or press the cruise control ON /
OFF button.
NOTICE
CRUISE CONTROL (IF EQUIPPED)
Take the following precautions:
•If the Cruise Control is left on,
(CRUISE indicator light in the
instrument cluster is illumi-
nated) the Cruise Control can
be activated unintentionally.
Keep the Cruise Control sys-
tem off (CRUISE indicator
light OFF) when the Cruise
Control is not in use, to avoid
inadvertently setting a speed.
•Use the Cruise Control system
only when travelling on open
highways in good weather.
•Do not use cruise control
when towing a trailer.
(Continued)
(Continued)
•Do not use the Cruise Control
when it may be unsafe to keep
the vehicle at a constant
speed:
- Driving in heavy or varyingspeed traffic.
- On slippery (rainy, icy or snow covered) roads.
- Hilly or winding roads.
- Very windy areas.
- When driving with limited view (possibly due to bad
weather such as fog, snow,
rain and sandstorm)
WARNING
OTM058156E
TLe UK 5.qxp 5/10/2018 12:29 PM Page 135

5-136
Driving your vehicle
Information
• During normal cruise control opera-tion, when the SET switch is activat-
ed or reactivated after applying the
brakes, the cruise control will ener-
gize after approximately 3 seconds.
This delay is normal.
• To activate cruise control, depress the brake pedal at least once after
turning the ignition switch to the
ON position or starting the engine.
This is to check if the brake switch
which is important part to cancel
cruise control is in normal condi-
tion.
Cruise control switch
CRUISE / : Turns cruise control system on or off.
RES+: Resumes or increases cruise control speed.
SET-: Sets or decreases cruise con- trol speed.
CANCEL/O : Cancels cruise control operation.
To set Cruise Control speed
1. Press the CRUISE / button on
the steering wheel to turn the sys-
tem on. The CRUISE indicator will
illuminate.
i
OTLE055050
■Type A
■Type BOTL055100
OTLE055054
■Type A
■Type BOTLE055055
TLe UK 5.qxp 5/10/2018 12:29 PM Page 136

5-137
Driving your vehicle
5
2. Accelerate to the desired speed,which must be more than 20 mph
(30 km/h).
Information - Manualtransaxle
For manual transaxle vehicles, you
should depress the brake pedal at
least once to set the cruise control
after starting the engine.
3. Push the lever (1) down (SET -),and release it. The set speed on
the LCD display will illuminate.
4. Release the accelerator pedal.
Information
On a steep slope, the vehicle may
slightly slow down or speed up, whilst
driving uphill or downhill.
i
i
OTLE055051
■ Type A
■Type BOTL055101
TLe UK 5.qxp 5/10/2018 12:29 PM Page 137

5-138
Driving your vehicle

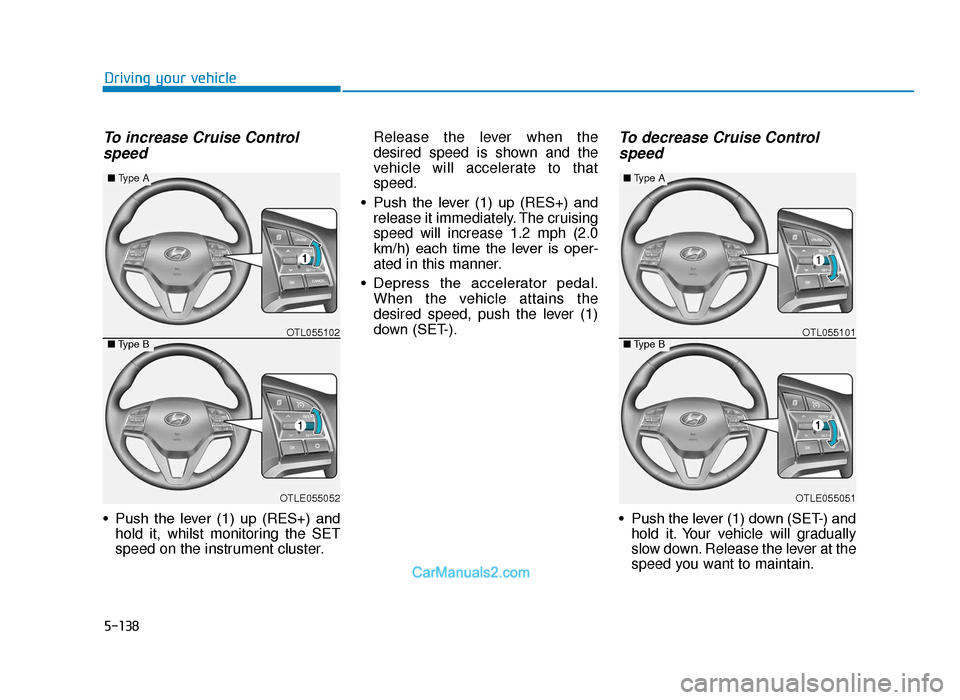

To increase Cruise Controlspeed
• Push the lever (1) up (RES+) and hold it, whilst monitoring the SET
speed on the instrument cluster. Release the lever when the
desired speed is shown and the
vehicle will accelerate to that
speed.
• Push the lever (1) up (RES+) and release it immediately. The cruising
speed will increase 1.2 mph (2.0
km/h) each time the lever is oper-
ated in this manner.
• Depress the accelerator pedal. When the vehicle attains the
desired speed, push the lever (1)
down (SET-).
To decrease Cruise Controlspeed
• Push the lever (1) down (SET-) and hold it. Your vehicle will gradually
slow down. Release the lever at the
speed you want to maintain.
OTLE055051
■ Type A
■Type BOTL055101
OTLE055052
■Type A
■Type BOTL055102
TLe UK 5.qxp 5/10/2018 12:29 PM Page 138

5-139
Driving your vehicle
5

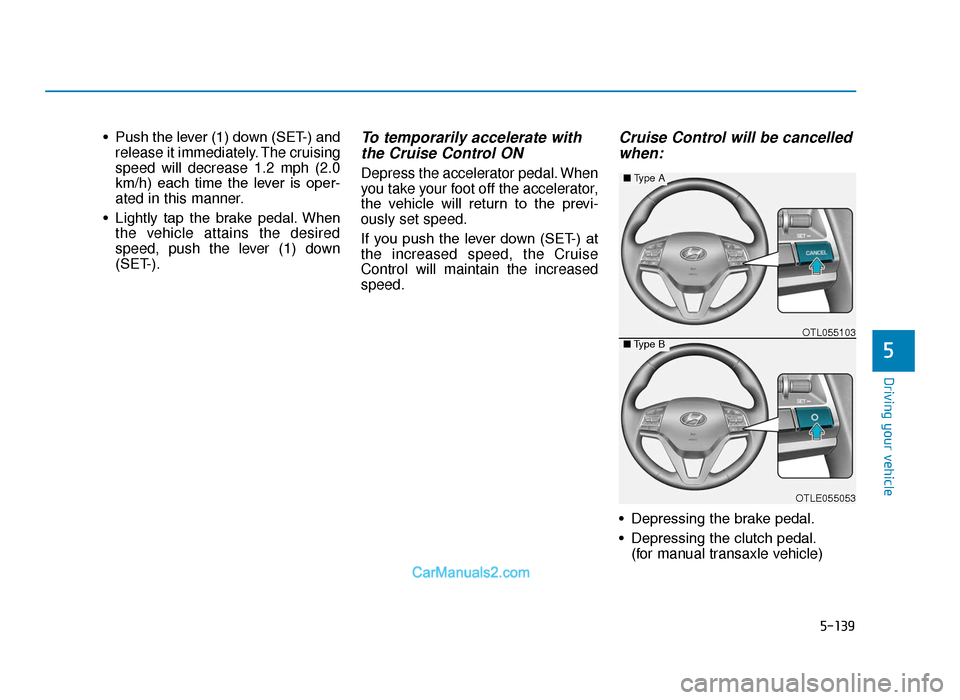

• Push the lever (1) down (SET-) andrelease it immediately. The cruising
speed will decrease 1.2 mph (2.0
km/h) each time the lever is oper-
ated in this manner.
• Lightly tap the brake pedal. When the vehicle attains the desired
speed, push the lever (1) down
(SET-).To temporarily accelerate withthe Cruise Control ON
Depress the accelerator pedal. When
you take your foot off the accelerator,
the vehicle will return to the previ-
ously set speed.
If you push the lever down (SET-) at
the increased speed, the Cruise
Control will maintain the increased
speed.
Cruise Control will be cancelledwhen:
• Depressing the brake pedal.
• Depressing the clutch pedal.
(for manual transaxle vehicle)
OTLE055053
■ Type A
■Type BOTL055103
TLe UK 5.qxp 5/10/2018 12:30 PM Page 139

5-140
Driving your vehicle

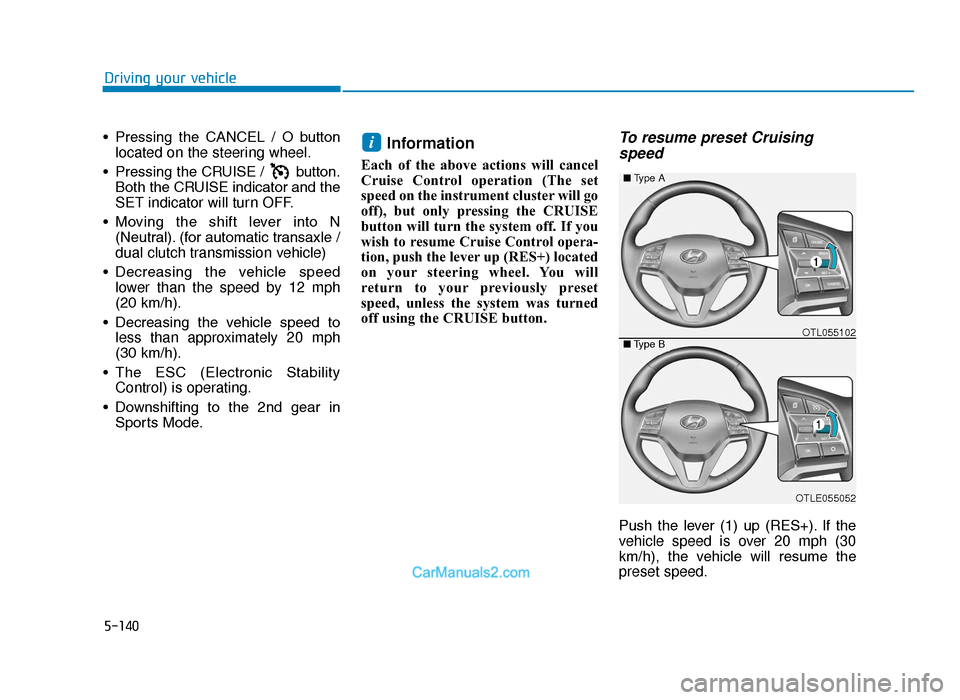

• Pressing the CANCEL / O button located on the steering wheel.
• Pressing the CRUISE / button. Both the CRUISE indicator and the
SET indicator will turn OFF.
• Moving the shift lever into N (Neutral). (for automatic transaxle /
dual clutch transmission vehicle)
• Decreasing the vehicle speed lower than the speed by 12 mph
(20 km/h).
• Decreasing the vehicle speed to less than approximately 20 mph
(30 km/h).
• The ESC (Electronic Stability Control) is operating.
• Downshifting to the 2nd gear in Sports Mode.
Information
Each of the above actions will cancel
Cruise Control operation (The set
speed on the instrument cluster will go
off), but only pressing the CRUISE
button will turn the system off. If you
wish to resume Cruise Control opera-
tion, push the lever up (RES+) located
on your steering wheel. You will
return to your previously preset
speed, unless the system was turned
off using the CRUISE button.
To resume preset Cruisingspeed
Push the lever (1) up (RES+). If the
vehicle speed is over 20 mph (30
km/h), the vehicle will resume the
preset speed.
i
OTLE055052
■ Type A
■Type BOTL055102
TLe UK 5.qxp 5/10/2018 12:30 PM Page 140
