2017 TOYOTA C-HR Owners Manual

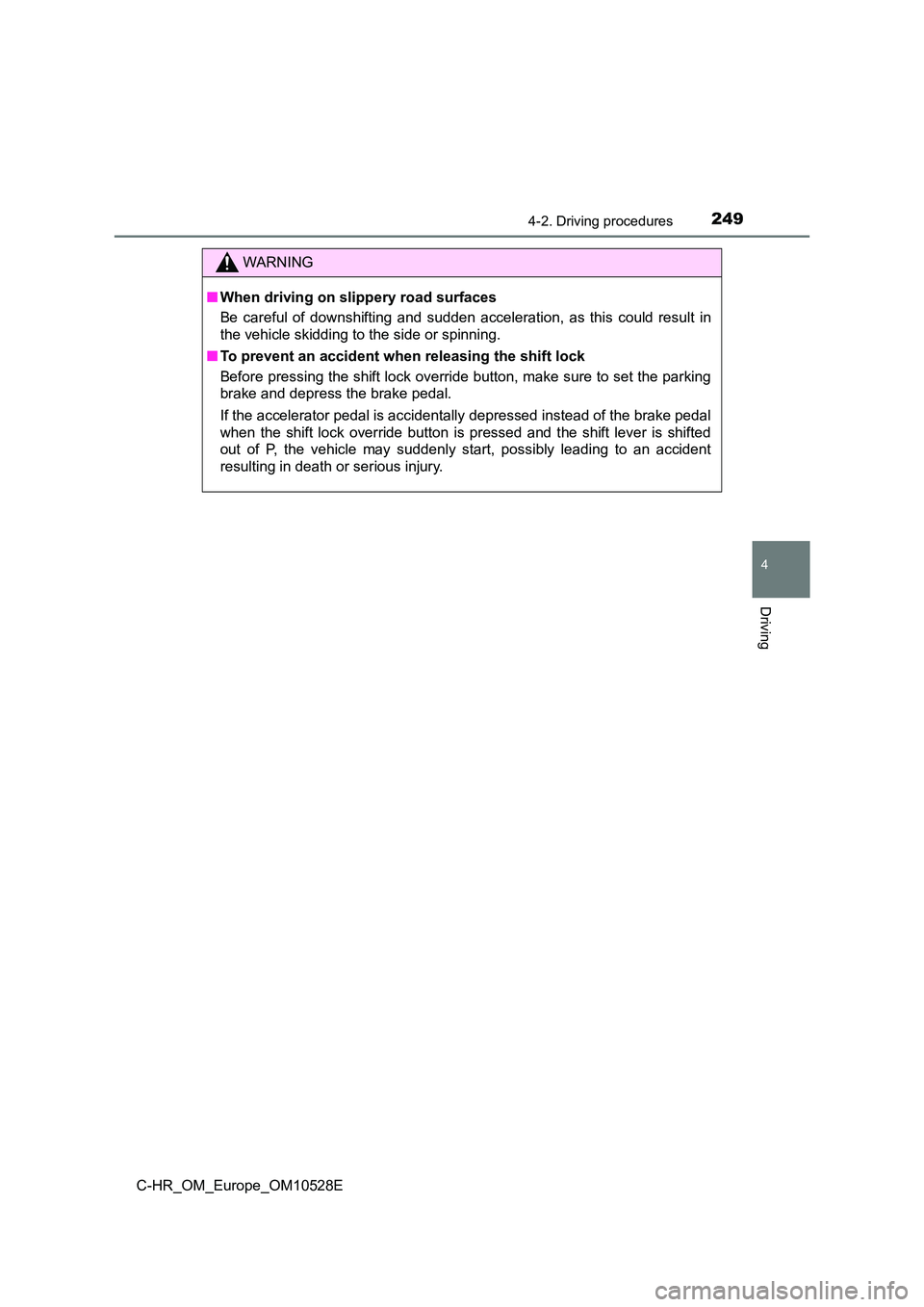

2494-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E
WARNING
■When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in
the vehicle skidding to the side or spinning.
■ To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.

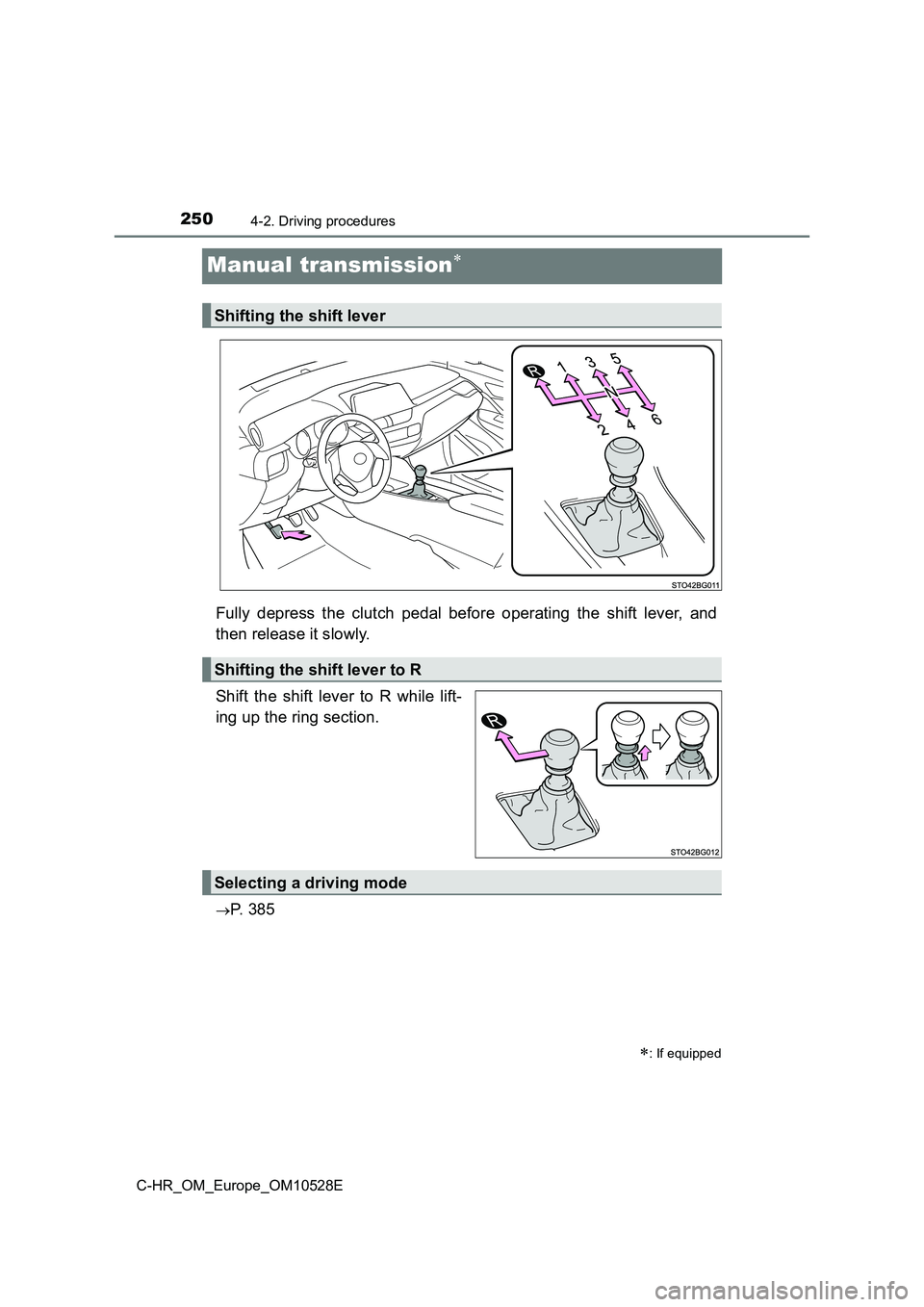

2504-2. Driving procedures
C-HR_OM_Europe_OM10528E
Manual transmission
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
Shift the shift lever to R while lift-
ing up the ring section.
P. 3 8 5
: If equipped
Shifting the shift lever
Shifting the shift lever to R
Selecting a driving mode

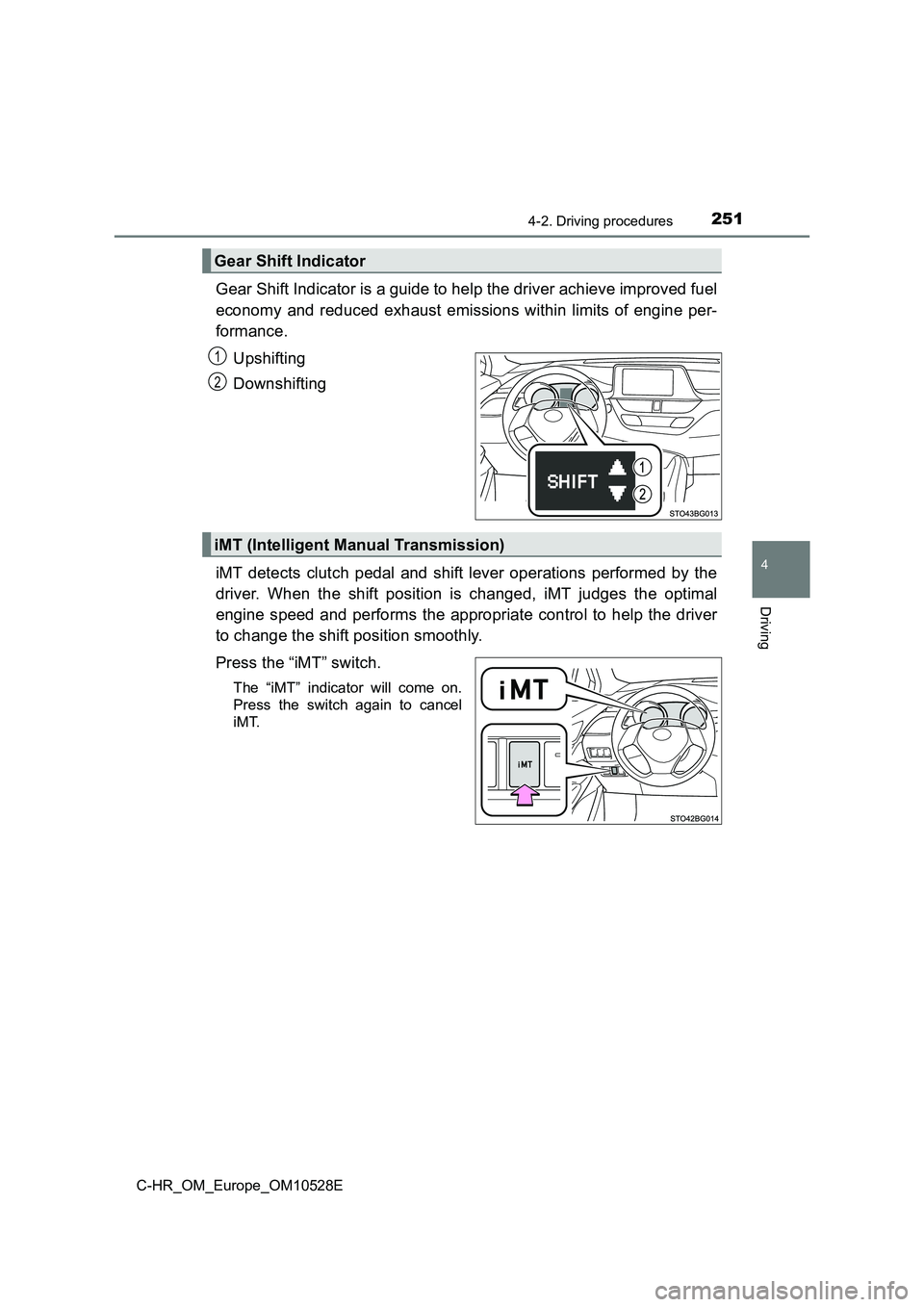

2514-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E
Gear Shift Indicator is a guide to help the driver achieve improved fuel
economy and reduced exhaust emissions within limits of engine per-
formance.
Upshifting
Downshifting
iMT detects clutch pedal and shift lever operations performed by the
driver. When the shift position is changed, iMT judges the optimal
engine speed and performs the appropriate control to help the driver
to change the shift position smoothly.
Press the “iMT” switch.
The “iMT” indicator will come on.
Press the switch again to cancel
iMT.
Gear Shift Indicator
1
2
iMT (Intelligent Manual Transmission)

2524-2. Driving procedures
C-HR_OM_Europe_OM10528E
■Gear Shift Indicator display
Gear Shift Indicator may not be displayed when your foot is placed on the
clutch pedal.
■ Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
km/h (mph)
■ Operation of iMT
● When the clutch pedal is depressed and the shift lever is moved to a posi-
tion, iMT controls the engine speed to be optimal for changing the shift posi-
tion. However, iMT stops operating before the shift position is changed if the
clutch pedal is not released for a while, and the engine speed cannot be
controlled. To operate iMT again, depress the clutch pedal and operate the
shift lever.
● The engine speed may be increased when the clutch pedal is depressed,
However, this does not indicate a malfunction.
Shift positionMaximum speed
141 (25)
274 (45)
3116 (72)
4157 (97)

2534-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E
■ When iMT does not operate
In the following situations, iMT may not operate. However, this does not indi-
cate a malfunction.
● The shift lever is not operated for a long time after the clutch pedal is
depressed.
● The vehicle moves for a while after the shift lever is shifted to N and the
clutch pedal is released, and then the clutch pedal is depressed and the
shift lever is moved to a position.
● The clutch pedal is not completely released and depressed again
● The clutch pedal is not fully depressed
■ If the warning message for iMT is shown on the multi-information dis-
play
iMT may be malfunctioning and the function is disabled. Have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
WARNING
■ Gear Shift Indicator display
For safety, the driver should not look only at the display. Refer to the display
when it is safe to do so while considering actual traffic and road conditions.
Failure to do so may lead to an accident.
■ Limitations of the iMT
iMT is not a system that prevents shift lever operation error or engine over-
revving.
Depending on the situation, iMT may not operate normally and the shift
position may not be changed smoothly. Overly relying on iMT may cause an
unexpected accident.

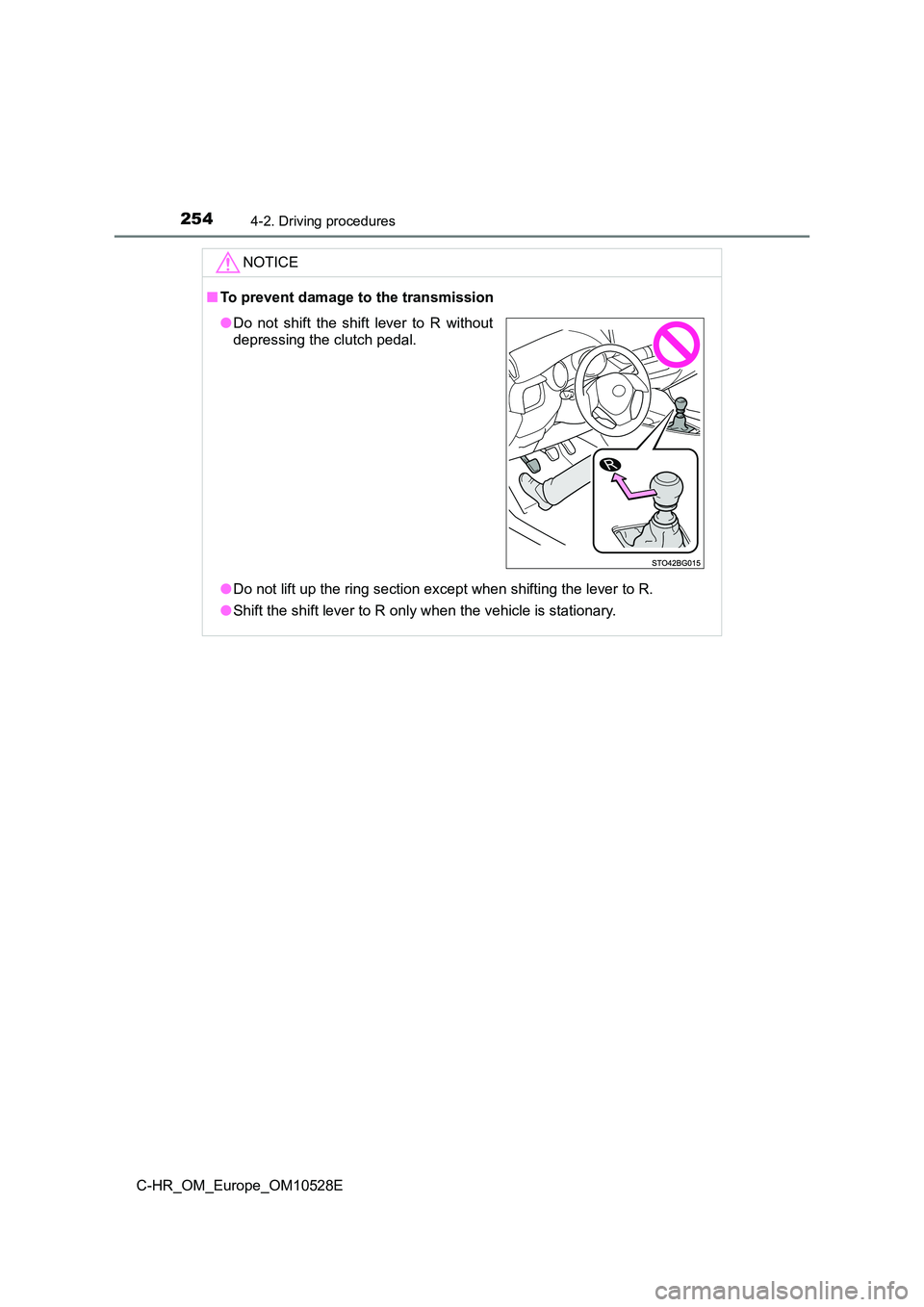

2544-2. Driving procedures
C-HR_OM_Europe_OM10528E
NOTICE
■To prevent damage to the transmission
● Do not lift up the ring section except when shifting the lever to R.
● Shift the shift lever to R only when the vehicle is stationary.
●Do not shift the shift lever to R without
depressing the clutch pedal.

255
4
4-2. Driving procedures
Driving
C-HR_OM_Europe_OM10528E
Turn signal lever
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
■ Turn signals can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
■ Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable feature P. 776)
Operating instructions
1
2
3
4

2564-2. Driving procedures
C-HR_OM_Europe_OM10528E
Parking brake
The parking brake is set or released automatically according to shift
lever or engine switch operation.
Even when in automatic mode, the parking brake can be set and
released manually. ( P. 258)
Vehicles with a Multidrive
Turns automatic mode on
(while the vehicle is stopped,
pull and hold the parking brake
switch until “EPB shift interlock
function activated” will be dis-
played on the multi-information
display)
• When the shift lever is moved
out of P, the parking brake will
be released, and the parking
brake indicator light and parking
brake lamp turn off.
• When the shift lever is moved
into P, the parking brake will be
set, and the parking brake indi-
cator light and parking brake
lamp turn on.
Operate the shift lever with the brake pedal depressed.
Turns automatic mode off (while the vehicle is stopped, press and
hold the parking brake switch until “EPB shift interlock function
deactivated” will be displayed on the multi-information display)
A selections can be made as desired from the following modes.
Automatic mode
1
2
