2017 TOYOTA C-HR Owners Manual

761

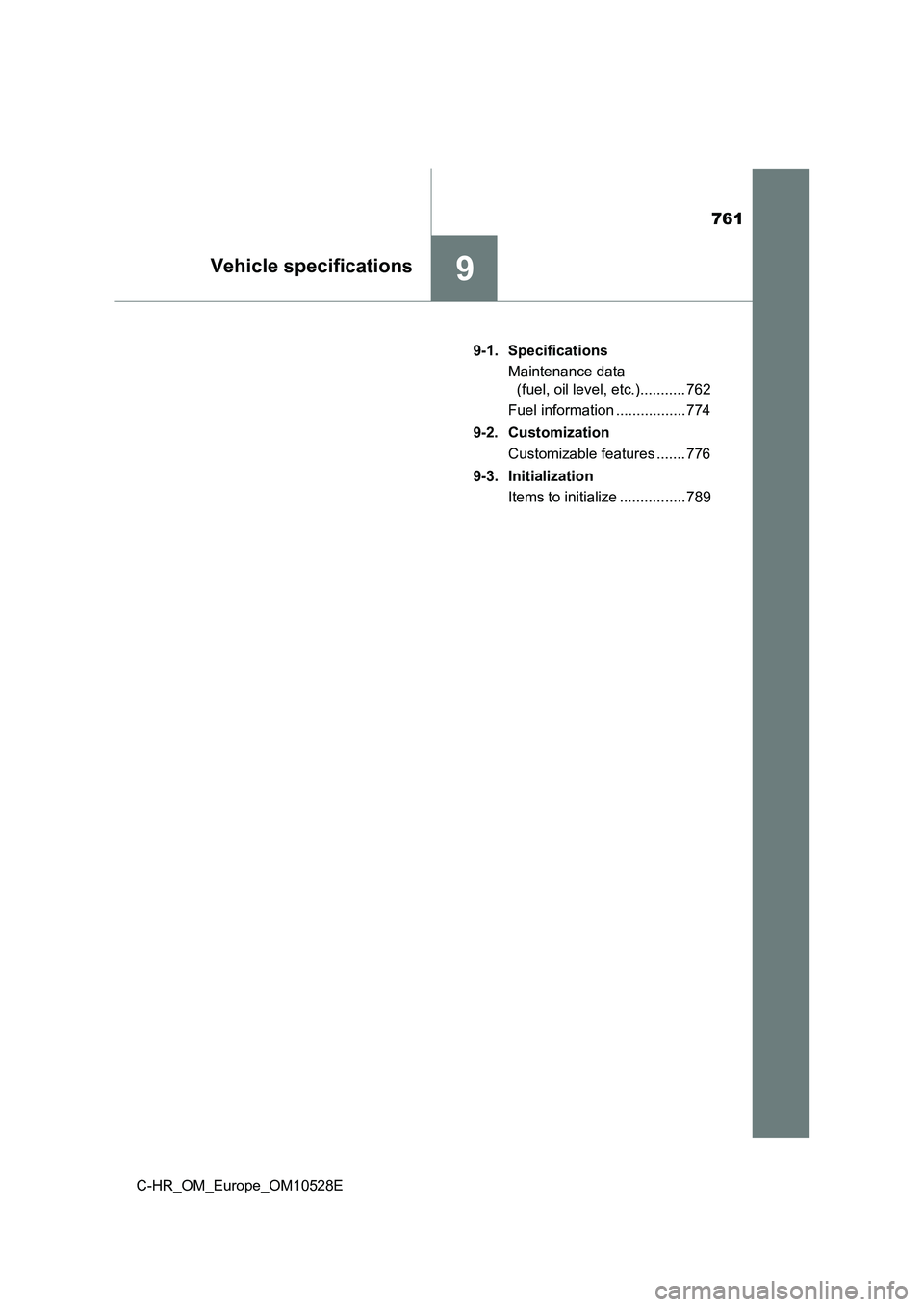

9Vehicle specifications
C-HR_OM_Europe_OM10528E
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 762
Fuel information ................. 774
9-2. Customization
Customizable features ....... 776
9-3. Initialization
Items to initialize ................ 789

7629-1. Specifications
C-HR_OM_Europe_OM10528E
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicles
*2: Vehicles with a Stop & Start system
*3: Vehicles without a Stop & Start system
*4: Vehicles with a Multidrive
*5: Vehicles with a manual transmission
Dimensions and weights
Overall length 4360 mm (171.7 in.)
Overall width 1795 mm (70.7 in.)
Overall height*11555 mm (61.2 in.)*2
1565 mm (61.6 in.)*3
Wheelbase 2640 mm (103.9 in.)
TreadFront 1550 mm (61.0 in.)
Rear 1560 mm (61.4 in.)
Gross vehicle mass2WD models 1865 kg (4112 lb.)*4
1845 kg (4068 lb.)*5
AWD models 1930 kg (4255 lb.)
Maximum
permissible axle
capacity
Front 1050 kg (2315 lb.)
Rear 1080 kg (2381 lb.)
Drawbar load 75 kg (165 lb.)
Towing capacityWith brake
Except for Guadeloupe and
Martinique
1100 kg (2425 lb.)*4
1300 kg (2866 lb.)*5
For Guadeloupe and Martinique
600 kg (1323 lb.)*4
1100 kg (2425 lb.)*5
Without brake 720 kg (1587 lb.)

7639-1. Specifications
9
Vehicle specifications
C-HR_OM_Europe_OM10528E

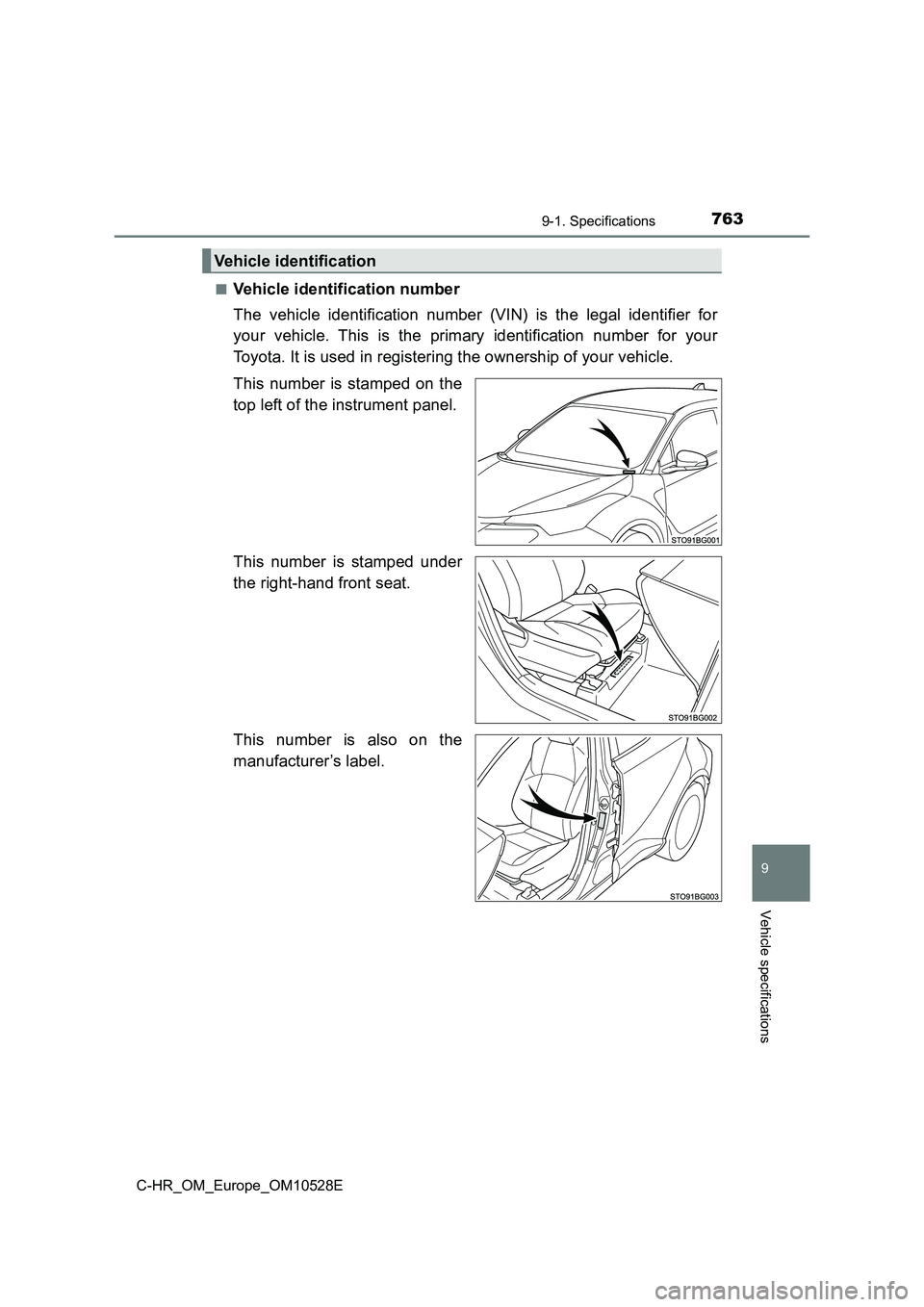

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is stamped under
the right-hand front seat.
This number is also on the
manufacturer’s label.
Vehicle identification

7649-1. Specifications
C-HR_OM_Europe_OM10528E

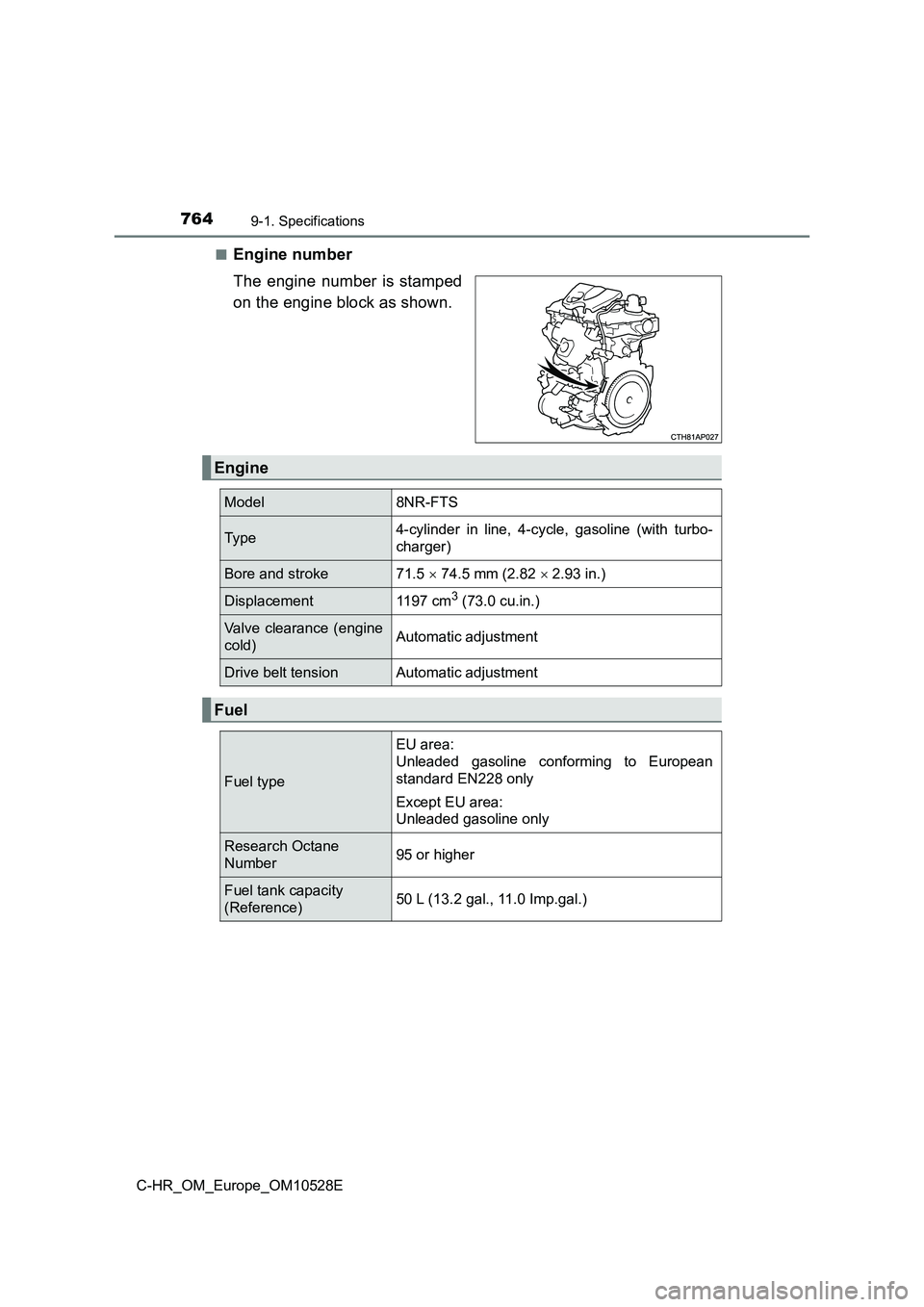

■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model 8NR-FTS
Ty p e 4-cylinder in line, 4-cycle, gasoline (with turbo-
charger)
Bore and stroke 71.5  74.5 mm (2.82  2.93 in.)
Displacement 1197 cm3 (73.0 cu.in.)
Valve clearance (engine
cold) Automatic adjustment
Drive belt tension Automatic adjustment
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp.gal.)

7659-1. Specifications
9
Vehicle specifications
C-HR_OM_Europe_OM10528E
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gaso-
line Engines” is used in your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gaso-
line Engines” or equivalent to satisfy the following grade and vis-
cosity.
Oil grade:
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gaso-
line Engines” or API grade SL “Energy-Conserving”, SM “Energy-
Conserving” or SN “Resource-Conserving”; or ILSAC multigrade
engine oil
Viscosity grade:
SAE 0W-20 and 5W-30
Lubrication system
Oil capacity
(Drain and refill  reference*)
With filter 3.95 L (4.17 qt., 3.48 Imp.qt.)
Without filter 3.65 L (3.86 qt., 3.21 Imp.qt.)

7669-1. Specifications
C-HR_OM_Europe_OM10528E

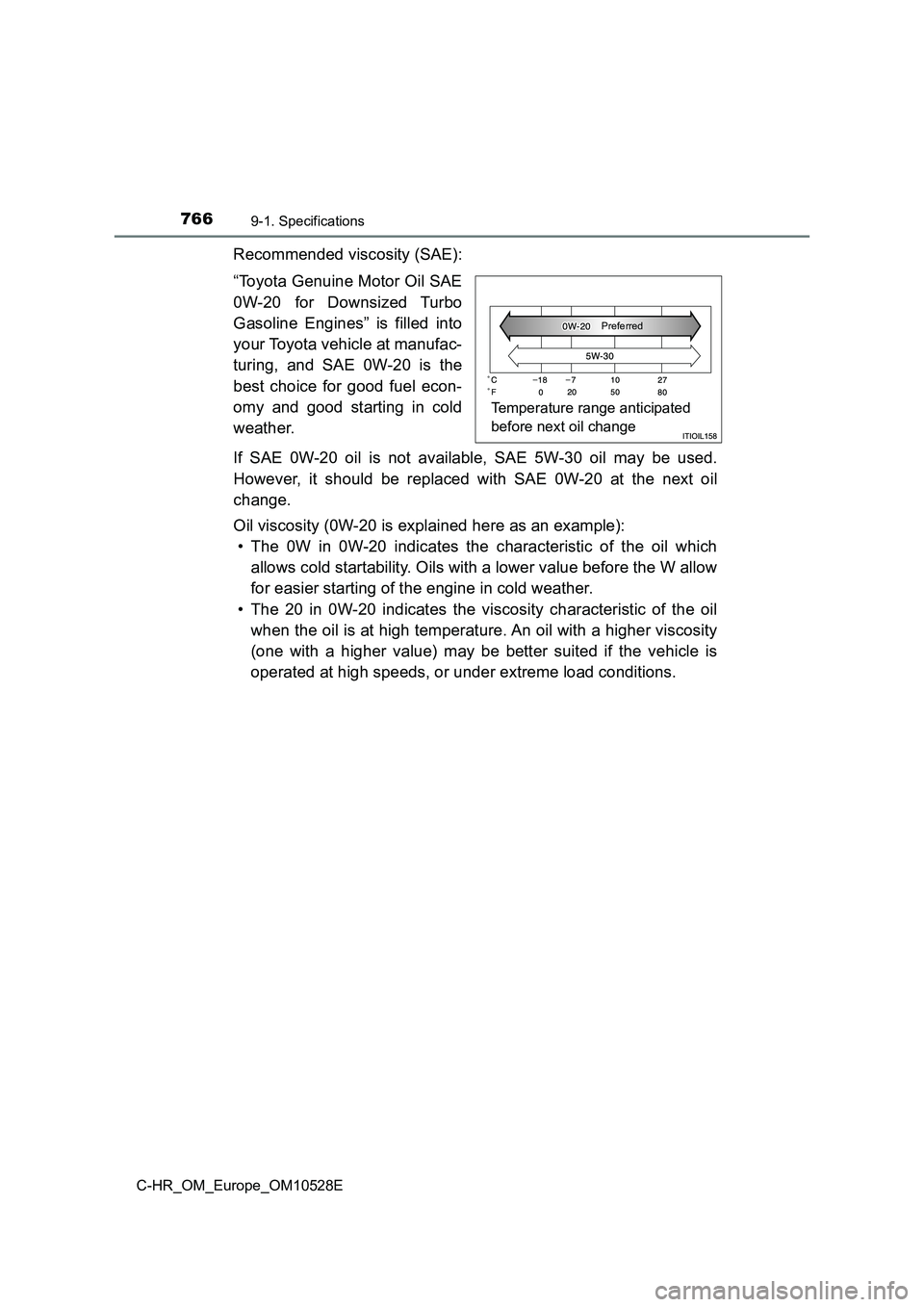

Recommended viscosity (SAE):
“Toyota Genuine Motor Oil SAE
0W-20 for Downsized Turbo
Gasoline Engines” is filled into
your Toyota vehicle at manufac-
turing, and SAE 0W-20 is the
best choice for good fuel econ-
omy and good starting in cold
weather.
If SAE 0W-20 oil is not available, SAE 5W-30 oil may be used.
However, it should be replaced with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred

7679-1. Specifications
9
Vehicle specifications
C-HR_OM_Europe_OM10528E
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

7689-1. Specifications
C-HR_OM_Europe_OM10528E

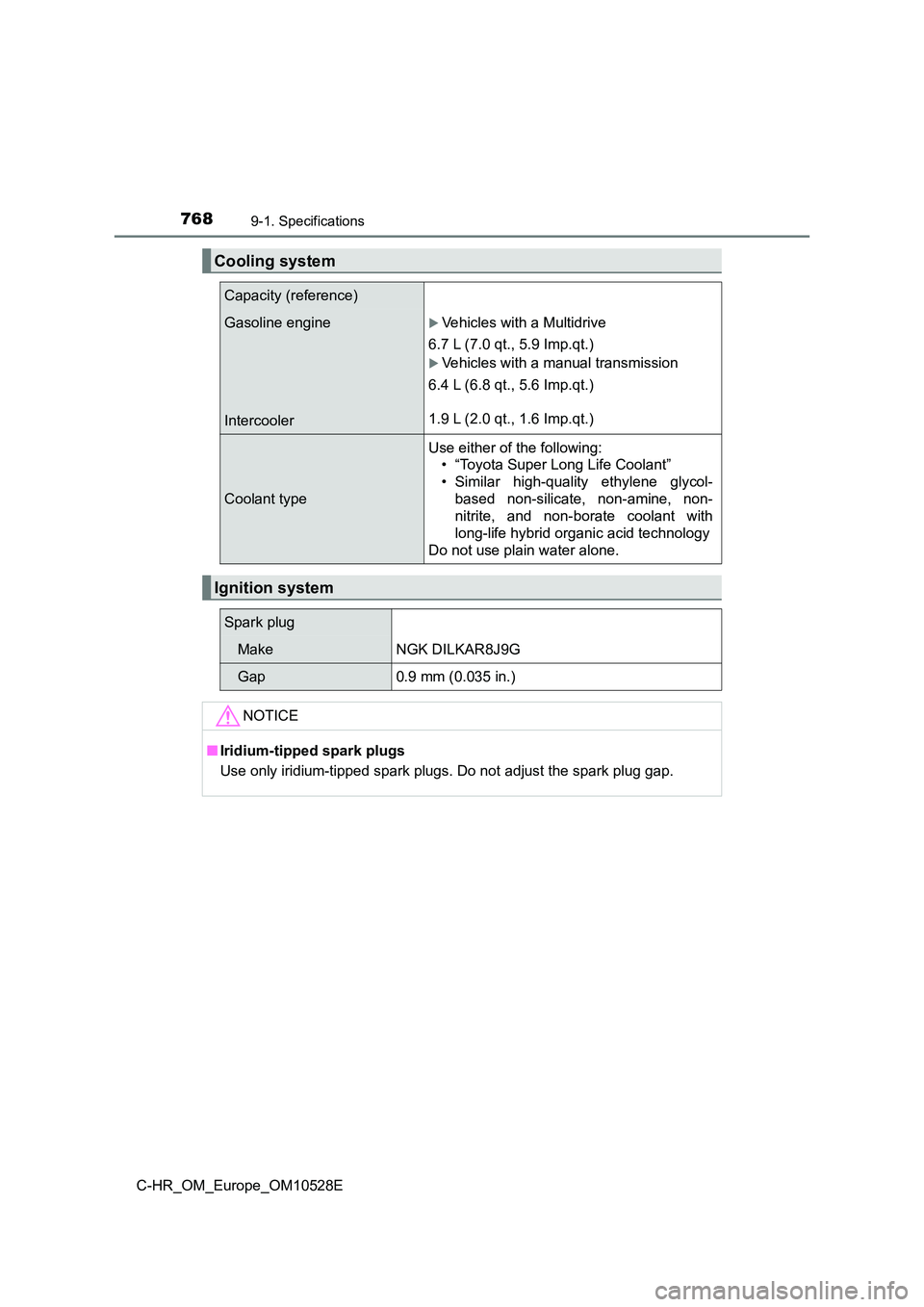

Cooling system
Capacity (reference)
Gasoline engine
Intercooler
Vehicles with a Multidrive
6.7 L (7.0 qt., 5.9 Imp.qt.)
Vehicles with a manual transmission
6.4 L (6.8 qt., 5.6 Imp.qt.)
1.9 L (2.0 qt., 1.6 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeNGK DILKAR8J9G
Gap0.9 mm (0.035 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
