2017 TOYOTA C-HR Owners Manual

369
4
4-5. Using the driving support systems
Driving
C-HR_OM_Europe_OM10528E
Cruise control
Use the cruise control to maintain a set speed without operating the
accelerator pedal.
Indicators
Set speed (color display only)
Cruise control switch
: If equipped
Summary of functions
1
2
3

3704-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will be dis-
played on the multi-information dis-
play.
Press the button again to deacti-
vate the cruise control.
Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed
(above approximately 40 km/h
[25 mph]) and push the lever
down to set the speed.
Cruise control “SET” indicator and
set speed (color display only) will
be displayed on the multi-informa-
tion display.
The vehicle speed at the moment the lever is released becomes the set
speed.
Setting the vehicle speed
1
2

3714-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E

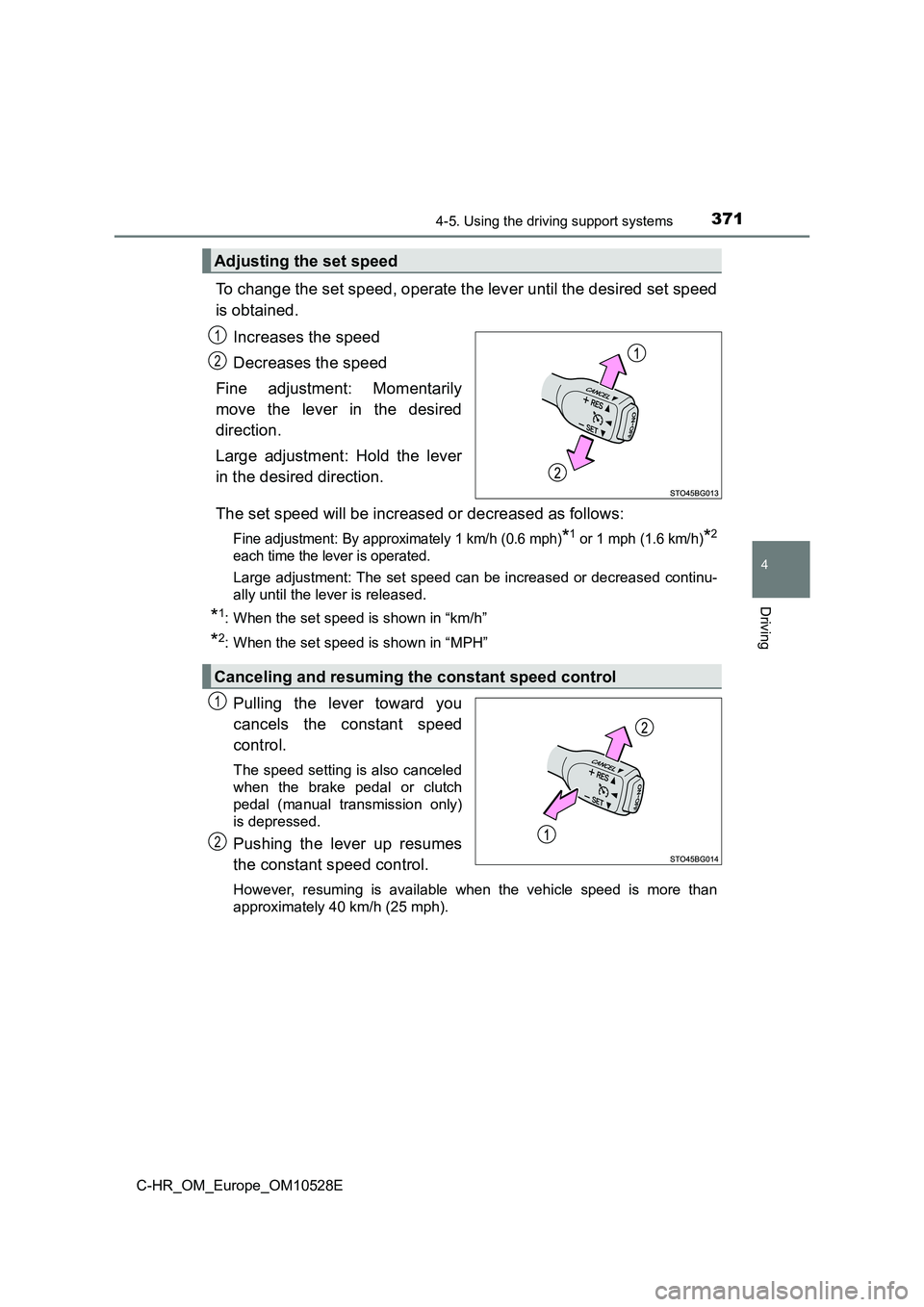

To change the set speed, operate the lever until the desired set speed
is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the lever
in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1 km/h (0.6 mph)*1 or 1 mph (1.6 km/h)*2
each time the lever is operated.
Large adjustment: The set speed can be increased or decreased continu-
ally until the lever is released.
*1: When the set speed is shown in “km/h”
*2: When the set speed is shown in “MPH”
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also canceled
when the brake pedal or clutch
pedal (manual transmission only)
is depressed.
Pushing the lever up resumes
the constant speed control.
However, resuming is available when the vehicle speed is more than
approximately 40 km/h (25 mph).
Adjusting the set speed
1
2
Canceling and resuming the constant speed control
1
2

3724-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
■Cruise control can be set when
Vehicles with a Multidrive
● The shift lever is in D.
● Vehicle speed is above approximately 40 km/h (25 mph).
Vehicles with a manual transmission
Vehicle speed is above approximately 40 km/h (25 mph).
■ Accelerating after setting the vehicle speed
● The vehicle can be accelerated by operating accelerator pedal. After accel-
erating, the set speed resumes.
● Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
■ Automatic cruise control cancelation
Cruise control is automatically canceled in any of the following situations.
● Actual vehicle speed falls more than approximately 16 km/h (10 mph) below
the set speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 40 km/h (25 mph).
● VSC is activated.
● TRC is activated for a period of time.
● When the VSC or TRC system is turned off by pressing the VSC off switch.
● Speed limiter is activated. (if equipped)
■ If “Check cruise control system visit your dealer” is displayed on the
multi-information display
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels imme-
diately after being activated, there may be a malfunction in the cruise control
system. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.

3734-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E

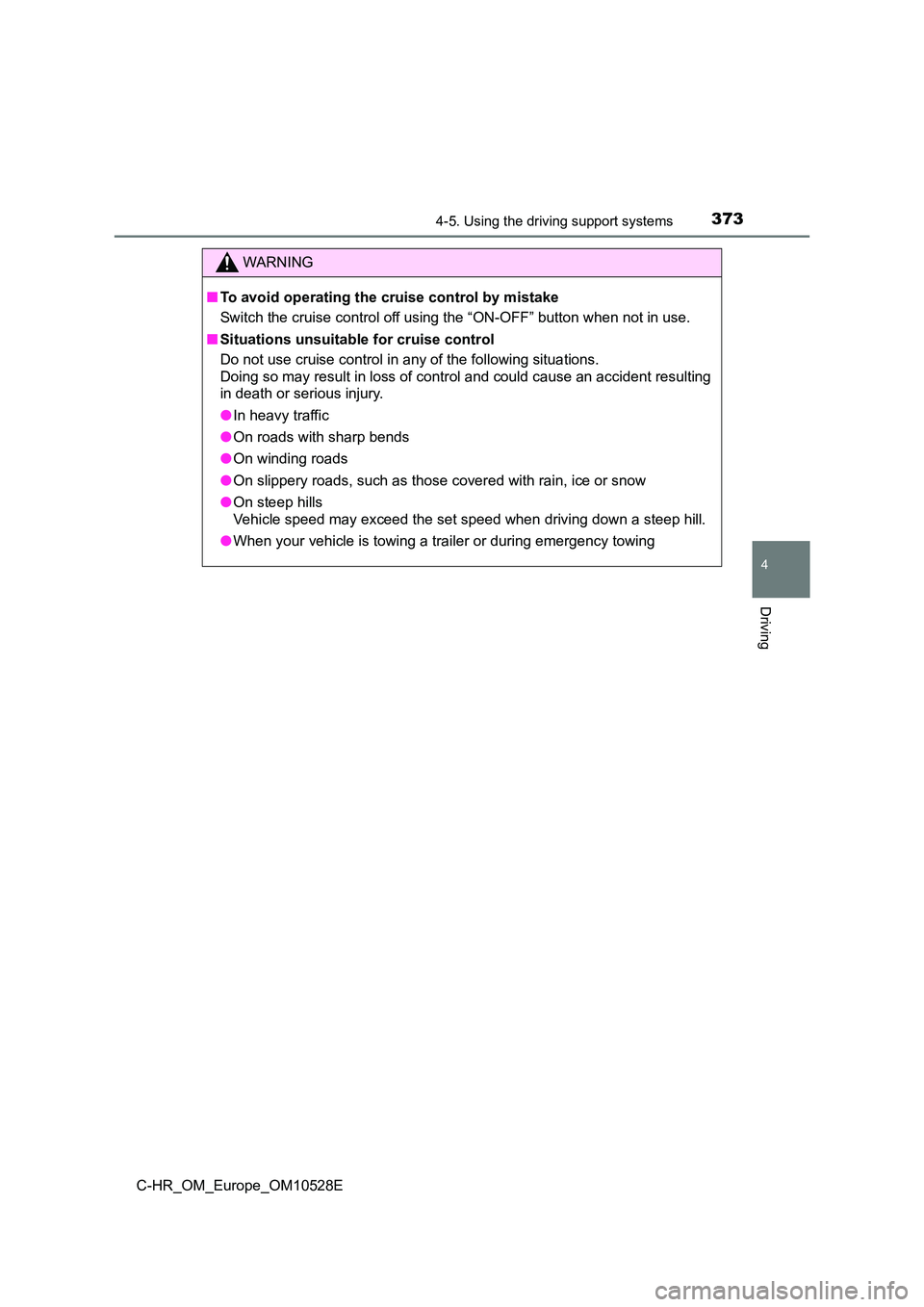

WARNING
■To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
● In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● When your vehicle is towing a trailer or during emergency towing

3744-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
Stop & Start system
■Stopping the engine
With the clutch pedal fully
depressed, depress the
brake pedal, and stop the
vehicle.
Shift the shift lever to N
( P. 250), and release the
clutch pedal.
The Stop & Start indicator will
come on.
■Restarting the engine
Check that the shift lever is in N and depress the clutch pedal.
The Stop & Start indicator will turn off.
: If equipped
The Stop & Start system stops and restarts the engine according
to the clutch pedal operation when the vehicle is stopped.
Stop & Start system operation
1
2

3754-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E
Press the Stop & Start cancel
switch to disable the Stop & Start
system.
The Stop & Start cancel indicator
will come on.
Pressing the switch again will
enable the Stop & Start system and
the Stop & Start cancel indicator
will turn off.
■Automatic reactivation of the Stop & Start system
Even if the Stop & Start system is disabled by the Stop & Start can-
cel switch, it will be automatically re-enabled once the engine
switch is turned to the “LOCK” position then to the “START” posi-
tion.
■If the Stop & Start cancel switch is pressed while the vehicle is
stopped
● When the engine is stopped by the Stop & Start system, pressing
the Stop & Start cancel switch will restart the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned off), the engine will not be stopped.
● With the Stop & Start system disabled, pressing the Stop & Start
cancel switch will re-enable the system but not stop the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned on), the engine will be stopped.
Disabling the Stop & Start system

3764-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
■Operating conditions
● The Stop & Start system is operational when all of the following conditions
are met:
• The windshield defogger is turned off.
• The driver’s seat belt is fastened.
• The engine is adequately warmed up.
• The driver’s door is closed.
• The clutch pedal is not being depressed.
• The outside temperature is -5°C (23°F) or higher.
• The shift lever is in N.
• The hood is closed.
● In the following situations the engine may not be stopped by the Stop & Start
system. This is not a malfunction of the Stop & Start system.
• The air conditioning system is being used when the ambient temperature
is high or low.
• The battery is not sufficiently charged, such as if the vehicle has been
parked for a long time and the battery charge has decreased, the electric
load is large, the battery temperature is excessively low or the battery has
deteriorated, or is under going a periodic recharge.
• The brake booster vacuum is low.
• The steering wheel is being operated.
• Due to traffic or other circumstances the vehicle is stopped repeatedly.
• The vehicle is being driven in a high altitude area.
• Engine coolant temperature or tr ansmission fluid temperature is
extremely low or high.
• The battery fluid temperature is extremely low or high.
• For a while after the battery terminals have been disconnected and
reconnected.
• For a while after the battery has been replaced.
