2017 TOYOTA C-HR Owners Manual

5055-5. Using an external device
5
Audio system
C-HR_OM_Europe_OM10528E

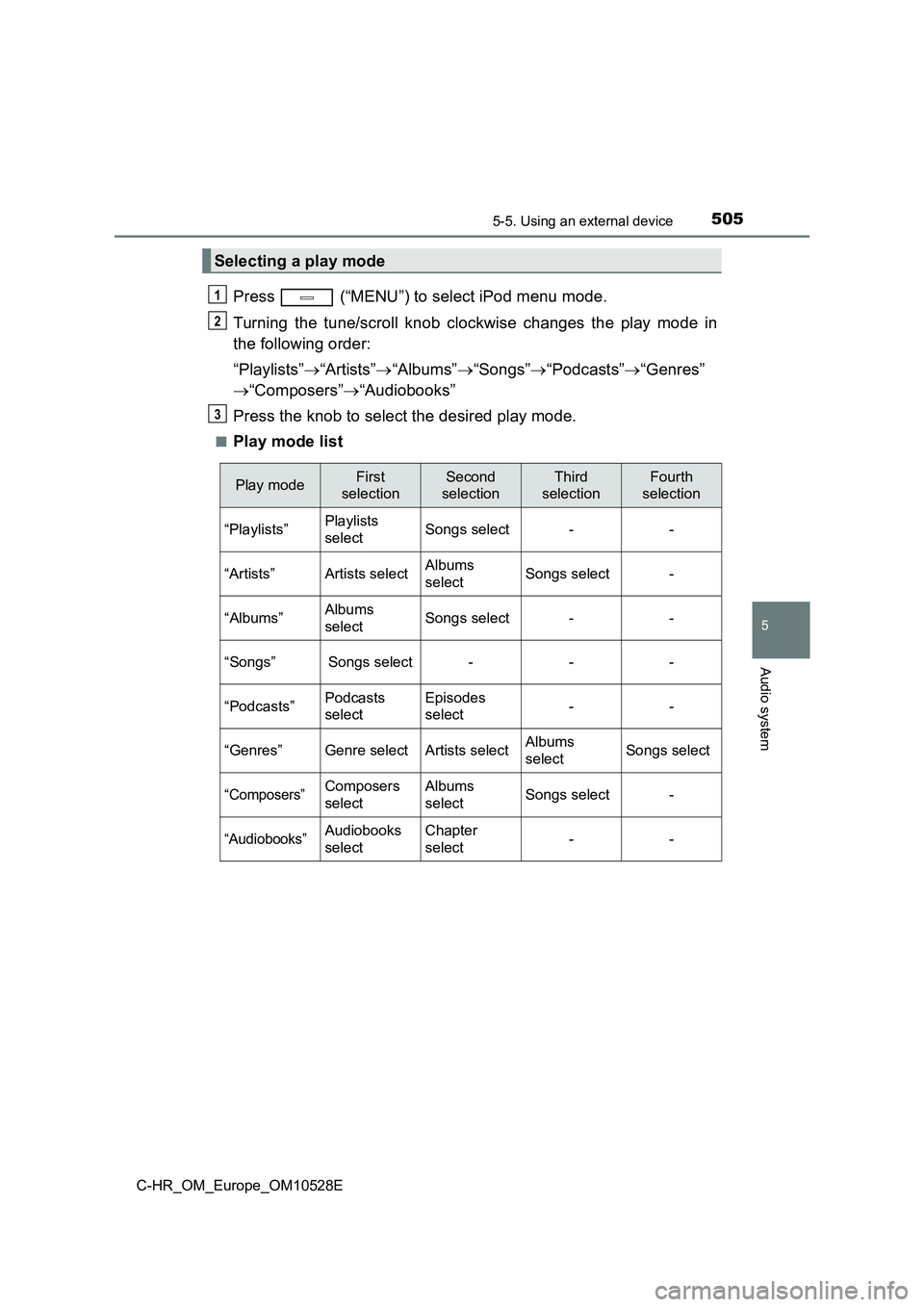

Press (“MENU”) to select iPod menu mode.
Turning the tune/scroll knob clockwise changes the play mode in
the following order:
“Playlists” “Artists”“Albums”“Songs”“Podcasts”“Genres”
 “Composers”“Audiobooks”
Press the knob to select the desired play mode.
■Play mode list
Selecting a play mode
1
2
3
Play modeFirst
selection
Second
selection
Third
selection
Fourth
selection
“Playlists”Playlists
selectSongs select--
“Artists”Artists selectAlbums
selectSongs select-
“Albums”Albums
selectSongs select--
“Songs”Songs select---
“Podcasts”Podcasts
select
Episodes
select--
“Genres”Genre selectArtists selectAlbums
selectSongs select
“Composers”Composers
select
Albums
selectSongs select-
“Audiobooks”Audiobooks
select
Chapter
select--

5065-5. Using an external device
C-HR_OM_Europe_OM10528E
■Selecting a list
Type A
Turn the tune/scroll knob to display the first selection list.
Press the knob to select the desired item.
Pressing the knob changes to the second selection list.
Repeat the same procedure to select the desired item.
To return to the previous selection list, press the back button.
Type B
Turn the tune/scroll knob to display the first selection list.
Press the knob to select the desired item and display the second
selection list.
Repeat the same procedure to select the desired item.
To return to the previous selection list, press (“BACK”).
Press (“PLAY”) to play the desired selection.
Turn the tune/scroll knob or press “ ” or “” on the “SEEK TRACK”
button (Type A), or the “<” or “>” button of “SEEK TRACK” (Type B) to
select the desired song.
Press the “LIST” button (Type A) or (“LIST”) (Type B).
The song list will be displayed.
Turn the tune/scroll knob to select a song.
Press the knob to play the song.
To return to the previous display, press the back button (Type A) or
(“BACK”) (Type B).
Selecting songs
Selecting a song from the song list
1
2
3
1
2
3
1
2
3

5075-5. Using an external device
5
Audio system
C-HR_OM_Europe_OM10528E
Press and hold “” or “” on the “SEEK TRACK” button (Type A), or
the “<” or “>” button of “SEEK TRACK” (Type B).
Pressing (“RDM”) changes modes in the following order:
Track Random Album RandomOff.
Press (“RPT”).
To cancel, press the button again.
Ty pe A
Press the tune/scroll knob.
Track title, Artist name and Album title are shown on the display.
To return to the previous display, press the knob or the back button.
Ty pe B
Press (“TEXT”) display or hide the album title.
If there are continuing texts, is displayed.
Press and hold the button to display the remaining texts.
Fast-forwarding and rewinding songs
Random play
Repeat play
Switching the display

5085-5. Using an external device
C-HR_OM_Europe_OM10528E
■About iPod
● “Made for iPod” and “Made for iPhone” mean that an electronic accessory
has been designed to connect specifically to iPod, or iPhone, respectively,
and has been certified by the developer to meet Apple performance stan-
dards.
● Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this acces-
sory with iPod or iPhone may affect wireless performance.
● iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other countries.
■ iPod functions
● When an iPod is connected and the audio source is changed to iPod mode,
the iPod will resume play from the same point in which it was last used.
● Depending on the iPod that is connected to the system, certain functions
may not be available. Disconnecting the device and reconnecting it once
again may resolve some malfunctions.
● While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.

5095-5. Using an external device
5
Audio system
C-HR_OM_Europe_OM10528E
■ iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Man-
ual.
■ Display
 P. 496
■ Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
MessageCause/Correction procedures
“iPod error” or “ERROR”This indicates a problem in the iPod or its con-
nection.
“NO SONGS”This indicates that there is no music data in
the iPod.
“NO PLAYLIST” (Type B)This indicates that some available songs are
not found in a selected playlist.
“UPDATE YOUR iPod”
This indicates that the version of the iPod is
not compatible. Upgrade your iPod software
to the latest version.

5105-5. Using an external device
C-HR_OM_Europe_OM10528E

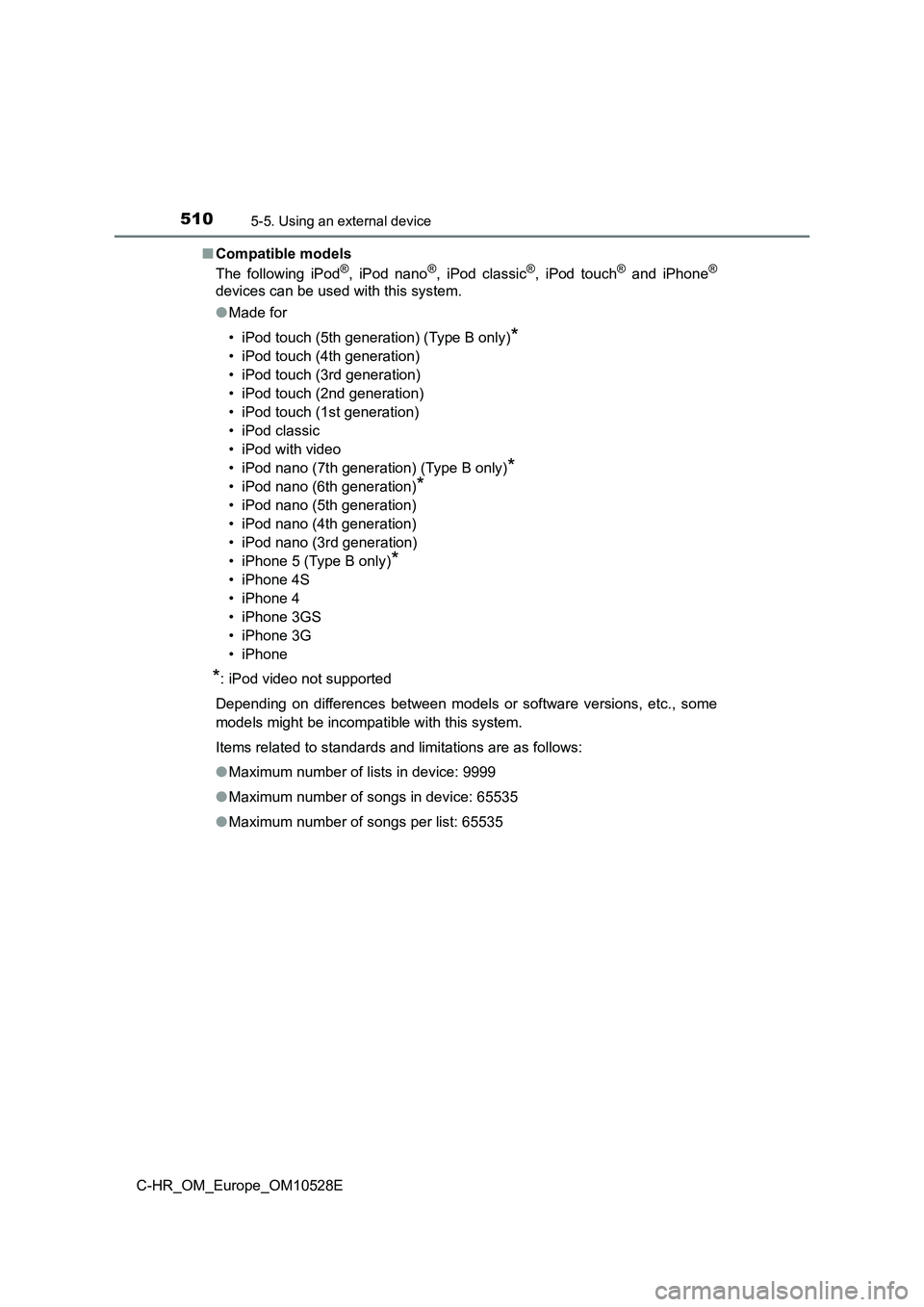

■ Compatible models
The following iPod®, iPod nano®, iPod classic®, iPod touch® and iPhone®
devices can be used with this system.
● Made for
• iPod touch (5th generation) (Type B only)*
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (7th generation) (Type B only)*
• iPod nano (6th generation)*
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPhone 5 (Type B only)*
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
*: iPod video not supported
Depending on differences between models or software versions, etc., some
models might be incompatible with this system.
Items related to standards and limitations are as follows:
● Maximum number of lists in device: 9999
● Maximum number of songs in device: 65535
● Maximum number of songs per list: 65535

5115-5. Using an external device
5
Audio system
C-HR_OM_Europe_OM10528E

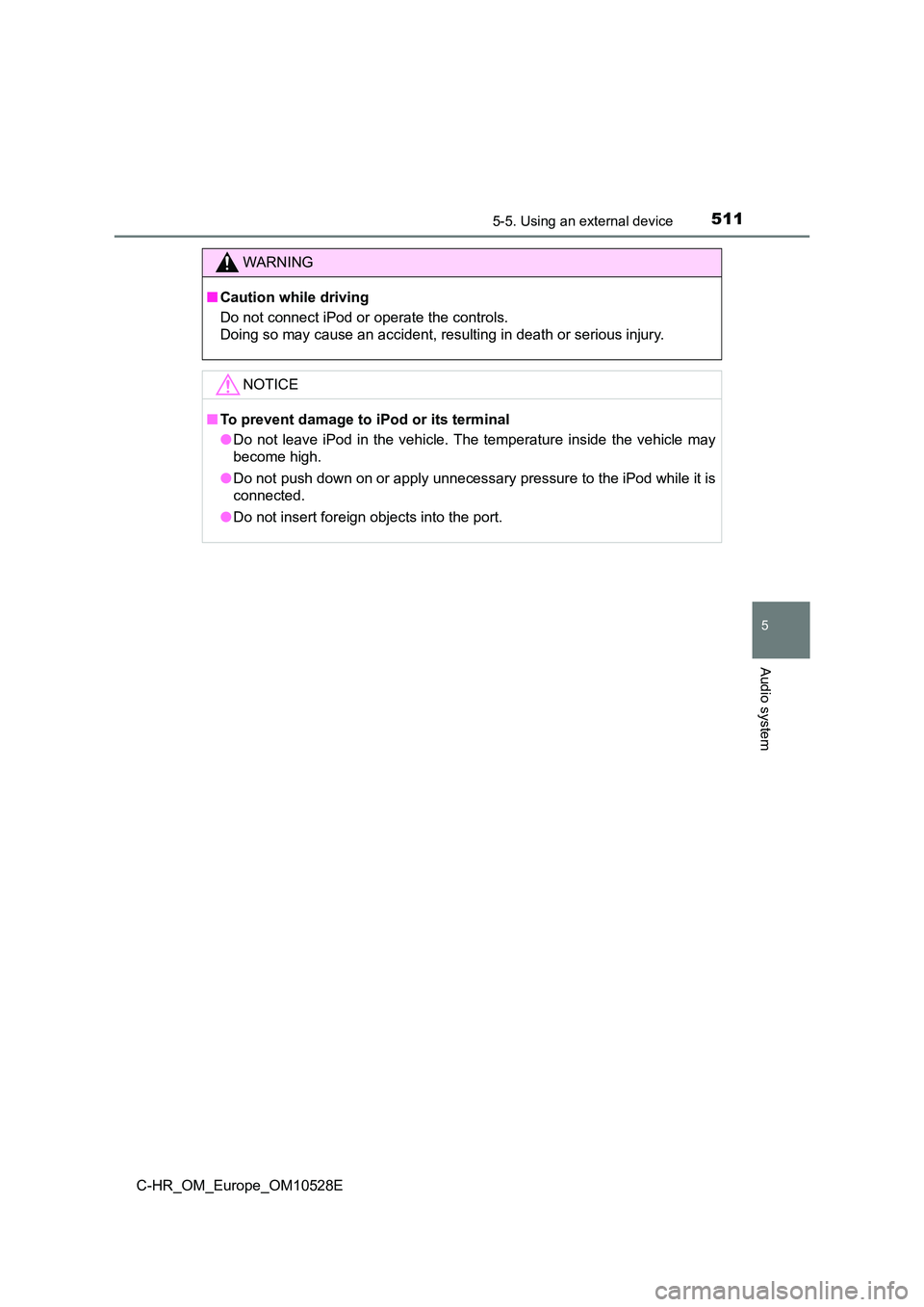

WARNING
■Caution while driving
Do not connect iPod or operate the controls.
Doing so may cause an accident, resulting in death or serious injury.
NOTICE
■ To prevent damage to iPod or its terminal
● Do not leave iPod in the vehicle. The temperature inside the vehicle may
become high.
● Do not push down on or apply unnecessary pressure to the iPod while it is
connected.
● Do not insert foreign objects into the port.

5125-5. Using an external device
C-HR_OM_Europe_OM10528E
Listening USB memory device
P. 4 8 1
Ty pe A
Connecting a USB memory enables you to enjoy music from the
vehicle speakers. Press the “MEDIA” (Type A) or “MODE”
(Type B) button until “USB” is displayed.
Connecting a USB memory
Control panel
Tune/scroll knob
Selecting a file or displaying
text message
Back button
Random play
Repeat play
Changing the audio source/
playback
Selecting a folder
Displaying folder list
Selecting a file, fast-forward-
ing or rewinding
Power/volume knob
Press: Turning the audio sys-
tem on or off
Turn: Adjusting the volume
1
2
3
4
5
6
7
8
9
