4174-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E
WARNING
■Sensors
Certain vehicle conditions and the surrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where
this may occur are listed below.
● There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve
this problem.)
● The sensor is frozen. (Thawing the area will resolve this problem.)
In especially cold weather, if a sensor is frozen, the screen may show an
abnormal display, or obstacles may not be detected.
● The sensor is covered in any way.
● In harsh sunlight or intense cold weather
● On an extremely bumpy road, on an incline, on gravel, or on grass
● The vicinity of the vehicle is noisy due to vehicle horns, motorcycle
engines, air brakes of large vehicles , or other loud noises producing ultra-
sonic waves.
● The sensor is splashed with water or drenched with heavy rain.
● The sensor is drenched with water on a flooded road.
● The vehicle is leaning considerably to one side.
● The vehicle is equipped with a fender pole or wireless antenna.
● The vehicle is approaching a tall or curved curb.
● The detection range is reduced due to an object such as a sign.
● The area directly under the bumpers is not detected.
● If obstacles draw too close to the sensor.
● The bumper or sensor receives a strong impact.
● A non-genuine Toyota suspension (lowered suspension, etc.) is installed.
● There is another vehicle equipped with parking assist sensors in the vicin-
ity.
● Towing eyelets are installed.
● A backlit license plate, license plate holder, etc., are installed.
In addition to the examples above, depending on the shape and condition of
obstacles, detection may not be possible, or the detection range may be
shortened.

4184-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
WARNING
■Side sensors
In the following situations, the clearance sonar may not operate normally
and may result in an unexpected accident. Drive carefully.
● Obstacles may not be detected in the side areas until the vehicle is driven
for a short time and a scan of the side areas is completed. ( P. 415)
● Even after the scan of the side areas is completed, obstacles such as
other vehicles, people or animals that approach from the sides cannot be
detected.
● Even after the scan of the side areas is completed, obstacles may not be
detected depending on the surrounding situation of the vehicle.
At that time, the side sensor operation displays ( P. 409) temporary turn
off.
■ Obstacles which may not be properly detected
● The shape of the obstacle may prevent the sensor from detecting it. Pay
particular attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that absorb sound waves
• Sharply-angled objects
• Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction of
your vehicle
• People may not be detected if they are wearing certain types of cloth-
ing.
• Moving objects such as people or animals

4194-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E
NOTICE
■When using Toyota parking assist-sensor
In the following situations, the system may not function correctly due to a
sensor malfunction, etc. Have the vehicle checked by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
● Toyota parking assist-sensor operation display flashes, and a beep
sounds when no obstacles are detected.
● If the area around a sensor collides with something, or is subjected to
strong impact.
● If the bumper collides with something.
● If the display shows up and remains on without a beep.
● If a display error occurs, first check the sensor.
If the error occurs even when there is no ice, snow or mud on the sensor, it
is likely that the sensor is malfunctioning.
■ Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.

4204-5. Using the driving support systems
C-HR_OM_Europe_OM10528E

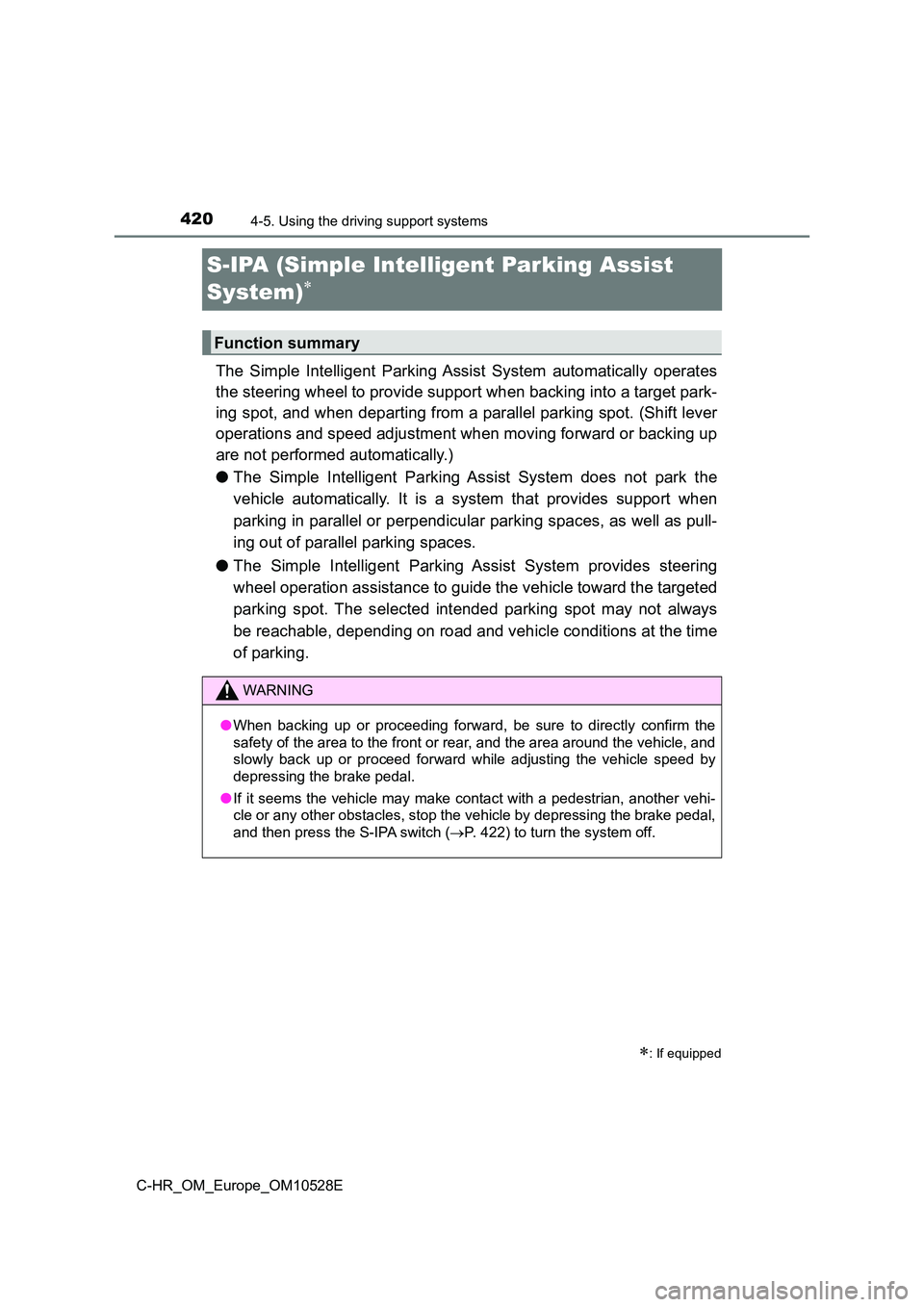

S-IPA (Simple Intelligent Parking Assist
System)
The Simple Intelligent Parking Assist System automatically operates
the steering wheel to provide support when backing into a target park-
ing spot, and when departing from a parallel parking spot. (Shift lever
operations and speed adjustment when moving forward or backing up
are not performed automatically.)
● The Simple Intelligent Parking Assist System does not park the
vehicle automatically. It is a system that provides support when
parking in parallel or perpendicular parking spaces, as well as pull-
ing out of parallel parking spaces.
● The Simple Intelligent Parking Assist System provides steering
wheel operation assistance to guide the vehicle toward the targeted
parking spot. The selected intended parking spot may not always
be reachable, depending on road and vehicle conditions at the time
of parking.
: If equipped
Function summary
WARNING
● When backing up or proceeding forward, be sure to directly confirm the
safety of the area to the front or rear, and the area around the vehicle, and
slowly back up or proceed forward while adjusting the vehicle speed by
depressing the brake pedal.
● If it seems the vehicle may make contact with a pedestrian, another vehi-
cle or any other obstacles, stop the vehicle by depressing the brake pedal,
and then press the S-IPA switch ( P. 422) to turn the system off.

4214-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E

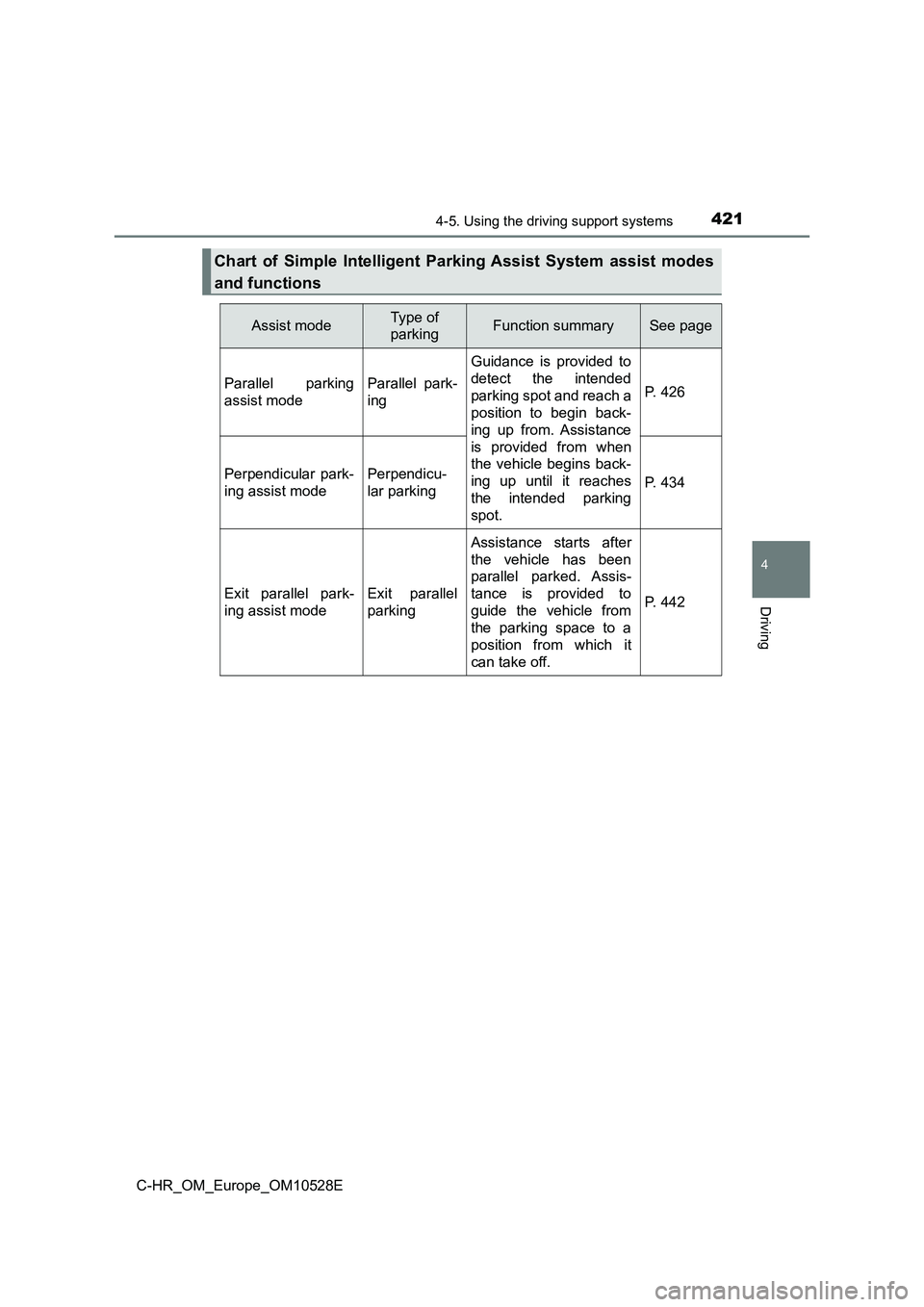

Chart of Simple Intelligent Parking Assist System assist modes
and functions
Assist modeType of
parkingFunction summarySee page
Parallel parking
assist mode
Parallel park-
ing
Guidance is provided to
detect the intended
parking spot and reach a
position to begin back-
ing up from. Assistance
is provided from when
the vehicle begins back-
ing up until it reaches
the intended parking
spot.
P. 426
Perpendicular park-
ing assist mode
Perpendicu-
lar parkingP. 434
Exit parallel park-
ing assist mode
Exit parallel
parking
Assistance starts after
the vehicle has been
parallel parked. Assis-
tance is provided to
guide the vehicle from
the parking space to a
position from which it
can take off.
P. 442

4224-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
S-IPA switch
Display
Indicator
■Switching using the S-IPA switch
Press the switch
This allows you to switch func-
tions and cancel or restart assist
modes.
While the engine switch is turned to the “ON” position (vehicles
without a smart entry & start system) or IGNITION ON mode (vehi-
cles with a smart entry & start system), the vehicle speed is approx-
imately 40 km/h (25 mph) or less, each time the S-IPA switch is
pressed the function switches as follows.
The selected function is indicated on the operation display area of the
multi-information display. ( P. 425)
S-IPA switch and multi-information display
1
2
3
Switching assist mode

4234-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E

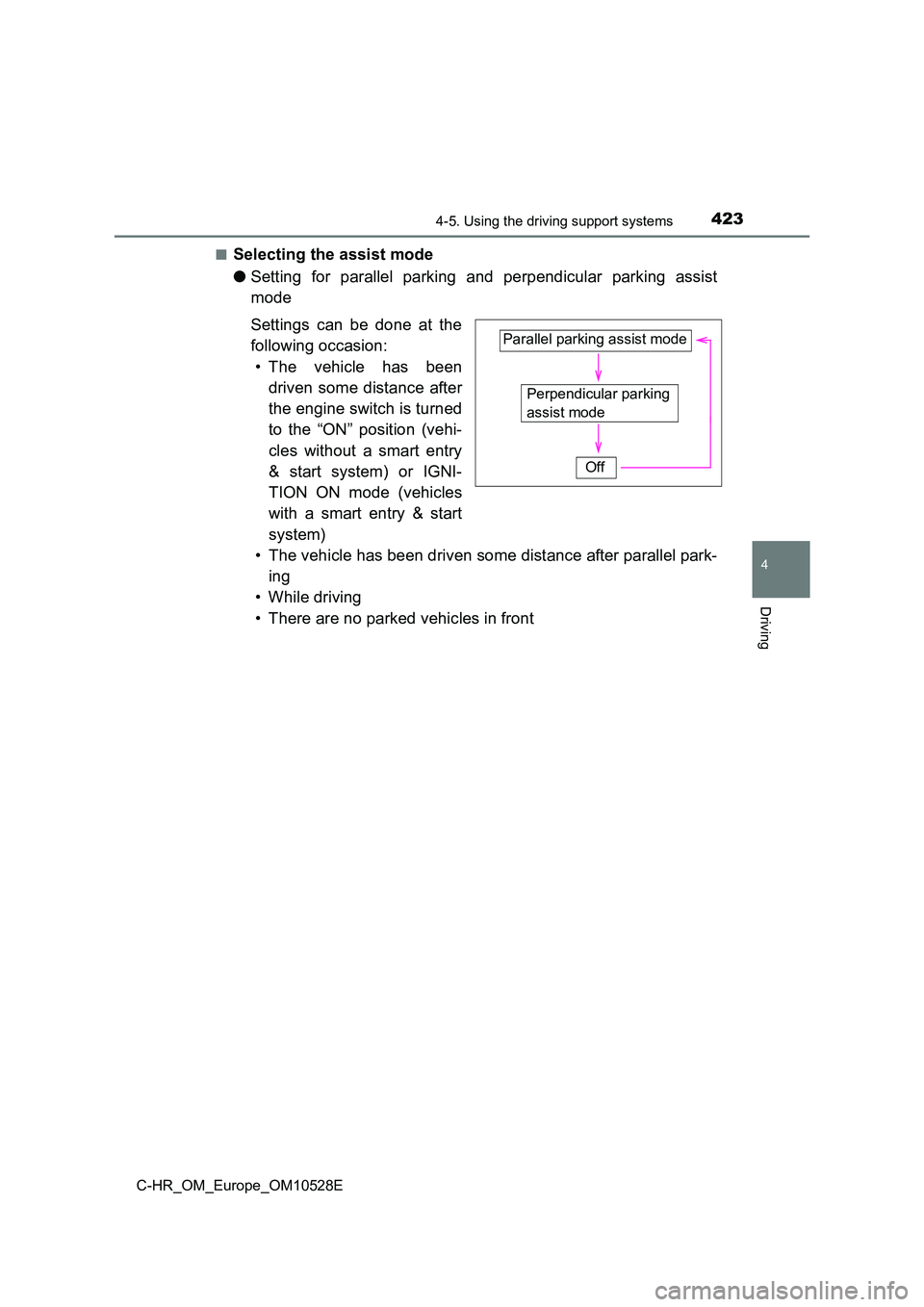

■Selecting the assist mode
● Setting for parallel parking and perpendicular parking assist
mode
Settings can be done at the
following occasion:
• The vehicle has been
driven some distance after
the engine switch is turned
to the “ON” position (vehi-
cles without a smart entry
& start system) or IGNI-
TION ON mode (vehicles
with a smart entry & start
system)
• The vehicle has been driven some distance after parallel park-
ing
• While driving
• There are no parked vehicles in front
Perpendicular parking
assist mode
Parallel parking assist mode
Off

4244-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
●Settings for exit parallel parking assist mode
Settings can be done at the
following occasions:
• Immediately after the
engine switch is turned to
the “ON” position (vehi-
cles without a smart entry
& start system) or IGNI-
TION ON mode (vehicles
with a smart entry & start
system), while stopped
and there is a parked vehi-
cle in front
• Immediately after parallel parking using the system, while
stopped and there is a parked vehicle in front
Exit parallel parking
assist mode
Off
