Engine compartment Type C fuse box
While pushing the 2 claws, lift up
the cover.
When closing the cover, make sure
to attach the 2 claws.
Left side instrument panel (left-hand drive vehicles)
Remove the lid.
Make sure to press the claw during
removal or installation.

6587-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E
Left side instrument panel (right-hand drive vehicles)
Push the tab in and remove
the cover.
Remove the lid.
Make sure to press the claw
during removal or installation.
Remove the fuse with the pull-
out tool.
Only Type A fuses can be removed
using the pullout tool.
1
2
3

6597-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E
Check if the fuse is blown.
Normal fuse
Blown fuse
Except for Type E:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
4
1
2
Ty pe AType B
Ty pe CType D
Ty pe E

6607-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 661)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.

6617-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 773)
■Front
Headlights (halogen bulb type)
Front fog lights (if equipped on bulb type)
Front turn signal lights (bulb type)
Side turn signal lights
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Preparing for light bulb replacement
Bulb locations
1
2
3
4

6627-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E

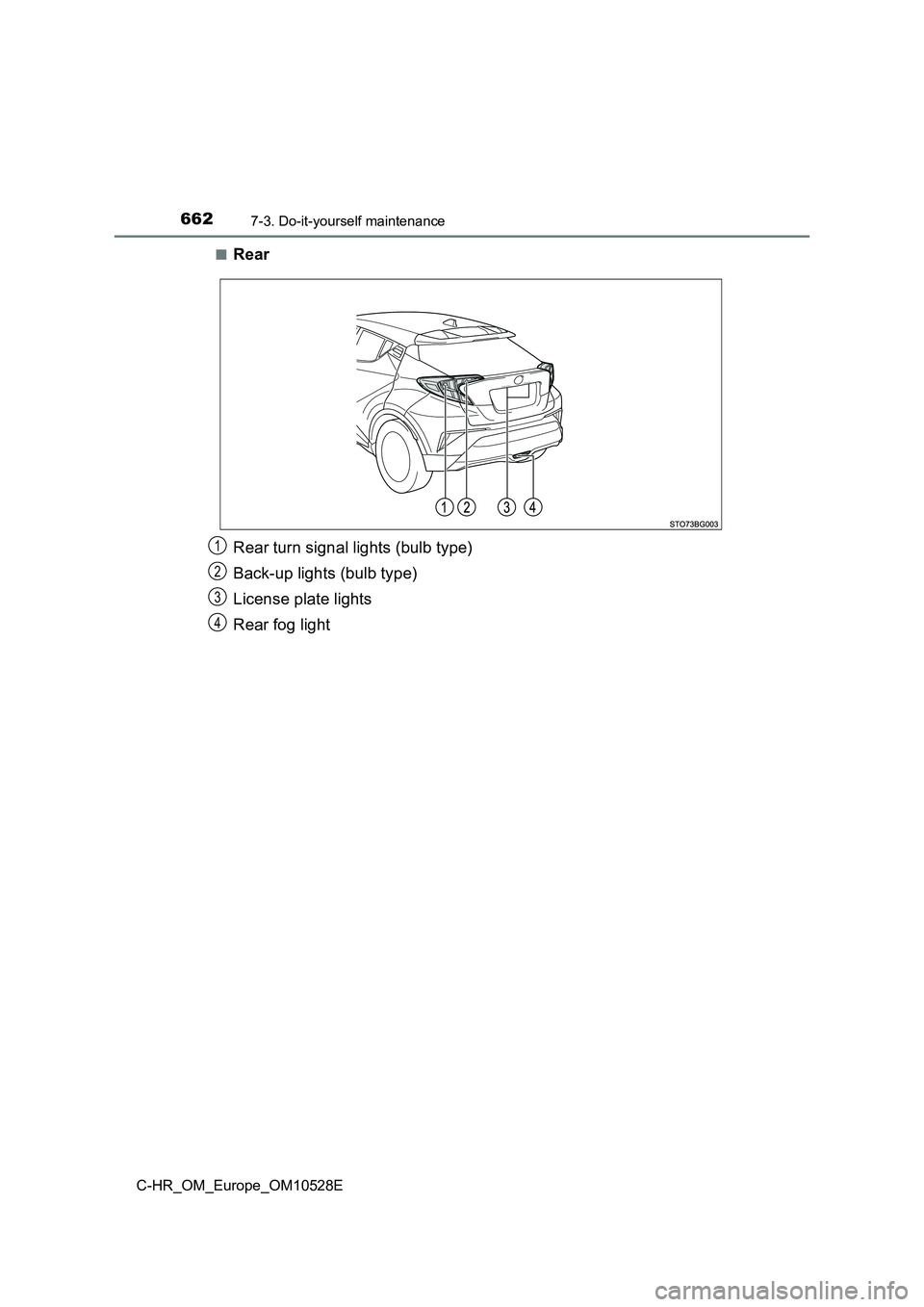

■Rear
Rear turn signal lights (bulb type)
Back-up lights (bulb type)
License plate lights
Rear fog light
1
2
3
4

6637-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E
■Headlights (halogen bulb type)
Turn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Replacing light bulbs
1
2
3
4

6647-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E

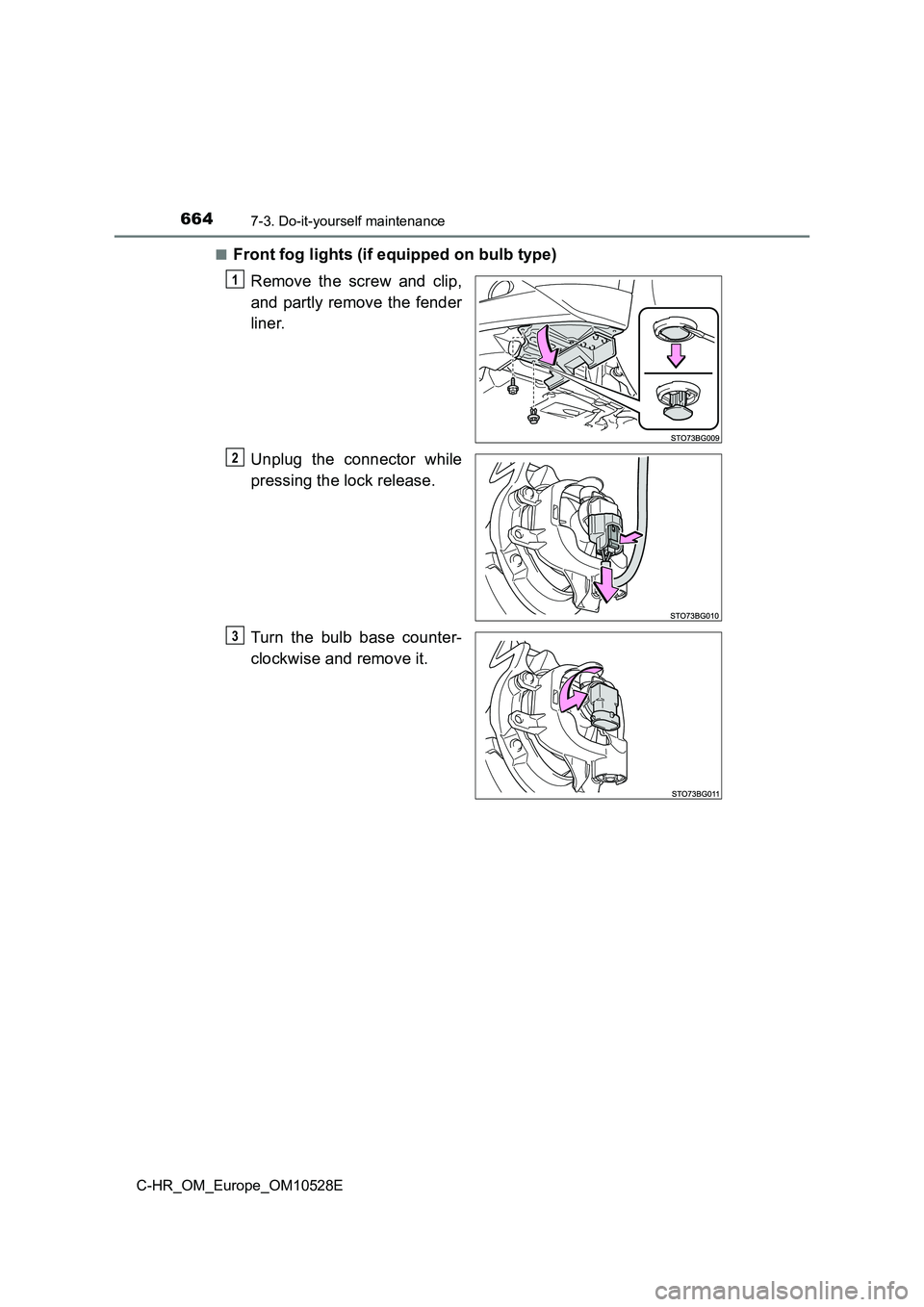

■Front fog lights (if equipped on bulb type)
Remove the screw and clip,
and partly remove the fender
liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise and remove it.
1
2
3
