2017 TOYOTA C-HR Owners Manual

2574-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E

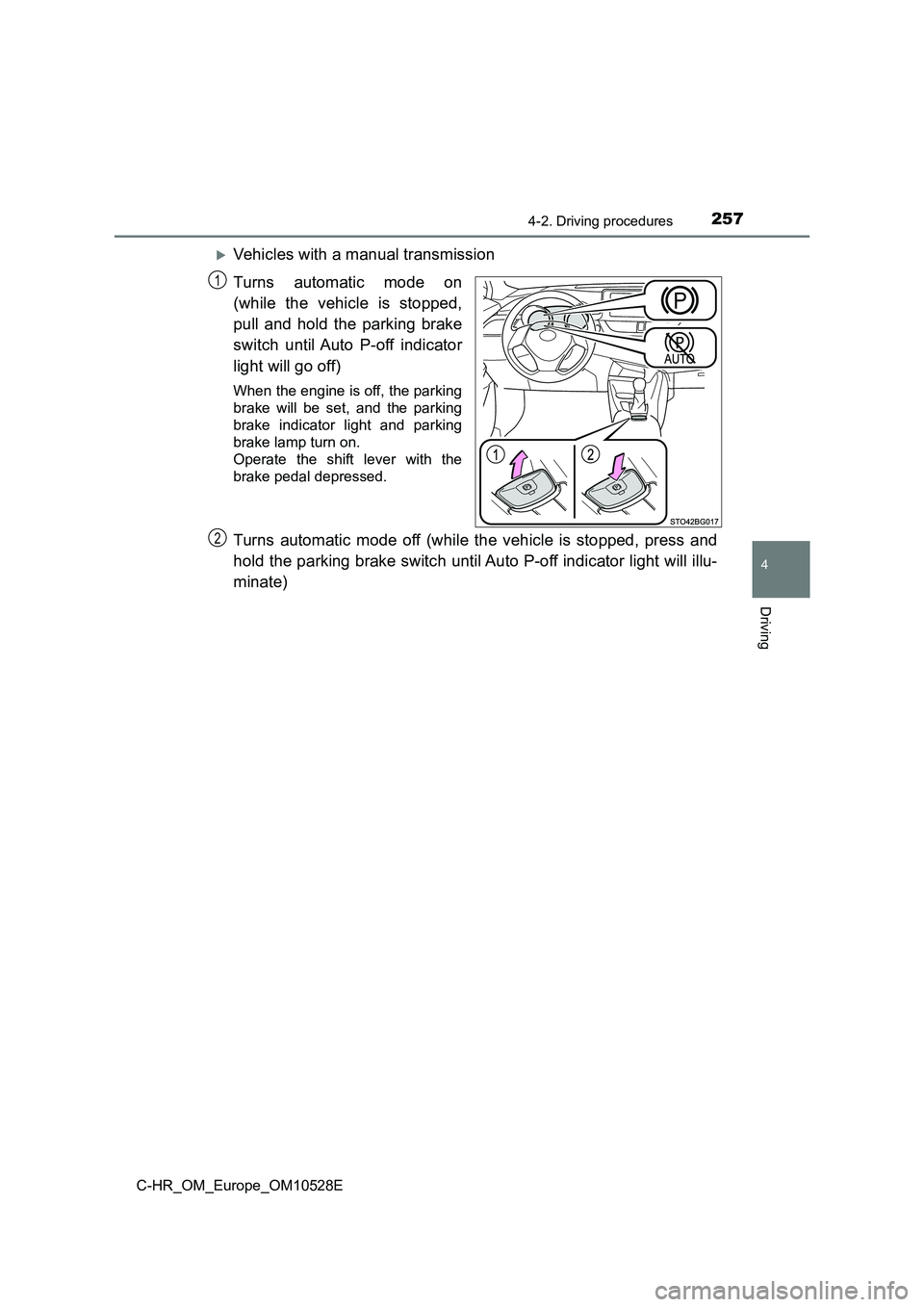

Vehicles with a manual transmission
Turns automatic mode on
(while the vehicle is stopped,
pull and hold the parking brake
switch until Auto P-off indicator
light will go off)
When the engine is off, the parking
brake will be set, and the parking
brake indicator light and parking
brake lamp turn on.
Operate the shift lever with the
brake pedal depressed.
Turns automatic mode off (while the vehicle is stopped, press and
hold the parking brake switch until Auto P-off indicator light will illu-
minate)
1
2

2584-2. Driving procedures
C-HR_OM_Europe_OM10528E

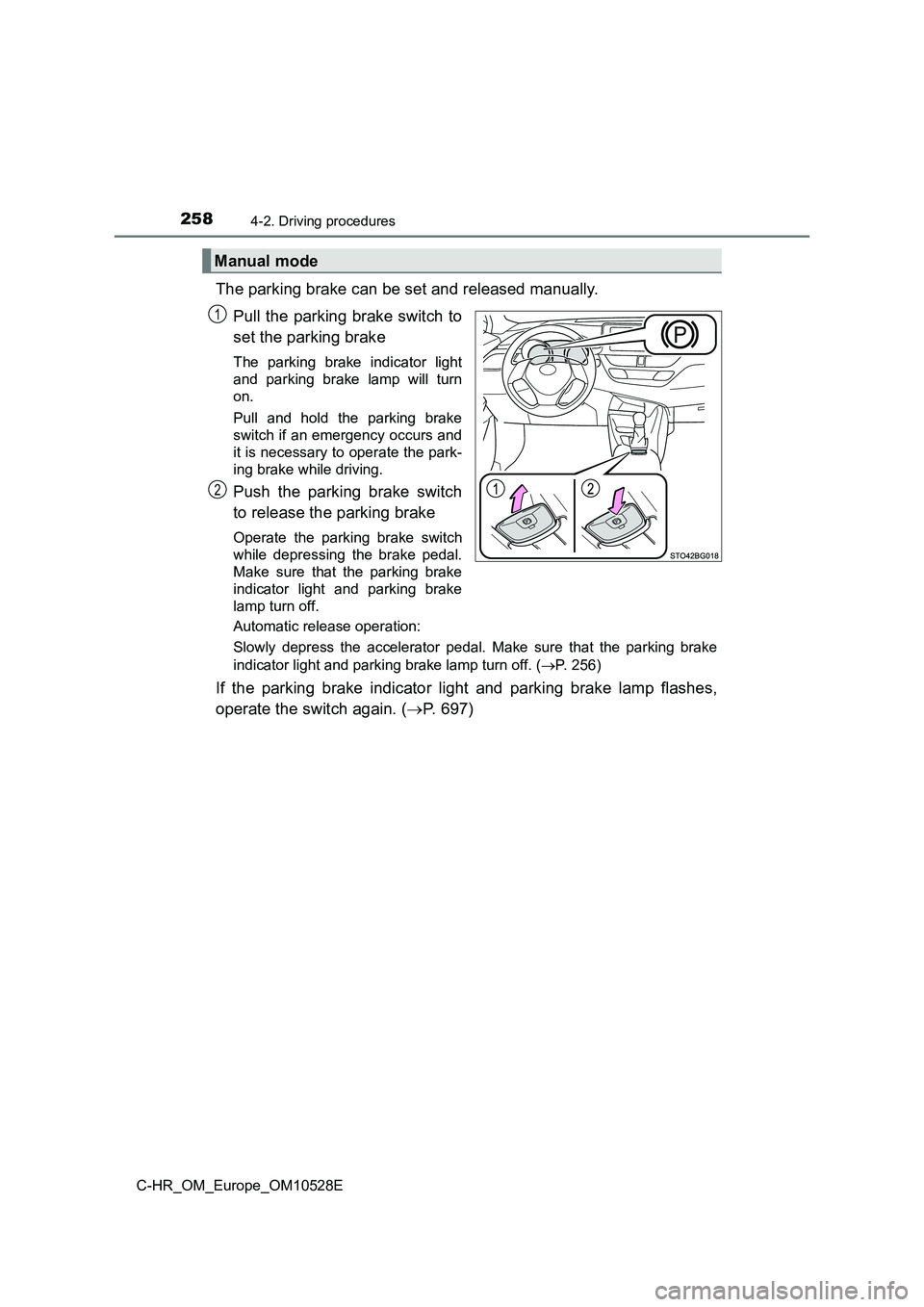

The parking brake can be set and released manually.
Pull the parking brake switch to
set the parking brake
The parking brake indicator light
and parking brake lamp will turn
on.
Pull and hold the parking brake
switch if an emergency occurs and
it is necessary to operate the park-
ing brake while driving.
Push the parking brake switch
to release the parking brake
Operate the parking brake switch
while depressing the brake pedal.
Make sure that the parking brake
indicator light and parking brake
lamp turn off.
Automatic release operation:
Slowly depress the accelerator pedal. Make sure that the parking brake
indicator light and parking brake lamp turn off. ( P. 2 5 6 )
If the parking brake indicator light and parking brake lamp flashes,
operate the switch again. ( P. 697)
Manual mode
1
2

2594-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E
■Parking brake operation
● When the engine switch is not in the “ON” position (vehicles without a smart
entry & start system) or IGNITION ON mode (vehicles with a smart entry &
start system), the parking brake cannot be released using the parking brake
switch.
● When the engine switch is not in the “ON” position (vehicles without a smart
entry & start system) or IGNITION ON mode (vehicles with a smart entry &
start system), automatic mode (automatic brake setting and releasing) is not
available.
■ Automatic release function
The parking brake is automatically released when slowly depress the acceler-
ator pedal.
The parking brake will be released automatically under the following condi-
tions:
● The driver’s door is closed.
● The driver's seatbelt is fastened.
● Shift the shift lever is in a forward or reverse position.
● The malfunction indicator lamp or brake system warning light is not illumi-
nated.
If the automatic release function does not operate, manually release the park-
ing brake.
■ If “EPB frequently operated wait a minute” is displayed on the multi-
information display
If the parking brake is operated repeatedly over a short period of time, the
system may restrict operation to prevent overheating. If this happens, refrain
from operating the parking brake. Normal operation will return after about 1
minute.
■ If “EPB activation incomplete” or “EPB unavailable” is displayed on the
multi-information display
Operate the parking brake switch. If the message does not disappear after
operating the switch several times, the system may be malfunctioning. Have
the vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliabl e repairer immediately.
■ Parking brake operation sound
When the parking brake operates, a motor sound (whirring sound) may be
heard. This does not indicate a malfunction.

2604-2. Driving procedures
C-HR_OM_Europe_OM10528E
■ Parking brake indicator light and parking brake lamp
● Depending on the engine switch position/mode, the parking brake indicator
light and parking brake lamp will turn on and stay on as described below:
Vehicles without a smart entry & start system
In the “ON” position: Comes on until the parking brake is released.
Not in the “ON” position: Stays on for approximately 15 seconds.
Vehicles with a smart entry & start system
IGNITION ON mode: Comes on until the parking brake is released.
Not in IGNITION ON mode: Stays on for approximately 15 seconds.
● When the engine switch is turned off with the parking brake set, the parking
brake indicator light and parking brake lamp will stay on for about 15 sec-
onds. This does not indicate a malfunction.
■ Changing the mode
Vehicles with a Multidrive:
When changing the automatic mode on/off, the message will be shown on the
multi-information display and the buzzer sounds.
Vehicles with a manual transmission:
When the automatic mode is off, Auto P-off indicator light will illuminate.
■ Parking the vehicle
 P. 210
■ Parking brake engaged warning buzzer
A buzzer will sound if the vehicle is driven with the parking brake engaged.
“EPB applied” is displayed on the multi-information display.
■ Warning messages and buzzers
Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution. If a warning message is shown on
the multi-information display, read the message and follow the instructions.
■ If the brake system warning light comes on
 P. 695
■ Usage in winter time
 P. 472

2614-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E

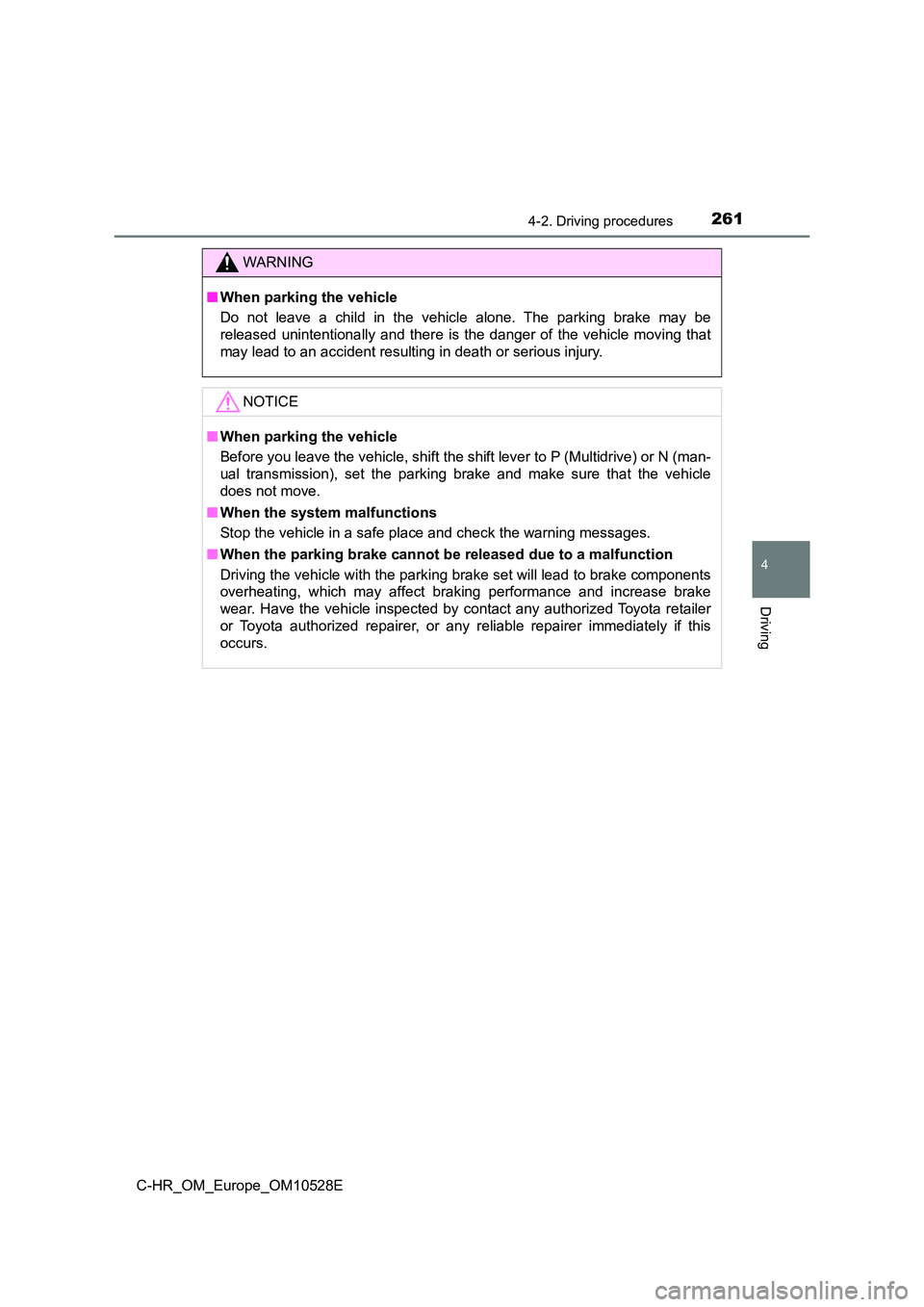

WARNING
■When parking the vehicle
Do not leave a child in the vehicle alone. The parking brake may be
released unintentionally and there is the danger of the vehicle moving that
may lead to an accident resulting in death or serious injury.
NOTICE
■ When parking the vehicle
Before you leave the vehicle, shift the shift lever to P (Multidrive) or N (man-
ual transmission), set the parking brake and make sure that the vehicle
does not move.
■ When the system malfunctions
Stop the vehicle in a safe place and check the warning messages.
■ When the parking brake cannot be released due to a malfunction
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear. Have the vehicle inspected by contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer immediately if this
occurs.

2624-2. Driving procedures
C-HR_OM_Europe_OM10528E
Brake Hold
Turns the brake hold system on
The brake hold standby indicator
(green) comes on. While the sys-
tem is holding the brake, the brake
hold operated indicator (yellow)
comes on.
■ Brake hold system operating conditions
The brake hold system cannot be turned on in the following conditions:
● The driver’s door is not closed.
● The driver is not wearing the seat belt.
If any of the conditions above are detected when the brake hold system is
enabled, the system will turn off and the brake hold standby indicator light will
go off. In addition, if any of the conditions are detected while the system is
holding the brake, a warning buzzer will sound and a message will be shown
on the multi-information display. The parking brake will then be set automati-
cally.
The brake hold system keeps the brake applied when the shift
lever in any position other than P or R (Multidrive), or R (manual
transmission) with the system on and the brake pedal has been
depressed to stop the vehicle. The system releases the brake
when the accelerator pedal is depressed with the shift lever in
any position other than P or N (Multidrive), or N (manual trans-
mission) to allow smooth start off.

2634-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E
■ Brake hold function
● If the brake pedal is left released for a period of about 3 minutes after the
system has started holding the brake, the parking brake will be set automat-
ically. In this case, a warning buzzer sounds and a message is shown on the
multi-information display.
● To turn the system off while the system is holding the brake, firmly depress
the brake pedal and press the button again.
● The brake hold function may not hold the vehicle when the vehicle is on a
steep incline. In this situation, it may be necessary for the driver to apply the
brakes. A warning buzzer will sound and the multi-information display will
inform the driver of this situation. If a warning message is shown on the
multi-information display, read the message and follow the instructions.
■ When the parking brake is set automatically while the system is holding
the brakes
With the brake pedal depressed, release the parking brake by operating the
parking brake switch, making sure that the parking brake indicator light goes
off. ( P. 256)
■ If “Brake hold fault depress brake to deactivate visit your dealer” is dis-
played on the multi-information display
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
■ Warning messages and buzzers
Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution. If a warning message is shown on
the multi-information display, read the message and follow the instructions.
■ If the brake hold operated indicator flashes
 P. 695

2644-2. Driving procedures
C-HR_OM_Europe_OM10528E

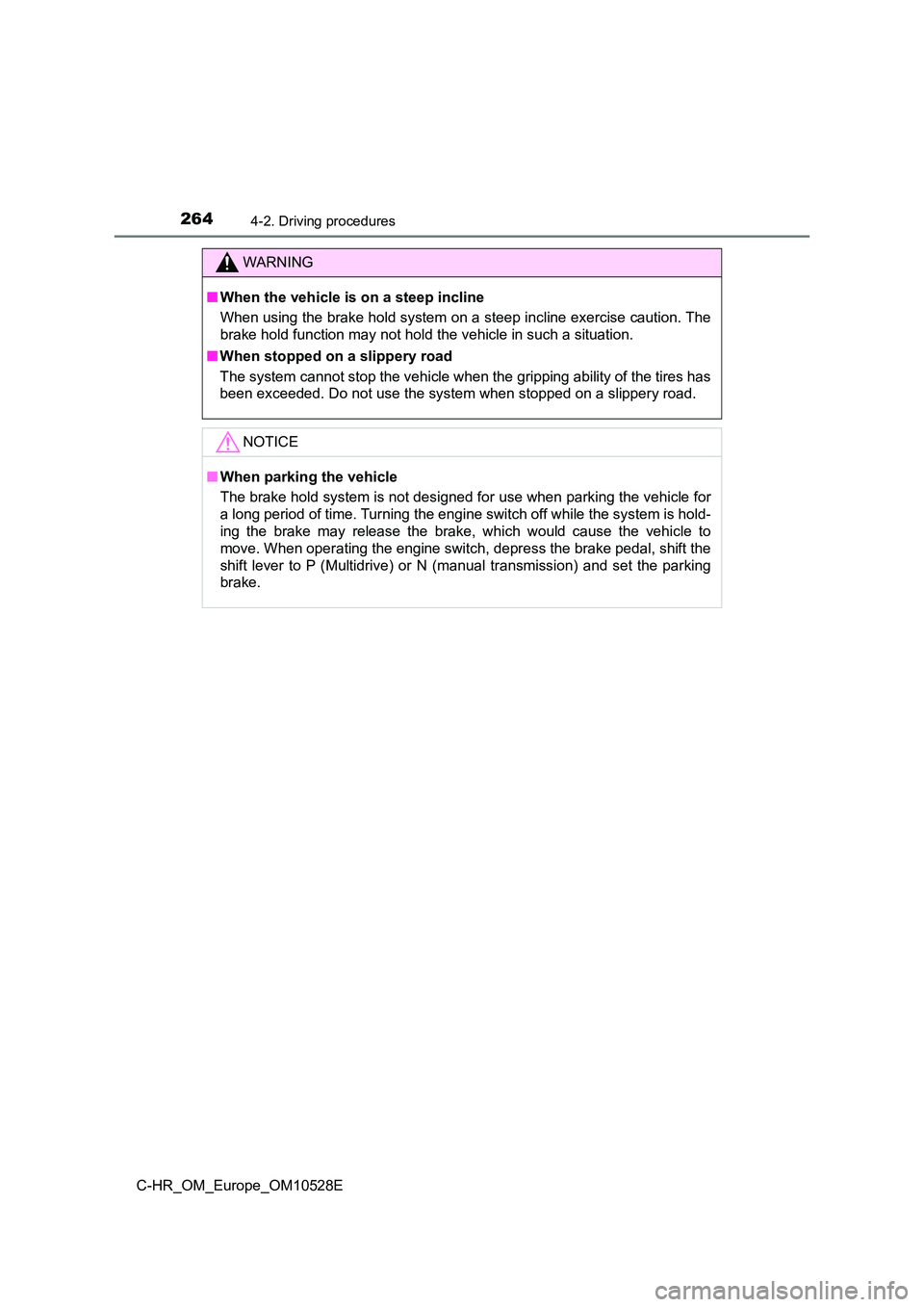

WARNING
■When the vehicle is on a steep incline
When using the brake hold system on a steep incline exercise caution. The
brake hold function may not hold t he vehicle in such a situation.
■ When stopped on a slippery road
The system cannot stop the vehicle when the gripping ability of the tires has
been exceeded. Do not use the system when stopped on a slippery road.
NOTICE
■ When parking the vehicle
The brake hold system is not designed for use when parking the vehicle for
a long period of time. Turning the engine switch off while the system is hold-
ing the brake may release the brake, which would cause the vehicle to
move. When operating the engine switch, depress the brake pedal, shift the
shift lever to P (Multidrive) or N (manual transmission) and set the parking
brake.
