Vehicle specifications
C-HR_OM_Europe_OM10528E
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Electrical system
Battery
Specific voltage read-
ing at 20 C (68F):
12.3 V or higher
If the specific voltage is lower than the standard
value, charge the battery.
Charging rates5 A max.
Multidrive
Fluid capacity*2WD models
7.5 L (7.9 qt., 6.6 Imp.qt.)
AWD models
7.4 L (7.8 qt., 6.5 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Multidrive fluid type
Using Multidrive fluid other than “T oyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage to the transmission of your vehicle.

7709-1. Specifications
C-HR_OM_Europe_OM10528E
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent
of matching quality to satisfy the above specification.
Please contact any authorized Toyota re tailer or Toyota authorized repairer,
or any reliable repairer for further details.

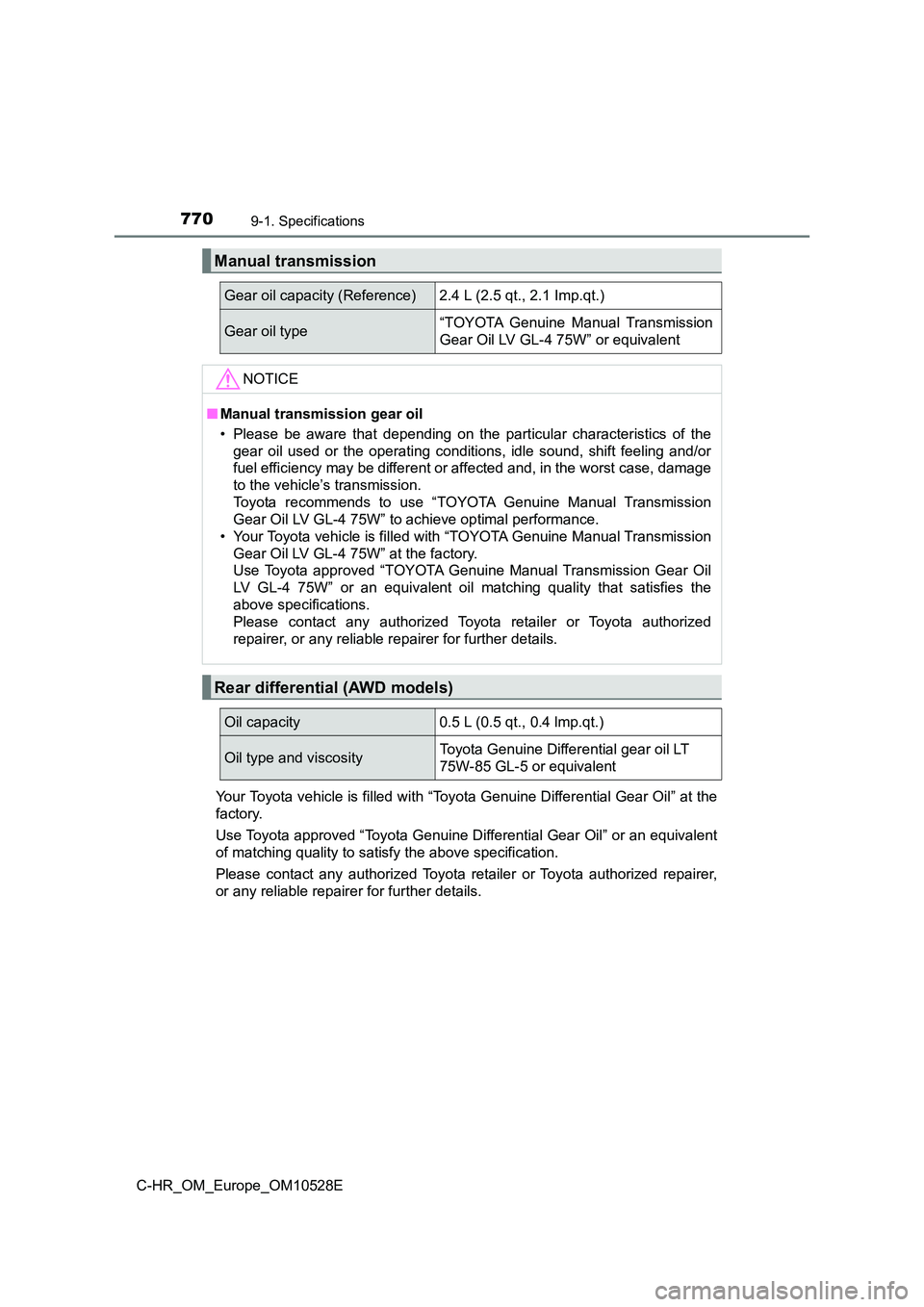

Manual transmission
Gear oil capacity (Reference) 2.4 L (2.5 qt., 2.1 Imp.qt.)
Gear oil type “TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” or equivalent
NOTICE
■ Manual transmission gear oil
• Please be aware that depending on the particular characteristics of the
gear oil used or the operating conditions, idle sound, shift feeling and/or
fuel efficiency may be different or affected and, in the worst case, damage
to the vehicle’s transmission.
Toyota recommends to use “TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” to achieve optimal performance.
• Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” at the factory.
Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oil
LV GL-4 75W” or an equivalent oil matching quality that satisfies the
above specifications.
Please contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for further details.
Rear differential (AWD models)
Oil capacity 0.5 L (0.5 qt., 0.4 lmp.qt.)
Oil type and viscosity Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

7719-1. Specifications
9
Vehicle specifications
C-HR_OM_Europe_OM10528E
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent
of matching quality to satisfy the above specification.
Please contact any authorized Toyota re tailer or Toyota authorized repairer,
or any reliable repairer for further details.
*: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,
67.4 lbf) while the engine is running
Transfer (AWD models)
Oil capacity 0.45 L (0.47 qt., 0.40 lmp.qt.)
Oil type and viscosity Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Clutch
Pedal free play 4.8  9.5 mm (0.18  0.37 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Brakes
Pedal clearance*115 mm (4.5 in.)
Pedal free play 1  5 mm (0.04  0.20 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

7729-1. Specifications
C-HR_OM_Europe_OM10528E

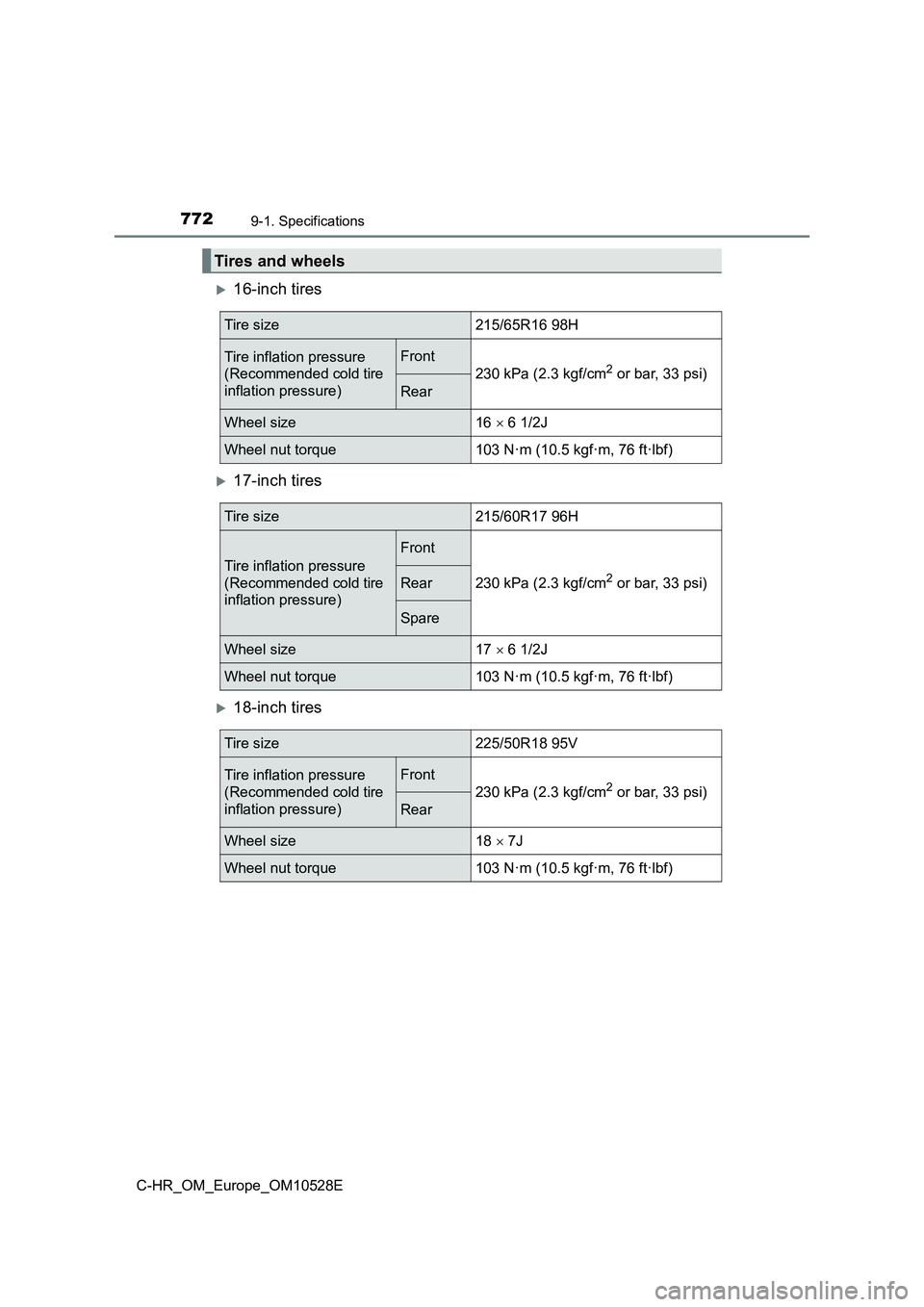

16-inch tires
17-inch tires
18-inch tires
Tires and wheels
Tire size215/65R16 98H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear
Wheel size16  6 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size215/60R17 96H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)Rear
Spare
Wheel size17  6 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size225/50R18 95V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear
Wheel size18  7J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

7739-1. Specifications
9
Vehicle specifications
C-HR_OM_Europe_OM10528E
Compact spare tire (if equipped)
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire sizeT145/90D16 106M,
T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T, 18  4T
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Light bulbs
Light BulbsWTyp e
Exterior
Headlights (halogen bulbs)55A
Front fog lights (bulb type)*19B
Front turn signal lights (bulb type)21C
Side turn signal lights5D
Rear turn signal lights (bulb type)21D
Rear fog light21E
Back-up lights (bulb type)16E
Licence plate lights5E
Interior
Vanity lights*8E
Front interior lights/personal lights5E
Rear interior light8F
Luggage compartment light5E
A: HIR2 halogen bulbs
C: Single end bulbs (amber)
E: Wedge base bulbs (clear)
*: If equipped
B: H16 halogen bulbs
D: Wedge base bulbs (amber)
F: Double end bulbs

7749-1. Specifications
C-HR_OM_Europe_OM10528E

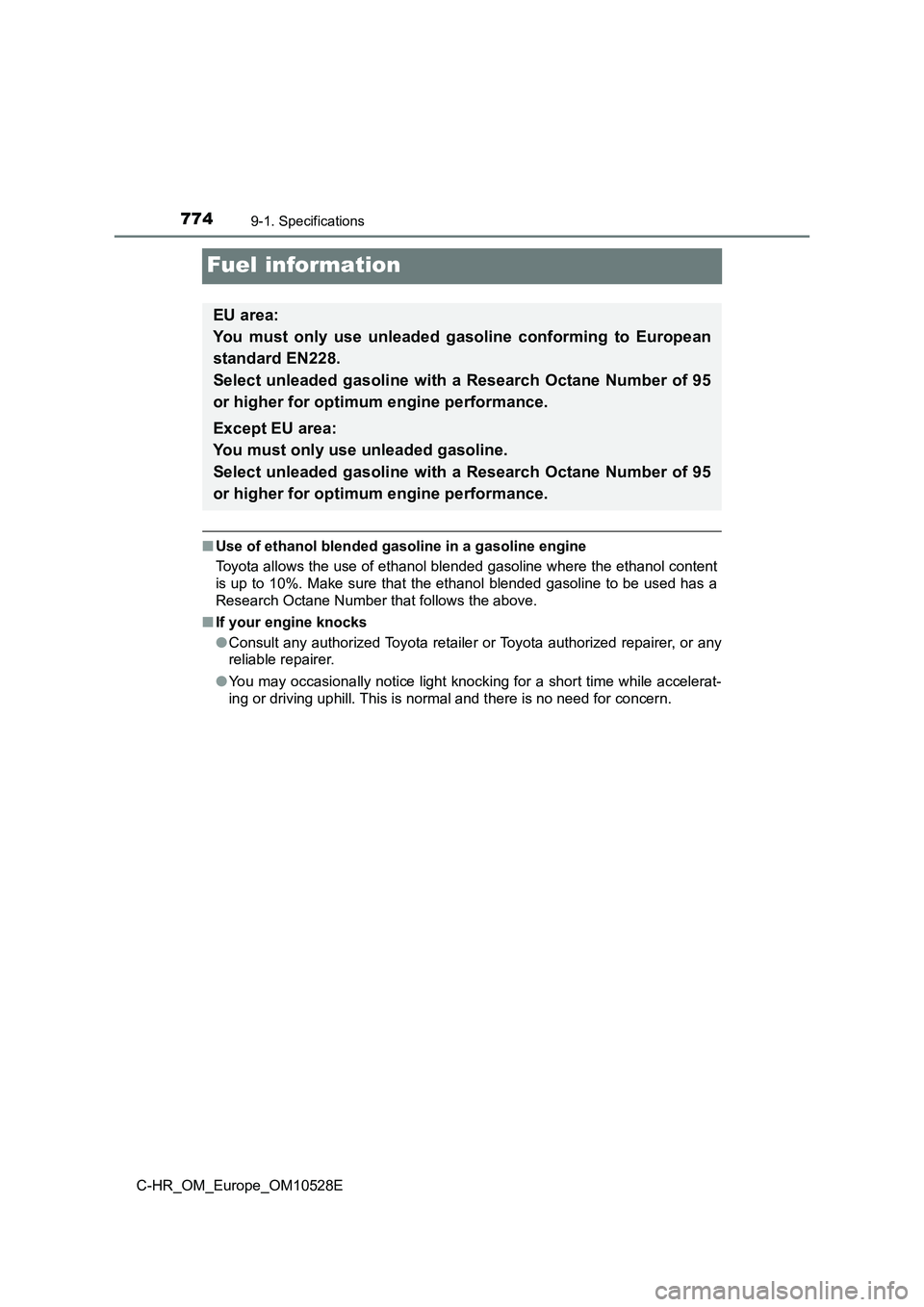

Fuel information
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If your engine knocks
● Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

7759-1. Specifications
9
Vehicle specifications
C-HR_OM_Europe_OM10528E

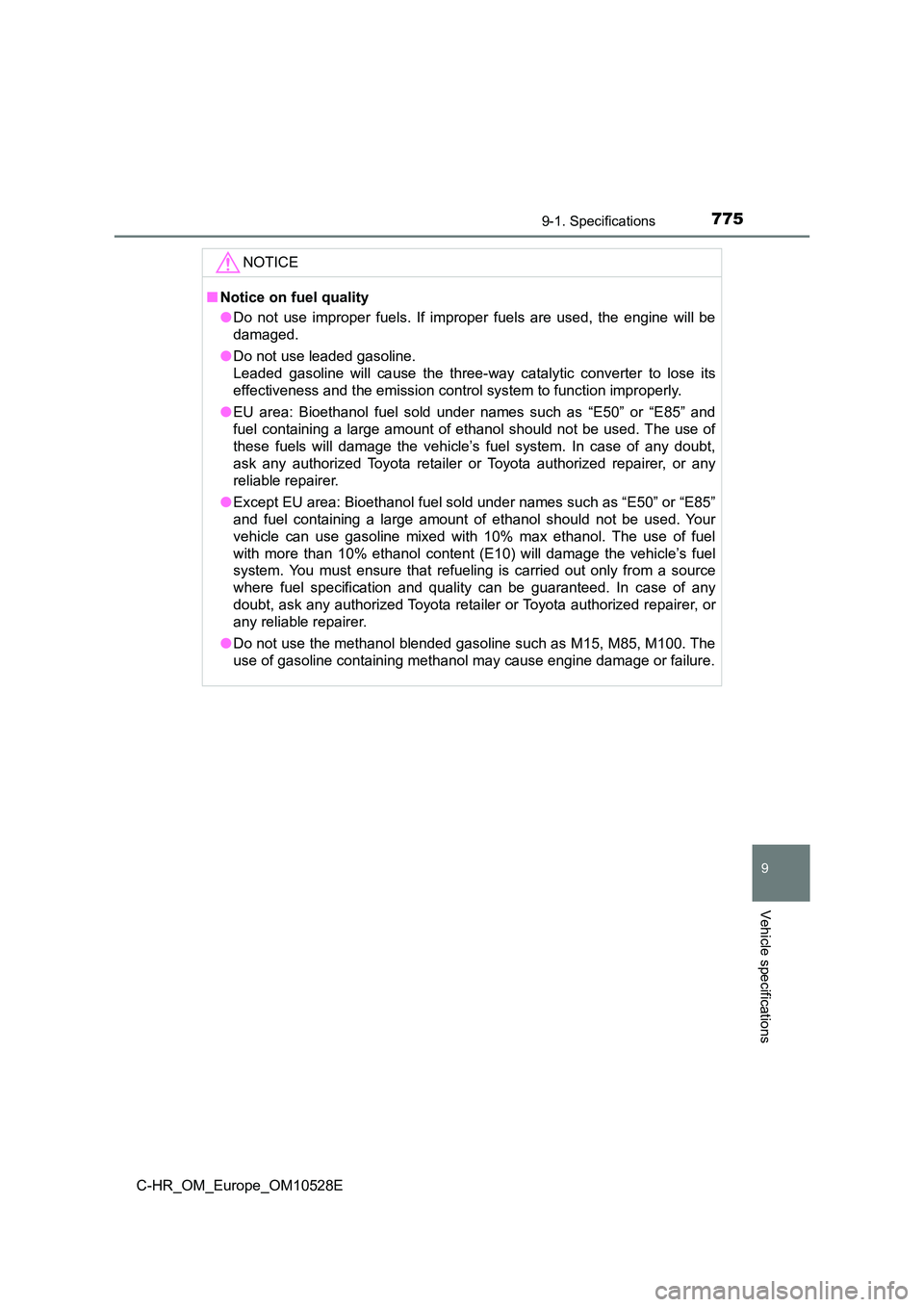

NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
● Do not use the methanol blended gasoline such as M15, M85, M100. The
use of gasoline containing methanol may cause engine damage or failure.

7769-2. Customization
C-HR_OM_Europe_OM10528E
Customizable features
■Changing using the multi-information display
Vehicles with monochrome display
Press the “DISP” switch to display the setting screen while the
vehicle is stopped, and then press and hold the “DISP” switch to
display the customize mode screen.
Press the “DISP” switch and select the item, and then press and
hold the “DISP” switch.
Press the “DISP” switch and select the desired setting, and then
press and hold the “DISP” switch.
To exit the customize mode, press the “DISP” switch to select the
“EXIT”, and then press and hold the “DISP” switch.
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the multi-information display, on the navi-
gation/multimedia system or at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Customizing vehicle features
