2017 TOYOTA C-HR Owners Manual

5856-3. Using the storage features
6
Interior features
C-HR_OM_Europe_OM10528E

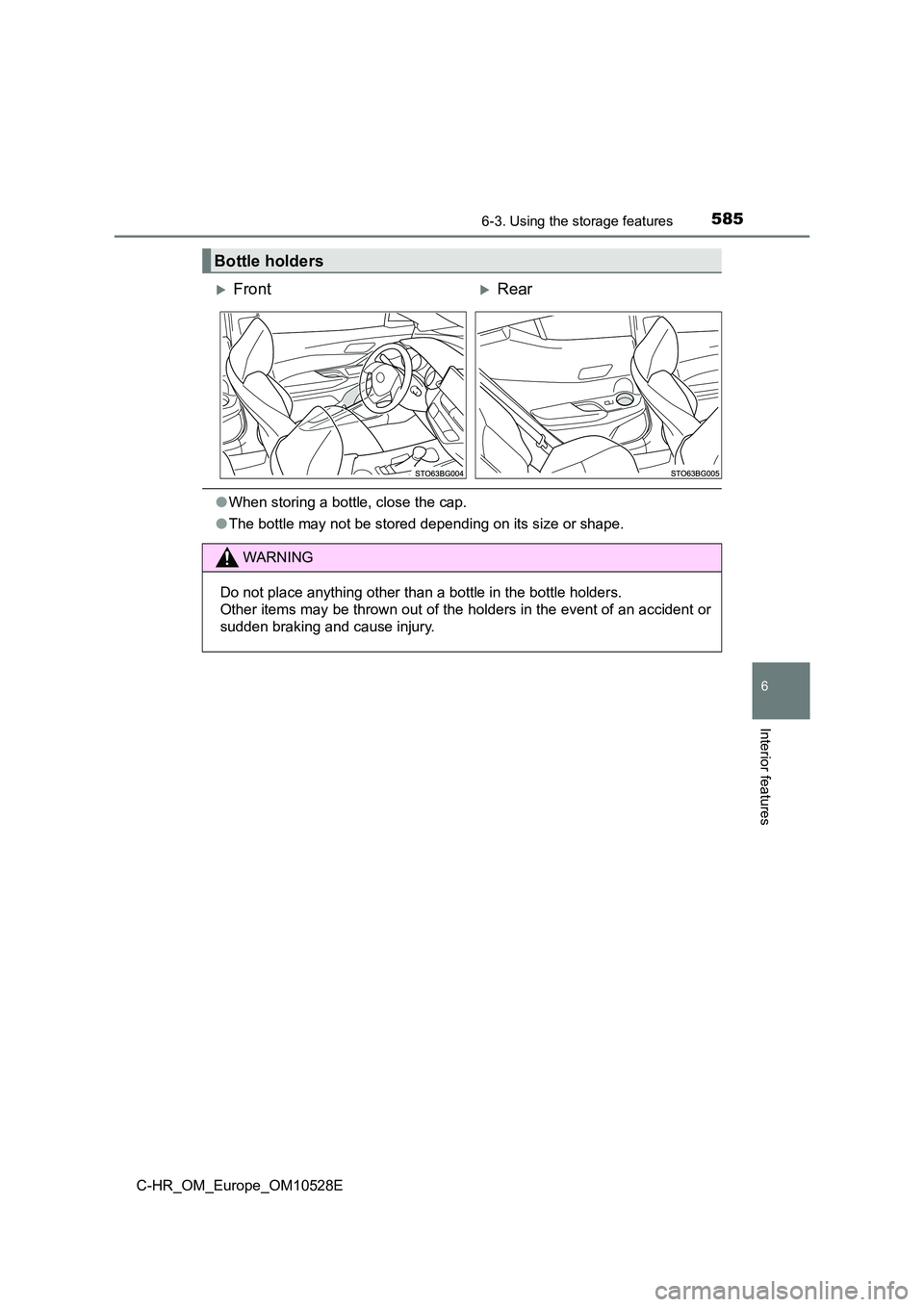

●When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
Bottle holders
FrontRear
WARNING
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.

5866-3. Using the storage features
C-HR_OM_Europe_OM10528E

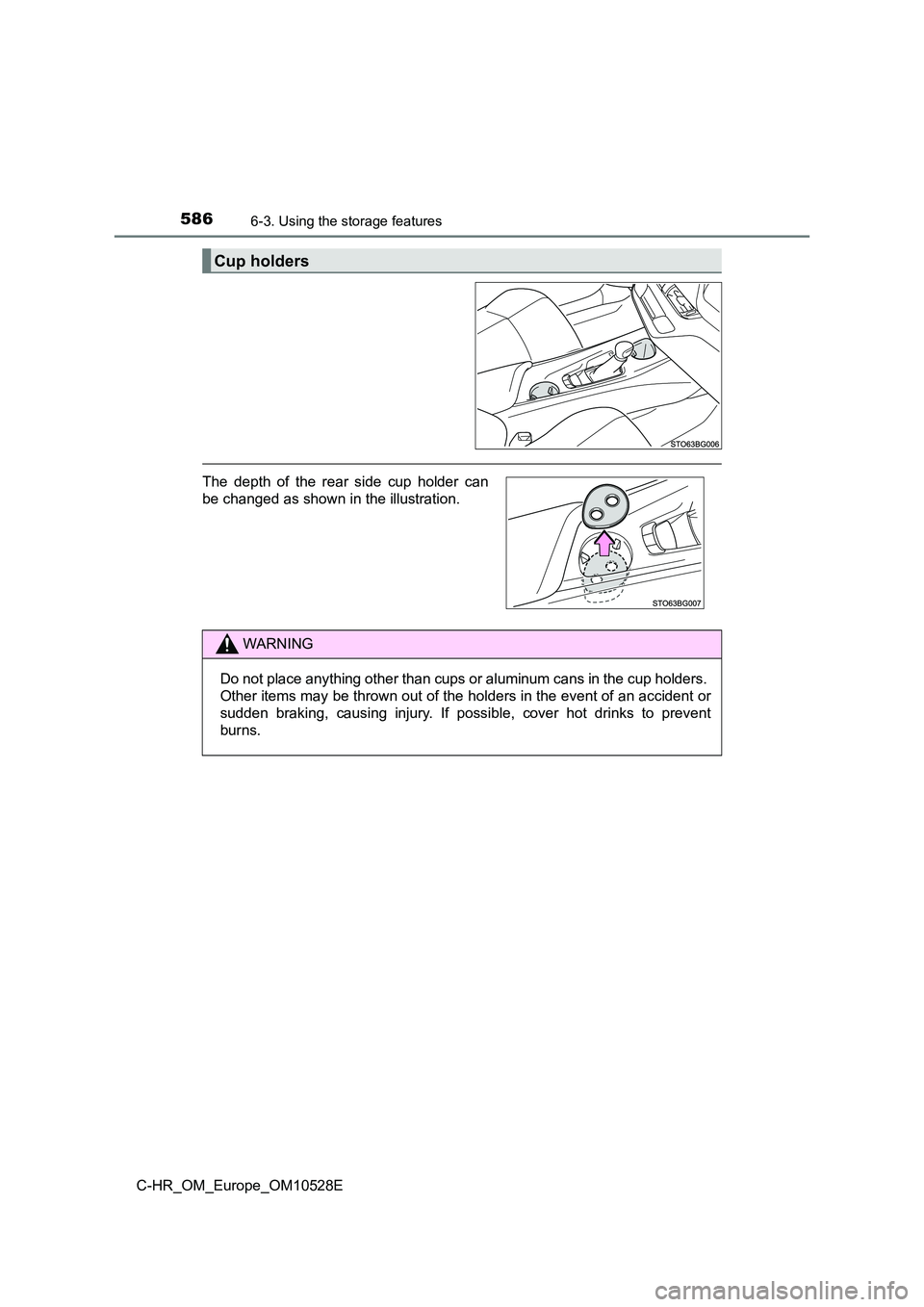

Cup holders
The depth of the rear side cup holder can
be changed as shown in the illustration.
WARNING
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.

5876-3. Using the storage features
6
Interior features
C-HR_OM_Europe_OM10528E

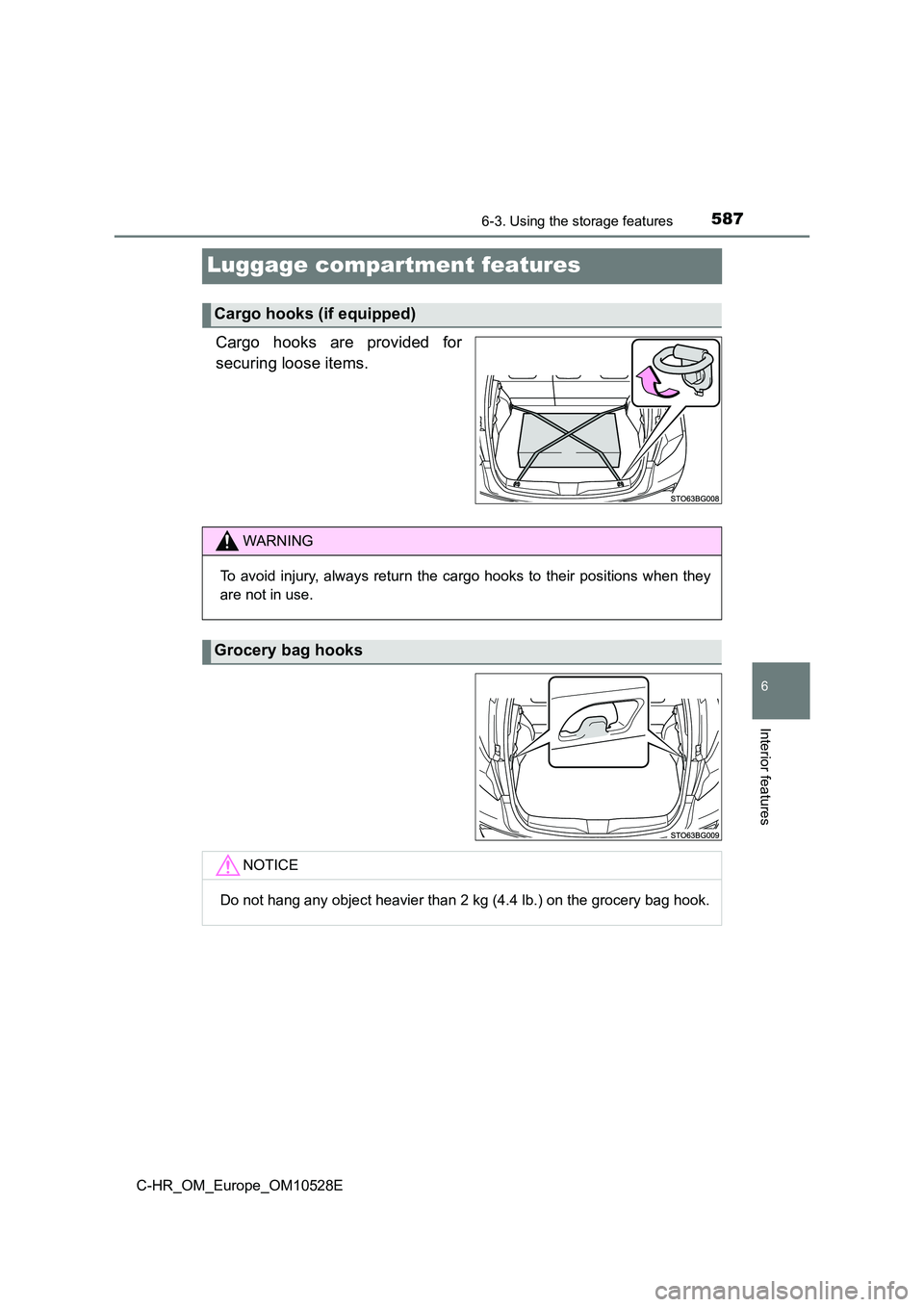

Luggage compartment features
Cargo hooks are provided for
securing loose items.
Cargo hooks (if equipped)
WARNING
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 2 kg (4.4 lb.) on the grocery bag hook.

5886-3. Using the storage features
C-HR_OM_Europe_OM10528E

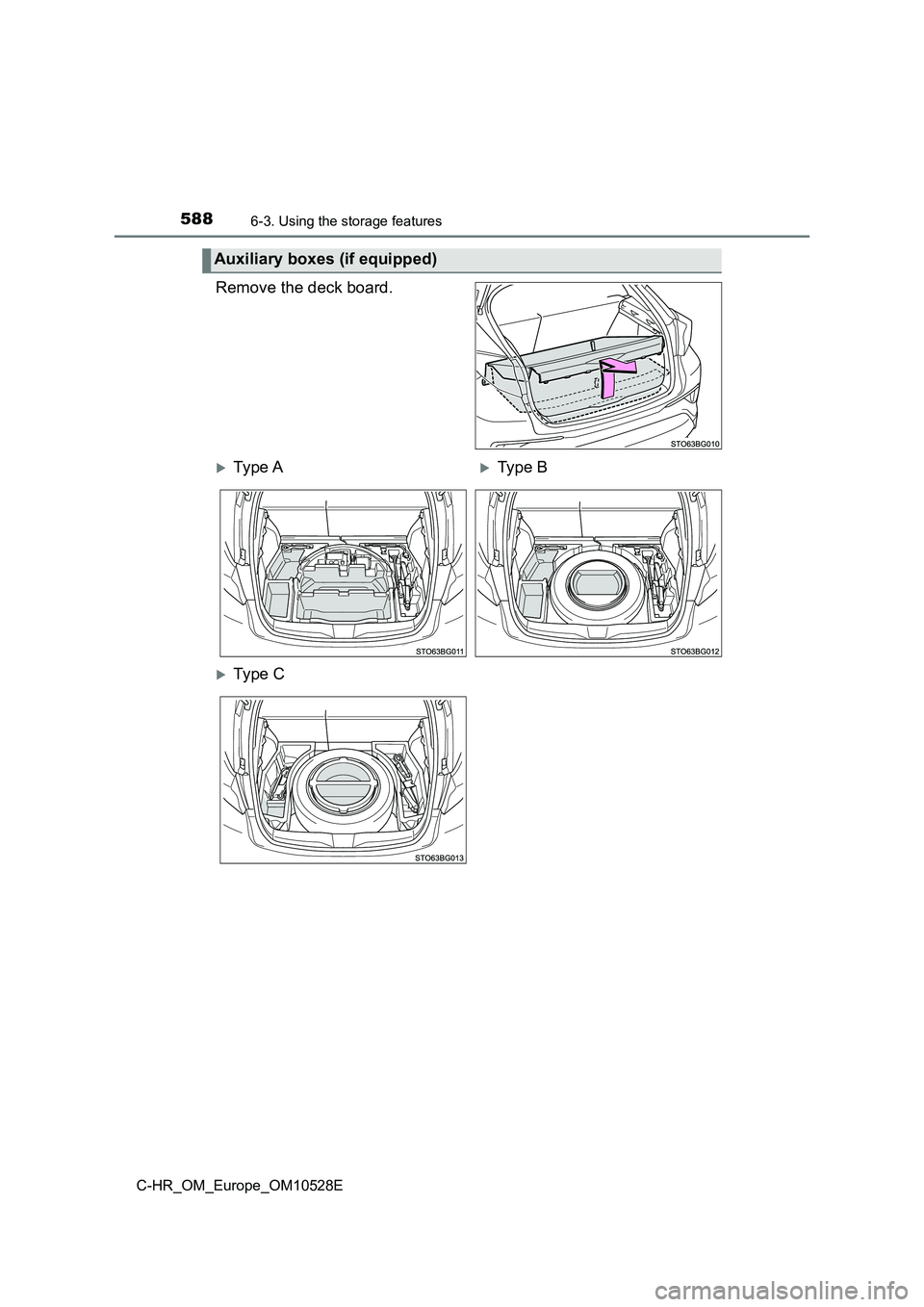

Remove the deck board.
Auxiliary boxes (if equipped)
Ty pe AType B
Ty pe C

5896-3. Using the storage features
6
Interior features
C-HR_OM_Europe_OM10528E

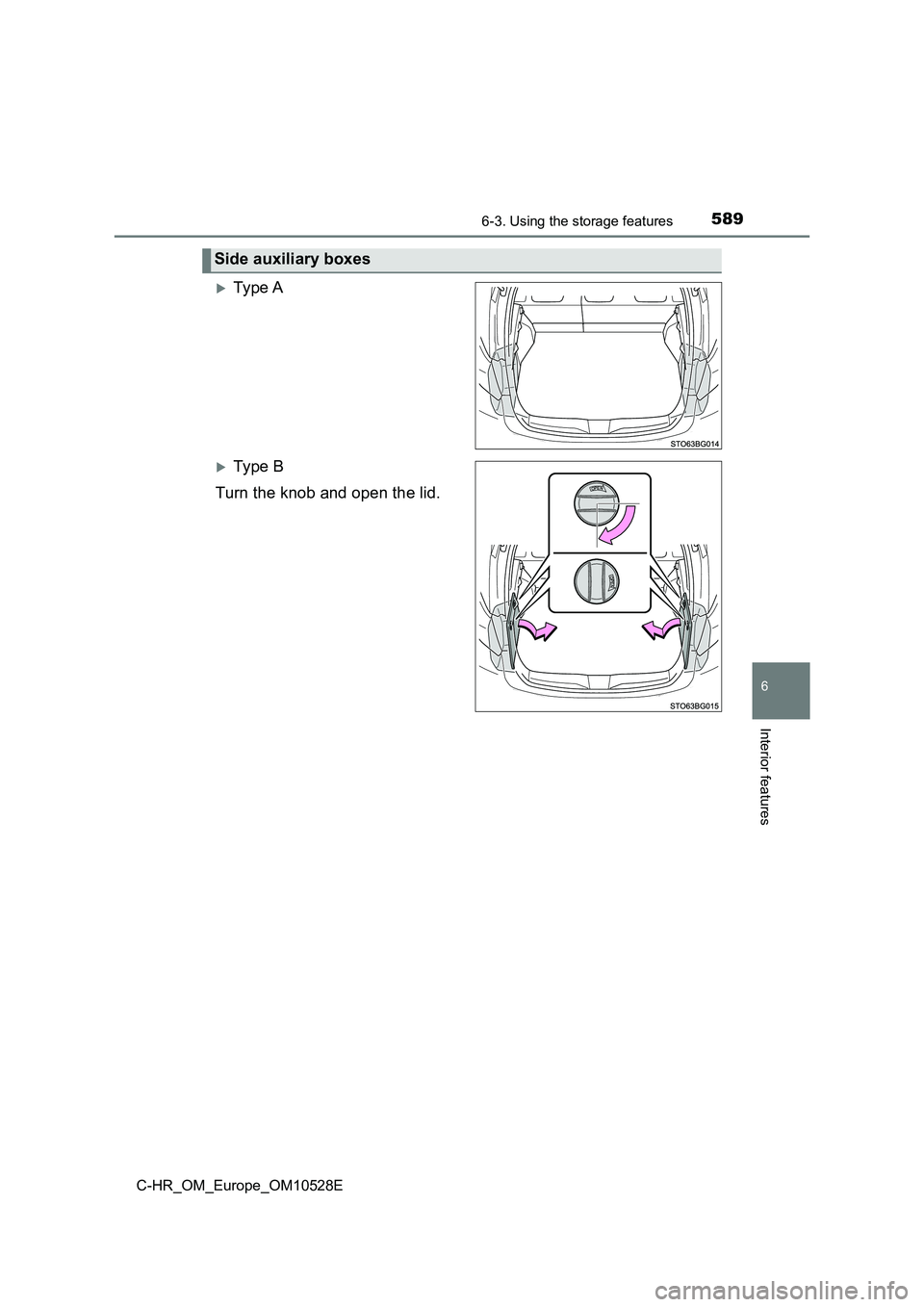

Ty pe A
Ty pe B
Turn the knob and open the lid.
Side auxiliary boxes

5906-3. Using the storage features
C-HR_OM_Europe_OM10528E

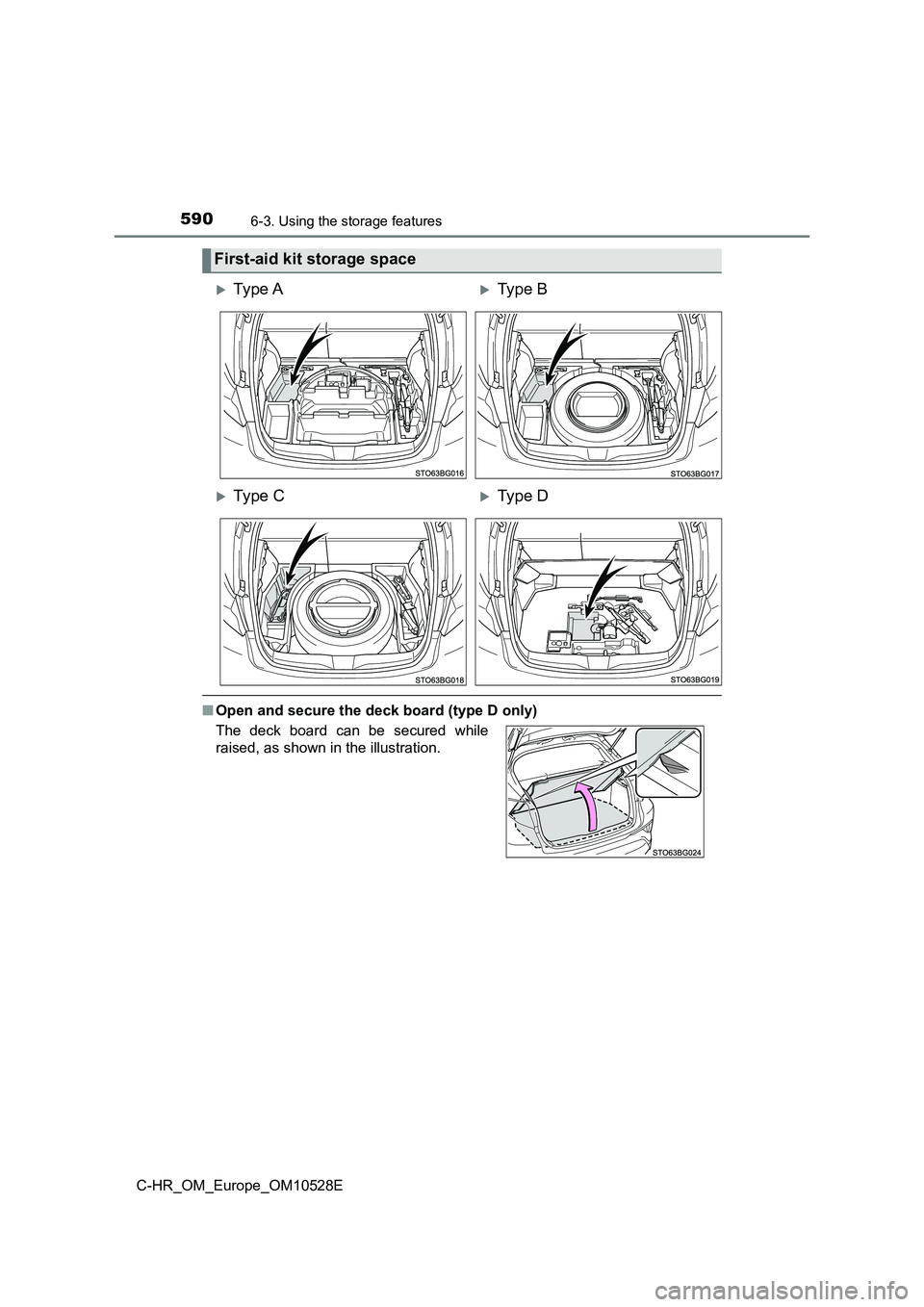

■Open and secure the deck board (type D only)
First-aid kit storage space
Ty pe AType B
Ty pe CType D
The deck board can be secured while
raised, as shown in the illustration.

5916-3. Using the storage features
6
Interior features
C-HR_OM_Europe_OM10528E

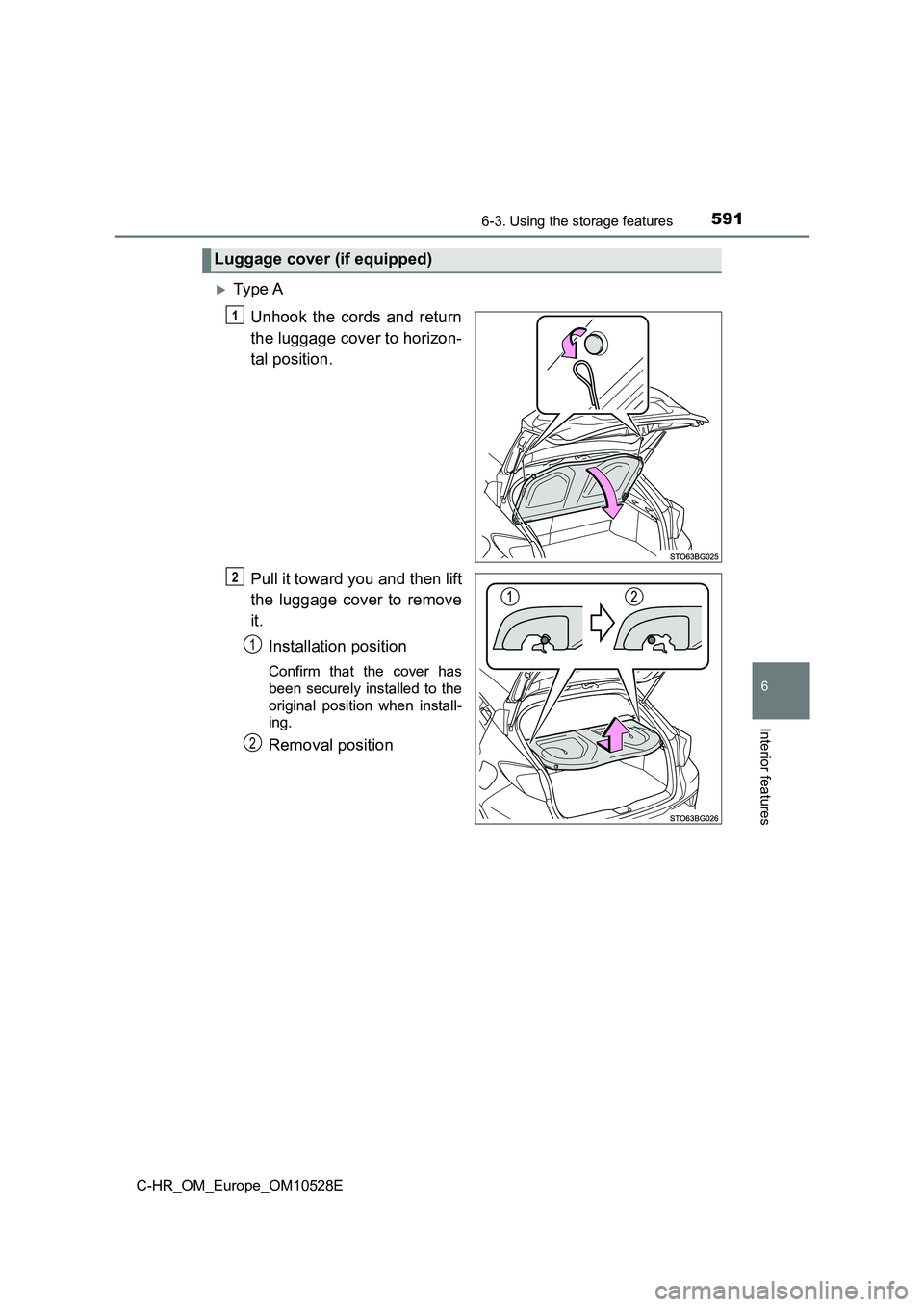

Ty pe A
Unhook the cords and return
the luggage cover to horizon-
tal position.
Pull it toward you and then lift
the luggage cover to remove
it.
Installation position
Confirm that the cover has
been securely installed to the
original position when install-
ing.
Removal position
Luggage cover (if equipped)
1
2
1
2

5926-3. Using the storage features
C-HR_OM_Europe_OM10528E

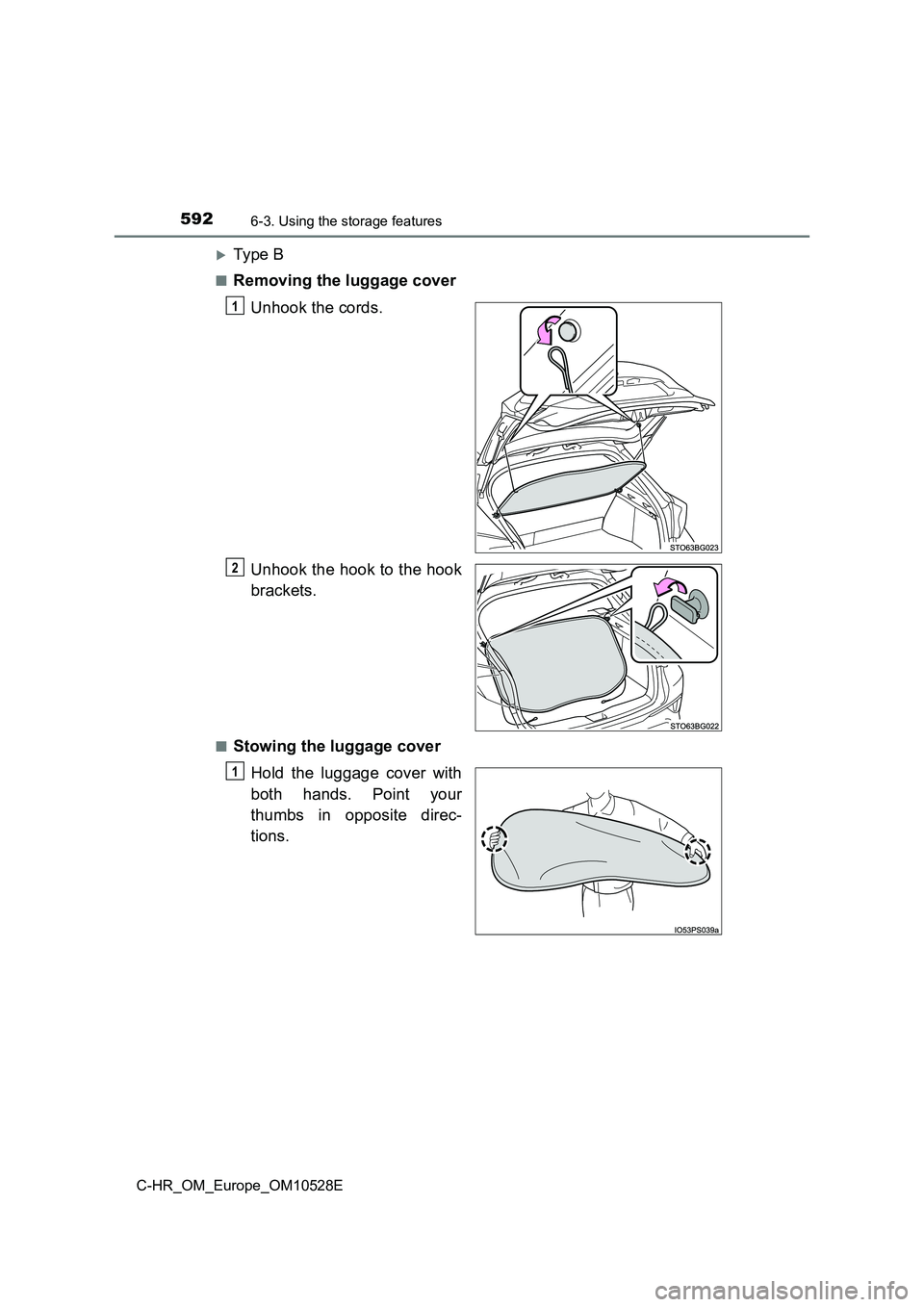

Ty pe B
■Removing the luggage cover
Unhook the cords.
Unhook the hook to the hook
brackets.
■Stowing the luggage cover
Hold the luggage cover with
both hands. Point your
thumbs in opposite direc-
tions.
1
2
1
