2017 TOYOTA C-HR Owners Manual

6177-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E

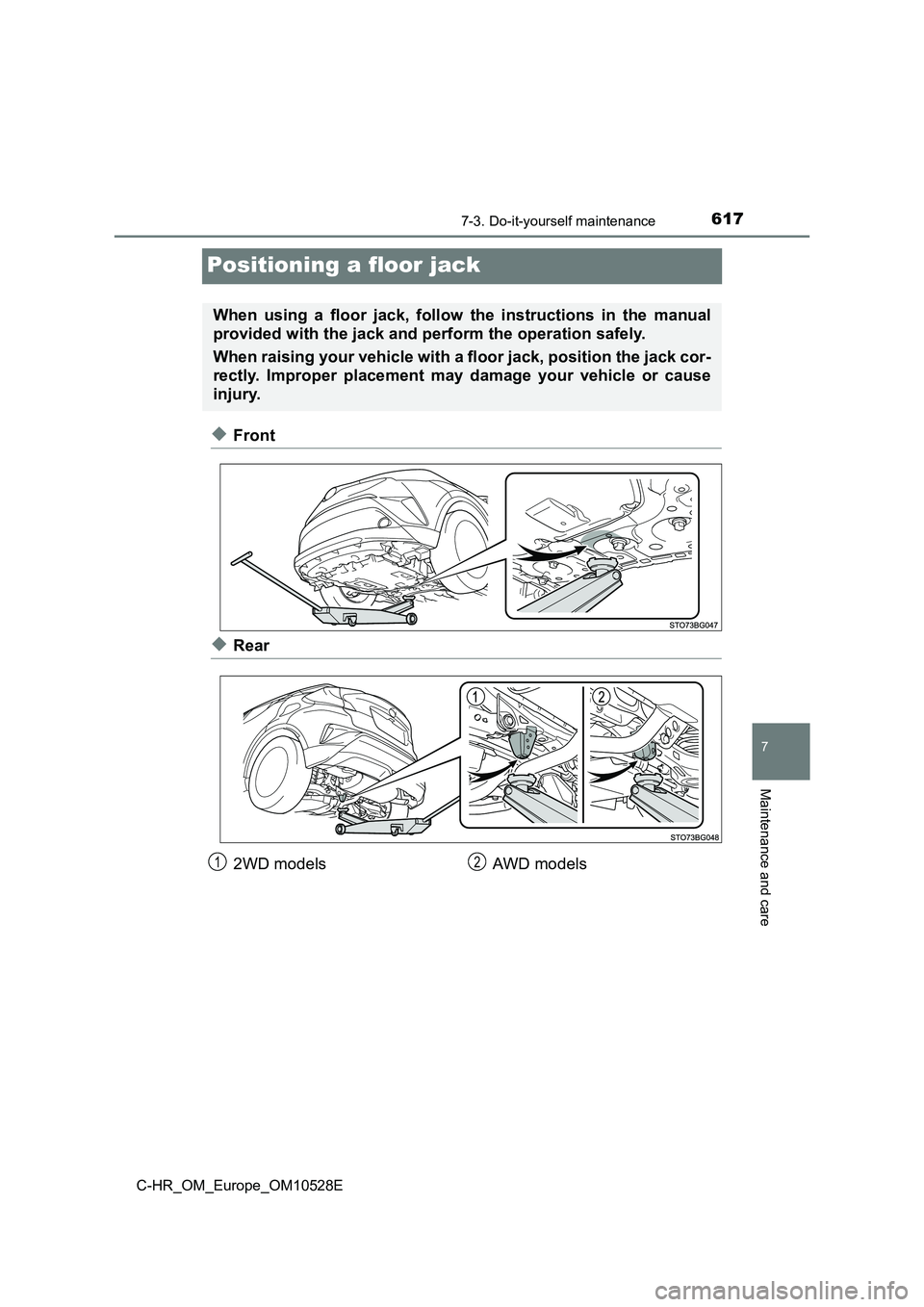

Positioning a floor jack
◆Front
◆Rear
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.
2WD models AWD models12

6187-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E
Engine compartment
Washer fluid tank (P. 630)
Engine coolant reservoir
( P. 623)
Fuse boxes ( P. 656)
Intercooler
Engine oil filler cap
( P. 620)
Engine oil level dipstick
( P. 619)
Intercooler coolant reservoir
( P. 623)
Battery ( P. 626)
Radiator ( P. 625)
Condenser ( P. 625)
Electric cooling fans
1
2
3
4
5
6
7
8
9
10
11

6197-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning off the engine, wait more than 5 minutes for the oil to
drain back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end,
pull the dipstick out and
check the oil level.
Low
Normal
Excessive
The shape of the dipstick may
differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
6

6207-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E
■Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection P. 765
Oil quantity
(Low  Full) 1.5 L (1.6 qt., 1.3 Imp. qt.)
Items Clean funnel
1
2
3

6217-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
■ After changing the engine oil
The engine oil maintenance data should be reset. Perform the following pro-
cedures:
Switch the display to the trip meter “A” when the engine is running.
( P. 122)
Turn the engine switch off.
Vehicles without a smart entry & start system:
While pressing the “TRIP” switch ( P. 122), turn the engine switch to the
“ON” position (do not start the engine because the reset mode will be can-
celed). Continue to press and hold the switch until the trip meter displays
“00000”.
Vehicles with a smart entry & start system:
While pressing the “TRIP” switch ( P. 122), turn the engine switch to the
IGNITION ON mode (do not start the engine because the reset mode will
be canceled). Continue to press and hold the switch until the trip meter dis-
plays “00000”.
1
2
3

6227-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E
WARNING
■Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer, service station or auto parts store for information con-
cerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.

6237-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E

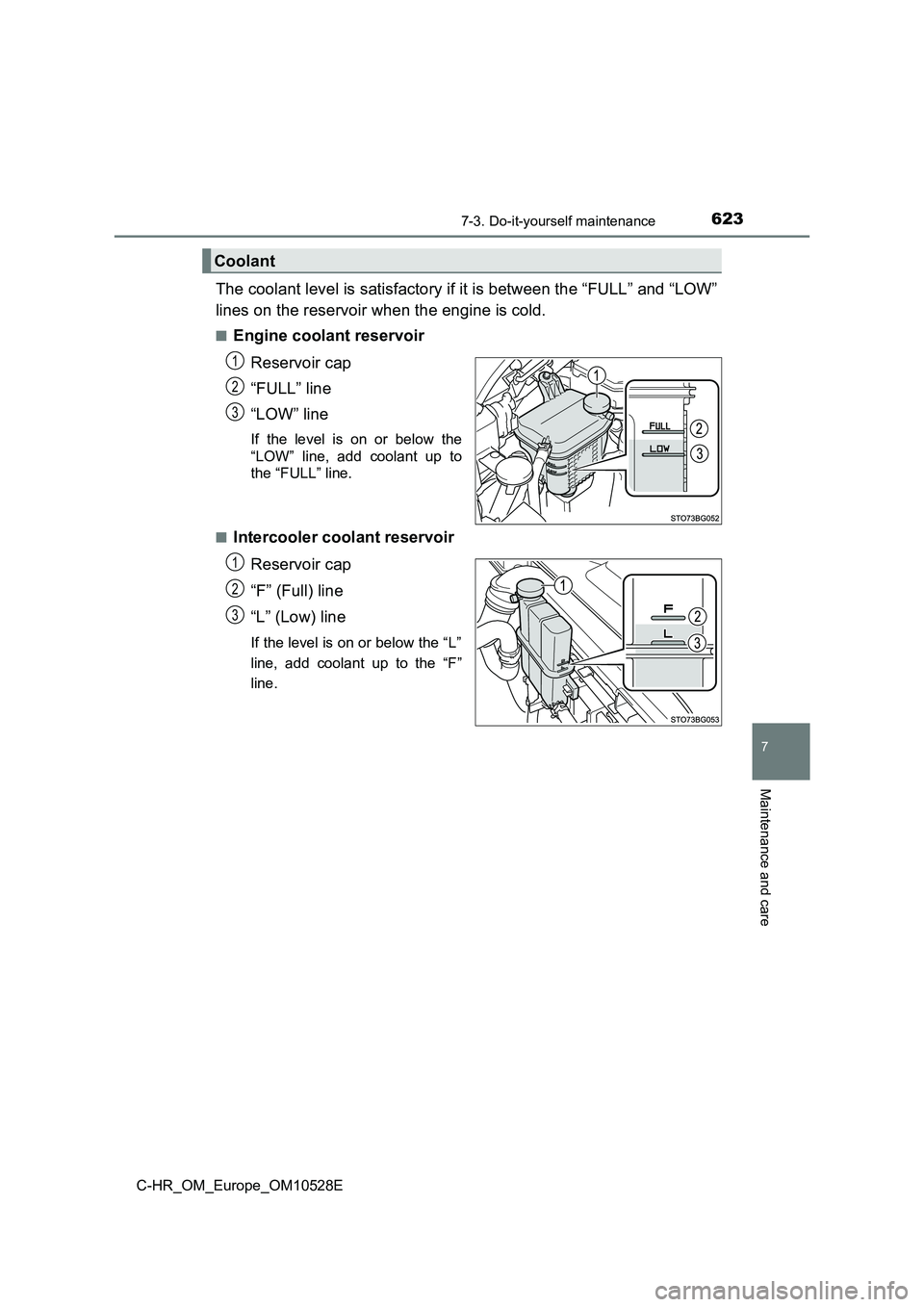

The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
■Engine coolant reservoir
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
■Intercooler coolant reservoir
Reservoir cap
“F” (Full) line
“L” (Low) line
If the level is on or below the “L”
line, add coolant up to the “F”
line.
Coolant
1
2
3
1
2
3

6247-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non- nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35 C [-31F])
For more details about engine coolant, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer, test the cap and check for leaks in the
cooling system.
WARNING
■ When the engine is hot
Do not remove the engine coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■ When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
