2017 TOYOTA C-HR Owners Manual

6657-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E

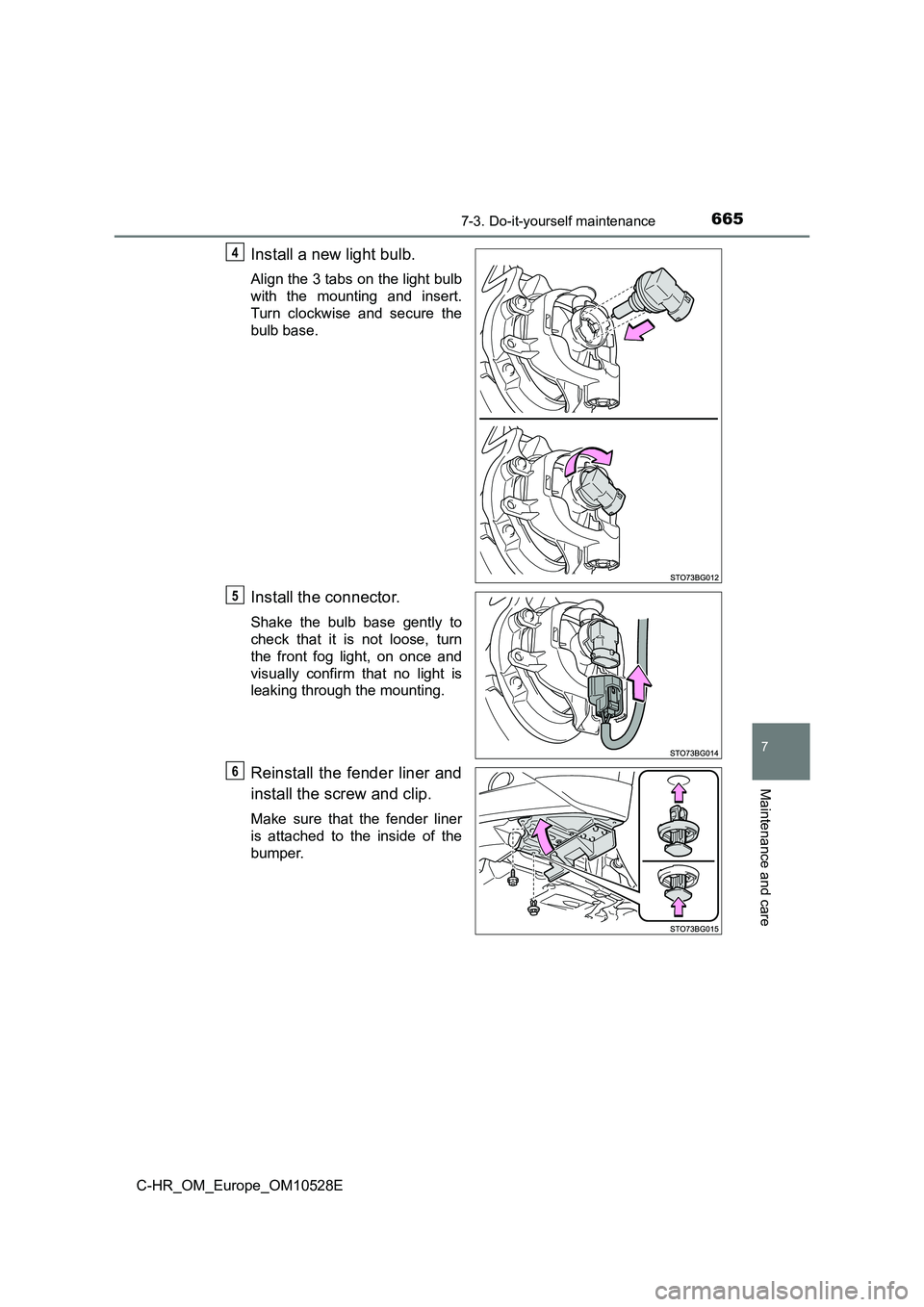

Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light, on once and
visually confirm that no light is
leaking through the mounting.
Reinstall the fender liner and
install the screw and clip.
Make sure that the fender liner
is attached to the inside of the
bumper.
4
5
6

6667-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E

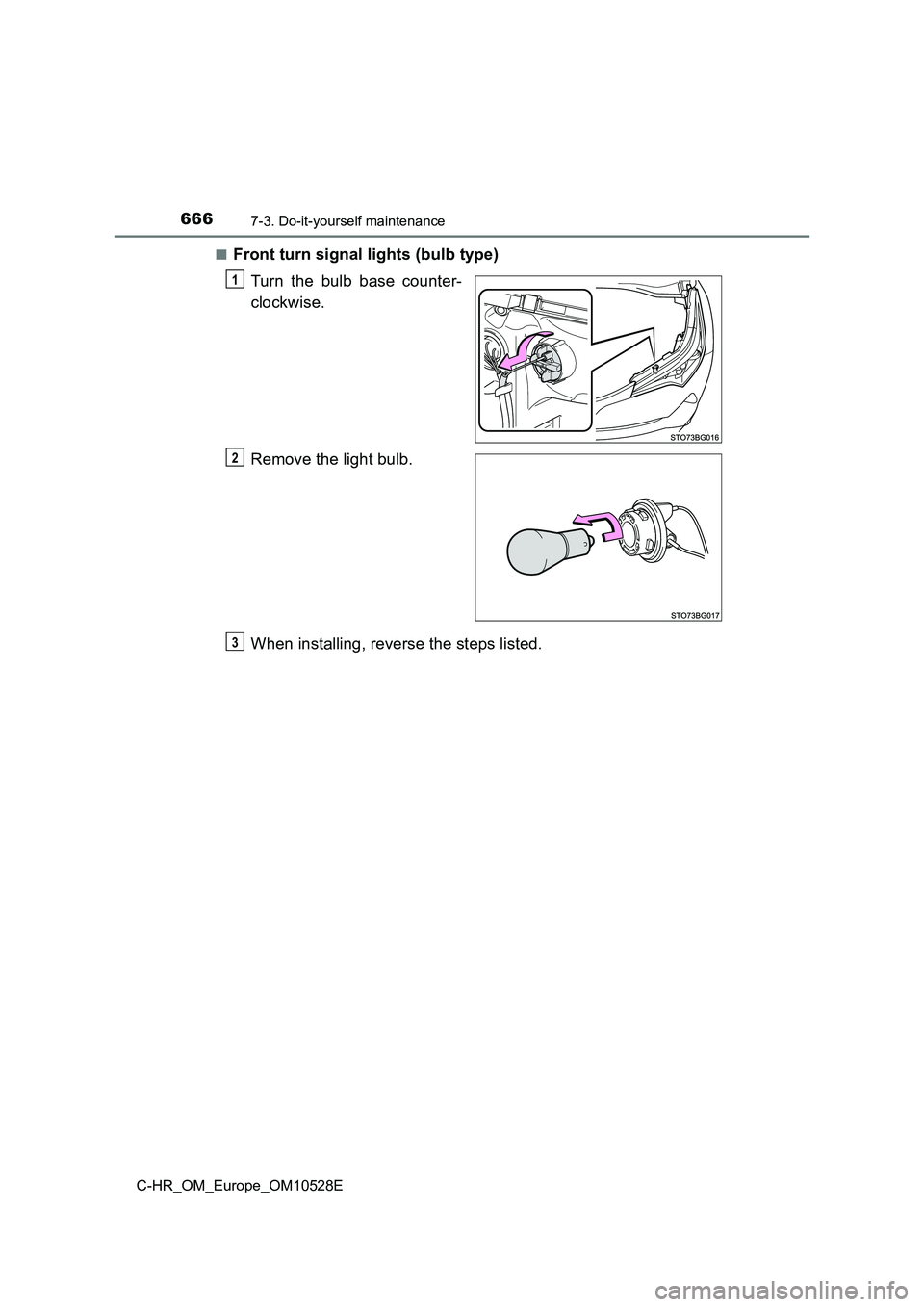

■Front turn signal lights (bulb type)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

6677-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E

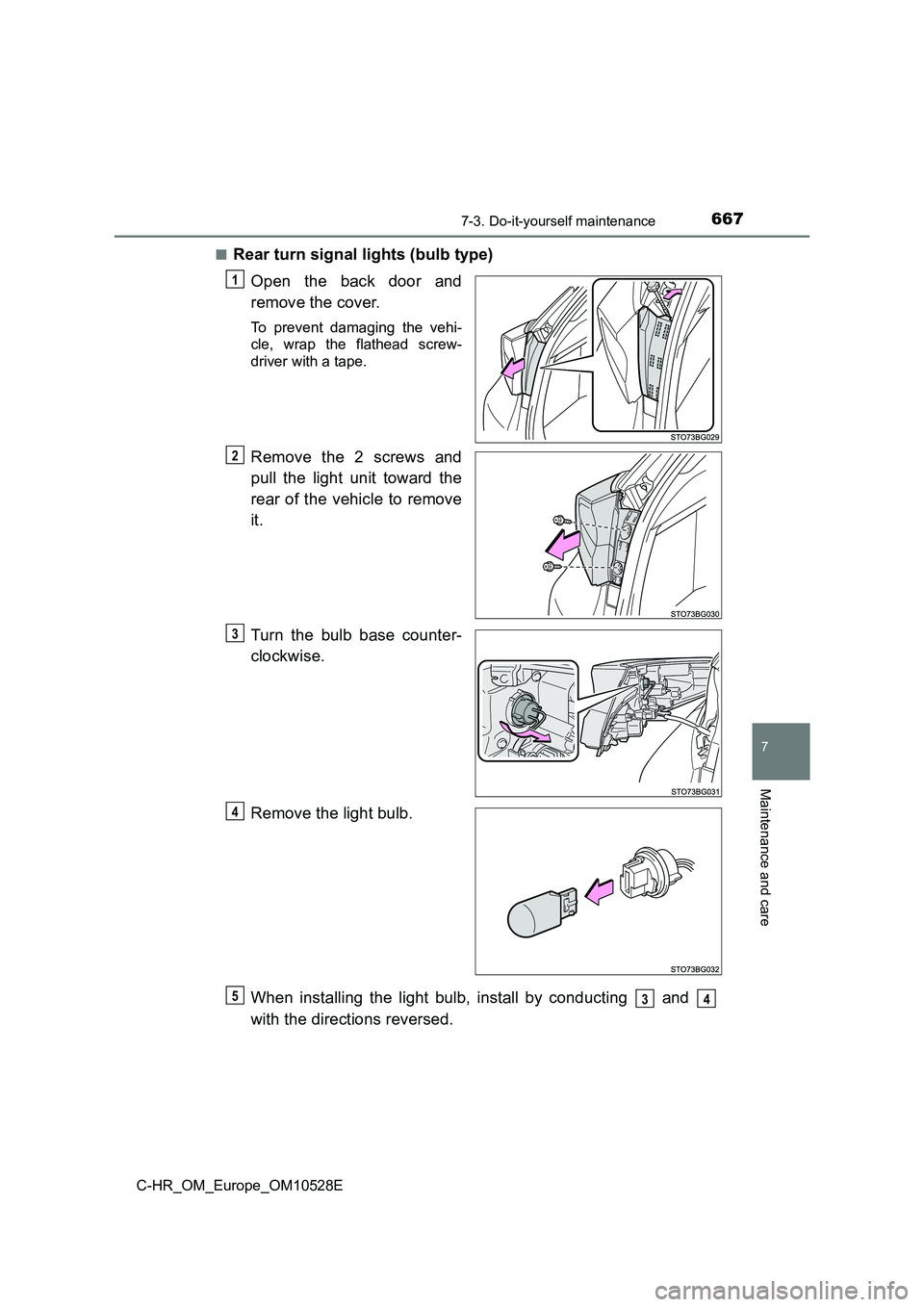

■Rear turn signal lights (bulb type)
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Remove the 2 screws and
pull the light unit toward the
rear of the vehicle to remove
it.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing the light bulb, install by conducting and
with the directions reversed.
1
2
3
4
534

6687-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E

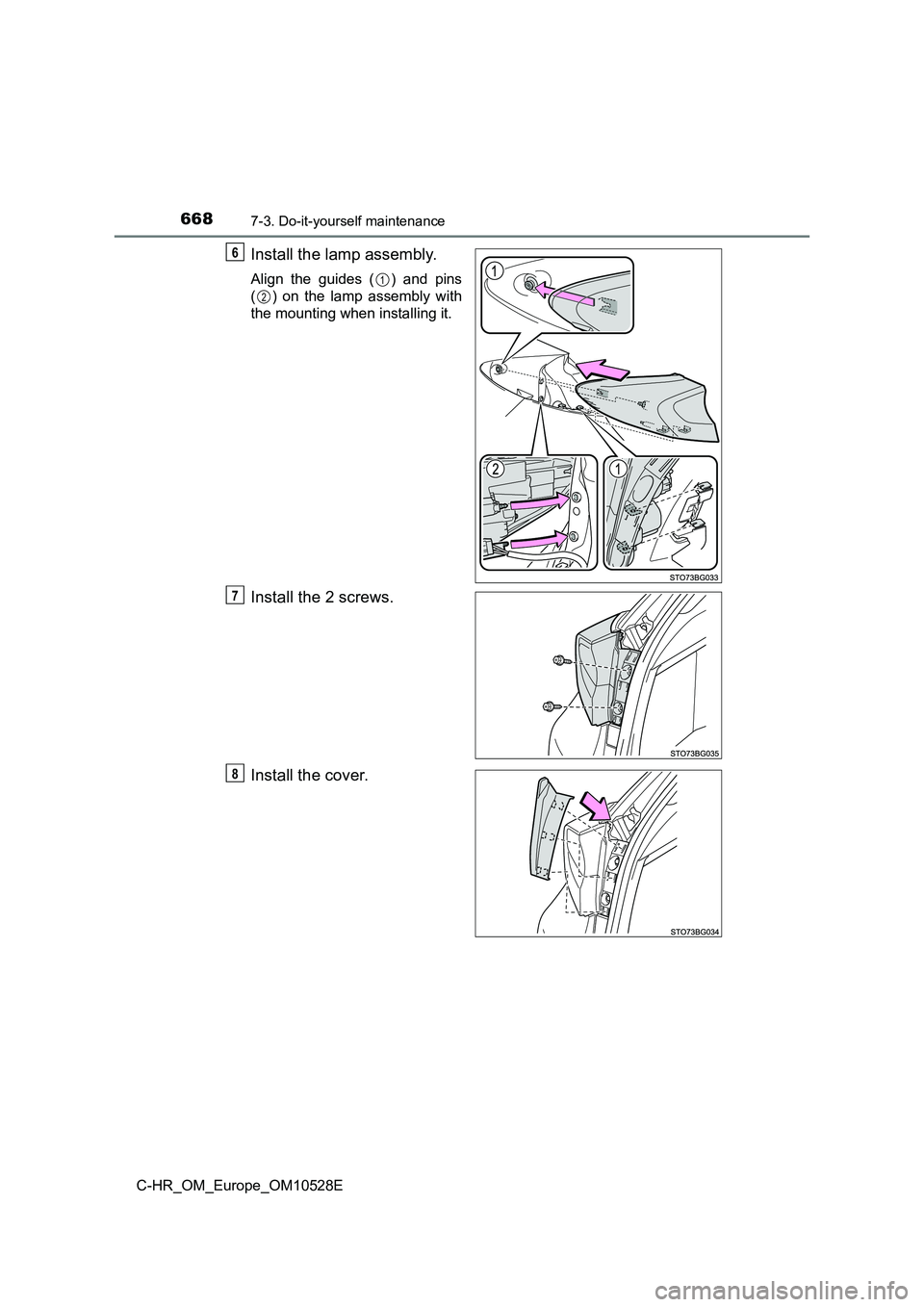

Install the lamp assembly.
Align the guides ( ) and pins
( ) on the lamp assembly with
the mounting when installing it.
Install the 2 screws.
Install the cover.
6
1
2
7
8

6697-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E

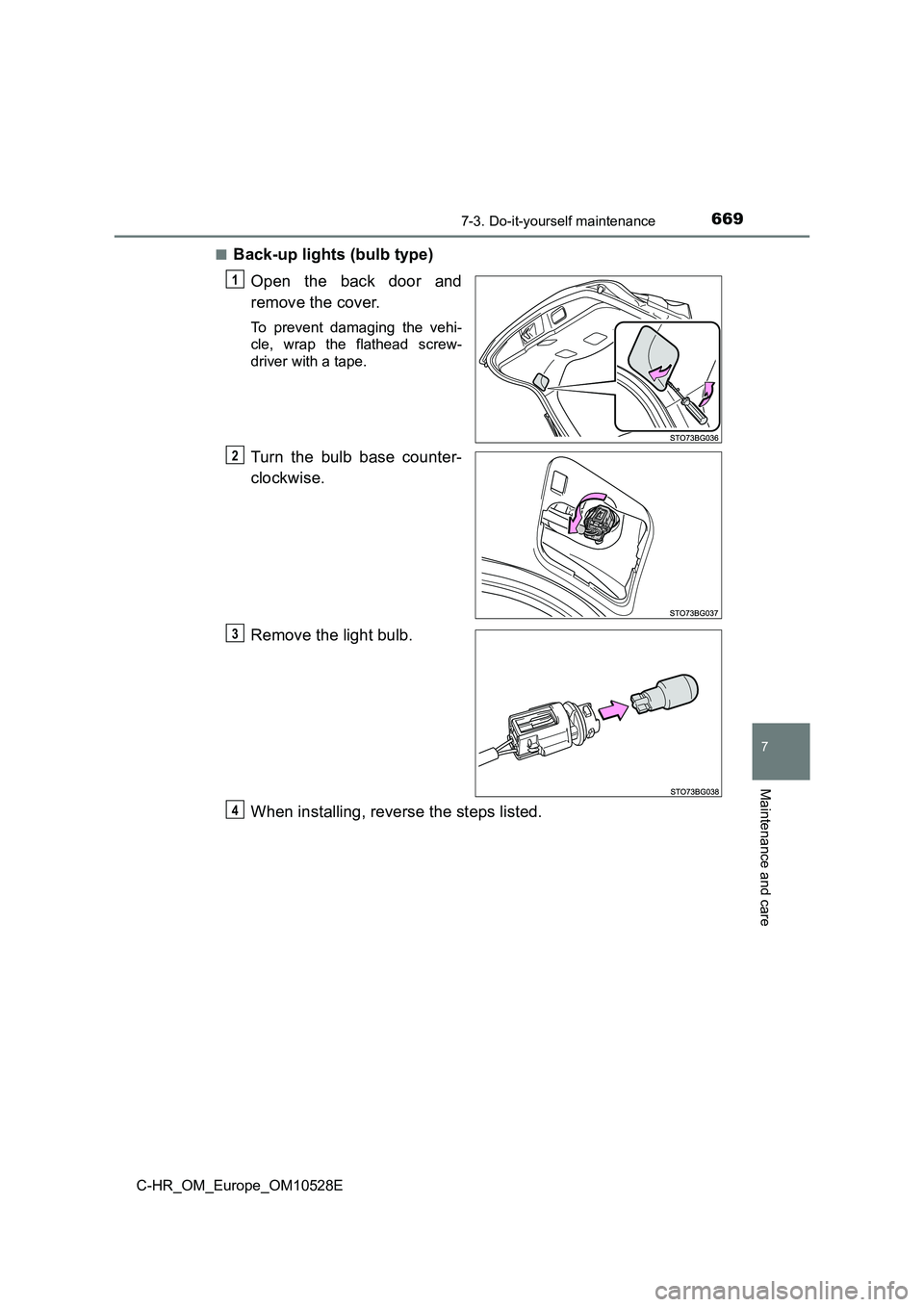

■Back-up lights (bulb type)
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

6707-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E

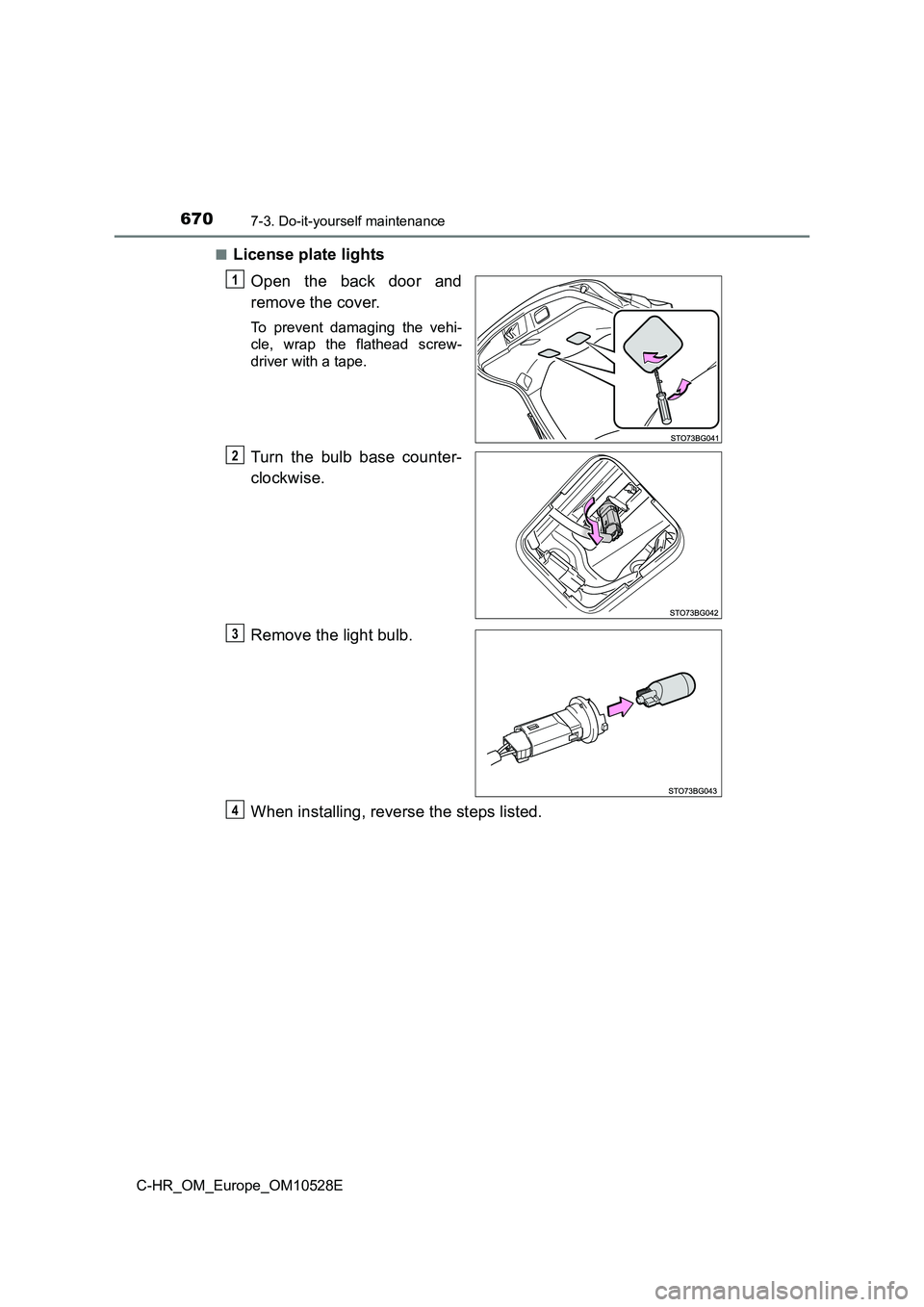

■License plate lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

6717-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E

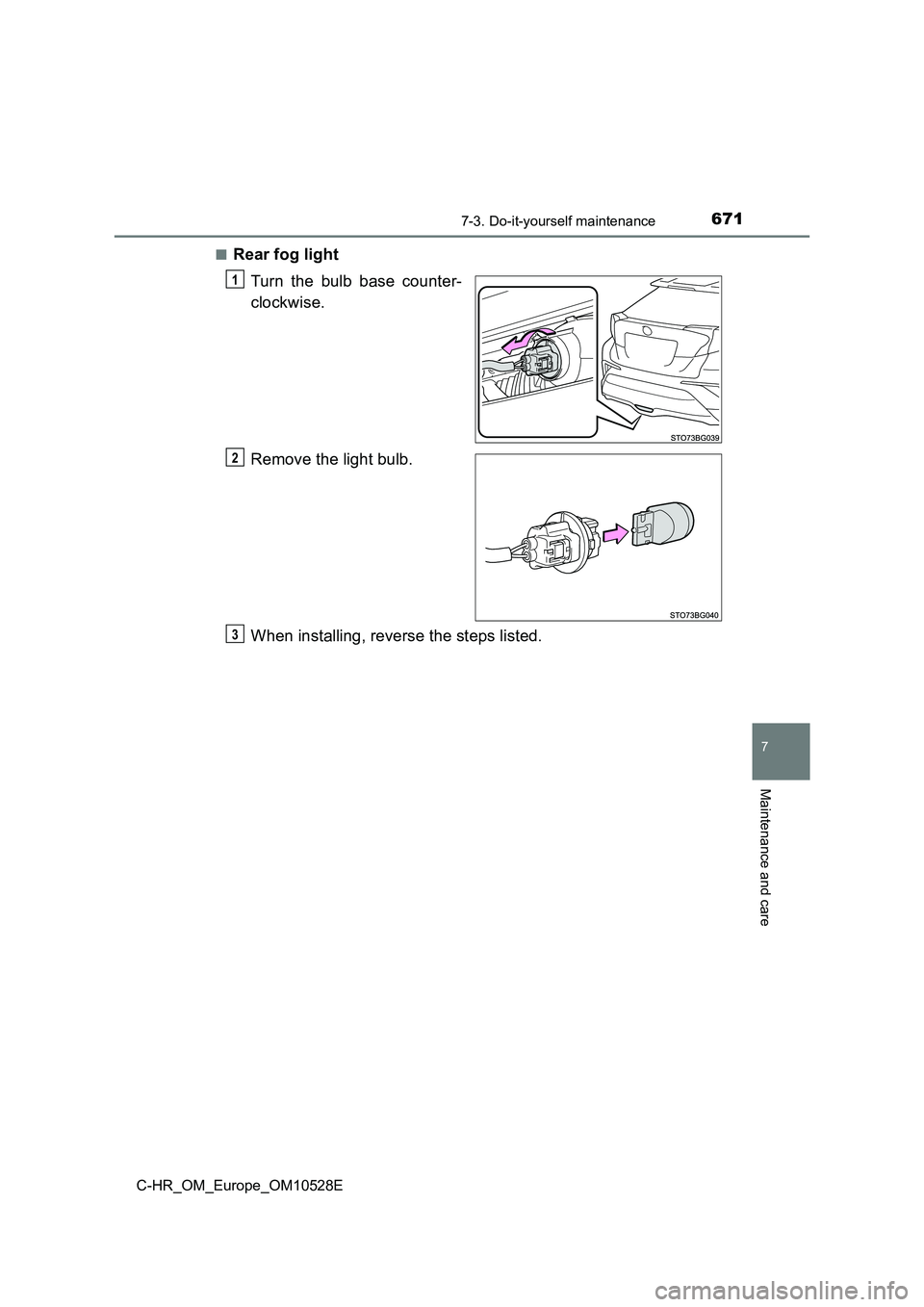

■Rear fog light
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

6727-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E
■Side turn signal lights
Insert a flathead screwdriver
and release the claw for the
outside rear view mirror
cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Release the cover claws
spanning over the entire
perimeter.
Release the claw of the bot-
tom part of the cover and
then remove the cover.
1
Claw
2
3
