2017 TOYOTA C-HR alarm

TABLE OF CONTENTS2
C-HR_OM_Europe_OM10528E
For your information .......................8
Reading this manual.....................12
How to search ..............................13
Pictorial index ...............................14
1-1. For safe use
Before driving.......................34
For safety drive ....................36
Seat belts .............................38
SRS airbags.........................43
Exhaust gas precautions .....56
1-2. Child safety
Airbag manual on-off
system ...............................57
Riding with children..............60
Child restraint systems ........61
1-3. Theft deterrent system
Engine immobilizer
system ...............................87
Double locking system .........95
Alarm ...................................97
Theft prevention labels ......105
2. Instrument cluster
Warning lights and
indicators......................... 108
Gauges and meters........... 119
Multi-information display
(with monochrome
display)............................ 124
Multi-information display
(with color display) .......... 128
Fuel consumption
information ...................... 138
1For safety and security
2Instrument cluster

33
1For safety and security
C-HR_OM_Europe_OM10528E
1-1. For safe use
Before driving....................... 34
For safety drive .................... 36
Seat belts ............................. 38
SRS airbags......................... 43
Exhaust gas precautions ..... 56
1-2. Child safety
Airbag manual on-off
system ............................... 57
Riding with children.............. 60
Child restraint systems ........ 61
1-3. Theft deterrent system
Engine immobilizer
system ............................... 87
Double locking system ......... 95
Alarm ................................... 97
Theft prevention labels ...... 105

971-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E
Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door is unlocked or opened in any way other than using
the entry function (if equipped) or wireless remote control. (The
doors will lock again automatically.)
● The hood is opened.
● Vehicles with the intrusion sensor: The intrusion sensor detects
something moving inside the vehicle. (An intruder gets in the vehi-
cle.)
● Vehicles with the glass breakage sensor: The back door window is
tapped or broken.
Close the doors and hood, and
lock all the doors using the entry
function (if equipped) or wireless
remote control. The system will be
set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
: If equipped
The alarm
Setting the alarm system

981-3. Theft deterrent system
C-HR_OM_Europe_OM10528E
Do one of the following to deactivate or stop the alarm:
● Unlock the doors using the entry function (if equipped) or wireless
remote control.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

991-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
● The doors are unlocked using the key*1
or mechanical key*2.
*1: Vehicles without a smart entry & start
system
*2: Vehicles with a smart entry & start sys-
tem
● A person inside the vehicle opens a door
or hood, or unlocks the vehicle using an
inside lock button.
● The battery is recharged or replaced
when the vehicle is locked. ( P. 7 5 0 )

1001-3. Theft deterrent system
C-HR_OM_Europe_OM10528E

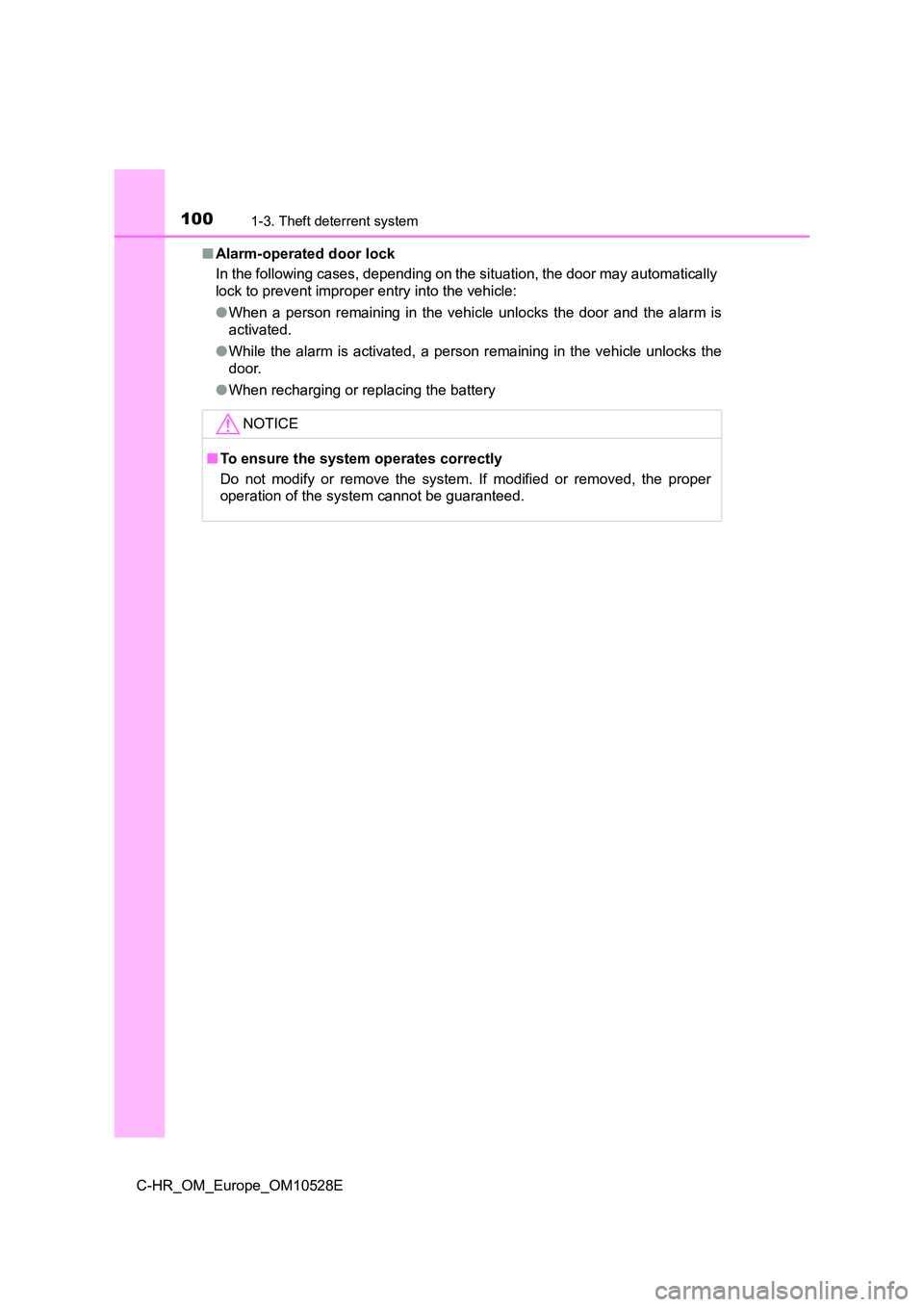

■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the battery
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

1011-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E
The intrusion sensor detects intruders or movement in the vehicle.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set.
( P. 9 7 )
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to disable the intrusion sensor before setting the alarm,
as it will respond to movement inside the vehicle.
Turn the engine switch to the “LOCK” position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry &
start system).
Press the theft sensor off
switch.
A message will be shown on the
multi-information display.
The intrusion sensor will revert
to on each time the engine
switch is turned to the ON posi-
tion (vehicles without a smart
entry & start system) or IGNI-
TION ON mode (vehicles with a
smart entry & start system).
Intrusion sensor (if equipped)
1
2

1021-3. Theft deterrent system
C-HR_OM_Europe_OM10528E
■Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● Vehicles without a smart entry & start system: After the intrusion sensor is
canceled, turn the engine switch to the “LOCK” position or unlocking the
doors using the wireless remote control will re-enable the intrusion sensor.
Vehicles with a smart entry & start system: After the intrusion sensor is can-
celed, pressing the engine switch or unlocking the doors using the entry
function or wireless remote control will re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
■ Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
• The movement of people outside the vehicle
● People or pets are in the vehicle.
● A side window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
