2017 TOYOTA C-HR Owners Manual

265
4
4-3. Operating the lights and wipers
Driving
C-HR_OM_Europe_OM10528E

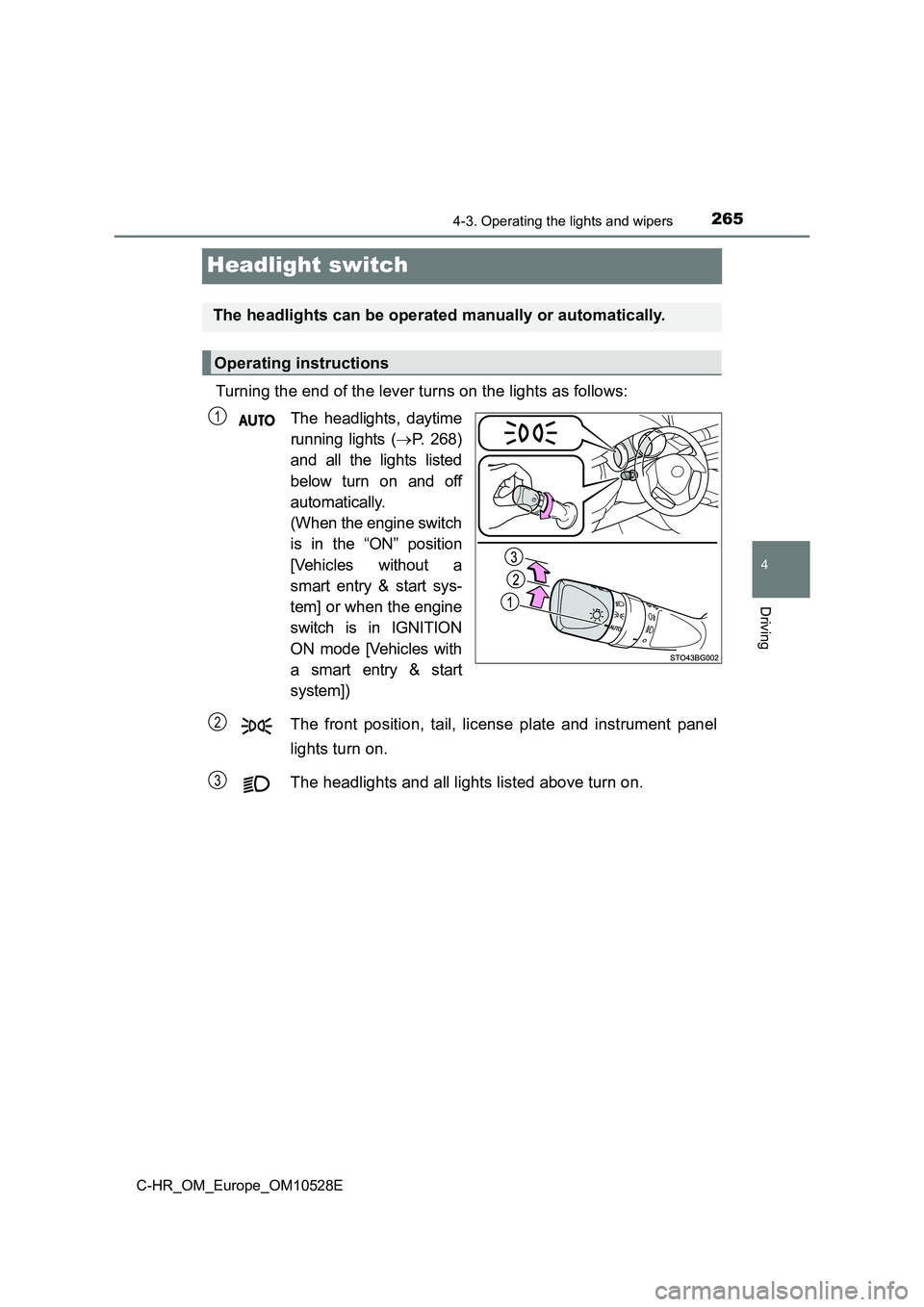

Headlight switch
Turning the end of the lever turns on the lights as follows:
The headlights, daytime
running lights ( P. 268)
and all the lights listed
below turn on and off
automatically.
(When the engine switch
is in the “ON” position
[Vehicles without a
smart entry & start sys-
tem] or when the engine
switch is in IGNITION
ON mode [Vehicles with
a smart entry & start
system])
The front position, tail, license plate and instrument panel
lights turn on.
The headlights and all lights listed above turn on.
The headlights can be operated manually or automatically.
Operating instructions
1
2
3

2664-3. Operating the lights and wipers
C-HR_OM_Europe_OM10528E

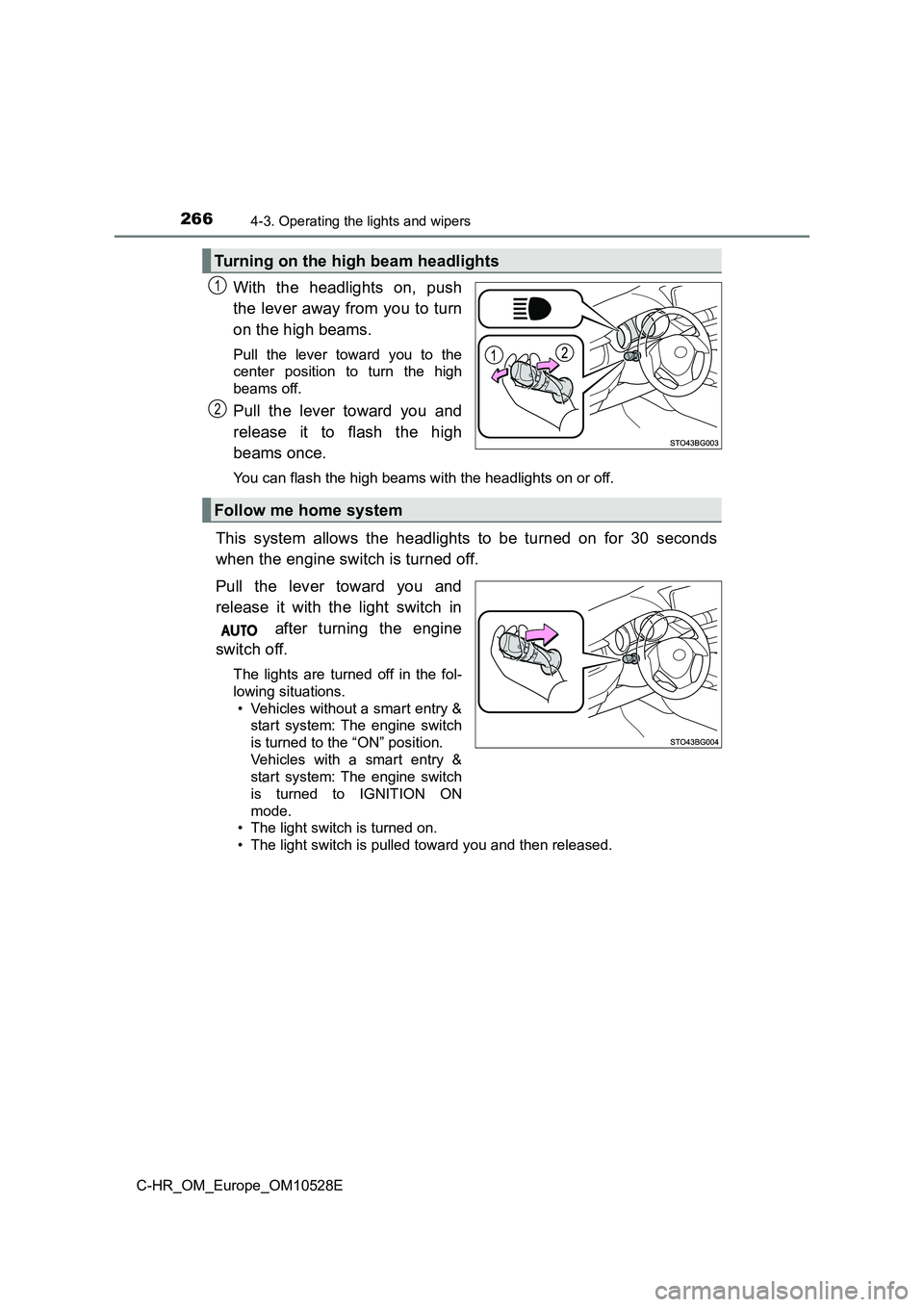

With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams wi th the headlights on or off.
This system allows the headlights to be turned on for 30 seconds
when the engine switch is turned off.
Pull the lever toward you and
release it with the light switch in
after turning the engine
switch off.
The lights are turned off in the fol-
lowing situations.
• Vehicles without a smart entry &
start system: The engine switch
is turned to the “ON” position.
Vehicles with a smart entry &
start system: The engine switch
is turned to IGNITION ON
mode.
• The light switch is turned on.
• The light switch is pulled toward you and then released.
Turning on the high beam headlights
1
2
Follow me home system

2674-3. Operating the lights and wipers
4
Driving
C-HR_OM_Europe_OM10528E

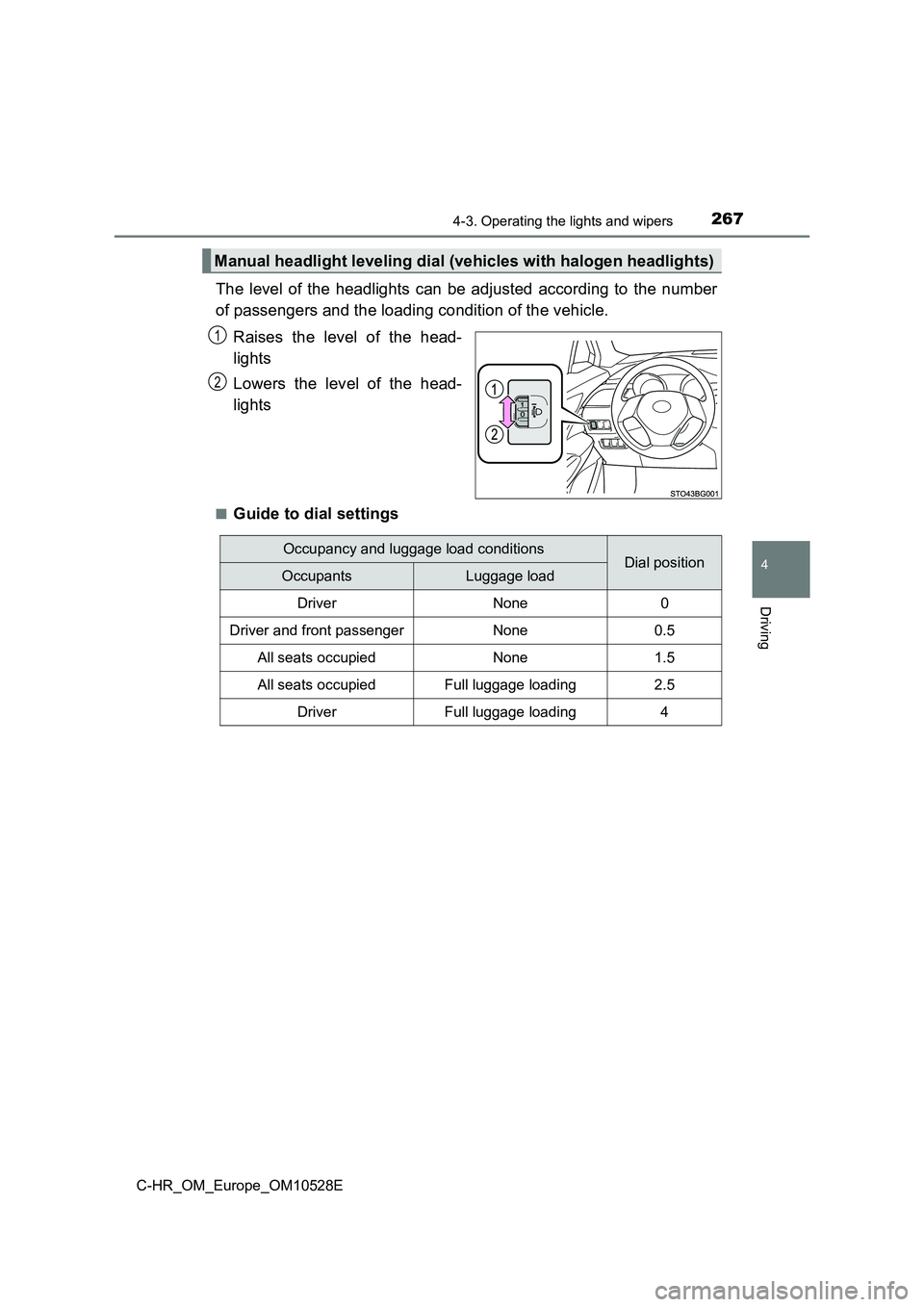

The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
■Guide to dial settings
Manual headlight leveling dial (vehicles with halogen headlights)
1
2
Occupancy and luggage load conditionsDial positionOccupantsLuggage load
DriverNone0
Driver and front passengerNone0.5
All seats occupiedNone1.5
All seats occupiedFull luggage loading2.5
DriverFull luggage loading4

2684-3. Operating the lights and wipers
C-HR_OM_Europe_OM10528E
■Daytime running light system
To make your vehicle more visible to other drivers during daytime driving, the
daytime running lights turn on automatically whenever the engine is started
and the parking brake is released with the headlight switch in . (Illumi-
nate brighter than the front position lights.) Daytime running lights are not
designed for use at night.
■ Headlight control sensor
■ Automatic light off system
Vehicles without a smart entry & start system
When the light switch is in or : The headlights and front fog lights
(if equipped) turn off automatically if the engine switch is turned off.
When the light switch is in : All lights turn off automatically if the engine
switch is turned off.
To turn the lights on again, turn the engine switch to the “ON” position, or turn
the light switch to once and then back to or .
Vehicles with a smart entry & start system
When the light switch is in or : The headlights and front fog lights
(if equipped) turn off automatically if the engine switch is turned off.
When the light switch is in : All lights turn off automatically if the engine
switch is turned off.
To turn the lights on again, turn the engine switch to IGNITION ON mode, or
turn the light switch to once and then back to or .
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

2694-3. Operating the lights and wipers
4
Driving
C-HR_OM_Europe_OM10528E
■ Light reminder buzzer
Vehicles without a smart entry & start system
A buzzer sounds and a message appears when the engine switch is turned
off or turned to the “ACC” position and the driver’s door is opened while the
lights are turned on.
Vehicles with a smart entry & start system
A buzzer sounds and a message appears when the engine switch is turned
off or turned to ACCESSORY mode and the driver’s door is opened while the
lights are turned on.
■ Automatic headlight leveling system (vehicles with LED headlights)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
■ Battery-saving function
In the following conditions, the remaining lights will go off automatically after
20 minutes in order to prevent the vehicle battery from being discharged:
● The headlights and/or tail lights are on.
● Vehicles without a smart entry & start system: The engine switch is turned to
the “ACC” position or turned off.
Vehicles with a smart entry & start system: The engine switch is turned to
ACCESSORY mode or turned off.
● The light switch is in or .
This function will be canceled in any of the following situations:
● Vehicles without a smart entry & start system: When the engine switch is
turned to the “ON” position.
Vehicles with a smart entry & start system: When the engine switch is turned
to IGNITION ON mode.
● When the light switch is operated.
● When a door is opened or closed.
■ If “Headlight system malfunction visit your dealer” is displayed on the
multi-information display
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: P. 776)

2704-3. Operating the lights and wipers
C-HR_OM_Europe_OM10528E

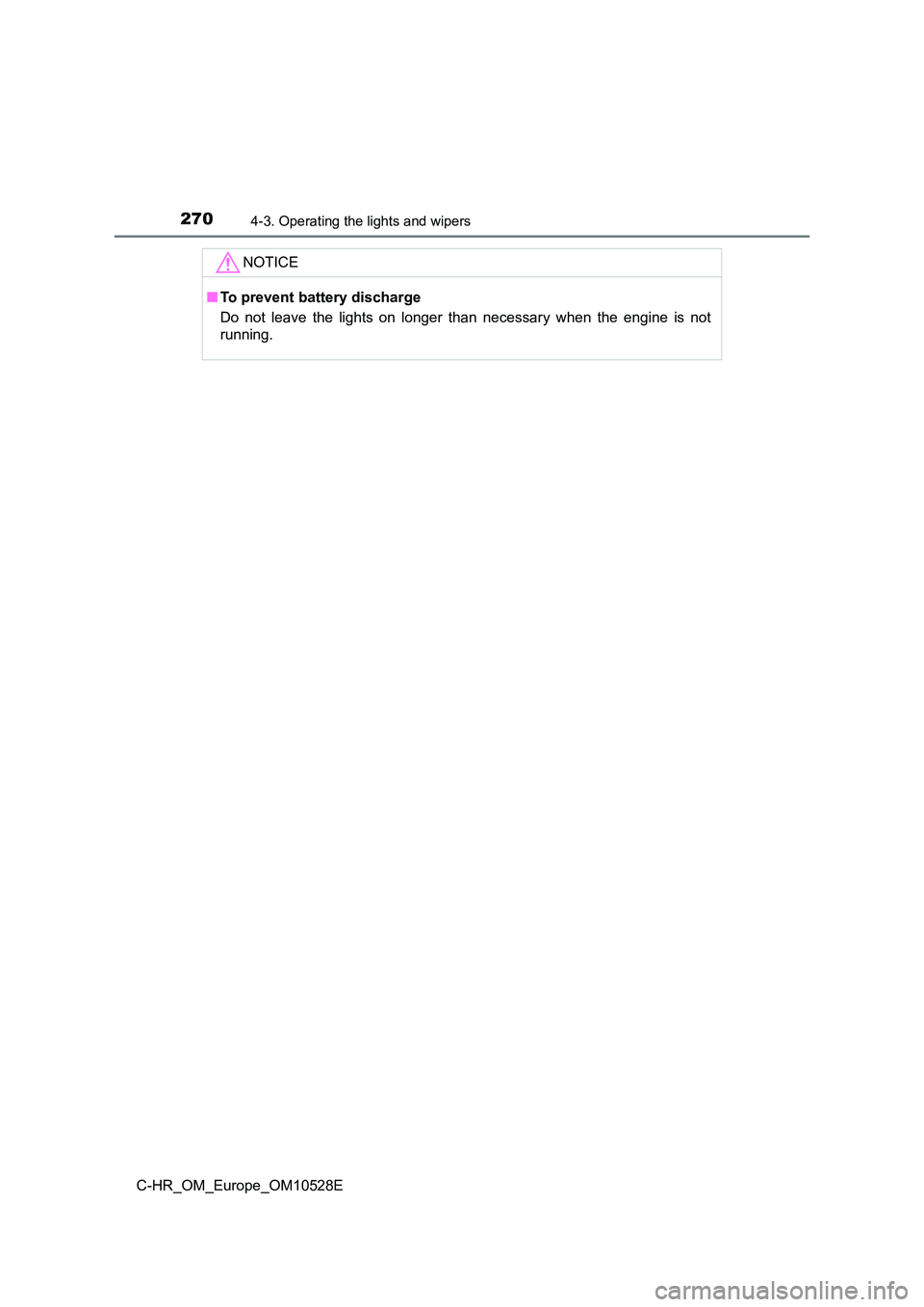

NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.

271
4
4-3. Operating the lights and wipers
Driving
C-HR_OM_Europe_OM10528E
Automatic High Beam
: If equipped
The Automatic High Beam uses an in-vehicle camera sensor to
assess the brightness of streetlights, the lights of vehicles
ahead, etc., and automatically turns the high beam on or off as
necessary.
WARNING
■ Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning the high beam on or off manually if
necessary.
■ To prevent incorrect operation of the Automatic High Beam system
Do not overload the vehicle.

2724-3. Operating the lights and wipers
C-HR_OM_Europe_OM10528E

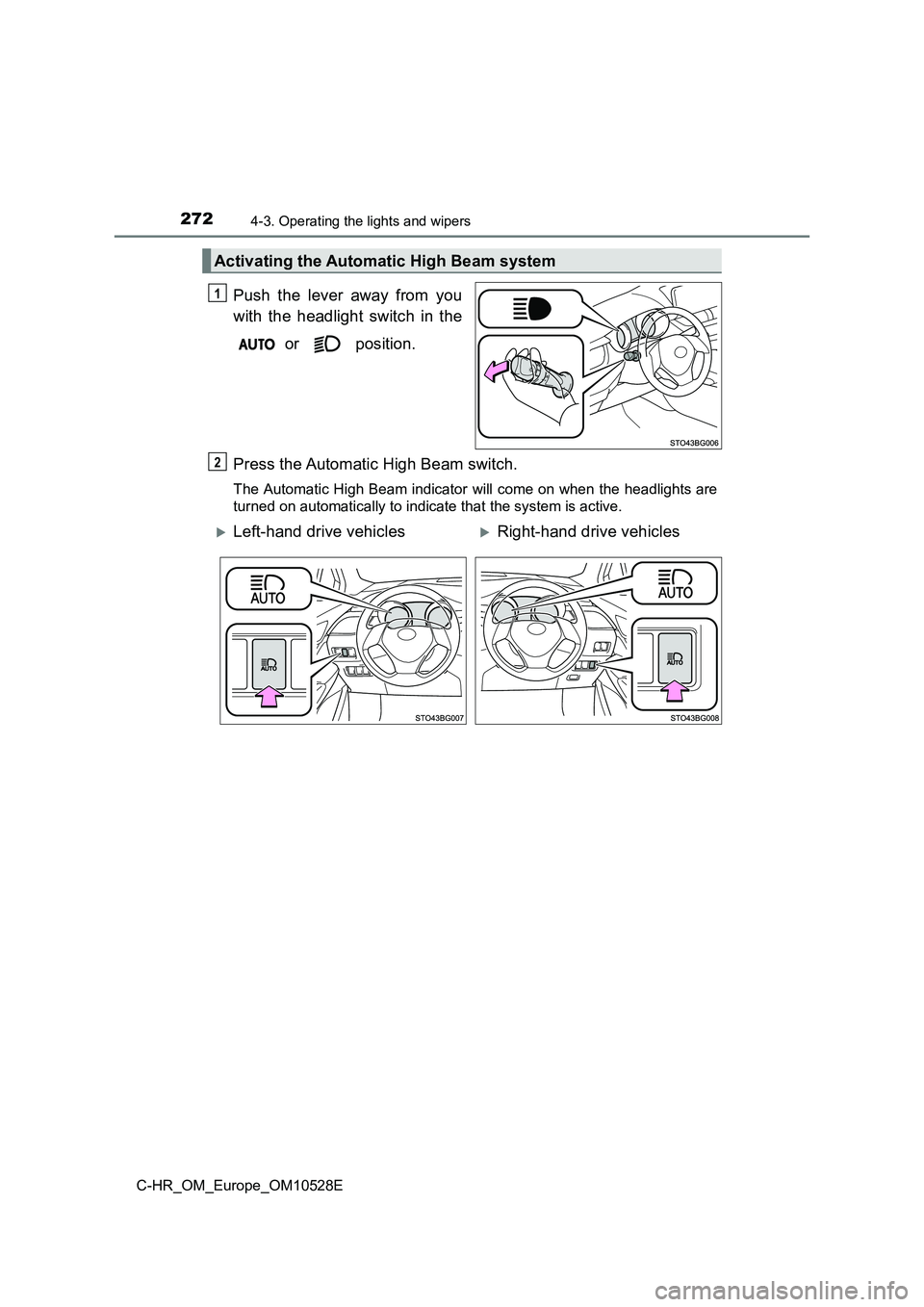

Push the lever away from you
with the headlight switch in the
or position.
Press the Automatic High Beam switch.
The Automatic High Beam indicator will come on when the headlights are
turned on automatically to indicate that the system is active.
Activating the Automatic High Beam system
1
2
Left-hand drive vehiclesRight-hand drive vehicles
