6187-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E
Engine compartment
Washer fluid tank (P. 630)
Engine coolant reservoir
( P. 623)
Fuse boxes ( P. 656)
Intercooler
Engine oil filler cap
( P. 620)
Engine oil level dipstick
( P. 619)
Intercooler coolant reservoir
( P. 623)
Battery ( P. 626)
Radiator ( P. 625)
Condenser ( P. 625)
Electric cooling fans
1
2
3
4
5
6
7
8
9
10
11

6247-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non- nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35 C [-31F])
For more details about engine coolant, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer, test the cap and check for leaks in the
cooling system.
WARNING
■ When the engine is hot
Do not remove the engine coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■ When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

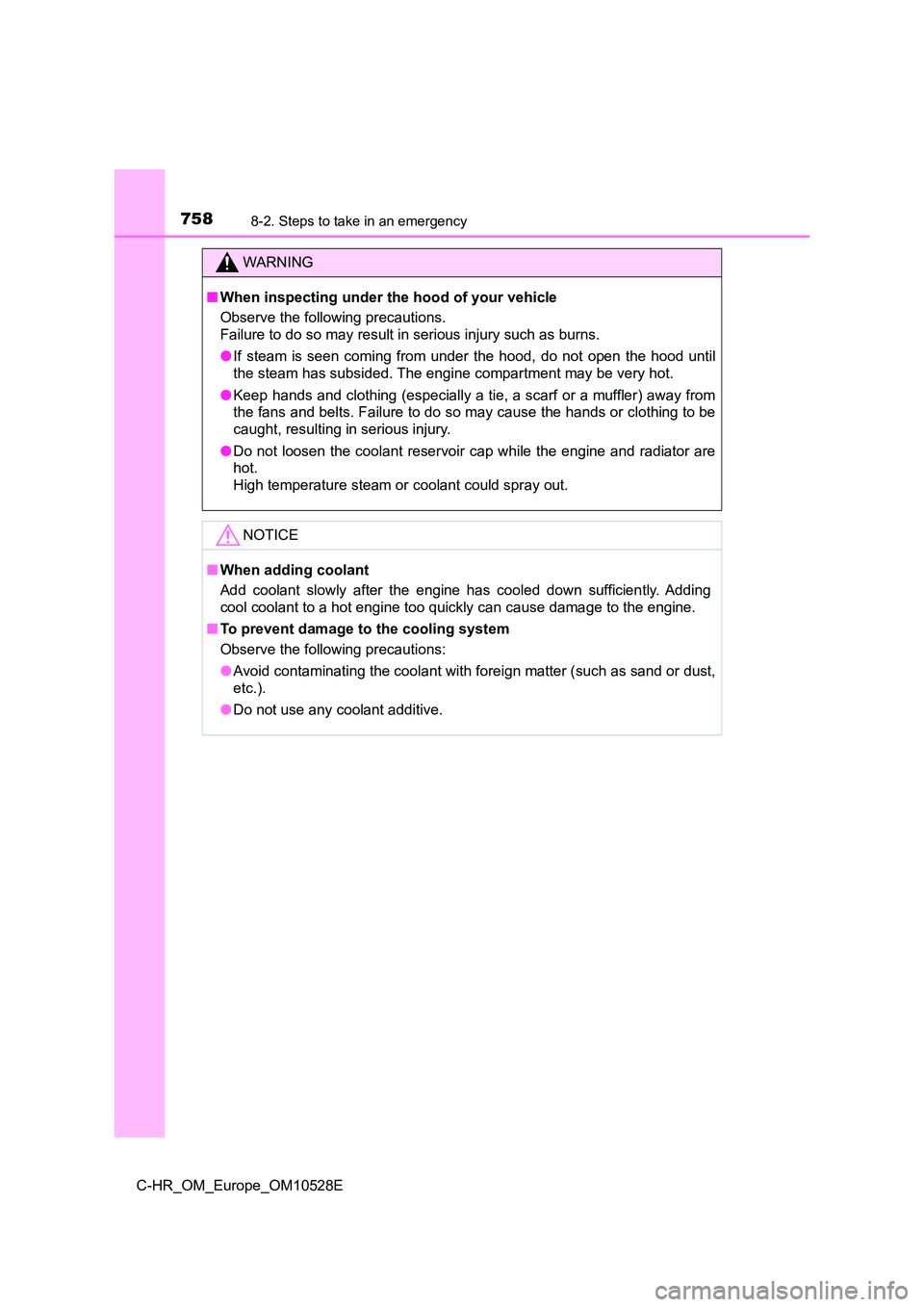

7588-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fans and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
High temperature steam or coolant could spray out.
NOTICE
■ When adding coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust,
etc.).
● Do not use any coolant additive.

805Alphabetical index
C-HR_OM_Europe_OM10528E
Radiator .................................... 625
Radio ......................................... 485
Rear fog light
Replacing light bulb............... 671
Switch ................................... 276
Rear seat
Folding down......................... 188
Rear turn signal lights
Replacing light bulbs ............. 667
Turn signal lever ................... 255
Wattage................................. 773
Rear view mirror
Inside rear view mirror .......... 196
Outside rear view mirrors ...... 198
Rear window
defogger ......................... 562, 569
Rear window wiper .................. 283
Refueling .................................. 285
Capacity ................................ 764
Fuel types ............................. 764
Opening the fuel tank cap ..... 287
When the fuel filler door
cannot be opened ............... 288
Replacing
Electronic key battery............ 652
Fuses .................................... 656
Light bulbs............................. 661
Tires ...................................... 730
Wireless remote control
battery................................. 652
Road Sign Assist (RSA) .......... 330
RSA (Road Sign Assist) .......... 330
S-IPA (Simple Intelligent
Parking Assist System) ........ 420
Seat belt reminder light........... 697
Seat belts.................................... 38
Adjusting the seat belt ............ 39
Child restraint system
installation ............................ 66
Cleaning and maintaining
the seat belt........................ 606
Emergency Locking Retractor
(ELR) .................................... 40
How to wear your seat belt ..... 36
How your child should wear
the seat belt.......................... 40
Pregnant women, proper
seat belt use ......................... 41
Reminder light and buzzer .... 697
Seat belt pretensioners ........... 39
SRS warning light ................. 694
Seat heaters ............................. 577
Seats ................................. 186, 188
Adjustment ............................ 186
Adjustment precautions ........ 187
Child seats/child restraint
system installation ................ 66
Cleaning................................ 605
Front seats ............................ 186
Head restraints ..................... 190
Properly sitting in the seat ...... 36
Rear seats ............................ 188
Seat heaters ......................... 577
