2016 TOYOTA VENZA Owners Manual

6256-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73030U_(U) Light Bulbs Bulb
No. W Ty p e
Interior Front interior light  5 E
Front personal lights  5 E
Rear personal/interior lights  8 E
Vanity lights  8 E
Door courtesy lights  5 E
Glove box light 74 1.2 E
Luggage compartment light  5 E
A: D4S discharge bulbs
B: H11 halogen bulbs
C: HB3 halogen bulbs D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)

6266-1. Specifications
VENZA_OM_OM73030U_(U)Fuel infor mation ■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent kno cking can lead to engine damage.
At minimum, the gasoline you us e should meet th e specifications
of ASTM D4814 in the U.S.A..

6276-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73030U_(U) ■ Gasoline quality standards
● Automotive manufacturers in the U.S.A., Europe and Japan have devel-
oped a specification for fuel quality called World-Wide Fuel Charter
(WWFC), which is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the U.S., category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and improves customer satisfaction through better performance.
■ Recommendation of the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives con-
centration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■ Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typi-
cally acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.

6286-1. Specifications
VENZA_OM_OM73030U_(U) ■ Non-recommendation of the use of blended gasoline
● If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
■ If your engine knocks
● Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern. ● Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).DO NOT use gasoline
containing more than
15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

6296-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73030U_(U) NOTICE■ Notice on fuel quality
● Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

6306-1. Specifications

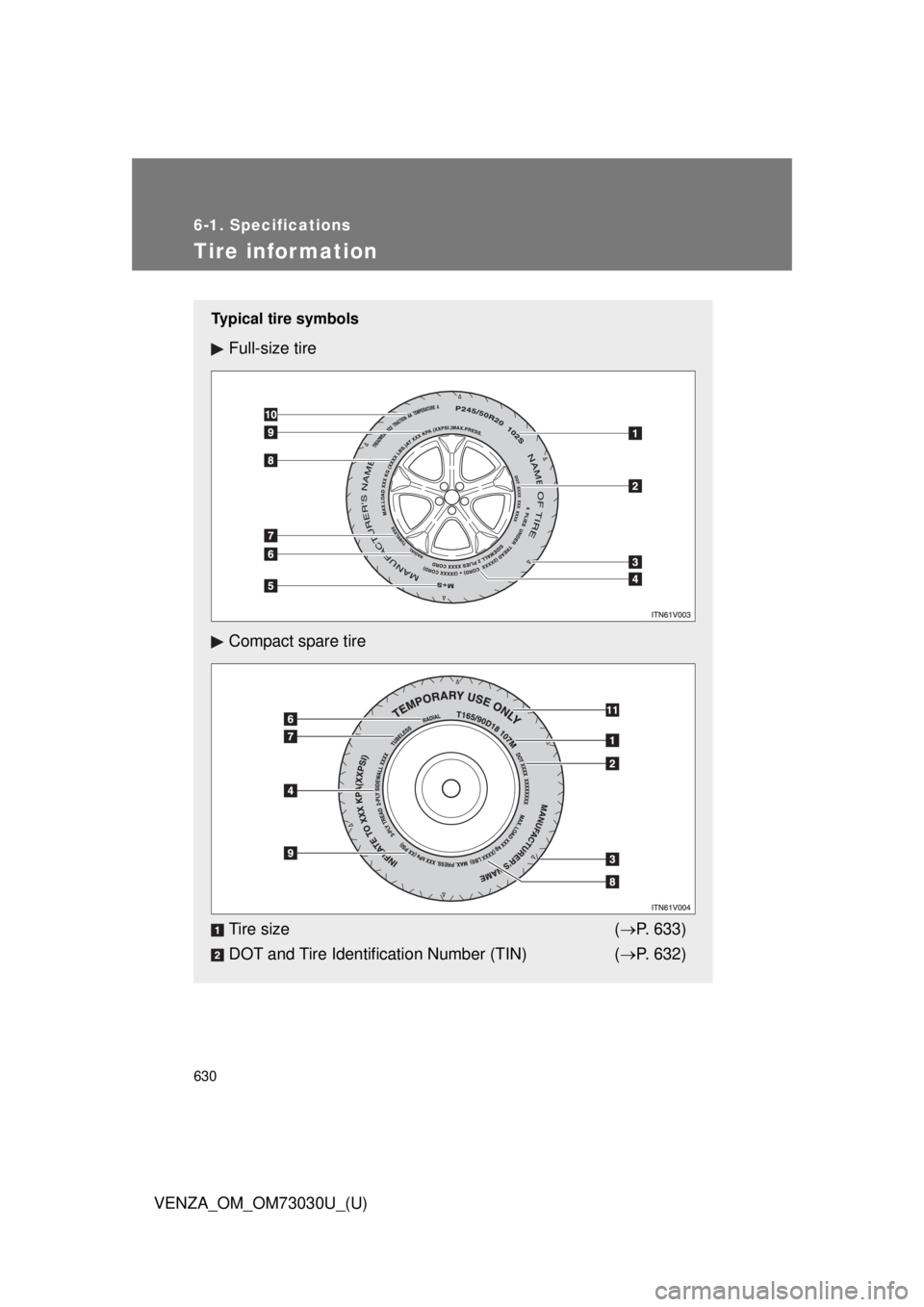

VENZA_OM_OM73030U_(U)Tire infor mation Typical tire symbols
Full-size tire
Compact spare tire
Tire size (  P. 633)
DOT and Tire Identification Number (TIN) (  P. 632)

6316-1. Specifications
6
Vehicle specifications

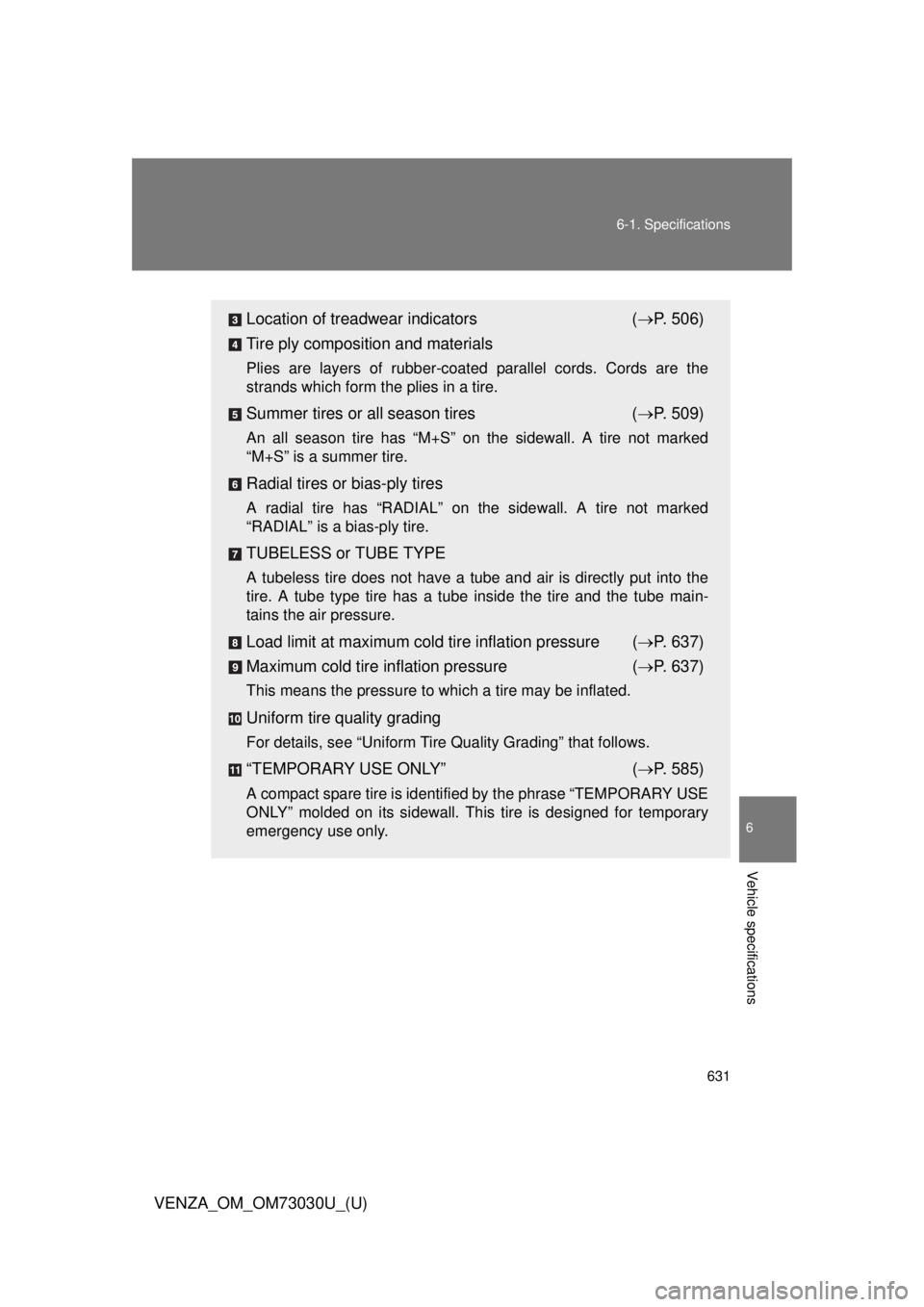

VENZA_OM_OM73030U_(U) Location of treadwear indicators (  P. 506)
Tire ply composition and materials Plies are layers of rubber-coated parallel cords. Cords are the
strands which form the plies in a tire.
Summer tires or all season tires (  P. 509)An all season tire has “M+S” on the sidewall. A tire not marked
“M+S” is a summer tire.
Radial tires or bias-ply tires A radial tire has “RADIAL” on the sidewall. A tire not marked
“RADIAL” is a bias-ply tire.
TUBELESS or TUBE TYPE A tubeless tire does not have a tube and air is directly put into the
tire. A tube type tire has a tube inside the tire and the tube main-
tains the air pressure.
Load limit at maximum cold tire inflation pressure (  P. 637)
Maximum cold tire inflation pressure (  P. 637)This means the pressure to which a tire may be inflated.
Uniform tire quality grading For details, see “Uniform Tire Quality Grading” that follows.
“TEMPORARY USE ONLY” (  P. 585)A compact spare tire is identified by the phrase “TEMPORARY USE
ONLY” molded on its sidewall. This tire is designed for temporary
emergency use only.

6326-1. Specifications
VENZA_OM_OM73030U_(U) Typical DOT and Tire Identification Number (TIN)
DOT symbol
* Tire Identification Number
(TIN)
Tire manufacturer’s identifica-
tion mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
* : The DOT symbol certifies
that the tire conforms to
applicable Federal Motor
Vehicle Safety Standards.
