2016 TOYOTA VENZA Owners Manual

2092-2. Instrument cluster
2
When driving
VENZA_OM_OM73030U_(U) ■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem to continue
using the display.
■ When “--”, “E” or “F” is displayed on the outside temperature display
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
■ Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
● When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)

2102-2. Instrument cluster
VENZA_OM_OM73030U_(U)Fuel consumption information Vehicles with Entune Premium Audio with Navigation and Entune
Audio Plus
Press the “APPS” button, and t hen select “Eco” on the screen.
Vehicles with Entune Audio
Press the “CAR” button.
Reset the trip information data
Previous fuel consumption per
minute
Cruising range
Average fuel consumption for the past 30 minutes is divided by
color into past averages and av erages attained since the engine
switch was last turned to the “ON” position (vehicles without a
smart key system) or IGNITION ON mode (vehicles with a smart
key system). Use the displayed av erage fuel consumption as a ref-
erence.
These images are examples only , and may vary slightly from
actual conditions. The fuel consumption information can be displayed on Entune Pre-
mium Audio with Navigation, Entune Audio Plus and Entune Audio
screen.

2112-2. Instrument cluster
2
When driving
VENZA_OM_OM73030U_(U) ■ Resetting the data
Selecting “Clear” will reset the trip information data.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.

212
VENZA_OM_OM73030U_(U) 2-3. Operating the lights and wipers
Headlight switch The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows.
Ty p e A
The daytime running
lights turn on.
(  P. 214)
The headlights, park-
ing lights, daytime run-
ning lights (  P. 214)
and so on turn on and
off automatically.
(When the “ENGINE
START STOP” switch is
in IGNITION ON mode
[vehicles with smart key
system] or the engine
switch is in the “ON”
position [vehicles with-
out smart key system].)
The side marker, park-
ing, tail, license plate,
daytime running lights
(  P. 214) and instru-
ment panel lights turn
on.
The headlights and all
lights listed above
(except daytime run-
ning lights) turn on.
The daytime running
lights turn off.Ty p e B
(Type A only) (Type B only)

2132-3. Operating the lights and wipers
2
When driving
VENZA_OM_OM73030U_(U) Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams. Vehicles with Automatic High
Beam: When the light switch is in
position, the Automatic
High Beam system will be acti-
vated. (  P. 216)
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams. Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.

2142-3. Operating the lights and wipers
VENZA_OM_OM73030U_(U) ■ Daytime running light system
● To make your vehicle more visible to others, the high beam headlights
turn on automatically at a reduced intensity (vehicles with halogen head-
lights) or the LED daytime running lights turn on automatically (vehicles
with discharge headlights) whenever the engine is started and the park-
ing brake is released. Daytime running lights are not designed for use at
night.
Type A: Daytime running lights can be turned off by operating the switch.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Headlight control sensor
■ Automatic light off system
Vehicles with smart key system
● When the headlights are on: The headlights and tail lights turn off 30
seconds after a door is opened and closed if the “ENGINE START
STOP” switch has been switched to ACCESSORY or OFF mode.
● When only the tail lights are on: The tail lights turn off automatically if
the “ENGINE START STOP” switch is switched to ACCESSORY or
OFF mode and driver’s door is opened.
To turn the lights on again, turn the “ENGINE START STOP” switch to
IGNITION ON mode, or turn the light switch off once and then back to the
or
position. The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

2152-3. Operating the lights and wipers
2
When driving
VENZA_OM_OM73030U_(U) Vehicles without smart key system
● When the headlights are on: The headlights and tail lights turn off 30
seconds after a door is opened and closed if the engine switch has
been switched to “ACC” or “LOCK” position.
● When only the tail lights are on: The tail lights turn off automatically if
the engine switch is switched to “ACC” or “LOCK” position and driver’s
door is opened.
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the light switch off once and then back to the or posi-
tion.
■ Automatic headlight leveling system (Vehicles with discharge head-
lights)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features  P. 645)
NOTICE■ To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

2162-3. Operating the lights and wipers

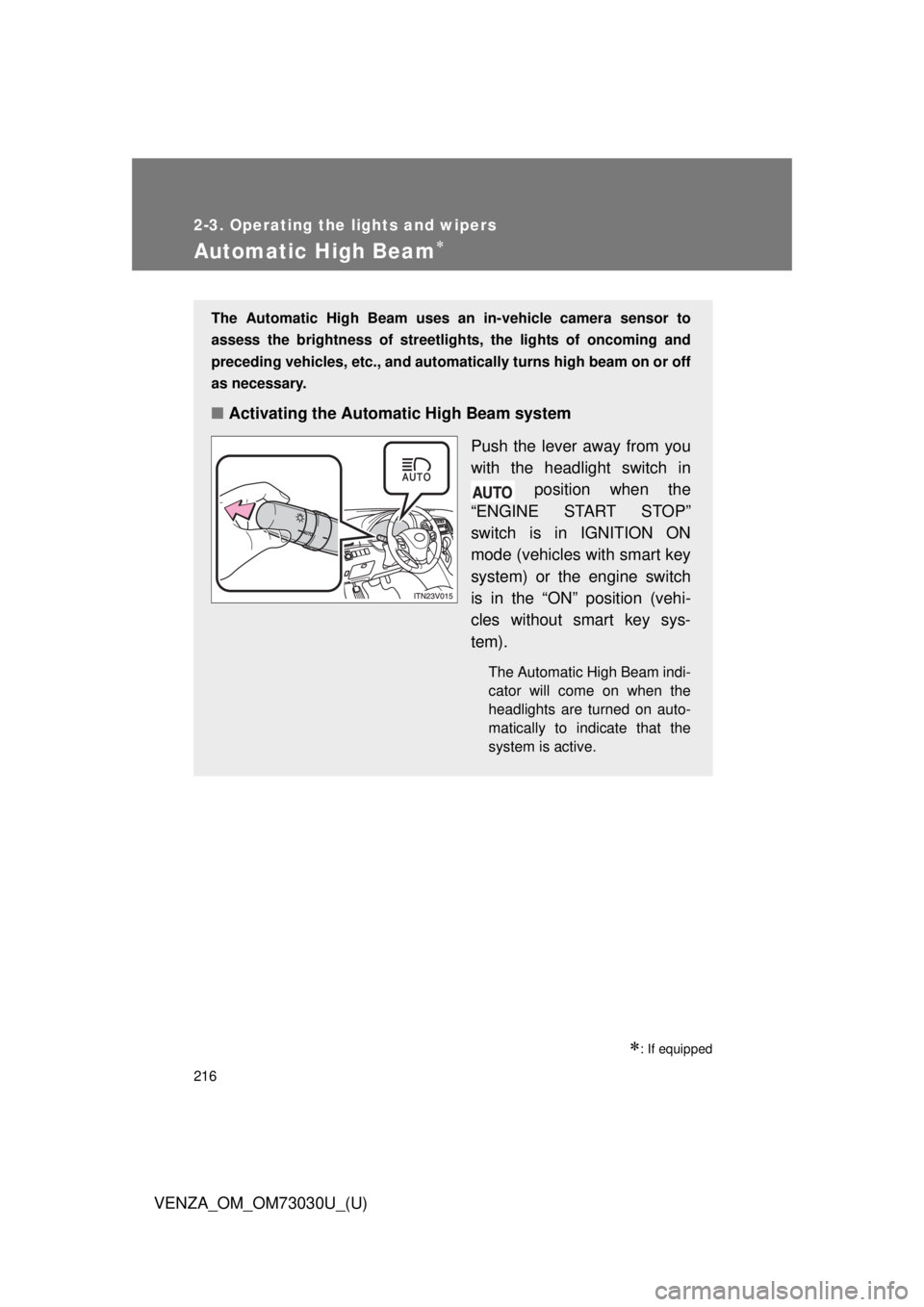

VENZA_OM_OM73030U_(U)Automatic High Beam 
 : If equippedThe Automatic High Beam uses an in-vehicle camera sensor to
assess the brightness of streetligh ts, the lights of oncoming and
preceding vehicles, etc., and automatically turns high beam on or off
as necessary.
■ Activating the Automatic High Beam system
Push the lever away from you
with the headlight switch in
position when the
“ENGINE START STOP”
switch is in IGNITION ON
mode (vehicles with smart key
system) or the engine switch
is in the “ON” position (vehi-
cles without smart key sys-
tem). The Automatic High Beam indi-
cator will come on when the
headlights are turned on auto-
matically to indicate that the
system is active.
