2016 TOYOTA VENZA Owners Manual

4573-5. Other interior features
3
Interior features
VENZA_OM_OM73030U_(U) Garage door opener The garage door opener (HomeLink 
Universal Transceiver) is manufac-
tured under license from HomeLink 
.
Programming HomeLink ®
(for U.S.A. owners)To ensure correct programming into the HomeLink ®
, install a new bat-
tery in the hand-held transmitter prior to programming. Failure to
install a new battery into the hand-h eld transmitter will affect both the
range and accuracy of the HomeLink ®
in your vehicle.
The battery side of the hand-held transmitter must be pointed away
from the HomeLink ®
during the programming process.
The HomeLink 
compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
ButtonsThe garage door opener can be programmed to operate garage
doors, gates, entry do ors, door locks, home lighting systems, secu-
rity systems, and other devices.

4583-5. Other interior features
VENZA_OM_OM73030U_(U) ■ Programming HomeLink ®
Point the remote control trans-
mitter for the device 1 to 3 in. (25
to 75 mm) from the HomeLink 
buttons. Keep the HomeLink 
indicator
light in view while programming.
Press and hold one of the
HomeLink 
buttons and the
transmitter button. When the
HomeLink 
indicator light
changes from a slow to a rapid
flash within 20 seconds, you can
release both buttons.STEP 1
STEP 2

4593-5. Other interior features
3
Interior features
VENZA_OM_OM73030U_(U) Test the HomeLink 
operation
by pressing the newly pro-
grammed button. If a HomeLink 
button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
remote control transmitter is of
the rolling code type. Press and
hold the programmed HomeLink 
button. The remote control trans-
mitter is of the rolling code type if
the HomeLink 
indicator light
flashes rapidly for 2 seconds and
then remains lit. If your transmit-
ter is of the rolling code type, pro-
ceed to the heading
“Programming a rolling code sys-
tem”.
Repeat the steps above to program another device for each of
the remaining HomeLink 
buttons.STEP 3
STEP 4

4603-5. Other interior features
VENZA_OM_OM73030U_(U) ■ Programming a rolling code system
If your device is rolling code e quipped, follow the steps under the
heading “Programming HomeLink 
” before proceeding with the
steps listed below.
Locate the learn button on t he ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor. Refer to the operation manual supplied with the garage door opener
motor for the location of the learn button.
Press the learn button. Following this step, you have 30 seconds in which to initiate step 3
below.
Press and hold the vehicle’s programmed HomeLink 
button
for 2 seconds and release it. Repeat this step once again. The
garage door may open. If the garage door opens, the programming process is complete. If
the door does not open, press and release the button a third time.
This third press and release will complete the programming process
by opening the garage door.
The ceiling mounted garage door opener motor should now recog-
nize the HomeLink 
signal and operate the garage door.
Repeat the steps above to prog ram another rolling code sys-
tem for any of the remaining HomeLink 
buttons.STEP 1
STEP 2
STEP 3
STEP 4

4613-5. Other interior features
3
Interior features
VENZA_OM_OM73030U_(U) ■ Programming an entry gate (f or U.S.A. owners)/Programming
all devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the
surface of the HomeLink 
.Keep the HomeLink 
indicator light in view while programming.
Press and hold the selected HomeLink 
button.
Repeatedly press and releas e (cycle) the device’s remote
control button for two seconds each until step 4 is completed.
When the indicator light on the HomeLink 
compatible trans-
ceiver starts to flash rapidly, release the buttons.
Test the operation of the HomeLink 
by pressing the newly
programmed button. Check to see if the gate/device operates
correctly.
Repeat the steps above to program another device for each of
the remaining HomeLink 
buttons.
■ Programming other devices
To program other devices such as home security systems, home
door locks or lighting, contact your authorized Toyota dealer for
assistance.
■ Reprogramming a button
The individual HomeLink 
buttons cannot be erased but can be
reprogrammed. To reprogram a bu tton, follow the “Programming”
instructions. STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6

4623-5. Other interior features
VENZA_OM_OM73030U_(U) Operating HomeLink ®
Press the appropriate HomeLink 
button. The HomeLink 
indicator
light should come on. The HomeLink 
compatible transceiver in your vehicle continues to send
a signal for up to 20 seconds as long as the button is pressed.
Erasing the entire HomeLink ®
memory (all three programs)
Press and hold the 2 outside but-
tons for 10 seconds (or 20 sec-
onds depending on the model)
until the indicator light flashes. If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink 
memory.

4633-5. Other interior features
3
Interior features
VENZA_OM_OM73030U_(U) ■ Before programming
● Install a new battery in the remote control transmitter.
● The battery side of the remote control transmitter must be pointed away
from the HomeLink 
button.
■ Certification for the garage door opener
FCC ID: CB2300NHL3
FCC ID: CB2281AHL4
NOTE:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
■ For additional programming assistance with your HomeLink ®
Univer-
sal Transceiver
Visit on the web at www.homelink.com or call 1-800-355-3515.
CAUTION■ When programming a garage door or other remote control devices
The garage door or other devices may operate, so ensure people and
objects are out of danger to prevent potential harm.
■ Conforming to federal safety standards
Do not use the HomeLink 
compatible transceiver with any garage door
opener or device that lacks safety stop and reverse features as required by
federal safety standards.
This includes any garage door that cannot detect an interfering object. A
door or device without these features increases the risk of death or serious
injury.

4643-5. Other interior features

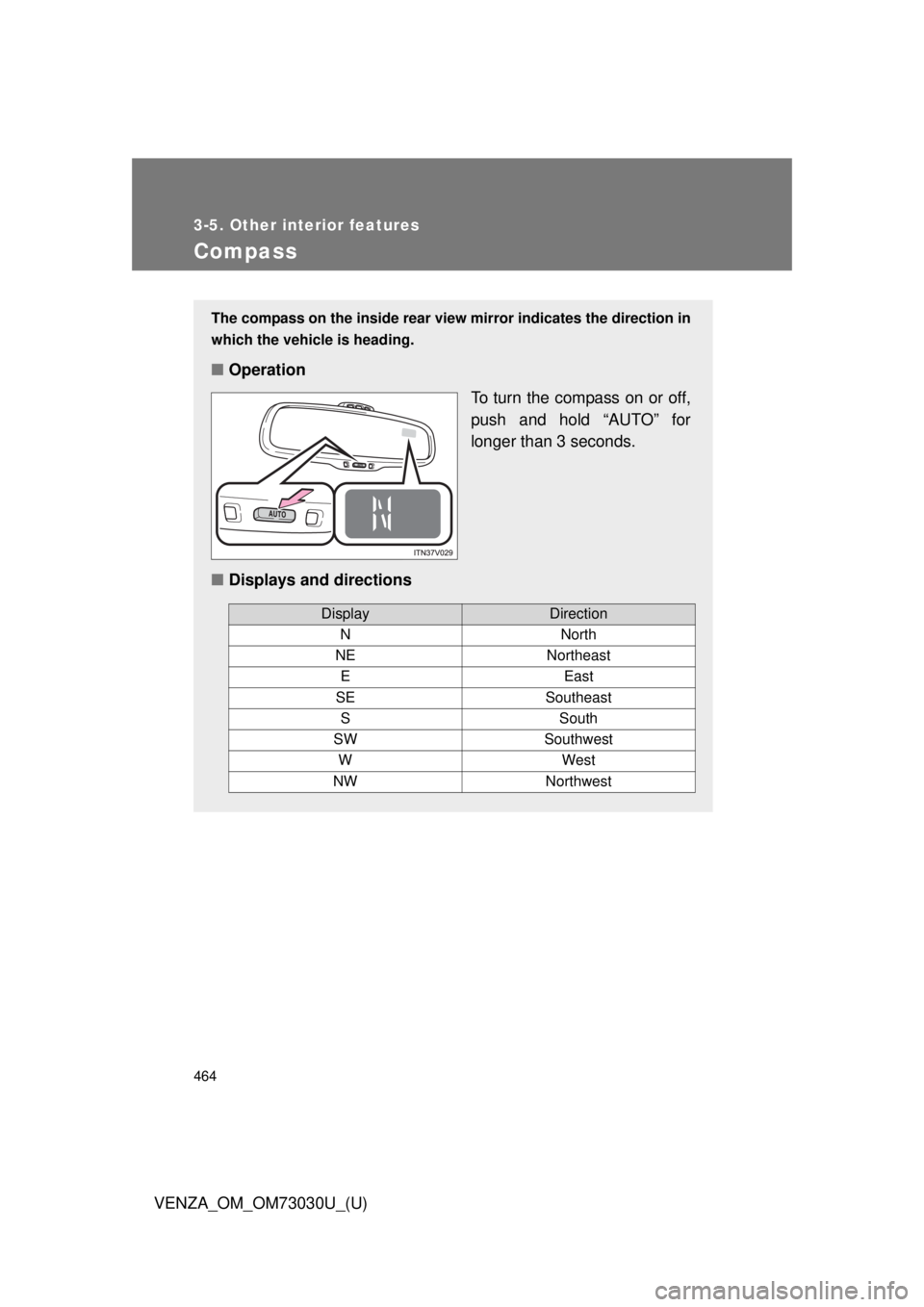

VENZA_OM_OM73030U_(U)Compass The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
■ Operation
To turn the compass on or off,
push and hold “AUTO” for
longer than 3 seconds.
■ Displays and directions Display Direction
N North
NE Northeast
E East
SE Southeast
S South
SW Southwest
W West
NW Northwest
