2016 TOYOTA VENZA Owners Manual

89 1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
VENZA_OM_OM73030U_(U) Inside rear view mirror Adjusting the height of rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view in accordance with the driver’s seating
posture.

901-3. Adjustable components (s eats, mirrors, steering wheel)
VENZA_OM_OM73030U_(U) Automatic anti-glare function
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode ON/OFF When the automatic anti-glare
function is in ON mode, the indi-
cator illuminates.
Vehicles with smart key system
The function will set to ON
mode each time the “ENGINE
START STOP” switch is turned
to IGNITION ON mode.
Pressing the button turns the
function to OFF mode. (The
indicator also turns off.)
Vehicles without smart key
system
The function will set to ON
mode each time the engine
switch is turned to the “ON”
position.
Pressing the button turns the
function to OFF mode. (The
indicator also turns off.)Indicator

911-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving
VENZA_OM_OM73030U_(U) ■ To prevent sensor error
CAUTION■ While driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the vehicle and an accident, or result-
ing in death or serious injury. To ensure correct functioning of the sen-
sors, do not touch or cover the sensors.

921-3. Adjustable components (seats, mirrors, steering wheel)

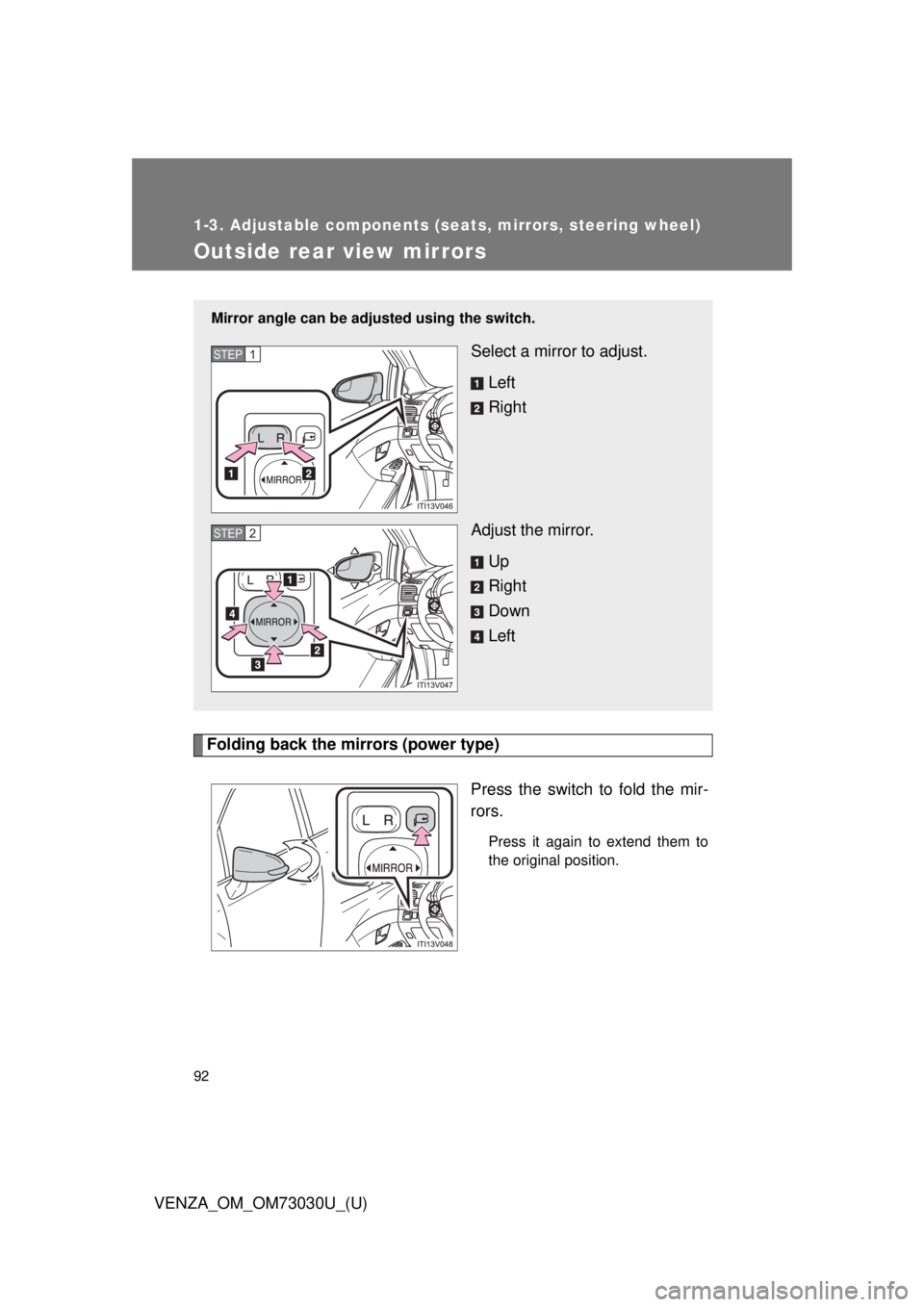

VENZA_OM_OM73030U_(U)Outside rear view mirrors
Folding back the mirrors (power type)
Press the switch to fold the mir-
rors. Press it again to extend them to
the original position.Mirror angle can be adju sted using the switch.
Select a mirror to adjust.
Left
Right
Adjust the mirror.
Up
Right
Down
LeftSTEP 1
STEP 2

931-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving
VENZA_OM_OM73030U_(U) Folding back the mirrors (manual type)
Push backward to fold the mir-
rors.
Blind Spot Mirrors
The Blind Spot Mirrors increase
the view of surrounding area to
assist the driver when checking
surrounding area before chang-
ing lanes.
Blind Spot Mirror field of view
Main mirror field of view

941-3. Adjustable components (s eats, mirrors, steering wheel)
VENZA_OM_OM73030U_(U) Linked mirror function when reversing (if equipped)
When the mirror select switch is in the L or R position, the outside
rear view mirrors will automatically angle downwards when the vehi-
cle is reversing in order to give a better view of the ground.
To disable this function, move the mirror select switch to the neutral
position (between L and R).
■ Adjusting the mirror angle when the vehicle is reversing
With the shift lever in R, adjust the mirror angle at a desired posi-
tion.
The adjusted angle will be memorized and the mirror will automati-
cally tilt to the memorized angle whenever the shift lever is shifted
to R from next time. The memorized downward tilt position of the mirror is linked to the nor-
mal position (angle adjusted when the shift lever in other than R). There-
fore, if the normal position is changed after adjustment, the tilt position
will also change.
When the normal position is changed, readjust the angle in reversing.
■ Mirror angle can be adjusted when
Vehicles with smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Vehicles without smart key system
The engine switch is in the “ACC” or “ON” position.
■ When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers.
Turn on the rear window defogger to turn on the outside rear view mirror
defoggers. (  P. 316)
■ Automatic adjustment of the mirror angle (if equipped)
The mirror adjustment can be entered into memory and recalled automati-
cally by the driving position memory. (  P. 73)

951-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving
VENZA_OM_OM73030U_(U) CAUTION■ While driving
Observe the following precautions.
Failing to do so may result in losing control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
● Do not adjust the mirrors.
● Do not drive with the mirrors folded back.
● Before driving, be sure to extend mirrors and make an adjustment prop-
erly.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defo ggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
NOTICE■ If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

96

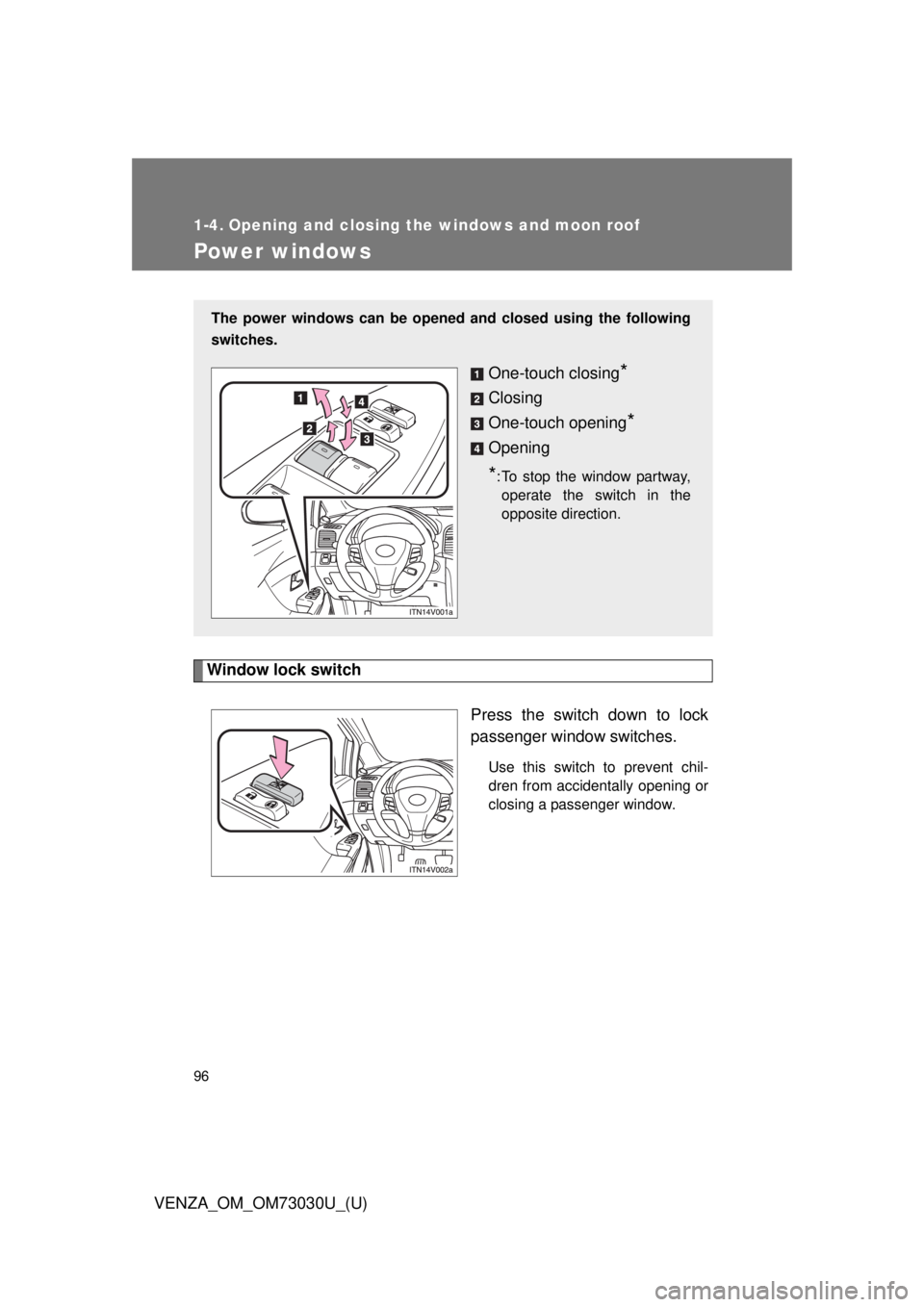

VENZA_OM_OM73030U_(U) 1-4. Opening and closing the windows and moon roof
Power windows
Window lock switch
Press the switch down to lock
passenger window switches. Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.The power windows can be opened and closed using the following
switches.
One-touch closing
*Closing
One-touch opening
*Opening
* : To stop the window partway,
operate the switch in the
opposite direction.
