2016 TOYOTA VENZA Owners Manual

971-4. Opening and closing the windows and moon roof
1
Before driving
VENZA_OM_OM73030U_(U) ■ The power windows can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
■ Operating the power windows after turning the engine off
Vehicles with smart key system
The power windows can be operated for approximately 45 seconds even
after the “ENGINE START STOP” switch is turned to ACCESSORY mode
or turned off. They cannot, however, be operated once either front door is
opened.
Vehicles without smart key system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They
cannot, however, be operated once either front door is opened.
■ Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.

981-4. Opening and closing the windows and moon roof
VENZA_OM_OM73030U_(U) ■ When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the relevant door.
● After stopping the vehicle, the window can be closed by holding the
power window switch in the one-touch closing position while the
“ENGINE START STOP” switch is turned to IGNITION ON mode (vehi-
cles with smart key system) or the engine switch is turned to the “ON”
position (vehicles without smart key system).
● If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position.
Continue holding the switch for a further 6 seconds after the win-
dow has closed.
Hold the power window switch in the one-touch opening position.
Continue holding the switch for a further 2 seconds after the win-
dow has opened completely.
Hold the power window switch in the one-touch closing position
once again. Continue holding the switch for a further 2 seconds
after the window has closed.
If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected
by your Toyota dealer.
■ Customization
Settings (e.g. Rear window Auto Up/Down) can be changed.
(Customizable features  P. 645)STEP 1
STEP 2
STEP 3

991-4. Opening and closing the windows and moon roof
1
Before driving
VENZA_OM_OM73030U_(U) CAUTION■ Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
● The driver is responsible for all t he power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. (  P. 96)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Vehicles with smart key system:
When exiting the vehicle, turn the “ENGINE START STOP” switch off,
carry the key and exit the vehicle along with the child. There may be acci-
dental operation, due to mischief, etc., that may possibly lead to an acci-
dent.
Vehicles without smart key system:
When exiting the vehicle, turn the engine switch to the “LOCK” position,
carry the key and exit the vehicle along with the child. There may be acci-
dental operation, due to mischief, etc., that may possibly lead to an acci-
dent.
■ Jam protection function
● Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the window fully closes.

1001-4. Opening and closing the windows and moon roof

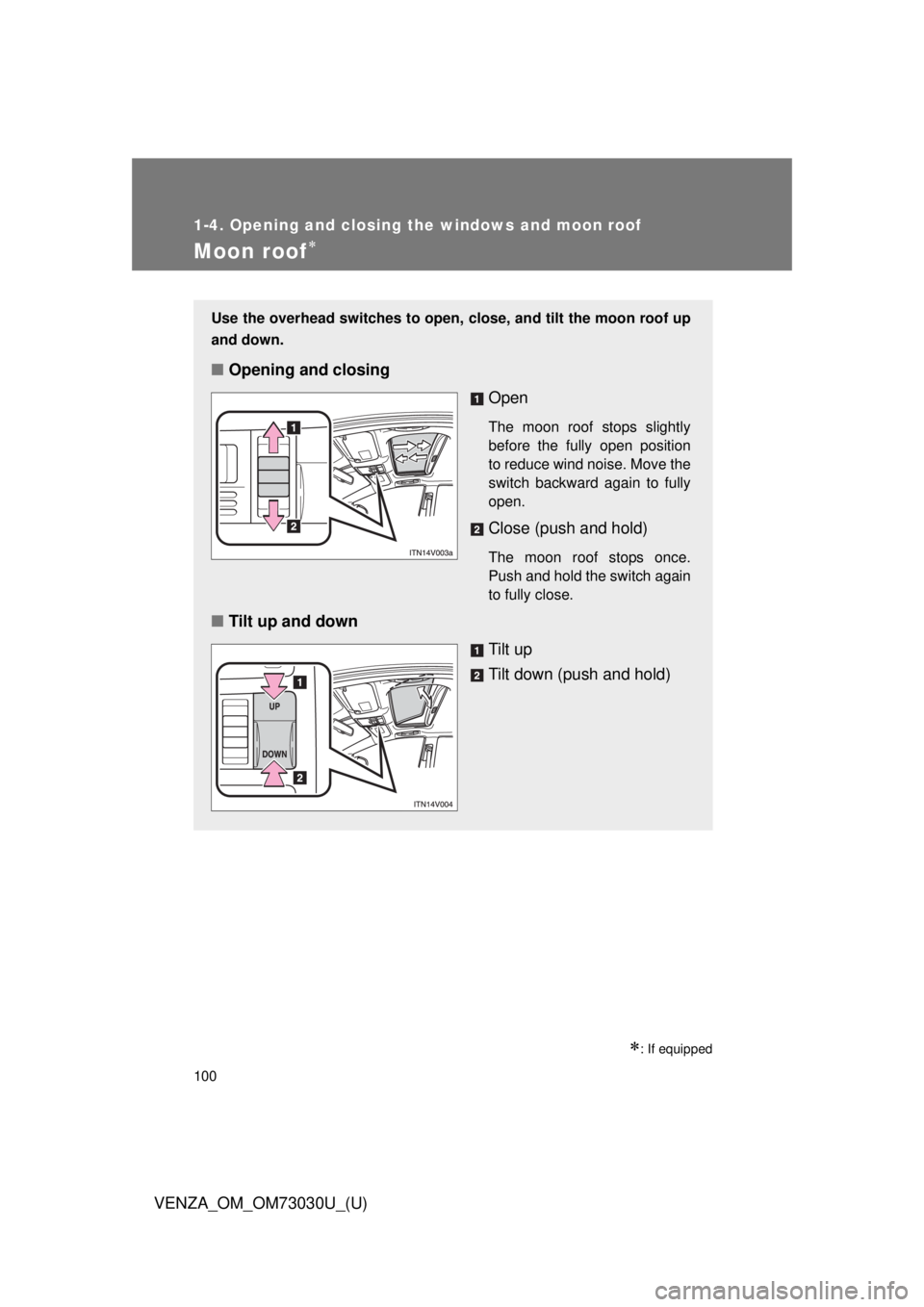

VENZA_OM_OM73030U_(U)Moon roof 
 : If equippedUse the overhead switches to open, close, and tilt the moon roof up
and down.
■ Opening and closing
Open The moon roof stops slightly
before the fully open position
to reduce wind noise. Move the
switch backward again to fully
open.
Close (push and hold) The moon roof stops once.
Push and hold the switch again
to fully close.
■ Tilt up and down
Tilt up
Tilt down (push and hold)

1011-4. Opening and closing the windows and moon roof
1
Before driving
VENZA_OM_OM73030U_(U) ■ The moon roof can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
■ Operating the moon roof af ter turning the engine off
Vehicles with smart key system
The moon roof can be operated for approximately 45 seconds even after
the “ENGINE START STOP” switch is turned to ACCESSORY mode or
turned off. It cannot, however, be operated once either front door is
opened.
Vehicles without smart key system
The moon roof can be operated for approximately 45 seconds even after
the engine switch is turned to the “ACC” or “LOCK” position. It cannot,
however, be operated once either front door is opened.
■ To reduce moon roof wind noise
When the moon roof is opened automatically, it will stop slightly before the
fully open position. Driving with the moon roof in this position can help
reduce wind noise.
■ Sunshade
 P. 104
■ Open moon roof warning buzzer
Vehicles with smart key system
The buzzer sounds and message is shown on the multi-information dis-
play (TFT type only) when the “ENGIN E START STOP” switch is turned
off and the driver’s door is opened with the moon roof open.
Vehicles without smart key system
The buzzer sounds and message is shown on the multi-information dis-
play (TFT type only) when the engine switch is turned to the “LOCK” posi-
tion and the driver’s door is opened with the moon roof open.

1021-4. Opening and closing the windows and moon roof
VENZA_OM_OM73030U_(U) ■ When the moon roof does not close normally
Perform the following procedure:
Stop the vehicle.
Open the moon roof halfway.
Press and hold the open/close switch in the close position.
When the moon roof reaches the full close position, maintain the
open/close switch in the close position for more than 2 seconds.
It will adjust slightly and then stop.
To ensure the initialization is complete, make sure opening, closing,
tilting up and down functions work properly.
If the moon roof does not fully close even after performing the above proce-
dure correctly, have the vehicle inspected by your Toyota dealer. STEP 1
STEP 2
STEP 3
STEP 4

1031-4. Opening and closing the windows and moon roof
1
Before driving
VENZA_OM_OM73030U_(U) CAUTION■ Opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
● Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the moon roof.
■ Closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
● The driver is responsible for moon roof opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a
child operate the moon roof. It is possible for children and other passen-
gers to have body parts caught in the moon roof.
● Check to make sure that all passengers do not have any part of their bod-
ies in a position where they could be caught when the moon roof is being
operated.
● Vehicles with smart key system:
When exiting the vehicle, turn the “ENGINE START STOP” switch off,
carry the key and exit the vehicle along with the child. There may be acci-
dental operation, due to mischief, etc., that may possibly lead to an acci-
dent.
Vehicles without smart key system:
When exiting the vehicle, turn the engine switch to the “LOCK” position,
carry the key and exit the vehicle along with the child. There may be acci-
dental operation, due to mischief, etc., that may possibly lead to an acci-
dent.

1041-4. Opening and closing the windows and moon roof

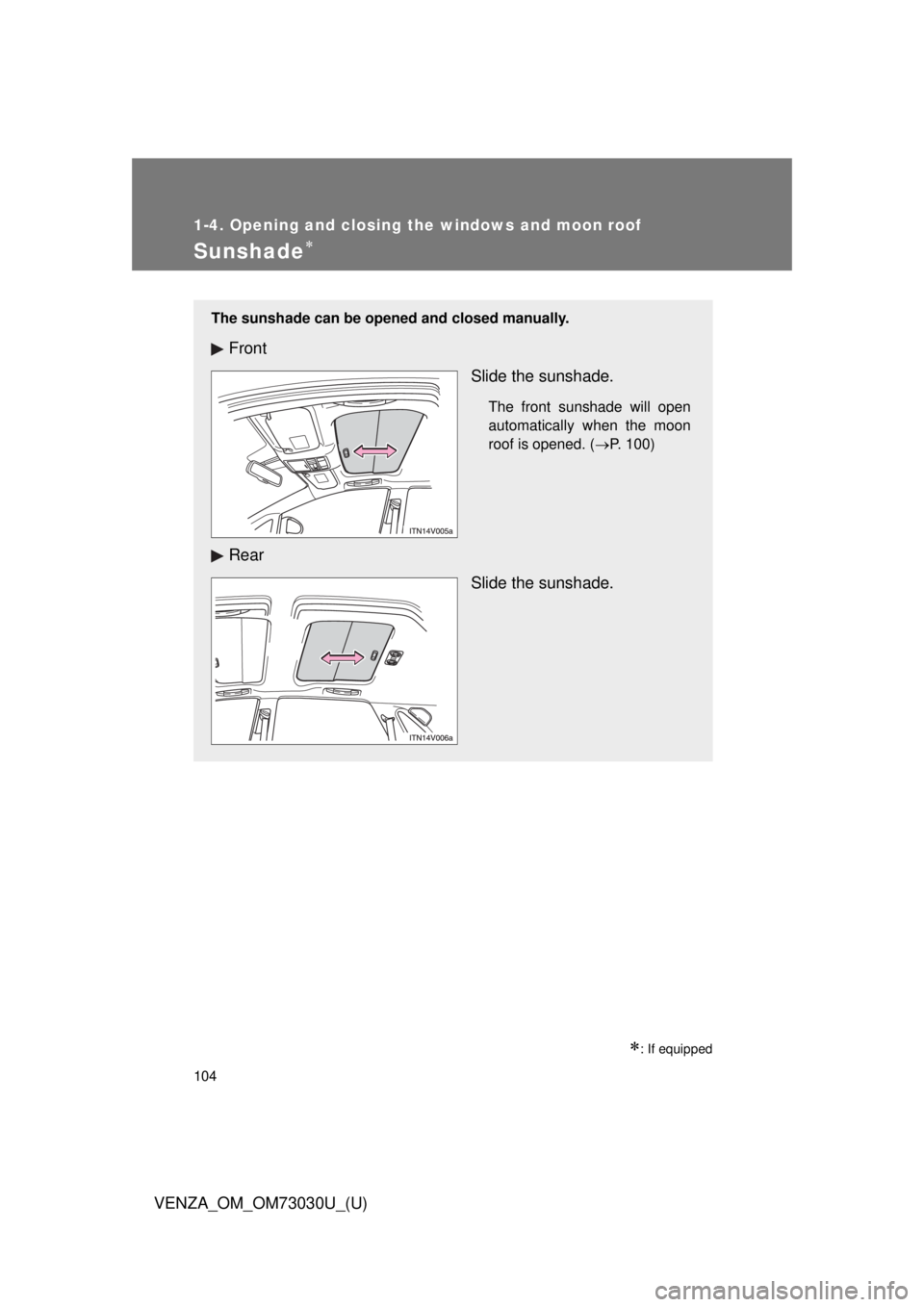

VENZA_OM_OM73030U_(U)Sunshade 
 : If equippedThe sunshade can be opened and closed manually.
Front
Slide the sunshade. The front sunshade will open
automatically when the moon
roof is opened. (  P. 100)
Rear
Slide the sunshade.
