2016 TOYOTA VENZA Owners Manual

5134-3. Do-it-yourself maintenance
4
Maintenance and care

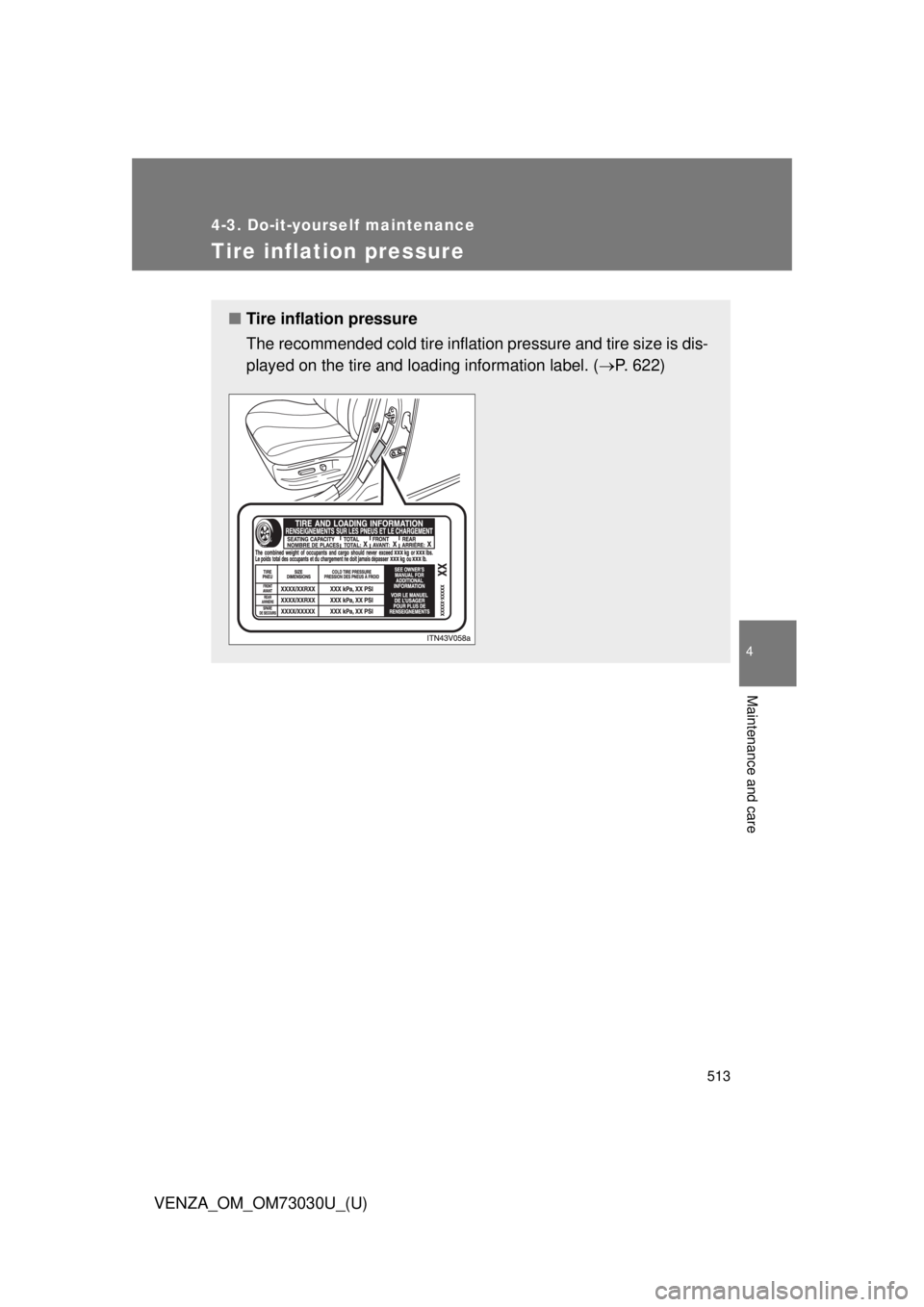

VENZA_OM_OM73030U_(U) Tire inflation pressure ■ Tire inflation pressure
The recommended cold tire inflation pressure and tire size is dis-
played on the tire and loadi ng information label. (  P. 622)

5144-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) ■
Tire inflation pressure check interval
You should check tire inflation pressu re every 2 weeks, or at least once a
month.

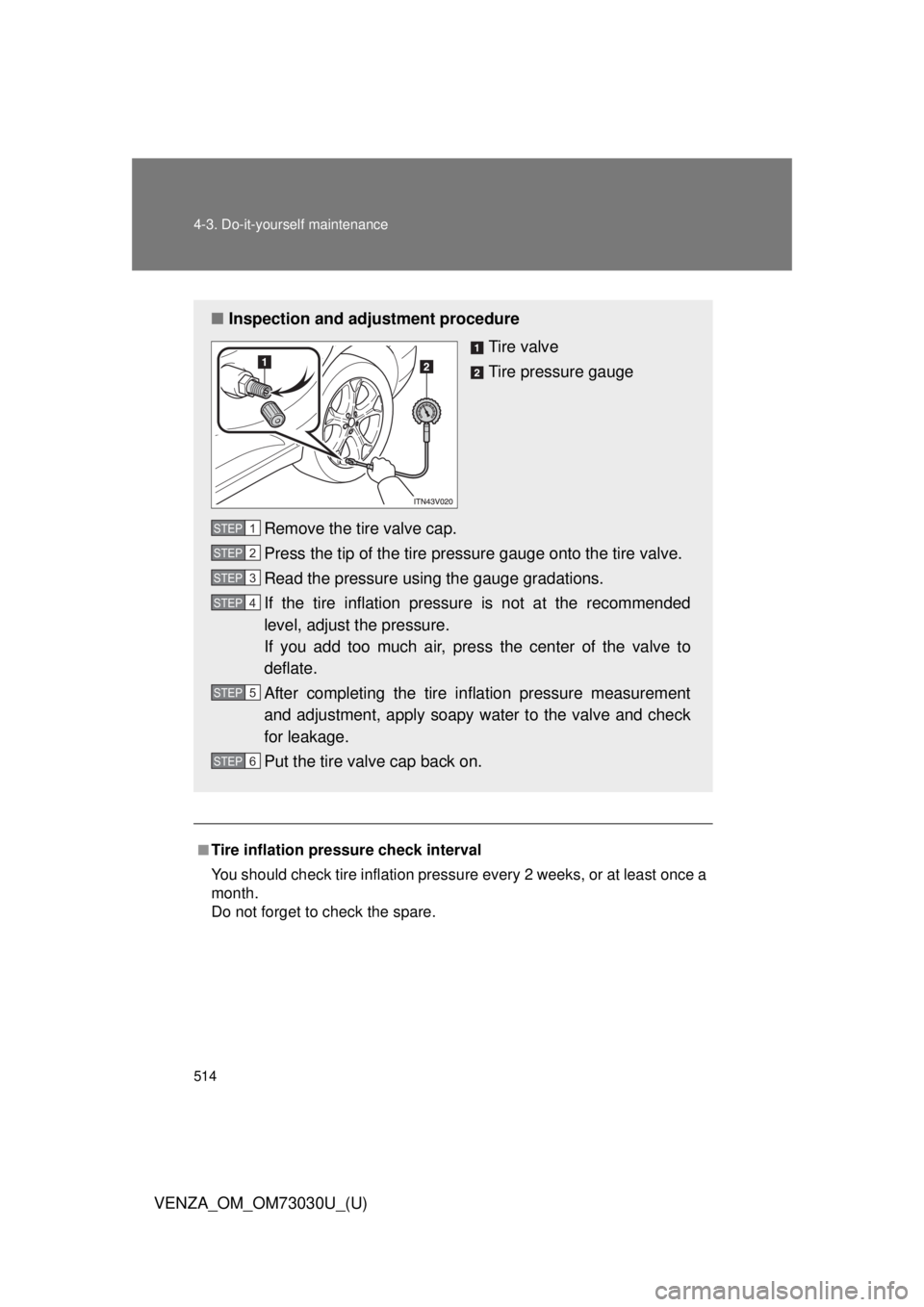

Do not forget to check the spare.■ Inspection and adjustment procedure
Tire valve
Tire pressure gauge
Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the gauge gradations.
If the tire inflation pressure is not at the recommended
level, adjust the pressure.
If you add too much air, pres s the center of the valve to
deflate.
After completing the tire inflation pressure measurement
and adjustment, apply soapy water to the valve and check
for leakage.
Put the tire valve cap back on. STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6

5154-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) ■
Effects of incorrect tire inflation pressure
Driving with incorrect ti re inflation pressure ma y result in the following:●
Reduced fuel economy●
Reduced driving comfort and poor handling●
Reduced tire life due to wear●
Reduced safety●
Damage to the drive train
If a tire needs frequent re filling, have it checked by your Toyota dealer.■
Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following: ●
Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been
driven for more than 1 mile or 1.5 km, you will get an accurate cold
tire inflation pressure reading.●
Always use a tire pressure gauge.
It is difficult to judge if a tire is properly inflated based only on its
appearance.●
It is normal for the tire inflation pressure to be higher after driving as
heat is generated in the tire. Do not reduce tire inflation pressure after
driving.●
Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle
is balanced.

5164-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) CAUTION■
Proper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated , the following cond itions may occur
which could lead to an accident resulting in death or serious injury: ●
Excessive wear●
Uneven wear●
Poor handling●
Possibility of blowouts resu lting from overheated tires●
Air leaking from between tire and wheel●
Wheel deformation and / or tire damage●
Greater possibility of tire damage wh ile driving (due to road hazards,
expansion joints, sharp edges in the road, etc.)
NOTICE■
When inspecting and adjusting tire inflation pressure
Be sure to reinstall the tire valve caps.
If a valve cap is not installed, dirt or moisture may get into the valve and
cause an air leak, resulting in decreased tire inflation pressure.

5174-3. Do-it-yourself maintenance
4
Maintenance and care

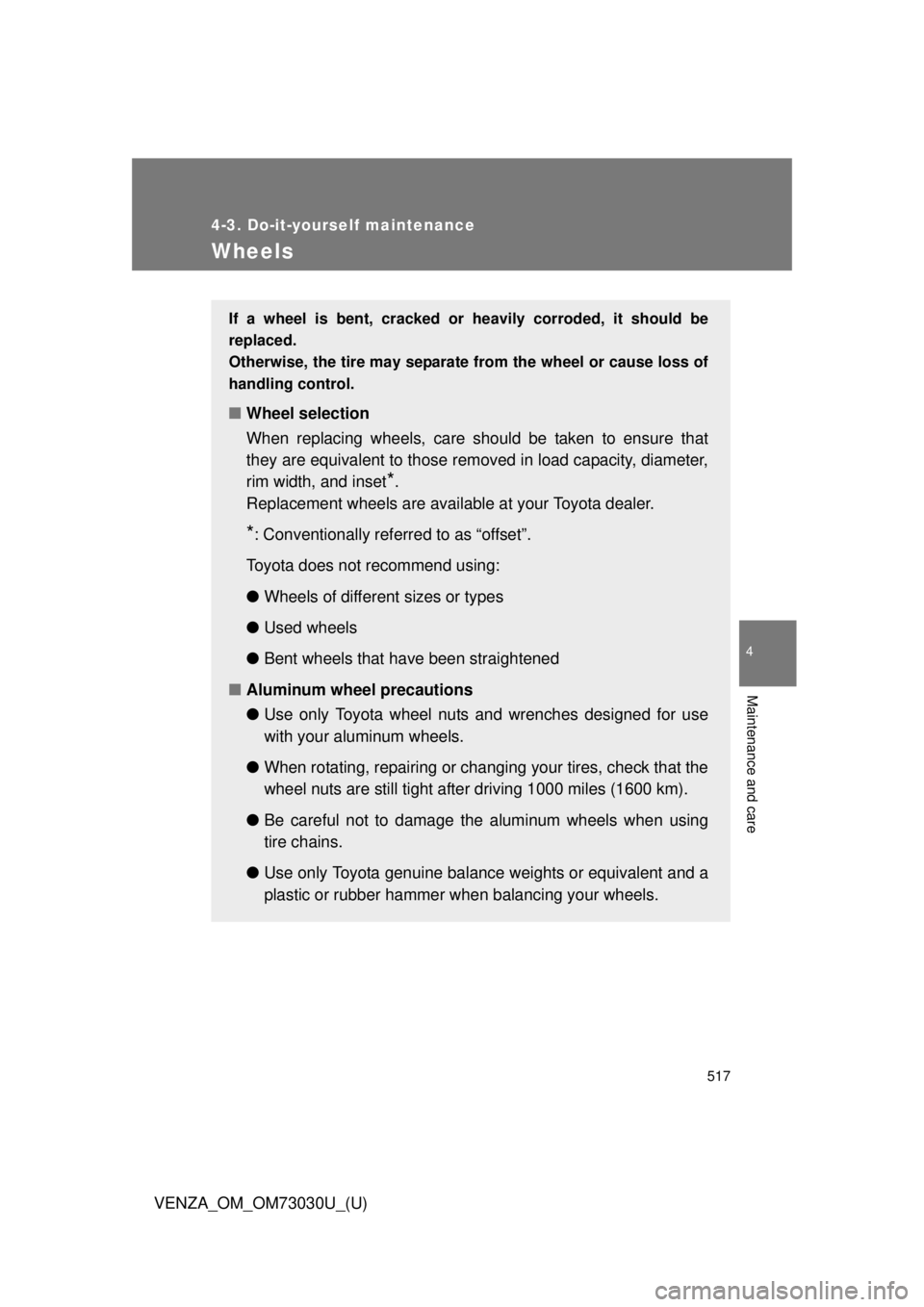

VENZA_OM_OM73030U_(U) Wheels If a wheel is bent, cracked or heavily corroded, it should be
replaced.
Otherwise, the tire may separate from the wheel or cause loss of
handling control.
■ Wheel selection
When replacing wheels, care should be taken to ensure that
they are equivalent to those removed in load capacity, diameter,
rim width, and inset
* .
Replacement wheels are available at your Toyota dealer.
* : Conventionally referred to as “offset”.
Toyota does not recommend using:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
■ Aluminum wheel precautions
● Use only Toyota wheel nuts and wrenches designed for use
with your aluminum wheels.
● When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
● Be careful not to damage the aluminum wheels when using
tire chains.
● Use only Toyota genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.

5184-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) ■
When replacing wheels
The wheels of your Toyota are equipped with tire pressure warning
valves and transmitters that allow the tire pressure warning system to
provide advanced warning in the event of a loss in tire inflation pressure.
Whenever wheels are replaced, the tire pressure warning valves and
transmitters must be installed. (  P. 507)
CAUTION■
When replacing wheels ●
Do not use wheels that are a different size from those recommended in
the Owner’s Manual, as this may re sult in loss of handling control.●
Never use an inner tube in a leaking wheel which is designed for a
tubeless tire. Doing so may result in an accident, causing death or seri-
ous injury.

5194-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) CAUTION■
When installing the wheel nuts
●
Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an
accident and resulting in death or serious injury. Remove any oil or
grease from the wheel bolts or wheel nuts.■
Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing
an accident.
NOTICE■
Replacing tire pressure warning valves and transmitters
●
Because tire repair or replacement may affect the tire pressure warn-
ing valves and transmitters, make su re to have tires serviced by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase your tire pressure warning valves and transmitters at your
Toyota dealer.
●
Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly
with non-genuine wheels. ●
Be sure to install the wheel nuts with
the tapered ends facing inward.
Installing the nuts with the tapered
ends facing outward can cause the
wheel to break and eventually cause
the wheel to come off while driving,
which could lead to an accident
resulting in death or serious injury.Tapered
portion

5204-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U)Air conditioning filter The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
■ Removal method
Vehicles with smart key system:
Turn the “ENGINE START STOP” switch off.
Vehicles without smart key system:
Turn the engine switch to the “LOCK” position.
Open the glove box. Slide off
the damper.
Push each side of the glove
box to release the pins. Then
disconnect the claws at the
bottom and remove the glove
box.STEP 1
STEP 2
STEP 3
