2016 TOYOTA VENZA Owners Manual

5374-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) Light bulbs You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. (  P. 624)
■ Turn the power back door main switch off. (vehicles with
power back door)
 P. 5 9
■ Front bulb locations
Vehicles with halogen headlights Headlight low beam
Headlight high beam
Front turn signal/parking light Front fog light Front side marker lightDaytime running right

5384-3. Do-it-yourself maintenance

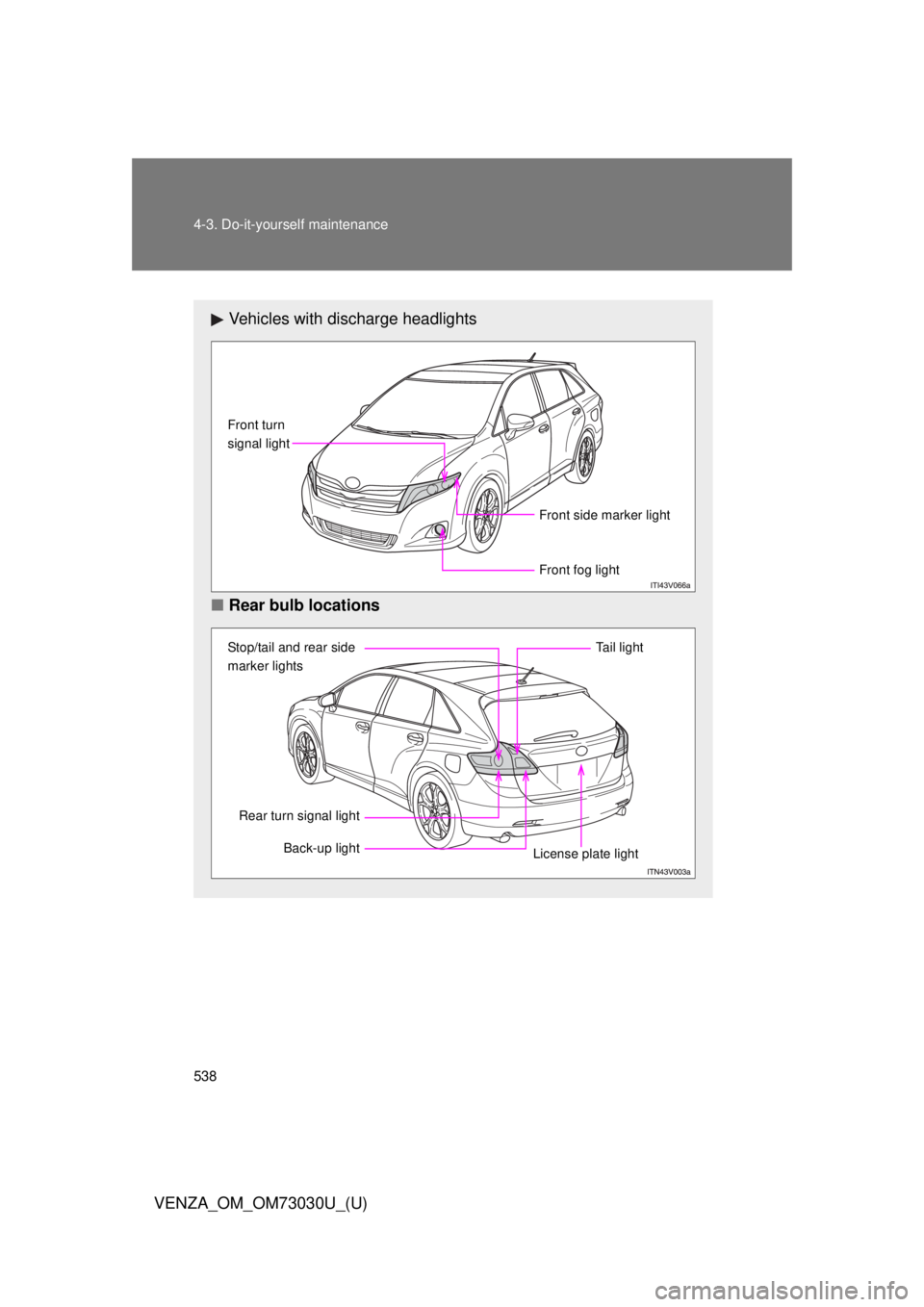

VENZA_OM_OM73030U_(U) Vehicles with discharge headlights
■ Rear bulb locations Front fog lightFront turn
signal light
Front side marker light
Stop/tail and rear side
marker lights
Back-up light Tail light
License plate lightRear turn signal light

5394-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) Replacing light bulbs
■ Headlight low beams (vehicle s with halogen headlights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.STEP 1
STEP 2

5404-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) Replace the light bulb, and install
the bulb base. Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base. Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.STEP 3
STEP 4

5414-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) ■ Headlight high beams and d aytime running lights (vehicles
with halogen headlights)
Unplug the connector while
pushing the lock release.
Turn the bulb base counterclock-
wise.
Replace the light bulb, and install
the light bulb. Align the 3 tabs on the light bulb
with the mounting, and insert.STEP 1
STEP 2
STEP 3

5424-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) Turn and secure the bulb base.
Install the connector. Shake the bulb base gently to check that it is not loose, turn the
headlights on once and visually confirm that no light is leaking
through the mounting. STEP 4
STEP 5

5434-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) ■ Front fog lights
Remove the engine under cover
bolt and pull down the engine
under cover.
Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.STEP 1
STEP 2
STEP 3

5444-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) Replace the light bulb, and install
the bulb base. Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base. Shake the bulb base gently to
check that it is not loose, turn the
front fog lights on once and visu-
ally confirm that no light is leaking
through the mounting.
■ Front turn signal/parking lights (vehicles with halogen head-
lights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP 4
STEP 5
STEP 1
STEP 2
