2016 TOYOTA VENZA Owners Manual

5054-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) Washer fluid
If any washer does not work or
the low windshield washer fluid
level warning light comes on, the
washer tank may be empty. Add
washer fluid.
CAUTION■ When refilling the washer fluid
Do not refill the washer fluid when the engine is hot or running, as the
washer fluid contains alcohol and may catch fire if spilled on the engine etc.
NOTICE■ Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

5064-3. Do-it-yourself maintenance

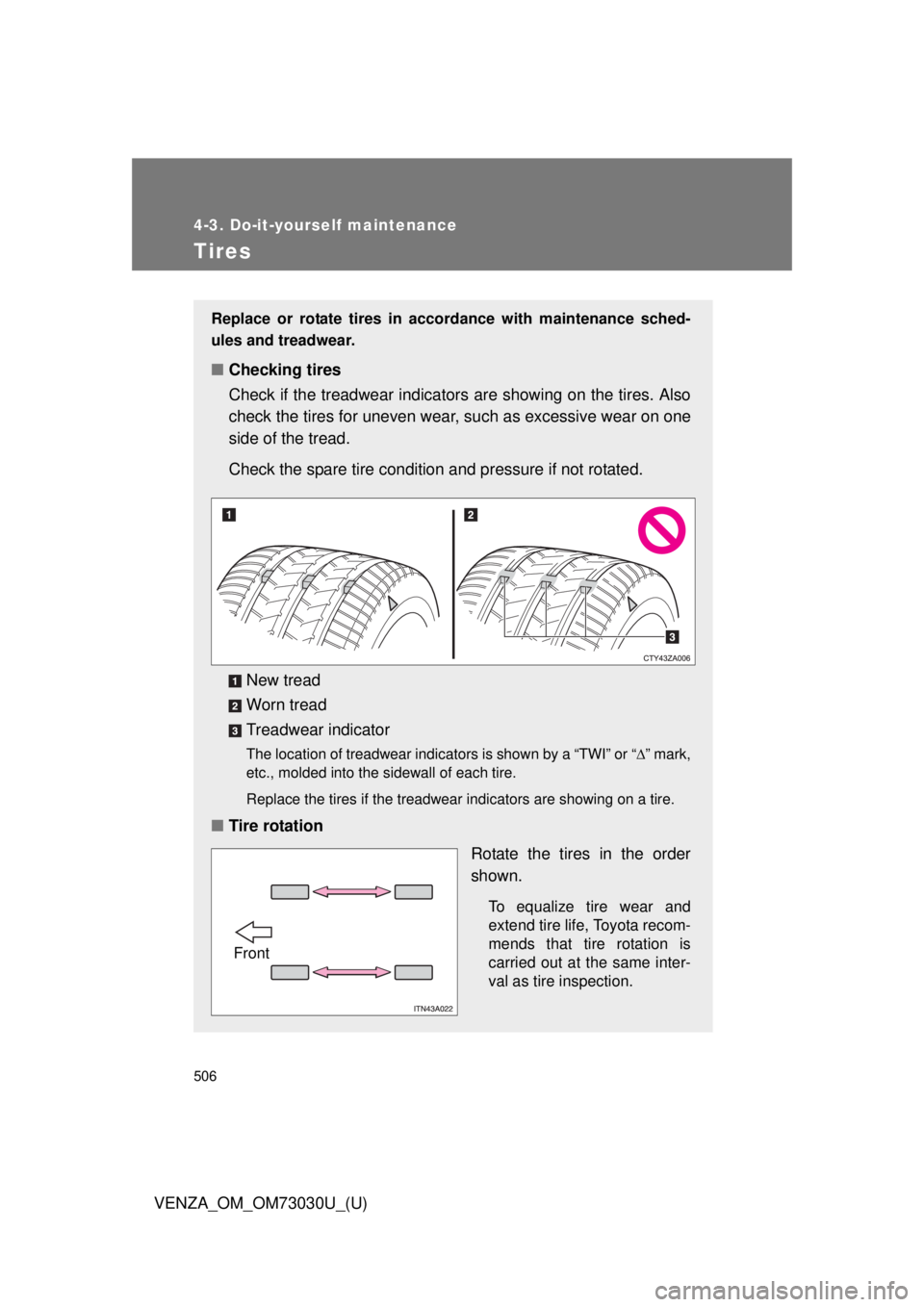

VENZA_OM_OM73030U_(U)Tires Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
■ Checking tires
Check if the treadwear indicators are showing on the tires. Also
check the tires for uneven wear, such as excessive wear on one
side of the tread.
Check the spare tire condition and pressure if not rotated.
New tread
Worn tread
Treadwear indicator The location of treadwear indicators is shown by a “TWI” or “  ” mark,
etc., molded into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.
■ Tire rotation
Rotate the tires in the order
shown.
To equalize tire wear and
extend tire life, Toyota recom-
mends that tire rotation is
carried out at the same inter-
val as tire inspection.Front

5074-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and
transmitters must also be installed.
When new tire pressure warning valves and transmitters are
installed, new tire pressure warning valve and transmitter ID codes
must be registered in the tire pre ssure warning computer and the tire
pressure warning system must be initialized. Have tire pressure
warning valve and transmitter ID codes registered by your Toyota
dealer.
Registering ID codes
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to regi ster the ID code of tire pressure
warning valve and transmitter. Have the ID code registered by your
Toyota dealer.■ The tire pressure warning system
Your Toyota is equipped with a tire pressure warning system that
uses tire pressure warning valves and transmitters to detect low
tire inflation pressure before serious problems arise. (  P. 567)
The compact spare tire is not equipped with a tire pressure
warning valve and transmitter.

5084-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) ■
When to replace your vehicle’s tires
Tires should be replaced if: ●
The treadwear indicators are showing on a tire.●
You have tire damage such as cuts, splits, cracks deep enough to
expose the fabric or bulges indicating internal damage●
A tire goes flat repeatedly or c annot be properly repaired due to the
size or location of a cut or other damage
If you are not sure, consult with your Toyota dealer.■
Replacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not
registered, the tire pre ssure warning system will not work properly. After
driving for about 20 minutes, the ti re pressure warning light comes on
after blinking for 1 minute to indicate a system malfunction.■
Tire life
Any tire over 6 years old must be checked by a qualified technician even
if they have seldom or never been used or damage is not obvious.■
Routine tire inflation pressure checks
The tire pressure warning system doe s not replace routine tire inflation
pressure checks. Make sure to check tire inflation pressure as part of
your routine of daily vehicle checks.■
If the tread wears down below 0.16 in. (4 mm) on snow tires
The effectiveness of snow tires is lost.
■
Maximum load of tire
Check that the number given by di viding the maximum load by 1.10 of
the replacement tire is greater than 1/2 of the Gross Axle Weight Ratings
(GAWR) of either the front axle or the rear axle, whichever is greater.
For the GAWR, see the Certification
Label. For the maximum load of the
tire, see the load limit at maximum cold
tire inflation pressure mentioned on the
sidewall of the tire. (  P. 630)

5094-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) ■
Tire types
1 Summer tires
Summer tires are high-speed performance tires best suited to highway
driving under dry conditions. Since summer tires do not have the same
traction performance as snow tire s, summer tires are inadequate for
driving on snow-covered or icy roads. For driving on snow-covered
roads or icy roads, the use of snow tires is recommended. When
installing snow tires, be sure to replace all four tires.
2 All season tires
All season tires are designed to provide better traction in snow and to
be adequate for driving in most winter conditions, as well as for use
year round. All season tires, however, do not have adequate traction
performance compared with snow tires in heavy or loose snow. Also,
all season tires fall short in acceleration and handling performance
compared with summer tires in highway driving.
3Snow tires
For driving on snow-covered roads or icy roads, we recommend using
snow tires. If you need snow tires, select tires of the same size, con-
struction and load capacity as the or iginally installed tires. Since your
vehicle has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires without
first checking local regulations for possible restriction. Snow tires
should be installed on all wheels. (  P. 276)

5104-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) ■
Tire pressure warning system certification
For vehicles sold in the U.S.A ., Guam, Saipan, American Samoa and
Puerto Rico
FCC ID: PAXPMV107J
NOTE
This device complies with part 15 of the FCC Rules. Operation is sub-
ject to the following two condition s: (1) This device may not cause
harmful interference, and (2) this de vice must accept any interference
received, including interference that may cause undesired operation.
FCC WARNING
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
FCC ID: HYQ13BCX
NOTE:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this de vice must accept any interference
received, including interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
For vehicles sold in Canada
NOTE
Operation is subject to the followin g two conditions: (1) this device
may not cause interference, and (2) this device must accept any inter-
ference, including interference that may cause undesired operation of
the device.

5114-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) CAUTION■
When inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so
may cause damage to parts of the drive train, as well as dangerous han-
dling characteristics, which may lead to an accident resulting in death or
serious injury. ●
Do not mix tires of different makes, models or tread patterns. Also, do
not mix tires of remarkably different treadwear.●
Do not use tire sizes other than those recommended by Toyota.●
Do not mix differently constructed tires (radial, bias-belted, or bias-ply
tires).●
Do not mix summer, all season and winter tires.●
Do not use tire that have been used on another vehicle.
Do not use tires if you do not know they were used previously.●
Do not tow the vehicle with the compact spare tire installed.

5124-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) NOTICE■
Repairing or replacing tires, wheels, tire pressure warning valves,
transmitters and tire valve caps ●
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled cor-
rectly.●
When replacing tire valve caps, do not use tire valve caps other than
those specified. The cap may become stuck.■
To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid se alants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire (  P. 507)■
Driving on rough roads
Take particular care when driving on roads with loose surfaces or pot-
holes.
These conditions may cause losses in tire inflation pressure, reducing
the cushioning ability of the tires. In addition driving on rough roads may
cause damage to the tires themselves, as well as the vehicle’s wheels
and body.■
If tire inflation pressures become low while driving
Do not continue driving, or your tires and/or wheels may be ruined.
