2016 TOYOTA VENZA fuel cap

TABLE OF CONTENTS Index
2
VENZA_OM_OM73030U_(U) 1-1. Key information
Keys ..................................... 28
1-2. Opening, closing and
locking the doors
Smart key system................. 30
Wireless remote control ....... 45
Side doors ............................ 50
Back door ............................. 56
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ........................... 67
Rear seats ............................ 70
Driving position memory....... 73
Head restraints ..................... 78
Seat belts ............................. 81
Steering wheel ..................... 88
Inside rear view mirror.......... 89
Outside rear view mirrors ..... 92 1-4. Opening and closing
the windows and moon roof
Power windows..................... 96
Moon roof ........................... 100
Sunshade ........................... 104
1-5. Refueling
Opening the fuel tank
cap .................................... 105
1-6. Theft deterrent system
Engine immobilizer
system .............................. 109
Alarm .................................. 112
Theft prevention labels
(U.S.A.)............................. 116
1-7. Safety information
Correct driving posture ....... 117
SRS airbags ....................... 119
Front passenger occupant
classification system ......... 134
Child restraint systems ....... 140
Installing child restraints ..... 1461
Before driving For vehicles with an Entune Premium Au dio with Navigation or Entune Audio
Plus, refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL” for information regarding the equipment listed below.
• Navigation system • Audio system

Before driving
1
27
VENZA_OM_OM73030U_(U) 1-1. Key information
Keys ................................... 28
1-2. Opening, closing and
locking the doors
Smart key system .............. 30
Wireless remote
control .............................. 45
Side doors .......................... 50
Back door ........................... 56
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ......................... 67
Rear seats.......................... 70
Driving position memory .... 73
Head restraints................... 78
Seat belts ........................... 81
Steering wheel ................... 88
Inside rear view mirror ....... 89
Outside rear view
mirrors.............................. 92 1-4. Opening and closing the
windows and moon roof
Power windows .................. 96
Moon roof ......................... 100
Sunshade ......................... 104
1-5. Refueling
Opening the fuel tank
cap ................................. 105
1-6. Theft deterrent system
Engine immobilizer
system ........................... 109
Alarm................................ 112
Theft prevention labels
(U.S.A.) .......................... 116
1-7. Safety information
Correct driving posture..... 117
SRS airbags ..................... 119
Front passenger
occupant classification
system ........................... 134
Child restraint
systems.......................... 140
Installing child
restraints ........................ 146

105 1
Before driving

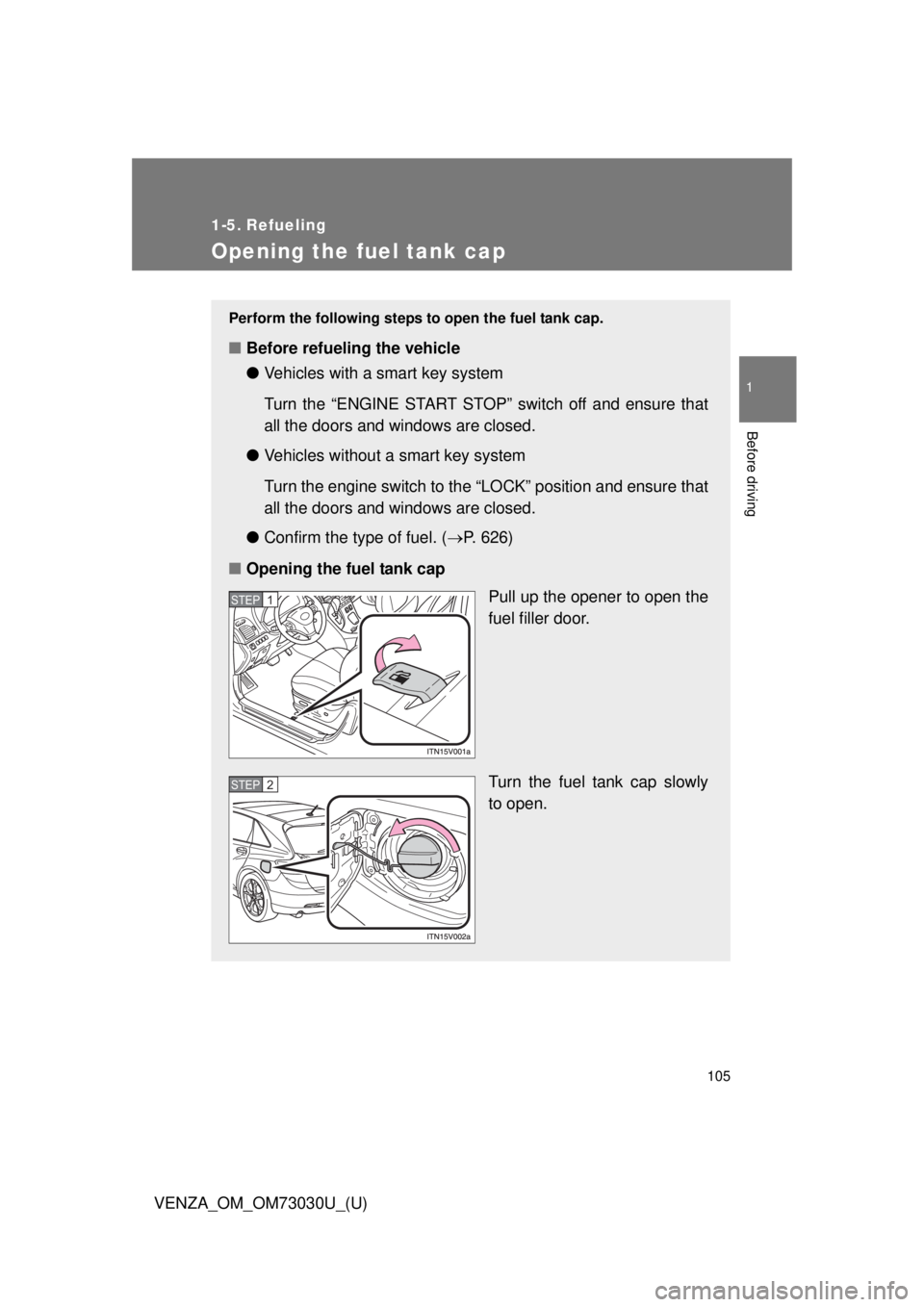

VENZA_OM_OM73030U_(U) 1-5. Refueling
Opening the fuel tank cap Perform the following steps to open the fuel tank cap.
■ Before refueling the vehicle
● Vehicles with a smart key system
Turn the “ENGINE START STOP” switch off and ensure that
all the doors and windows are closed.
● Vehicles without a smart key system
Turn the engine switch to the “LOCK” position and ensure that
all the doors and windows are closed.
● Confirm the type of fuel. (  P. 626)
■ Opening the fuel tank cap
Pull up the opener to open the
fuel filler door.
Turn the fuel tank cap slowly
to open.STEP 1
STEP 2

1061-5. Refueling
VENZA_OM_OM73030U_(U) Closing the fuel tank cap
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction. Hang the fuel tank cap on the
back of the fuel filler door.STEP 3
■ Fuel types
 P. 626
■ Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.

1071-5. Refueling
1
Before driving
VENZA_OM_OM73030U_(U) CAUTION■ When refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so may result in death or serious injury.
● After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any st atic electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out the filler neck and cause
injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.

1081-5. Refueling
VENZA_OM_OM73030U_(U) CAUTION■ When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
● Securely insert the fuel nozzle into the fuel filler neck
● Stop filling the tank after the fuel nozzle automatically clicks off
● Do not top off the fuel tank
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
NOTICE■ Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

2692-5. Driving information
2
When driving
VENZA_OM_OM73030U_(U) Cargo and luggage Take notice of the following information about storage precau-
tions, cargo capacity and load.
● Stow cargo and luggage in the luggage compartment when-
ever possible. Be sure all items are secured in place.
● Be careful to keep the vehicle le vel. Placing the weight as far
forward as possible helps maintain vehicle balance.
● For better fuel economy, do no t carry unnecessary weight.

4824-2. Maintenance
VENZA_OM_OM73030U_(U) Emission inspection and maintenance (I/M) programs Some states have vehicle emissi on inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system moni-
tors the operation of th e emission control system.
■ If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere
in the emission control system. Your vehicle may not pass the I/
M test and may need to be repaired. Contact your Toyota dealer
to service the vehicle.
■ Your vehicle may not pass the I/M test:
● When the battery is disconnected or discharged
Readiness codes that are se t during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal-
function and your vehicle may not pass the I/M test.
■ When the malfunction indicator lamp goes off after several
driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Toyota dealer to prepare the vehicle for re-testing.
