2016 TOYOTA VENZA Owners Manual

4493-5. Other interior features
3
Interior features
VENZA_OM_OM73030U_(U) Seat heaters 
 : If equipped■ The seat heaters can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position. For driver’s seat
For front passenger’s seat
On The indicator light comes on.
Adjusts the seat tempera-
ture The further you turn the dial
upward, the warmer the seat
becomes.

4503-5. Other interior features
VENZA_OM_OM73030U_(U) CAUTION■ Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE■ To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.

4513-5. Other interior features
3
Interior features

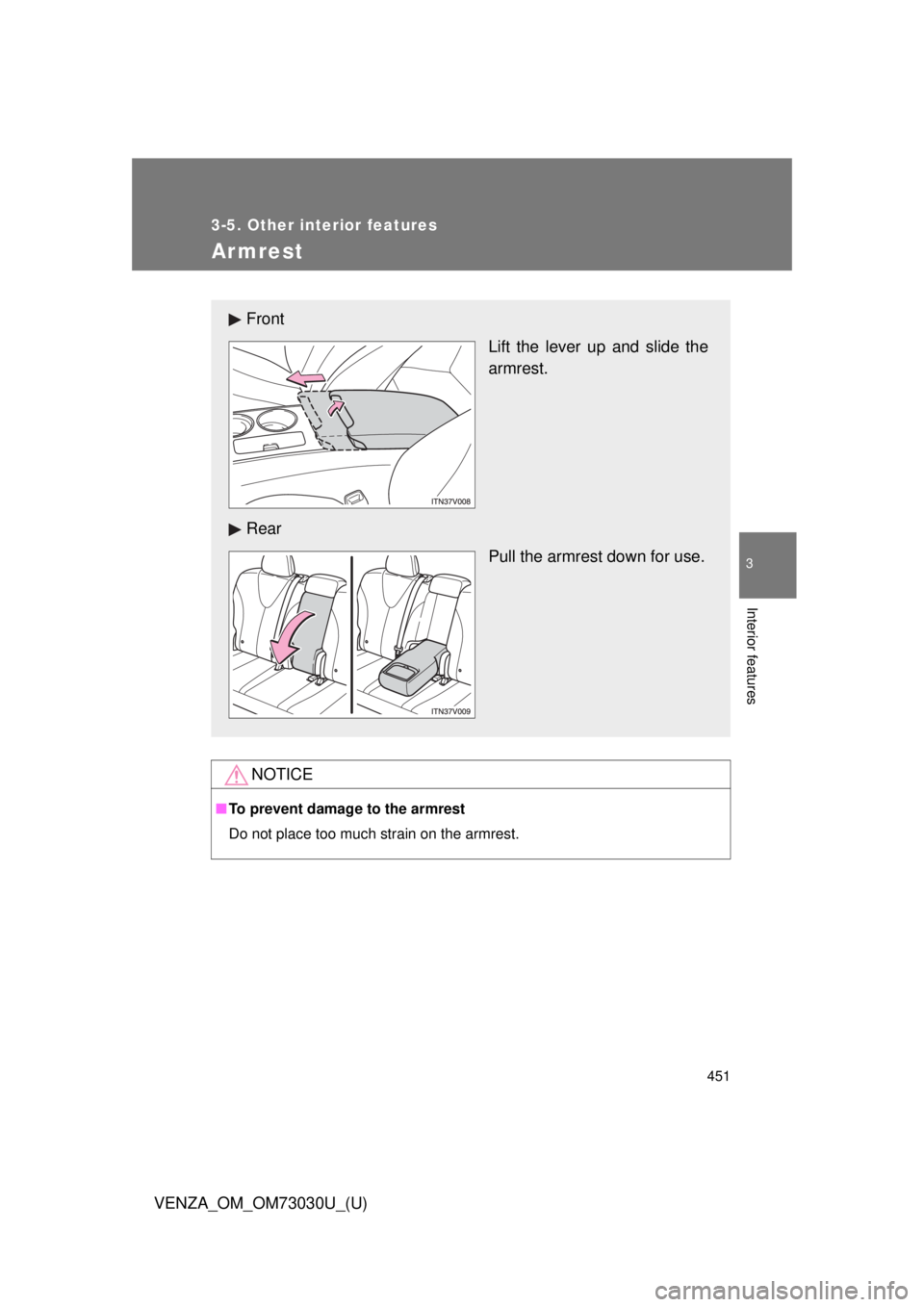

VENZA_OM_OM73030U_(U) Armrest
NOTICE■ To prevent damage to the armrest
Do not place too much strain on the armrest.Front
Lift the lever up and slide the
armrest.
Rear
Pull the armrest down for use.

4523-5. Other interior features
VENZA_OM_OM73030U_(U)Assist grips (folding type)
CAUTION■ Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE■ To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.An assist grip installed on the cei ling can be used to support your
body while sitting on the seat.

4533-5. Other interior features
3
Interior features

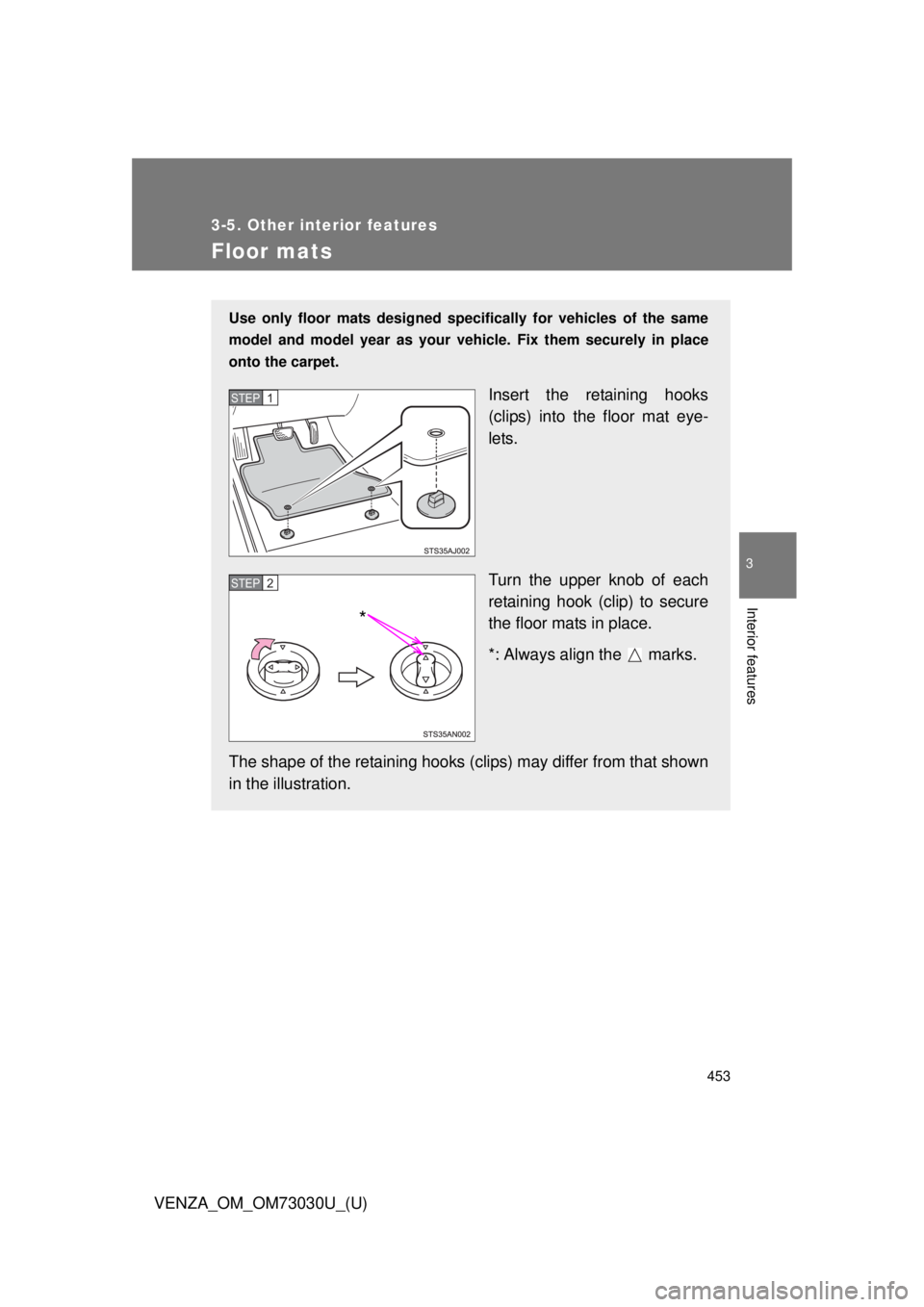

VENZA_OM_OM73030U_(U) Floor mats Use only floor mats designed speci fically for vehicles of the same
model and model year as your vehic le. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clip s) may differ from that shown
in the illustration. STEP 1
STEP 2
*

4543-5. Other interior features
VENZA_OM_OM73030U_(U) CAUTIONObserve the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

4553-5. Other interior features
3
Interior features
VENZA_OM_OM73030U_(U) Luggage compar tment features ■ Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Shopping bag hooks
■ Auxiliary box
Lift the right side deck board.

4563-5. Other interior features
VENZA_OM_OM73030U_(U) Removing luggage cover
Retract the cover and release
both ends, then lift it out. After removing the luggage cover,
place it somewhere other than the
passenger compartment.■ Luggage cover
Pull out the luggage cover and
hook it on the anchors.
CAUTION■ When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
■ While driving
Do not place anything on the luggage cover. Such items may be thrown
about and possibly injure people in the vehicle during sudden braking, sud-
den swerving or an accident.
