2016 TOYOTA VENZA Owners Manual

5
When trouble arises
5775-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) CAUTIONYour vehicle has also been equipped with a TPMS (tire pressure warning
system) malfunction indicator to indi cate when the system is not operat-
ing properly. The TPMS (tire pressure warning system) malfunction indi-
cator is combined with the low tire pressure telltale (tire pressure
warning light). When the system det ects a malfunction, the telltale will
flash for approximately one minute an d then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups as
long as the malfunction exists. When the malfunction indi cator is illumi-
nated, the system may not be able to detect or signal low tire pressure
as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installati on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE■
To ensure the tire pressure warning system operates properly
Do not install tires with different s pecifications or makers, as the tire
pressure warning system may not operate properly.

5785-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U)If a warning message is displayed 
 : If equippedThe multi-information display shows warnings of system malfunc-
tions or incorrectly performe d operations. When a message is
shown, perform corrections as indicated in the message.
Master warning light The master warning light comes on or flashes when a message is
being shown on the multi-information display.
Multi-informat ion display
Warning message
Correction procedure
■ Warning buzzer
A buzzer may sound when a warning message is shown on the
multi-informat ion display.
■ If the warning message is shown again after its correction
procedure has been performed
Contact your Toyota dealer as soon as possible.

5
When trouble arises
5795-2. Steps to take in an emergency

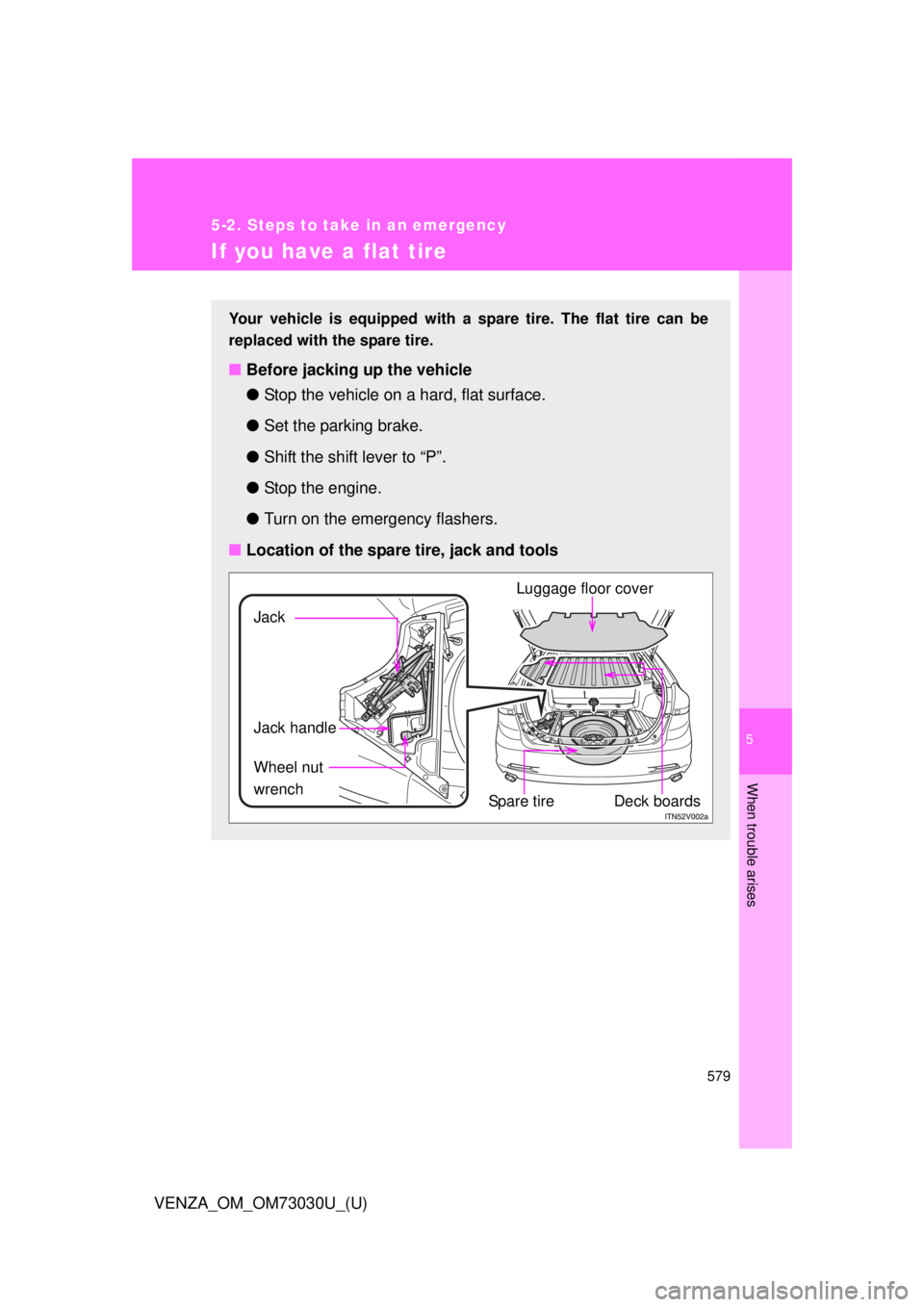

VENZA_OM_OM73030U_(U) If you have a flat tire Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
■ Before jacking up the vehicle
● Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to “P”.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Jack handleJack
Wheel nut
wrench
Spare tire
Deck boardsLuggage floor cover

5805-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) Taking out the jack
Remove the left side deck board.
Unlock the tightening strap.
After storing the jack, make
sure it is securely held by the
tightening strap.■ Compact spare tire
The compact spare tire saves space in your luggage compart-
ment, and its lighter weight helps to enhance fuel economy and
permits easier installation in case of a flat tire.
The compact spare tire is
designed for temporary emer-
gency use only.
STEP 1
STEP 2

5
When trouble arises
5815-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) Taking out the spare tire
Loosen the center fastener that
secures the spare tire.
Replacing a flat tire
Chock the tires.STEP 1
Flat tire Wheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire

5825-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.STEP 2
STEP 3
STEP 4

5
When trouble arises
5835-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) Remove all the wheel nuts and
the tire. When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face. If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the spare tire and loosely
tighten each nut by hand to
approximately the same amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel sheet.STEP 5
STEP 1
STEP 2
Tapered portion
Disc
wheel
sheet

5845-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration. Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools. STEP 3
STEP 4
STEP 5
