2016 TOYOTA VENZA Owners Manual

5
When trouble arises
6095-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) CAUTION■ If the engine has to be turned off while driving
● Power assist for the brake and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel. Vehicles with a smart key sys-
tem: To stop the engine, press
and hold the “ENGINE START
STOP” switch for 2 consecu-
tive seconds or more, or press
it briefly 3 times or more in
succession.
Stop the vehicle in a safe place by the road. STEP 4
Press and hold for 2 seconds or more,
or press briefly 3 times or more
STEP 5

6105-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U)

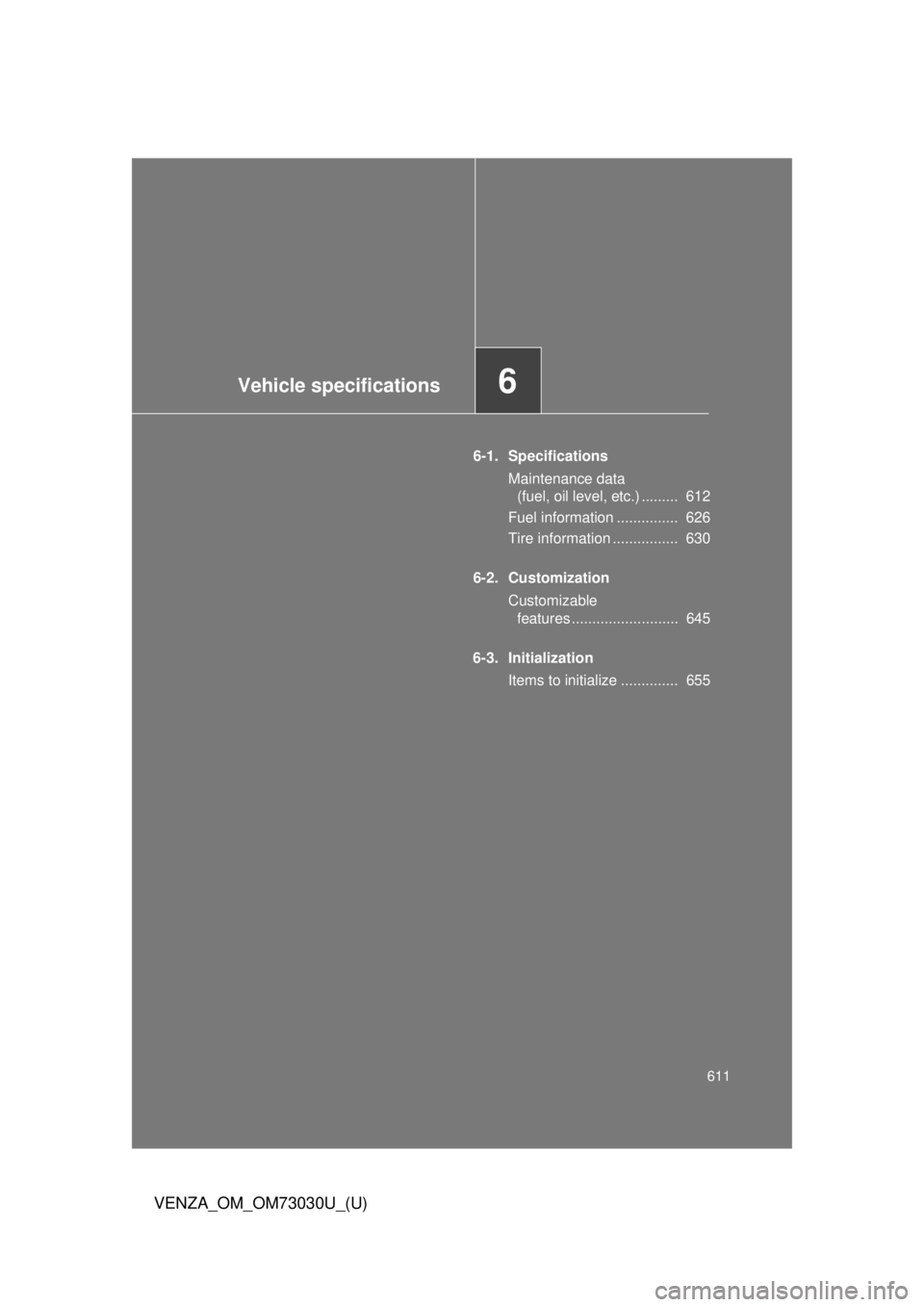

Vehicle specifications
6
611
VENZA_OM_OM73030U_(U) 6-1. Specifications
Maintenance data
(fuel, oil level, etc.) ......... 612
Fuel information ............... 626
Tire information ................ 630
6-2. Customization
Customizable
features .......................... 645
6-3. Initialization
Items to initialize .............. 655

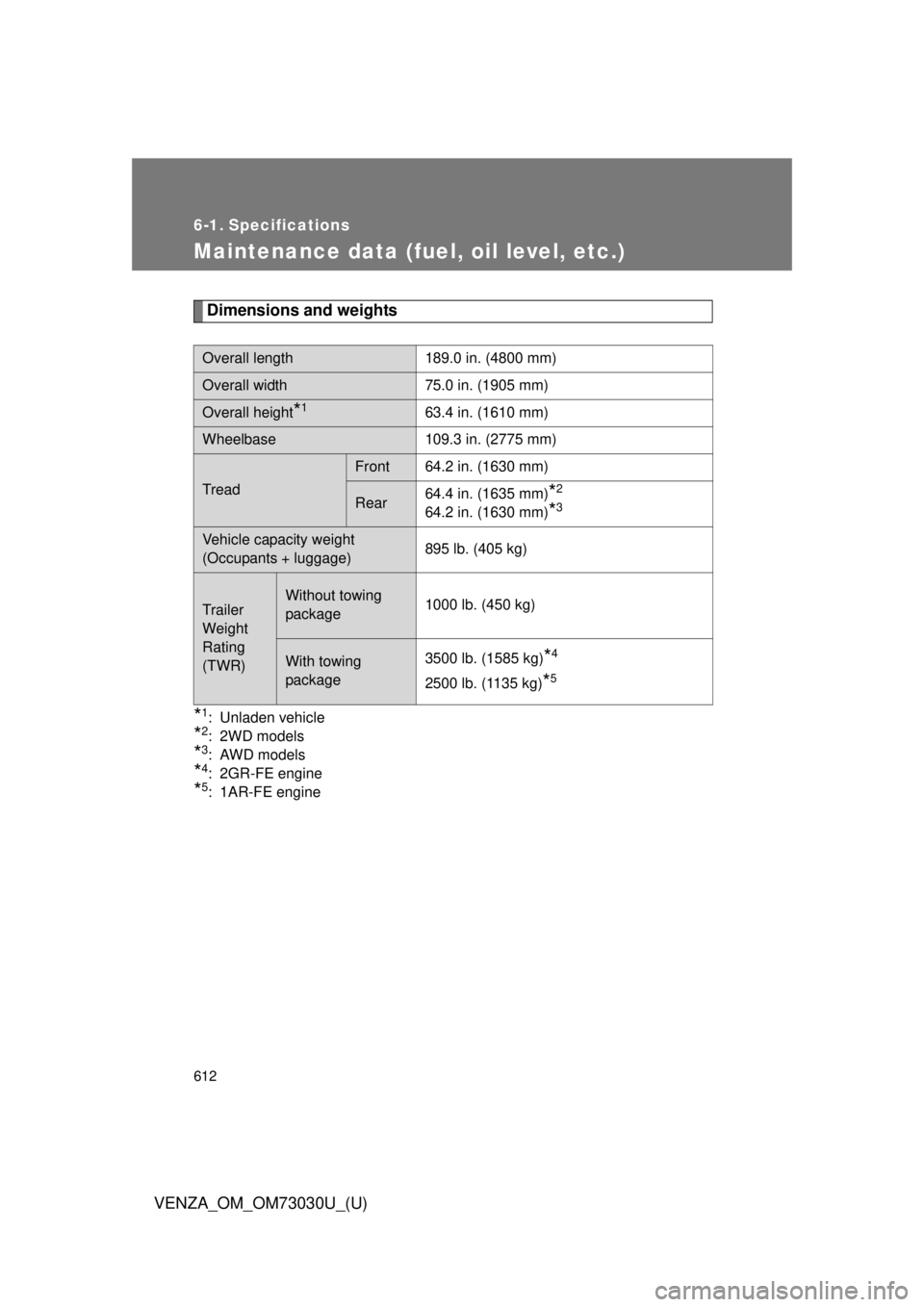

612
VENZA_OM_OM73030U_(U) 6-1. Specifications
Maintenance data (fuel, oil level, etc.) Dimensions and weights
* 1
: Unladen vehicle
* 2
: 2WD models
* 3
: AWD models
* 4
: 2GR-FE engine
* 5
: 1AR-FE engineOverall length 189.0 in. (4800 mm)
Overall width 75.0 in. (1905 mm)
Overall height
* 1
63.4 in. (1610 mm)
Wheelbase 109.3 in. (2775 mm)
Tread Front 64.2 in. (1630 mm)
Rear 64.4 in. (1635 mm)
* 2
64.2 in. (1630 mm)
* 3
Vehicle capacity weight
(Occupants + luggage) 895 lb. (405 kg)
Trailer
Weight
Rating
(TWR) Without towing
package 1000 lb. (450 kg)
With towing
package 3500 lb. (1585 kg)
* 4
2500 lb. (1135 kg)
* 5

6136-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73030U_(U) Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.

6146-1. Specifications
VENZA_OM_OM73030U_(U) ■ Engine number
2GR-FE engine
The engine number is stamped
on the engine block as shown.
1AR-FE engine

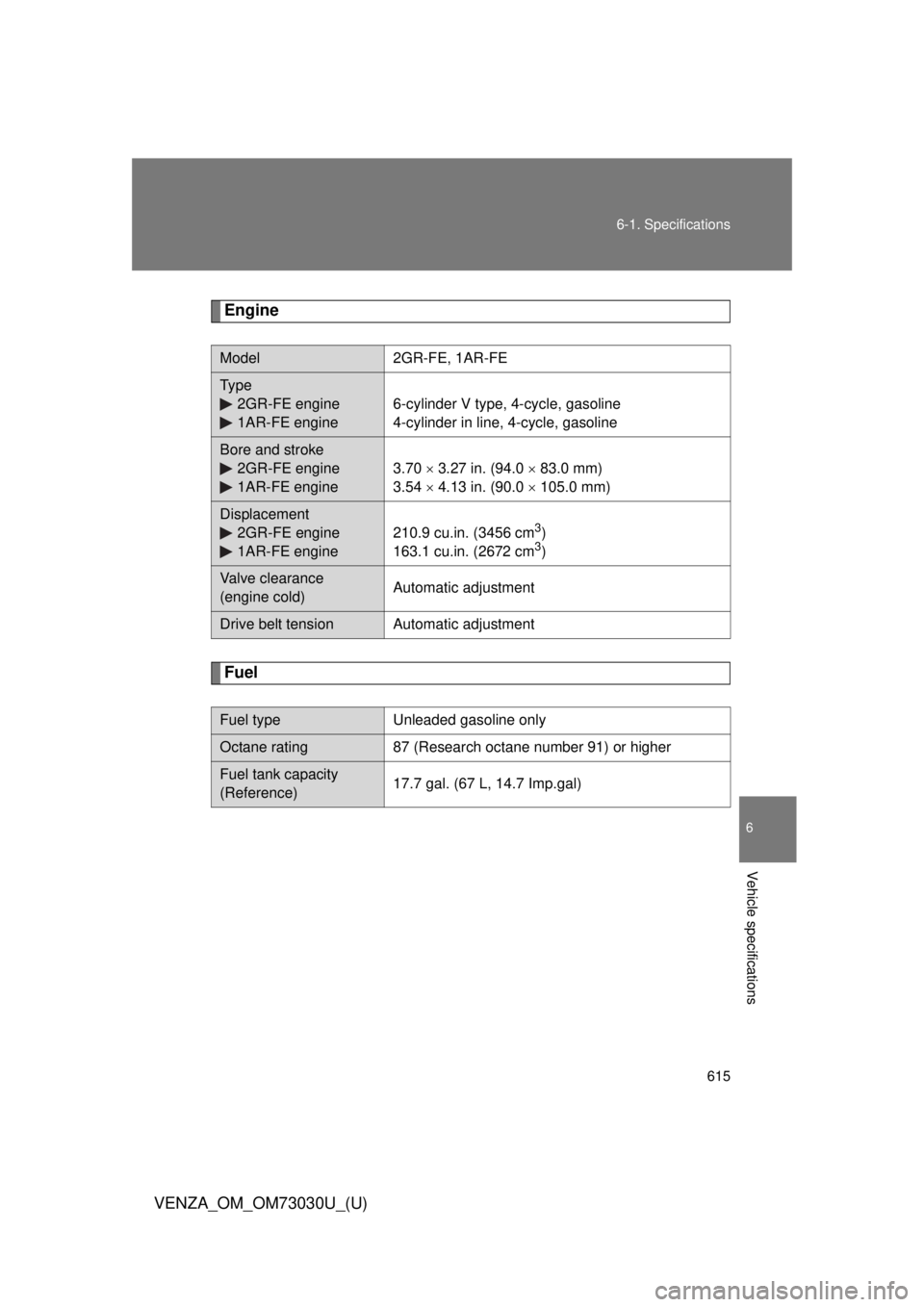

6156-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73030U_(U) Engine
Fuel Model 2GR-FE, 1AR-FE
Ty p e
2GR-FE engine
1AR-FE engine 6-cylinder V type, 4-cycle, gasoline
4-cylinder in line, 4-cycle, gasoline
Bore and stroke
2GR-FE engine
1AR-FE engine 3.70  3.27 in. (94.0  83.0 mm)
3.54  4.13 in. (90.0  105.0 mm)
Displacement
2GR-FE engine
1AR-FE engine 210.9 cu.in. (3456 cm 3
)
163.1 cu.in. (2672 cm 3
)
Valve clearance
(engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 87 (Research octane number 91) or higher
Fuel tank capacity
(Reference) 17.7 gal. (67 L, 14.7 Imp.gal)

6166-1. Specifications
VENZA_OM_OM73030U_(U) Lubrication system
* : The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil Oil capacity
(Drain and refill 
reference
* )
1AR-FE engine
2GR-FE engine Without filter: 4.2 qt. (4.0 L, 3.5 Imp.qt.)
With filter: 4.6 qt. (4.4 L, 3.9 Imp.qt.)
Without filter: 6.0 qt. (5.7 L, 5.0 Imp.qt.)
With filter: 6.4 qt. (6.1 L, 5.4 Imp.qt.)
