2016 TOYOTA VENZA Owners Manual

4653-5. Other interior features
3
Interior features
VENZA_OM_OM73030U_(U) Calibrating the compass
The direction display deviates fr om the true direction determined by
the earth’s magnetic field. The amoun t of deviation varies according
to the geographic position of the vehicle. If you cross over a map boundary shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to the following. Samoa: 5 Guam: 8 Saipan: 8

4663-5. Other interior features
VENZA_OM_OM73030U_(U) ■ Deviation calibration
Stop the vehicle where it is safe to drive in a circle.
Push and hold “AUTO” until a
number (1 to 15) appears on the
compass display.
Press “AUTO”, and referring to the map above, select the
number of the zone where you are.
Wait a few seconds until the compass direction is displayed. The calibration is complete.
■ Circling calibration
If “C” appears on the display,
drive the vehicle at 5 mph (8 km/
h) or less in a circle until a direc-
tion is displayed. If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.STEP 1
STEP 2
STEP 3
STEP 4

4673-5. Other interior features
3
Interior features
VENZA_OM_OM73030U_(U) ■ Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
● The vehicle is stopped immediately after turning.
● The vehicle is on an inclined surface.
● The vehicle is in a place where the earth’s magnetic field is subject to
interference by artificial magnetic fields (underground car park/parking
lot, under a steel tower, between buildings, roof car park/parking lot, near
an intersection, near a large vehicle, etc.).
● The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
● The battery has been disconnected.
CAUTION■ While driving
Do not adjust the display.
Be sure to adjust the display only when the vehicle is stopped.
■ When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the
neighborhood. Do not violate any local traffic rules while performing circling
calibration.

4683-5. Other interior features
VENZA_OM_OM73030U_(U) NOTICE■ To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause a malfunction of the compass sensor.
■ To ensure normal operation of the compass
● Do not perform circling calibration of the compass in a place where the
earth’s magnetic field is subject to inte rference by artificial magnetic fields.
● During calibration, do not operate elec tric systems (moon roof, power win-
dows, etc.) as they may interfere with the calibration.

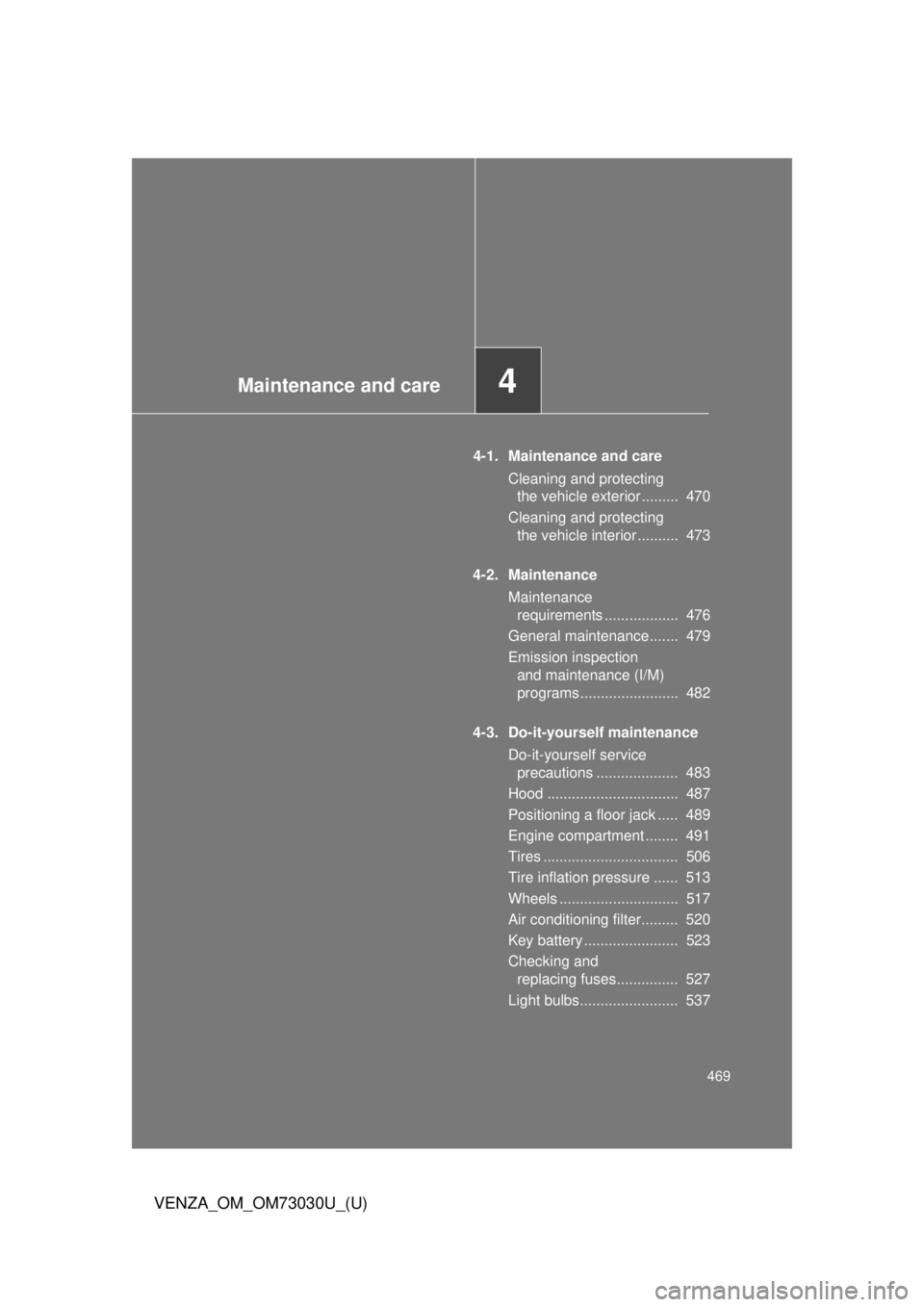

Maintenance and care
4
469
VENZA_OM_OM73030U_(U) 4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 470
Cleaning and protecting
the vehicle interior .......... 473
4-2. Maintenance
Maintenance
requirements .................. 476
General maintenance....... 479
Emission inspection
and maintenance (I/M)
programs........................ 482
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions .................... 483
Hood ................................ 487
Positioning a floor jack ..... 489
Engine compartment ........ 491
Tires ................................. 506
Tire inflation pressure ...... 513
Wheels ............................. 517
Air conditioning filter......... 520
Key battery ....................... 523
Checking and
replacing fuses ............... 527
Light bulbs........................ 537

470
VENZA_OM_OM73030U_(U) 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
■ Automatic car washes
● Before washing the vehicle, do the following.
• Fold the mirrors back.
• Turn the power back door system off.
● Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
■ High pressure car washes
● Do not allow the nozzles of the car wash to come within close proximity
of the windows.
● Before car wash, check that the fuel filler door is closed.Perform the following to protect the vehicle and maintain it in prime
condition.
● Working from top to bottom, liber ally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust. Wash the vehicle body using a sponge or soft cloth, such as a cham-
ois.
● For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates. If water does not bead on a clean surface, apply wax when the vehicle
body is cool.

4714-1. Maintenance and care
4
Maintenance and care
VENZA_OM_OM73030U_(U) ■ Aluminum wheels
● Remove any dirt immediately by using a neutral detergent. Do not use
hard brushes or abrasive cleaners. Do not use strong or harsh chemical
cleaners. Use the same mild detergent and wax as used on the paint.
● Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
● Wash detergent from the wheels immediately after use.
■ Bumpers and side moldings
Do not scrub with abrasive cleaners.
CAUTION■ Caution about the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled
sufficiently, as touching a hot exhaust pipe can cause burns.
NOTICE■ To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
● Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If you see coal tar or tree sap on the paint surface
• If you see dead insects, insect droppings or bird droppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzine and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.

4724-1. Maintenance and care
VENZA_OM_OM73030U_(U) NOTICE■ If the windshield washer nozzle become blocked
Contact your Toyota dealer. Do not try to clear it with a pin or other object.
This may damage the nozzle.
■ Cleaning the exterior lights
● Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
● Do not apply wax on the surface of the lights.
Wax may cause damage to the lenses.
■ To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side
wiper arm upward first, and repeat for the passenger side. When returning
the wipers to their original position, do so from the passenger side first.
■ When using a high pressure car wash
Do not bring the nozzle tip close to boots (rubber or resin manufactured
cover), connectors or the following parts. The parts may be damaged if they
come into contact with high-pressure water.
● Traction related parts
● Steering parts
● Suspension parts
● Brake parts
